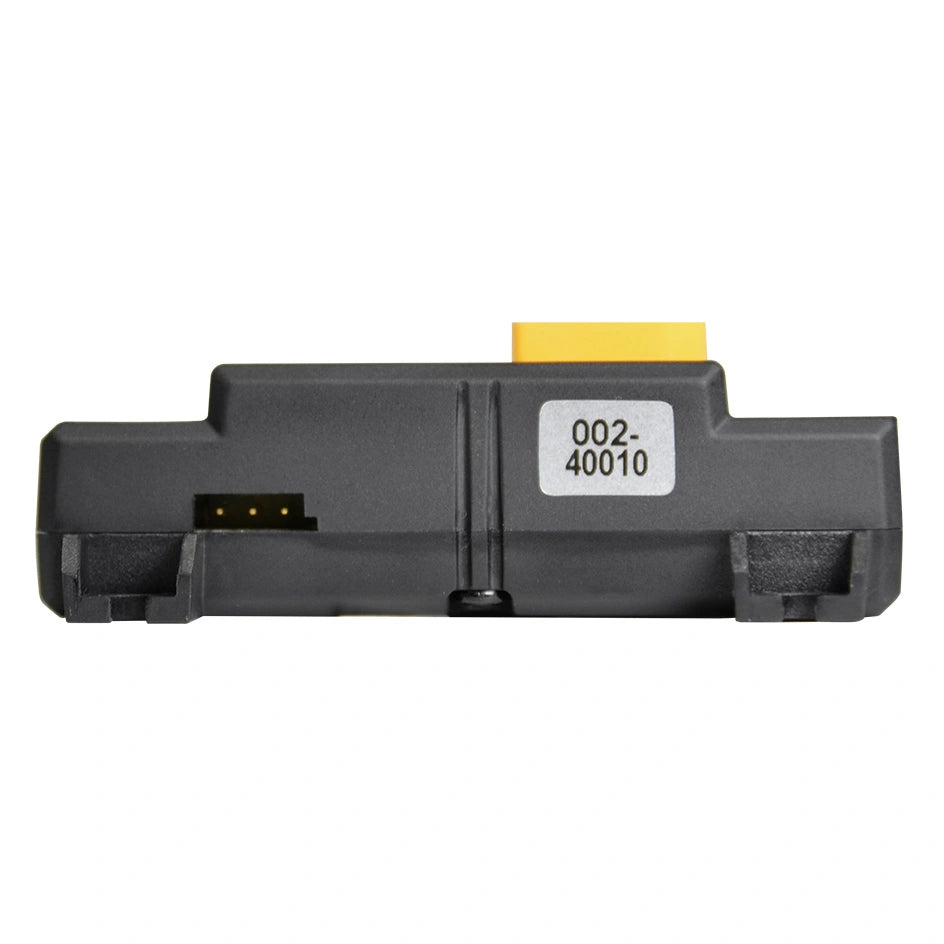

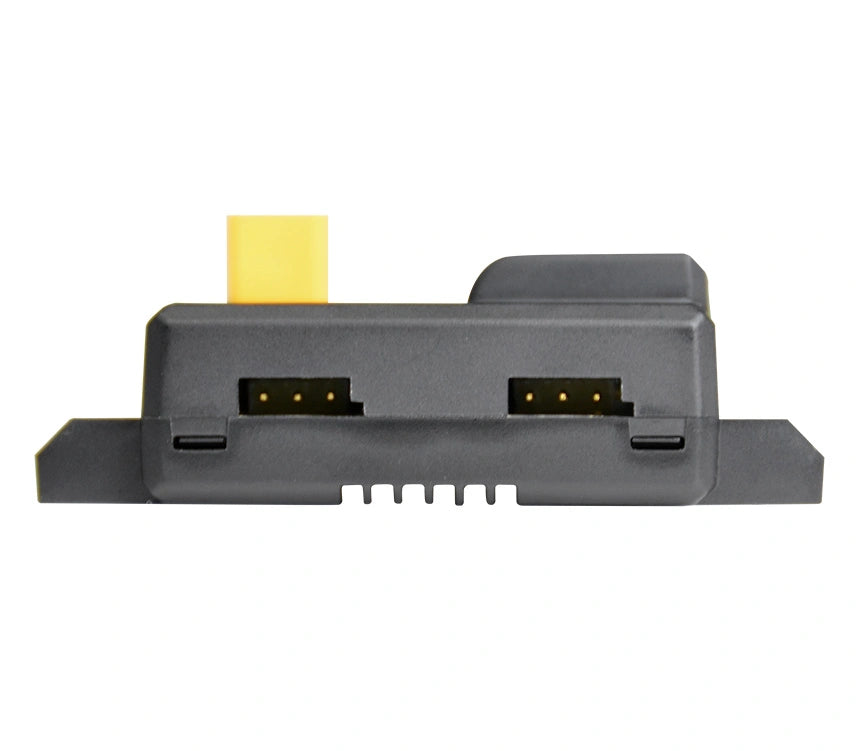

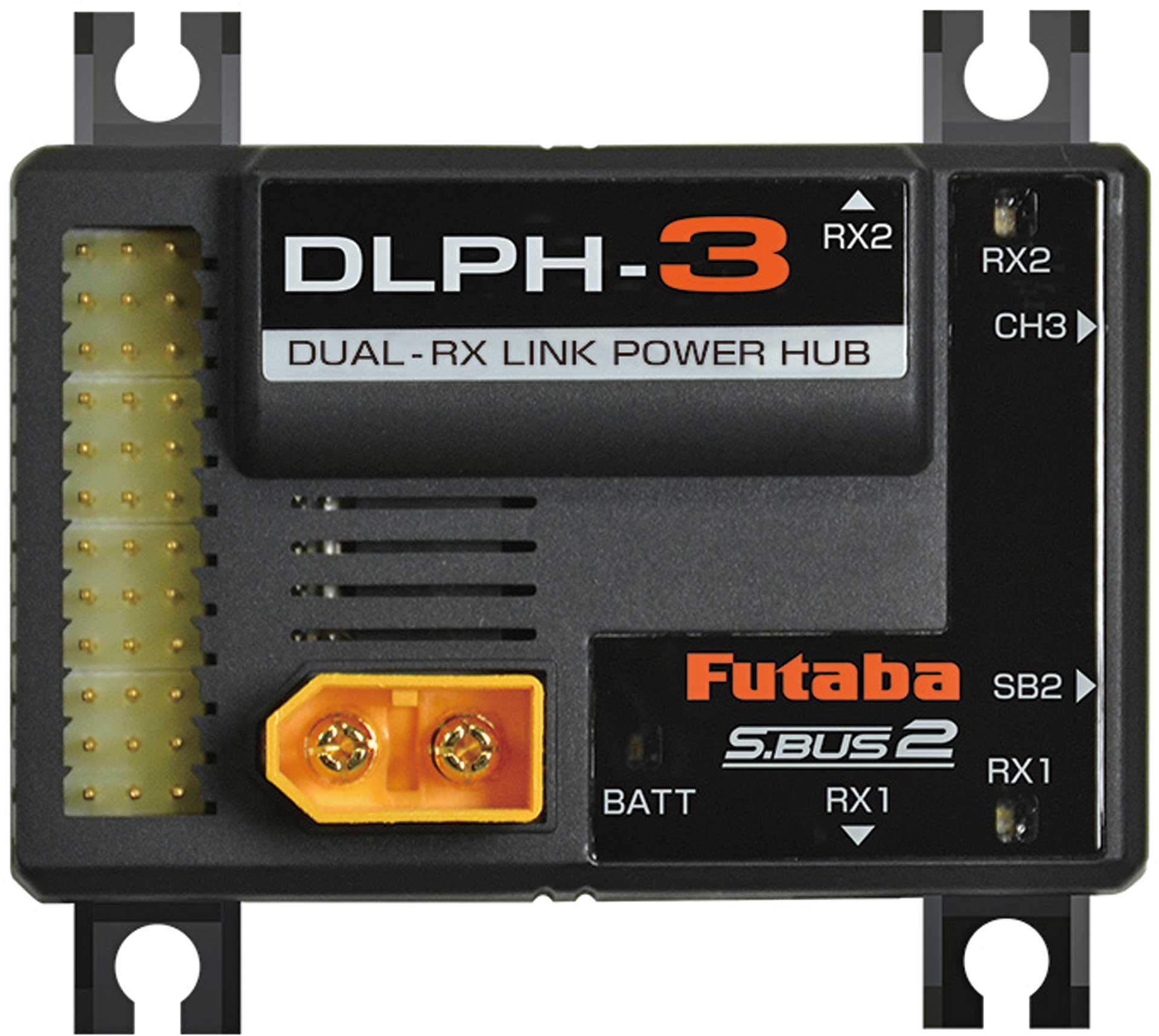

Futaba DLPH-3 Dual Receiver Link Power Hub
The Futaba DLPH-3 Dual Receiver Link Power Hub provides receiver redundancy and high-current power distribution for advanced RC aircraft installations. It connects one or two compatible Futaba S.BUS or S.BUS2 receivers to a single dedicated receiver/servo battery.
When operating with two properly linked receivers, the DLPH-3 automatically switches to the other receiver if one loses its signal. Its compact design, electronic power switch, telemetry support, and 60-amp continuous FET rating make it well suited for aircraft equipped with multiple high-current servos.
Operating Modes
- Single receiver operation
- Dual receiver operation
- Single receiver with Futaba GYA573 airplane gyro
- Dual receivers with Futaba GYA573 airplane gyro
Key Features
- Dual-Receiver Redundancy: Automatically switches to the other linked receiver if one receiver experiences a signal interruption.
- High-Current FET Circuit: Electronic power-switching circuitry rated for 60 amps continuous.
- Ten PWM Outputs: Ten physical PWM output ports with selectable channel ranges of 1–10, 11–20, or 21–24.
- Battery-Voltage Telemetry: Supports receiver-battery voltage monitoring through a compatible Futaba telemetry system and the main receiver.
- Multiple Battery Options: Supports properly configured 2S LiFe, 2S LiPo, and 3S LiPo battery systems.
- Status Indicators: Integrated LEDs display receiver signal and battery status.
Technical Specifications
| Application: | Receiver switching and power distribution system |
| Manufacturer Part Number: | 01102420-1 |
| Receiver Compatibility: | Futaba S.BUS and S.BUS2 aircraft receivers |
| PWM Outputs: | 10 ports |
| Operating Voltage: | 6.4–13.0 V DC |
| Supported Battery Types: | 2S LiFe, 2S LiPo, or 3S LiPo |
| FET Rating: | 60 A continuous |
| Dimensions: | 2.60 × 1.72 × 0.76 in. (66.0 × 43.6 × 19.3 mm) |
| Weight: | 1.22 oz. (34.6 g) |
Package Includes
- 1 × Futaba DLPH-3 Dual Receiver Link Power Hub
- 1 × Electronic switch
- 3 × Receiver connection cords
- Flange dampers
- Mounting eyelets and wood screws
Important Compatibility Information
- Both receivers must be linked to and controlled by the same transmitter.
- Do not combine receivers operating on different 2.4 GHz protocols.
- Receivers, servos, battery, telemetry sensors, and GYA573 gyro are not included.
