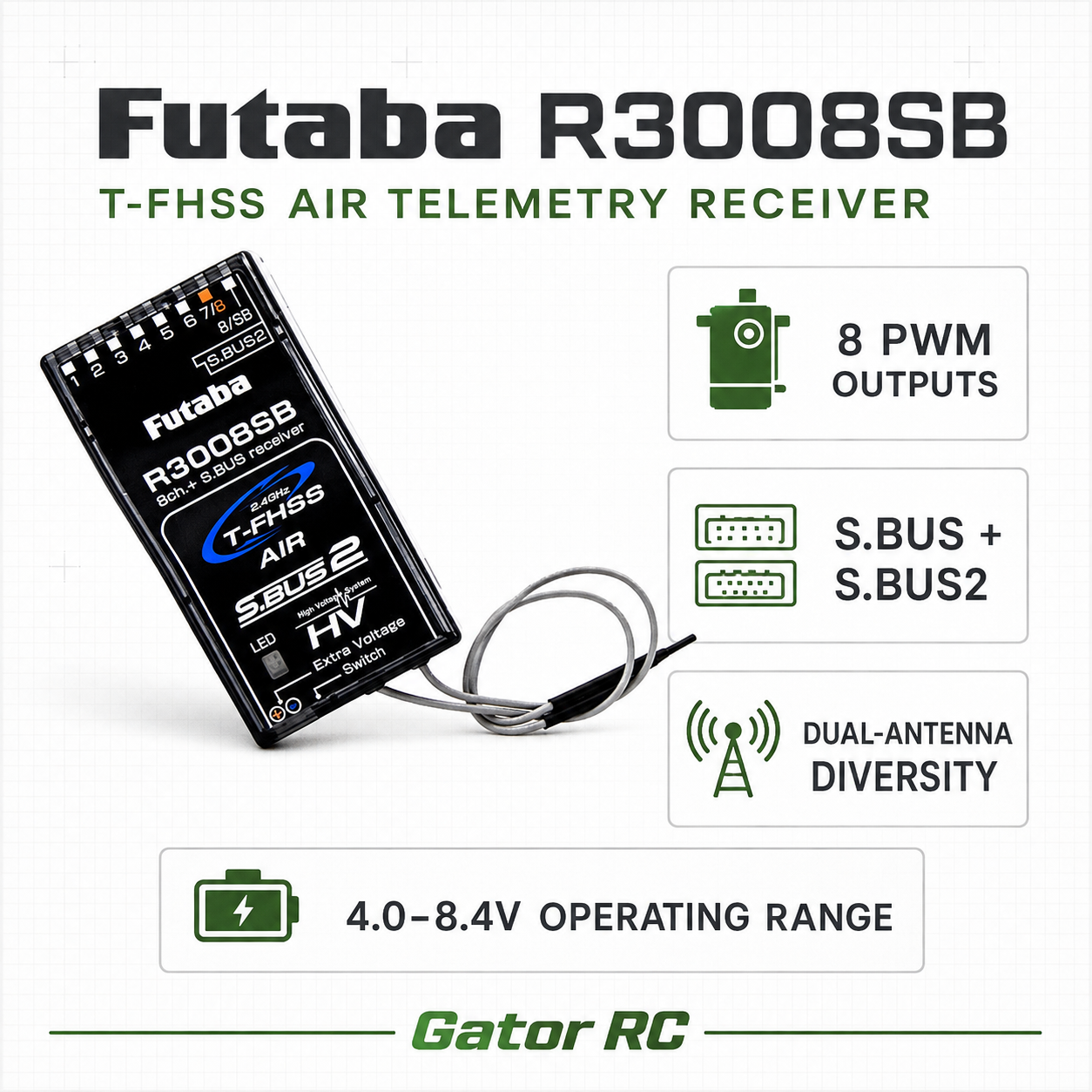

Futaba R3008SB 2.4 GHz T-FHSS Air 8-Channel S.BUS2 HV Telemetry Receiver
The Futaba R3008SB is an eight-channel, high-voltage receiver for compatible Futaba T-FHSS Air 2.4 GHz transmitters. It combines eight conventional PWM channel outputs with S.BUS and S.BUS2 connectivity, allowing conventional servos, S.BUS equipment, and compatible telemetry sensors to be incorporated into the same aircraft installation.
Bidirectional T-FHSS Air communication sends compatible telemetry data back to the transmitter, while dual-antenna diversity helps provide dependable signal reception. An external-voltage telemetry port can monitor a separate aircraft battery or power system up to 70 volts DC when used with the appropriate connection lead.
Key Features
- Futaba T-FHSS Air 2.4 GHz receiver
- Eight conventional PWM channel outputs
- Separate S.BUS and S.BUS2 connectivity
- Bidirectional telemetry communication
- Supports compatible Futaba S.BUS and S.BUS2 equipment
- Connect compatible telemetry sensors through the S.BUS2 port
- Dual-antenna diversity reception
- High-voltage compatible
- External-voltage telemetry input supporting 0–70 V DC
- Programmable battery failsafe voltage through a compatible transmitter
- Compact and lightweight design
- Designed for RC airplanes and helicopters
Technical Specifications
| Receiver Protocol: | Futaba T-FHSS Air 2.4 GHz |
| Conventional Outputs: | 8 PWM channels |
| Bus Connections: | S.BUS and S.BUS2 |
| Telemetry: | Yes, through compatible T-FHSS Air transmitters |
| Antenna System: | Dual-antenna diversity |
| Rated Voltage: | 4.8–7.4 V DC |
| Operating Voltage Range: | 4.0–8.4 V DC |
| External-Voltage Input: | 0–70 V DC for voltage monitoring |
| Dimensions: | 0.98 × 1.86 × 0.56 in. (24.9 × 47.3 × 14.3 mm) |
| Weight: | 0.36 oz. (10.1 g) |
| Applications: | RC airplanes and helicopters |
| Manufacturer Part Number: | 01102204-3 |
Flexible Output Configuration
The R3008SB provides multiple selectable output modes. Depending on the selected mode, its physical ports can provide channels 1–8, selected higher-numbered channels, or a combination of conventional PWM and S.BUS output.
The receiver’s S.BUS connection can carry the channels supported by the paired transmitter. This allows more than eight functions to be used through compatible S.BUS equipment even though the receiver has eight conventional PWM output ports.
Telemetry Capability
Compatible Futaba telemetry sensors connect through the dedicated S.BUS2 port. Available telemetry functions depend on the transmitter and installed sensors.
The receiver also includes an external-voltage input capable of monitoring a separate voltage source from 0 to 70 volts DC. The appropriate Futaba external-voltage connection lead is required and is sold separately.
Package Includes
- 1 × Futaba R3008SB T-FHSS Air receiver
- Instruction sheet
Transmitter, servos, battery, switch harness, telemetry sensors, S.BUS accessories, and external-voltage lead are sold separately.
