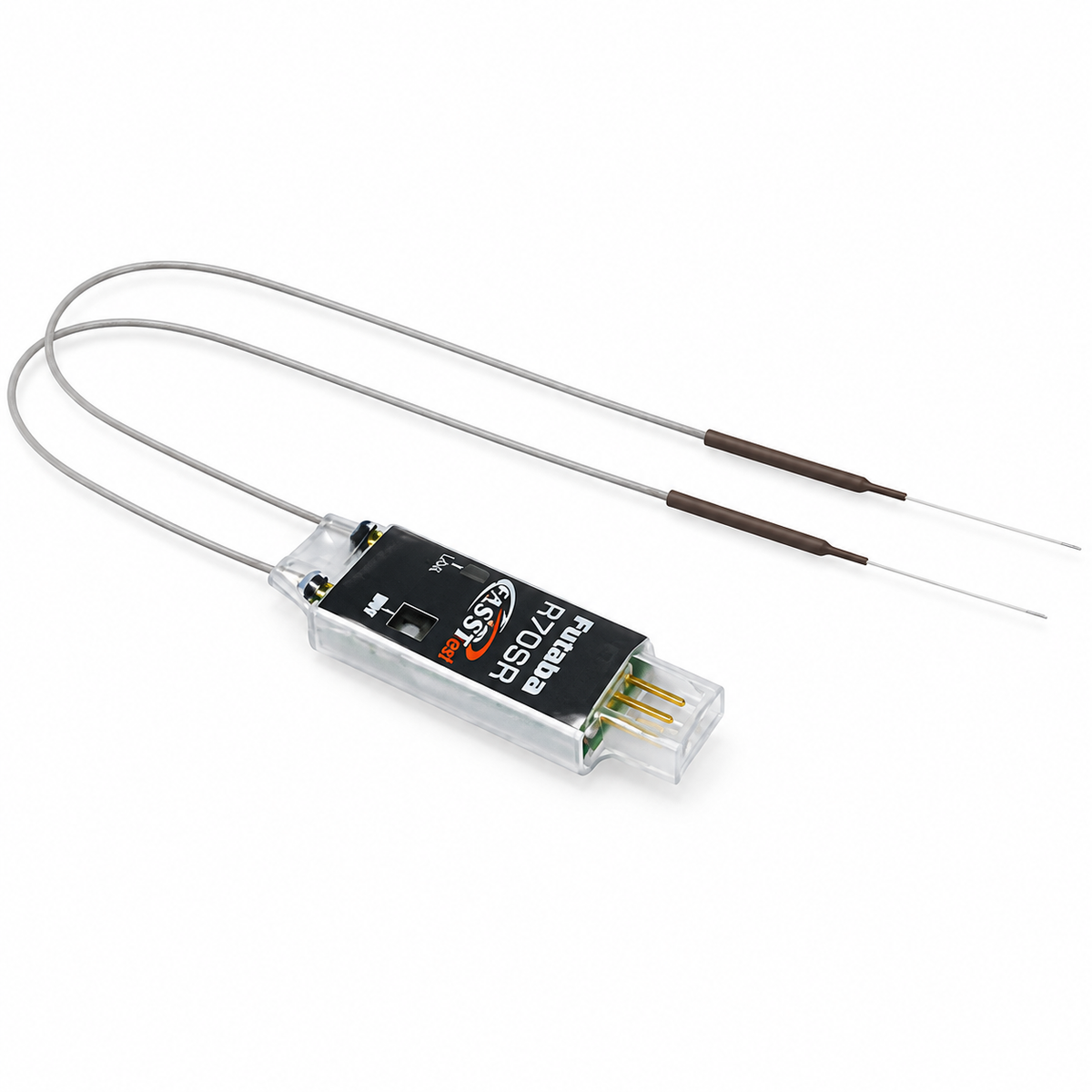

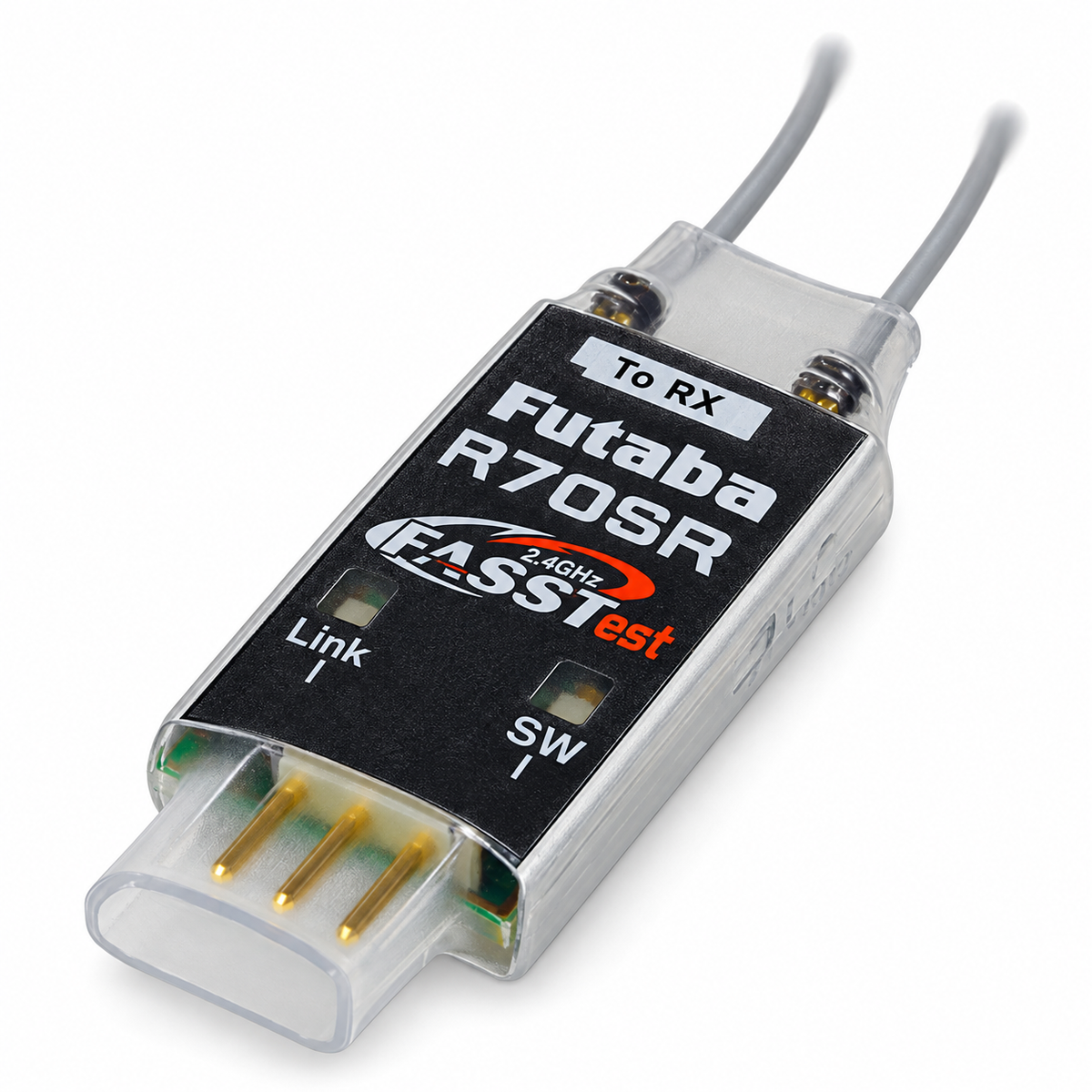

Futaba R70SR FASSTest 2.4GHz Backup Receiver
The Futaba R70SR adds a lightweight backup RF reception path to compatible Futaba Dual Rx Link systems. Its slim housing fits installations with limited space, while dual antenna diversity provides reception through two antennas. Weighing just 0.14 oz (3.9 g), the R70SR adds backup reception with minimal additional weight.
Designed for Dual Rx Link Backup Use
The R70SR works alongside compatible Futaba receiving equipment. It cannot operate servos directly and does not transmit telemetry. A compatible main receiver or supported unit and a female-to-female connection cable are required. The connection cable is sold separately.
Key Features
- FASSTest 2.4GHz: Supports FASSTest 26CH, 18CH, and 12CH system modes.
- Dual Rx Link backup: Provides an additional RF reception path for compatible Futaba systems.
- Dual antenna diversity: Uses two antennas for signal reception.

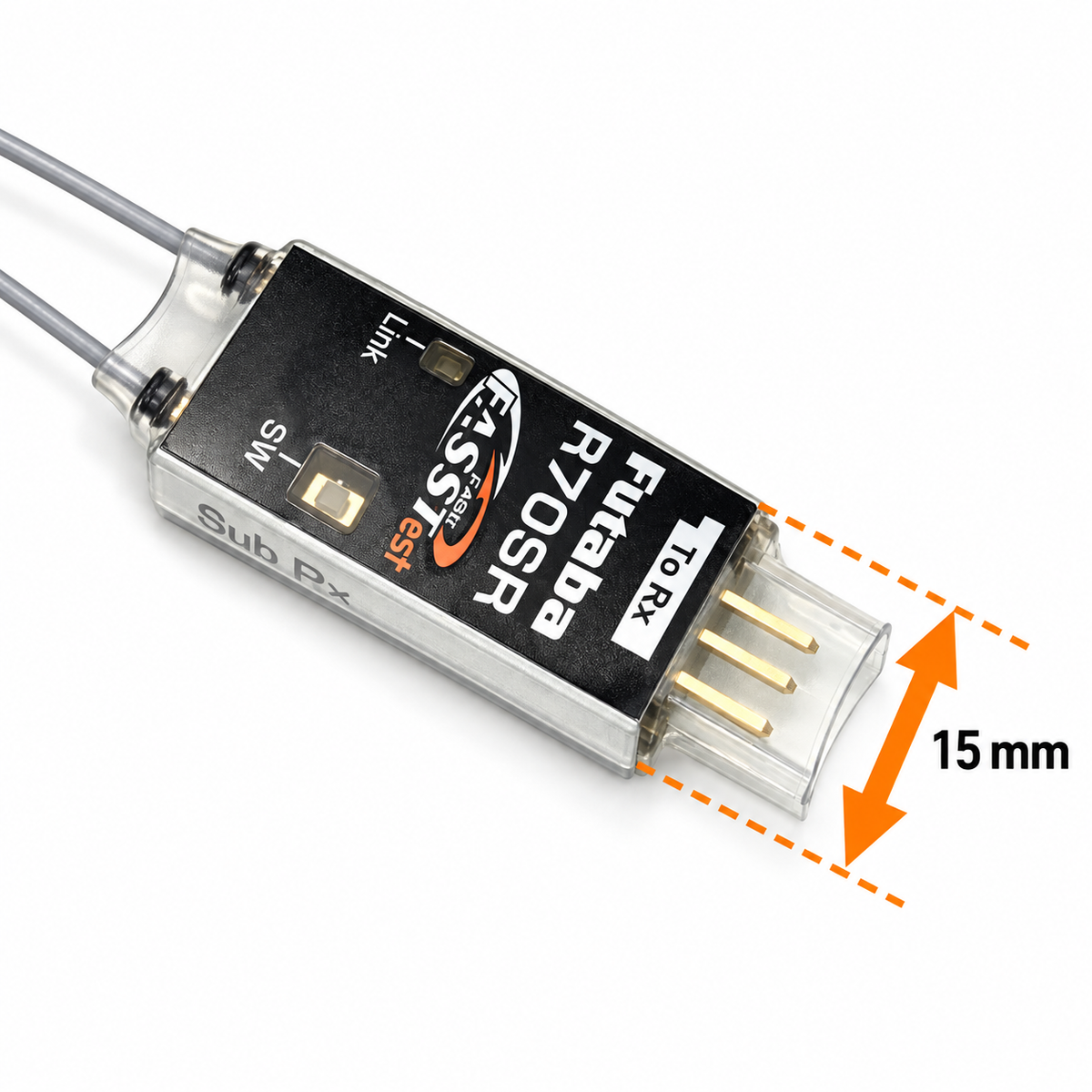

- Compact size: Measures 0.59 × 1.69 × 0.20 in (15.0 × 43.0 × 5.0 mm).
- Lightweight construction: Weighs only 0.14 oz (3.9 g).
Specifications
| Manufacturer | Futaba |
|---|---|
| Model | R70SR |
| Manufacturer Part Number | 01102426-1 |
| Receiver Function | Dual Rx Link backup receiver |
| Radio System | Futaba FASSTest 2.4GHz |
| Supported System Modes | 26CH / 18CH / 12CH |
| Antenna System | Dual antenna diversity |
| Dimensions | 0.59 × 1.69 × 0.20 in (15.0 × 43.0 × 5.0 mm) |
| Weight | 0.14 oz (3.9 g) |
| Power Requirement | 3.7–7.4V |
| Operating Voltage Range | 3.5–8.4V |
| Direct Servo Operation | Not supported |
| Telemetry Transmission | Not supported by the R70SR |
Compatibility
The R70SR requires a Futaba FASSTest 2.4GHz transmitter and compatible equipment supporting Dual Rx Link. Supported installations include applicable R72xxSB and R73xxSB receivers, CGY770R, and supported DLPH units.
Not compatible with DLPH-1 or FDLS-1. Update the main receiver or connected unit to the latest applicable firmware before installing the R70SR.
Required for Installation
- Compatible Futaba FASSTest transmitter.
- Compatible Dual Rx Link main receiver or supported unit.
- Female-to-female connection cable of a suitable length, sold separately.
- Suitable power supply within the specified voltage range.
Manufacturer Instructions
Follow Futaba’s instructions for installation, antenna placement, linking, and system verification.
- Manual Download
