Gator RC 2-Way Air Control Valve – 2-Port Retract Valve
Couldn't load pickup availability

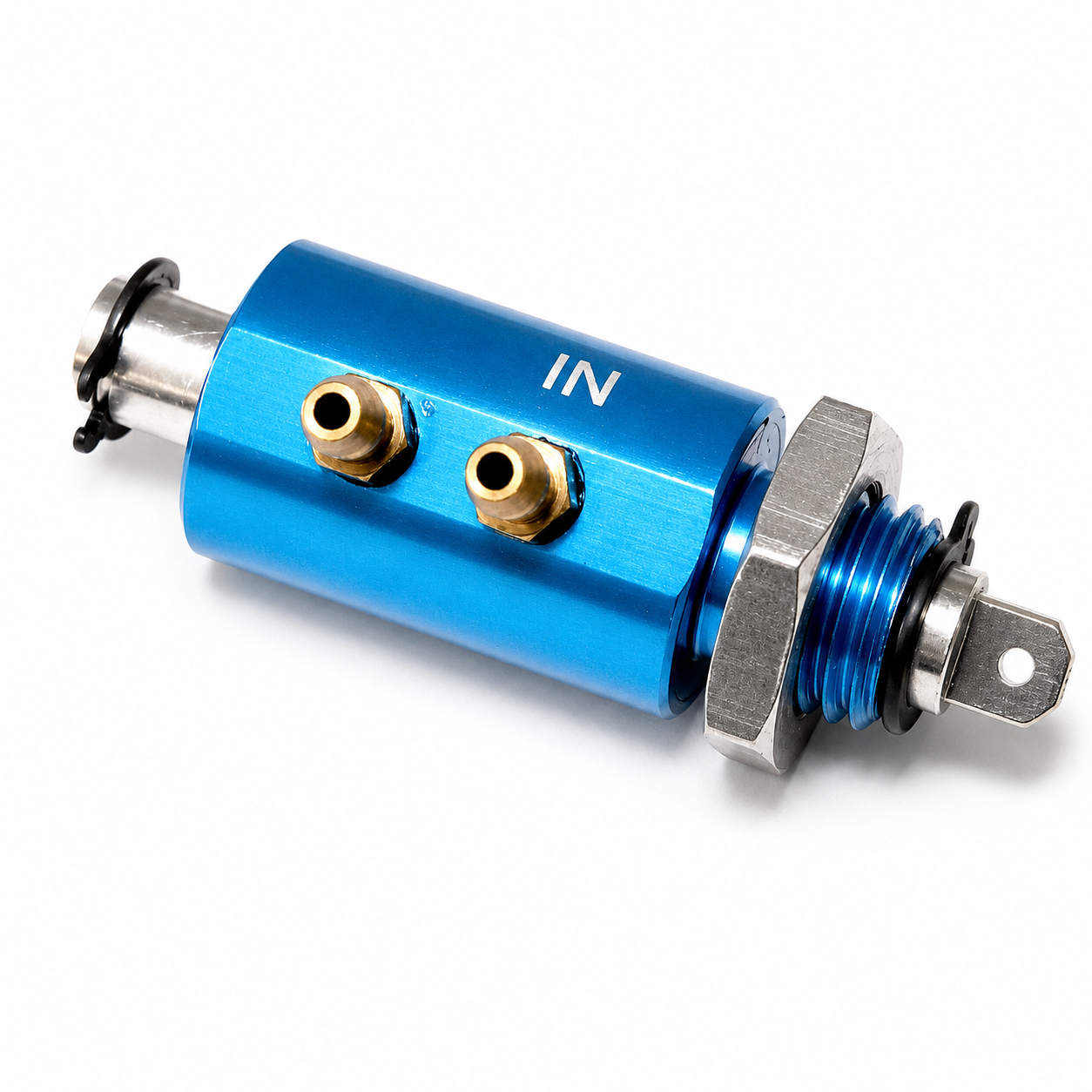

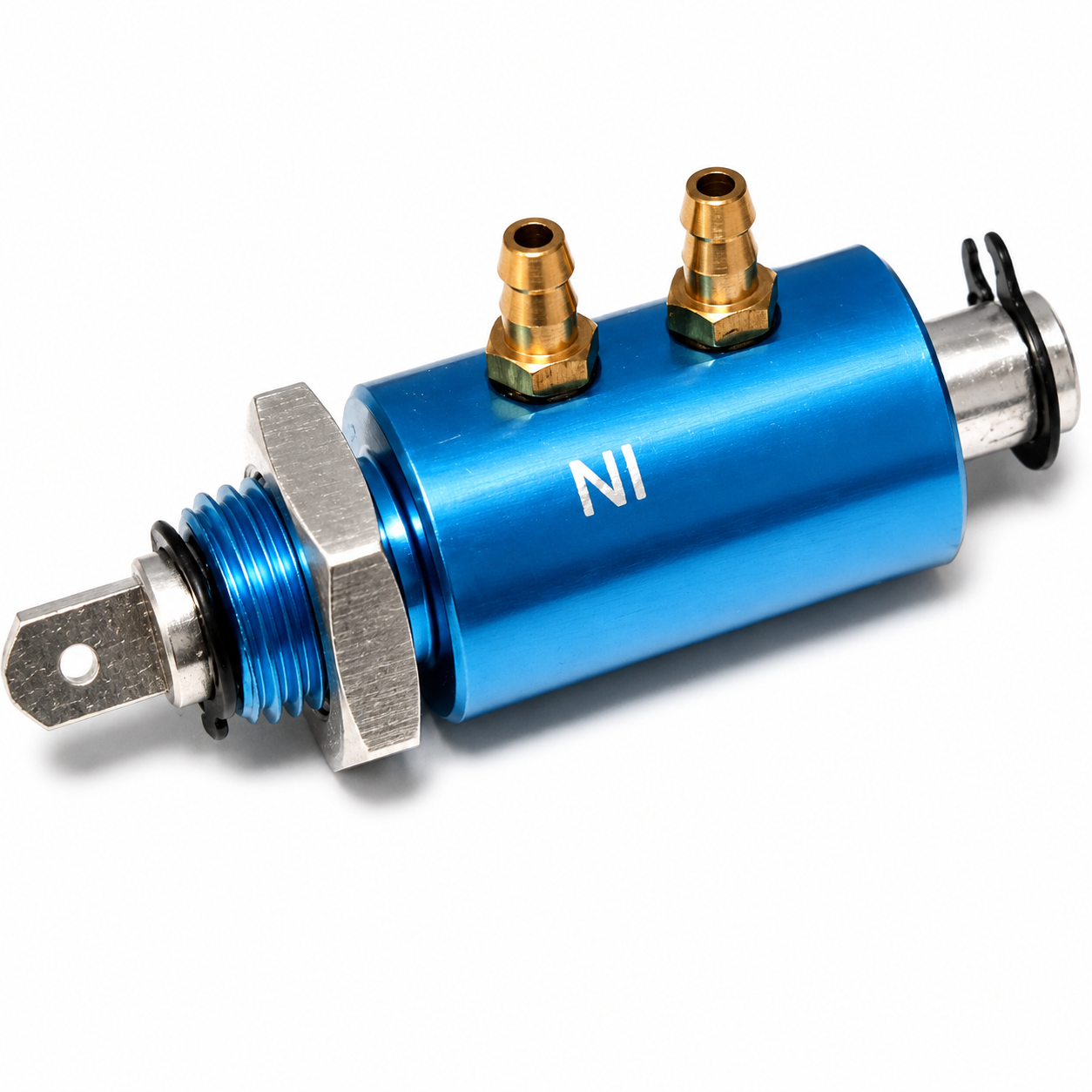

Gator RC 2-Way Air Control Valve for Air Retract Gear
A compact, lightweight pneumatic solution for reliable air retract operation.
The Gator RC 2-Way Air Control Valve is a professional-grade aluminum pneumatic valve specifically designed for RC airplanes utilizing air-operated landing gear. Featuring a unibody housing finished in a clean blue anodize, this valve offers a simple and robust solution for controlling airflow in systems where a small 2-port configuration is required.
✅ Best For:
- Pneumatic Retract Systems: Ideal for airflow control in sport and scale air setups.
- Compact Fuselages: Ultra-small footprint makes mounting easy in tight interior spaces.
- Weight-Sensitive Builds: At just 7 grams, it provides high durability without a weight penalty.
⚙️ Key Features
- 2-Way, 2-Port Design: Standard configuration for many pneumatic RC setups.
- Unibody Aluminum: CNC-machined housing for superior pressure sealing and long life.
- Anodized Finish: Durable blue finish resists corrosion and fuel residue.
- Smooth Actuation: Designed for reliable cycling with standard servo linkages.
View Technical Specifications
| Type: | 2-Way Air Control Valve |
| Ports: | 2 Ports |
| Material: | Unibody Aluminum Housing |
| Dimensions: | 45 x 12 x 12 mm / 1.77 x 0.47 x 0.47 in |
| Weight: | 7 g / 0.25 oz |
| Color: | Blue Anodized |
📦 Package Includes:
• (1) Gator RC 2-Way, 2-Port Aluminum Air Control Valve
💡 Gator-RC Modeler’s Tip

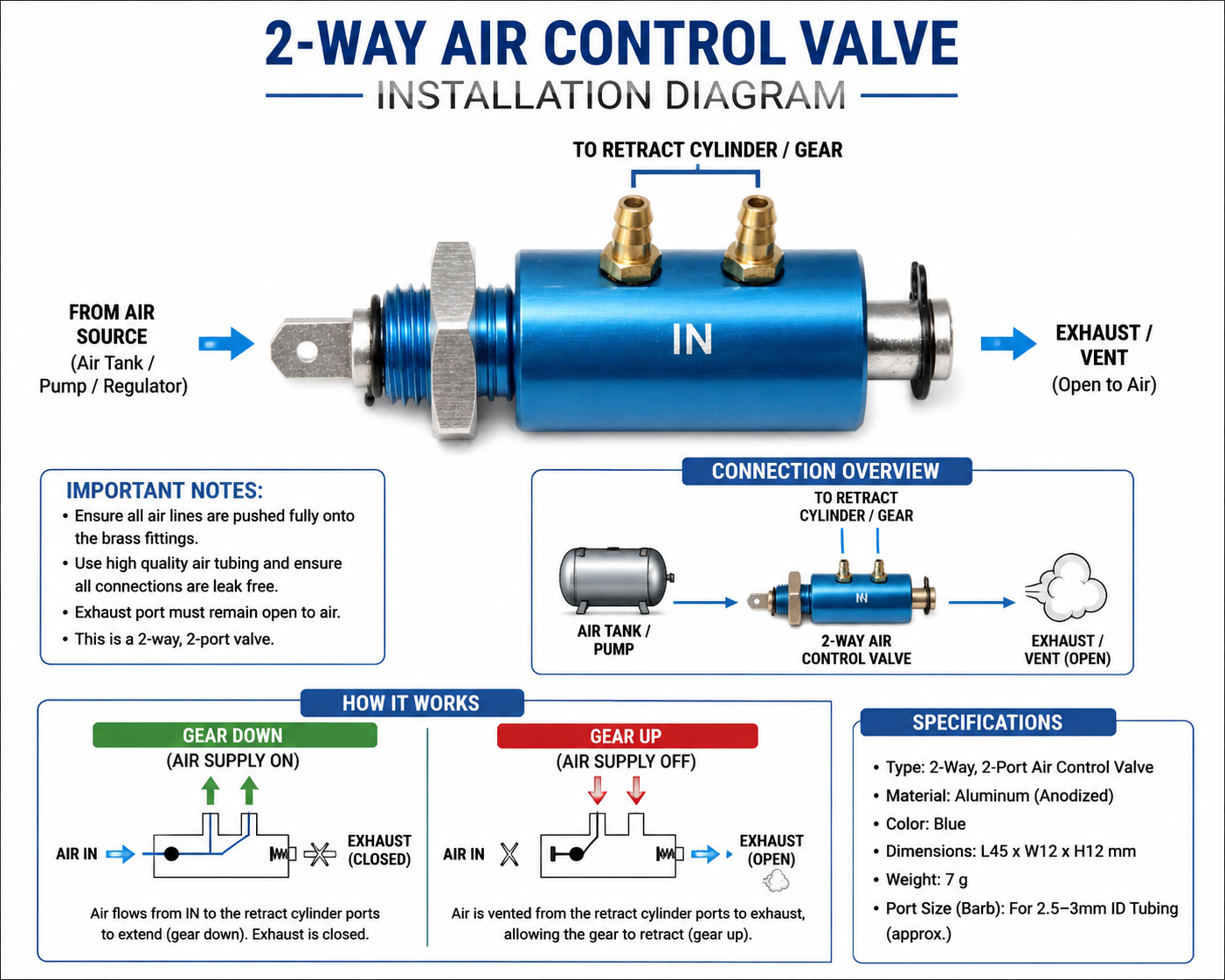

When plumbing your retract system, keep air lines as short and direct as possible to minimize pressure loss. We recommend performing a "soapy water test" on all tubing connections before flight—especially around the valve body and retract cylinders—to ensure a 100% leak-free setup.
The Gator-RC Advantage: High-quality pneumatic components designed for durability. Always confirm your retract system layout matches a 2-way, 2-port requirement before installation.
