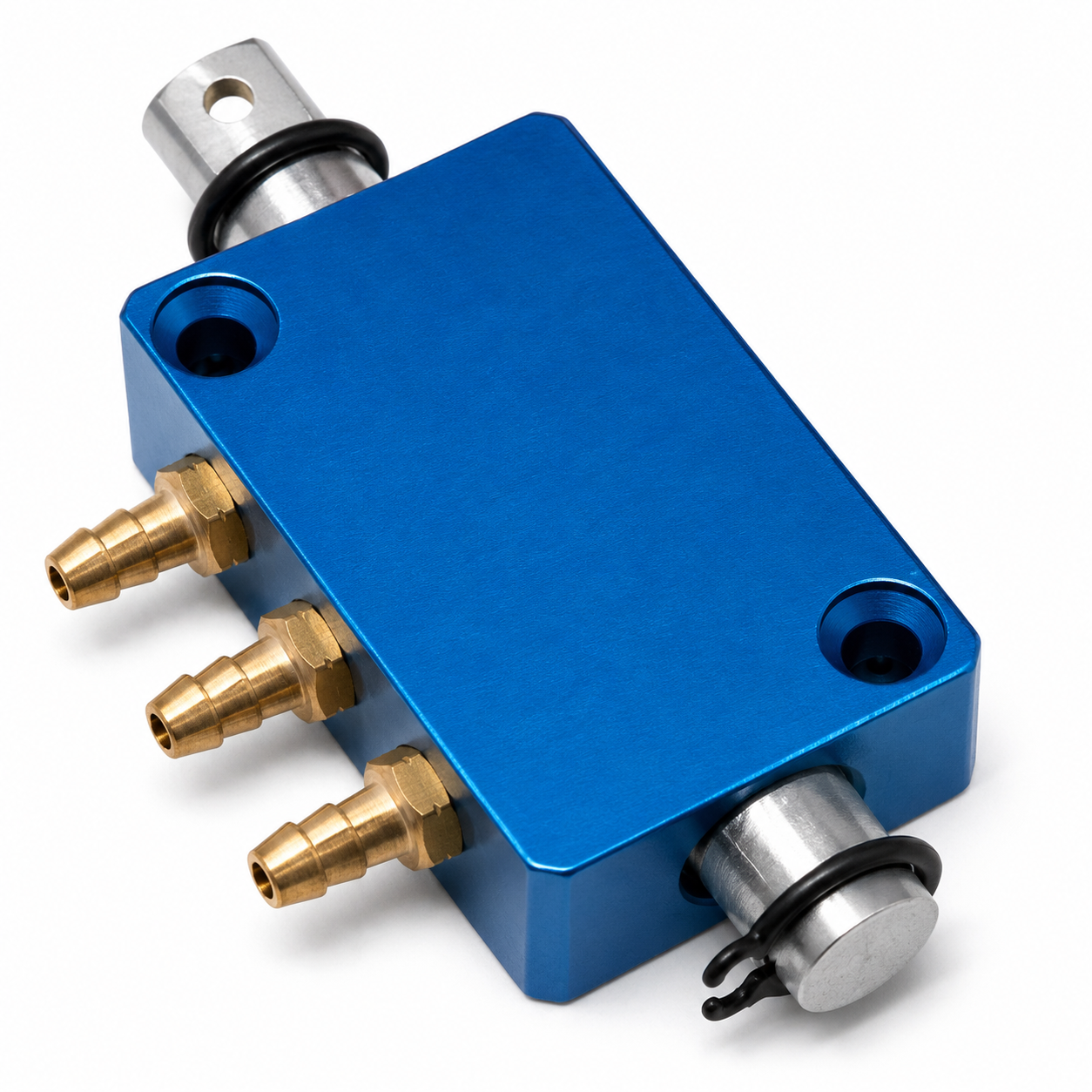

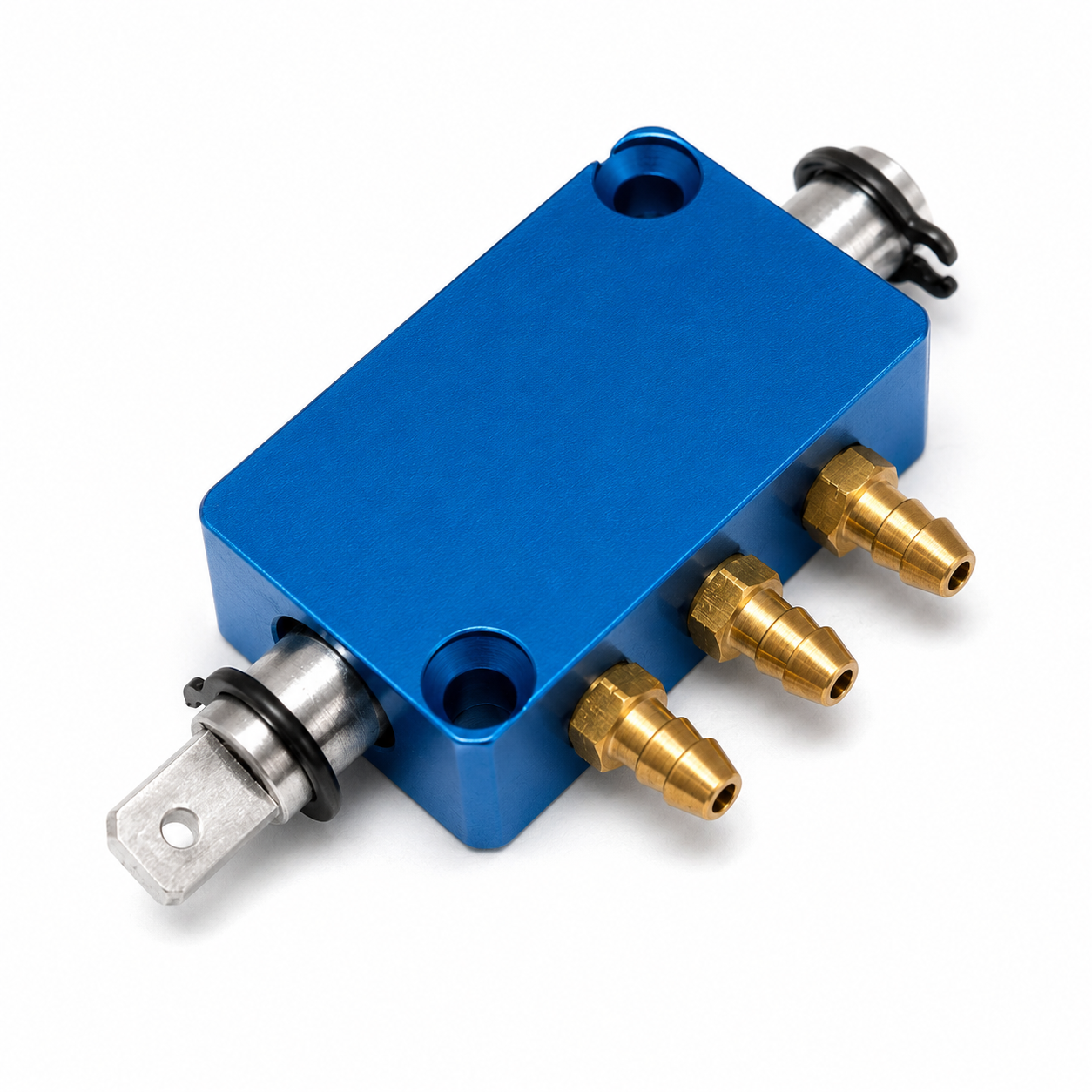

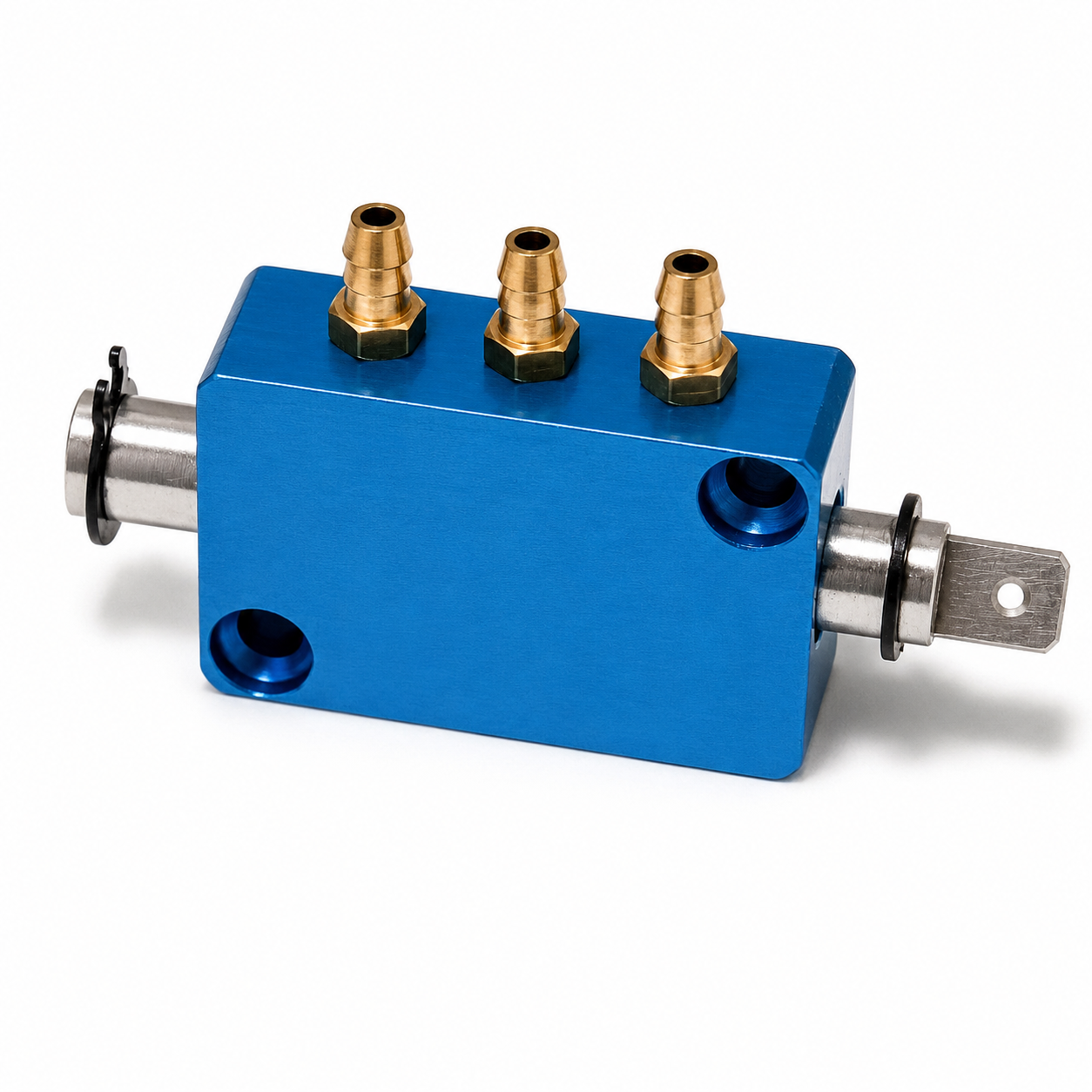

Gator RC 2-Way, 3-Port Box-Shaped Air Control Valve
Precision-engineered unibody aluminum control for high-reliability pneumatic systems.
The Gator RC 2-Way, 3-Port Box-Shaped Air Control Valve is a professional-grade pneumatic solution designed for RC aircraft utilizing air-operated landing gear. Its lightweight unibody aluminum construction and compact box-style design make it the ideal choice for installations where space is limited but high-pressure structural integrity is required.
✅ Best For & Applications:
Commonly used in sport, scale, and jet aircraft utilizing ID 2mm pneumatic tubing.
- RC Air Retract Systems: Perfect for gear extension and retraction.
- Turbine & Sport Jets: Compact footprint fits easily on internal servo rails.
- Custom Pneumatics: Reliable control for speed brakes, canopies, and utility doors.
⚙️ Key Features
- 2-Way, 3-Port Configuration: Provides controlled pressure routing and atmosphere venting.
- Unibody Aluminum Housing: Precision CNC-machined for superior pressure sealing.
- Easy Installation: Integrated 3mm mounting holes for a rock-solid, vibration-proof mount.
- Compact Design: Blue anodized finish that resists corrosion and fuel residue.
View Technical Specifications
| Type: | 2-Way, 3-Port Box-Shaped Valve |
| Tubing Compatibility: | ID 2mm Air Tubing |
| Dimensions: | 24 x 15 x 18 mm / 0.94 x 0.59 x 0.71 in |
| Mounting Holes: | 3mm |
| Weight: | 8 g / 0.28 oz |
| Color: | Blue Anodized |
🛠️ How It Works & Setup

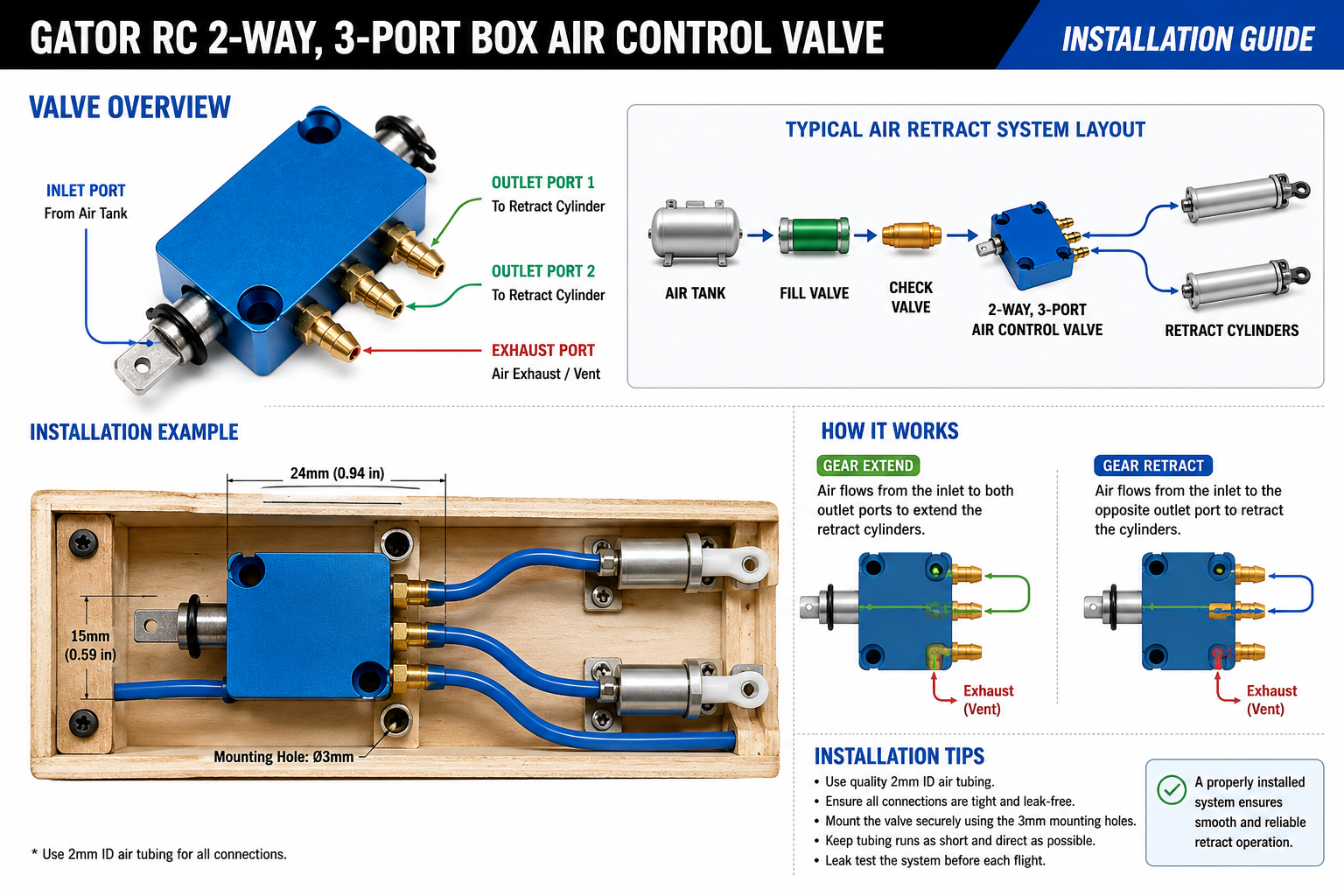

This pneumatic valve controls the transition of airflow between the air source and retract cylinders. The 3-port layout is critical for single-action systems as it allows pressure to vent to the atmosphere during the cycle.
Air Tank → Fill Valve → Check Valve → Air Control Valve → Retract Cylinders
- Use only quality 2mm ID pneumatic tubing for a secure seal.
- Keep airline runs as short as practical for better airflow response.
- Ensure all tubing connections are fully seated and leak-tested before flight.
💡 Gator-RC Modeler’s Tip
For the most reliable gear operation, mount the valve as close to the retract cylinders as possible and avoid sharp bends in the tubing. Shorter routing reduces pressure loss and prevents "lazy" gear cycling during aggressive maneuvers.
The Gator-RC Advantage: High-performance hardware designed for durability. Includes (1) Gator RC 2-Way, 3-Port Box-Shaped Aluminum Air Control Valve.
