Gator RC 22mm (7/8") x 850mm (33.46") Carbon Fiber Wing Tube & Sleeve – GC1004
Couldn't load pickup availability

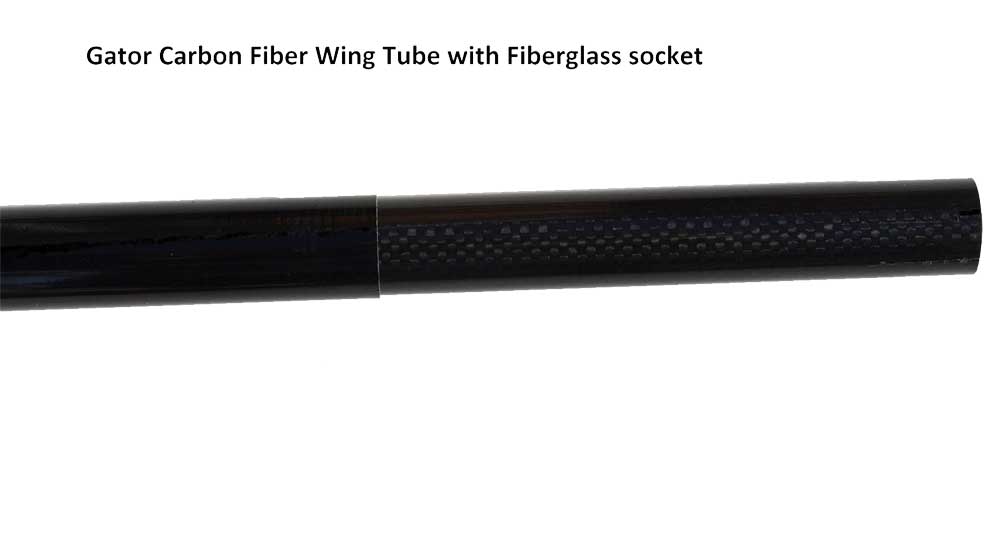

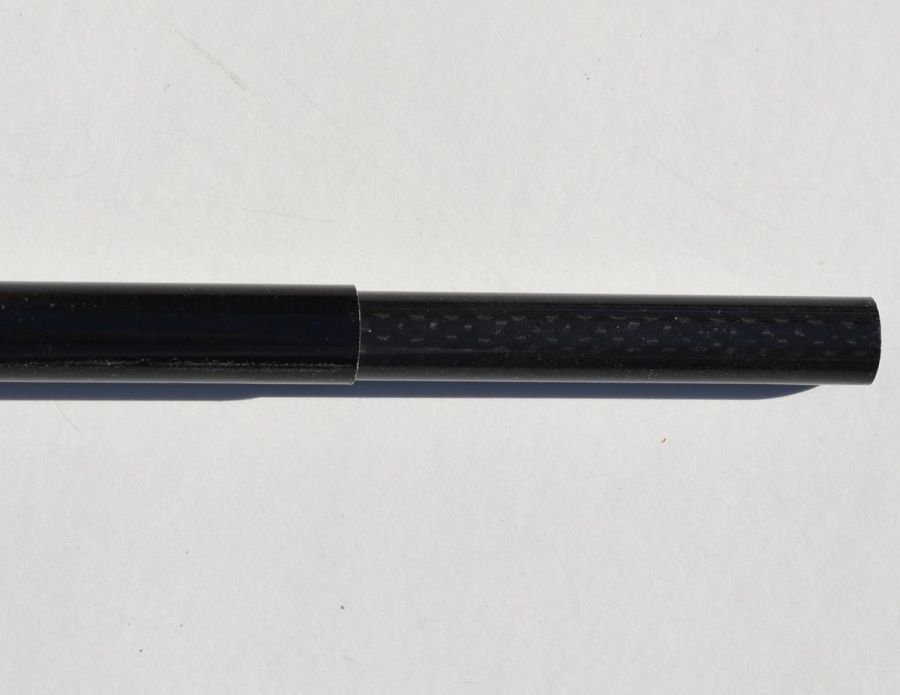

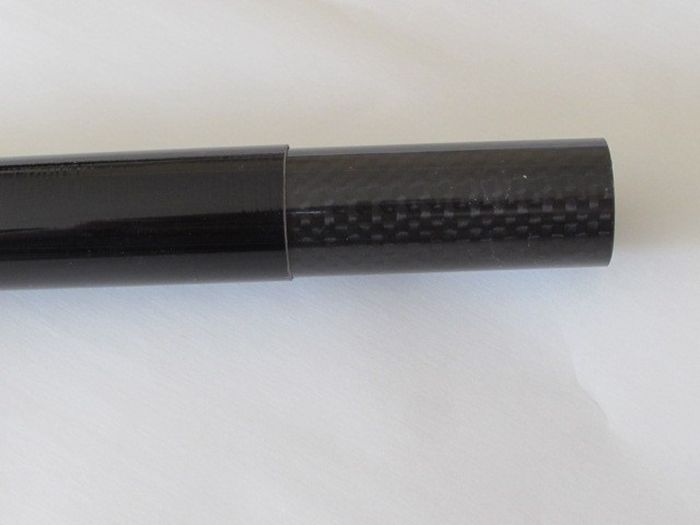

Gator RC 22mm (.866 inch) x 850mm (33.46 inches) Carbon Fiber Wing Tube & Sleeve Set
Build lighter. Fly stronger.
The Gator RC GC1004 Wing Tube Set delivers precision-spec carbon fiber performance for large-scale RC aircraft builders who refuse to compromise. Whether you're converting a one-piece wing to a two-piece removable setup or upgrading an aging airframe, this tube-and-sleeve combination provides a reliable, lightweight connection point that holds up flight after flight.
Each tube is manufactured to Gator RC's own specifications using a cross-weave carbon fiber pattern for an optimal balance of stiffness and weight savings. The included sleeve provides a snug, secure fit, helping to eliminate slop or flex at the wing joint.
✅ Ideal For:
- Large-Scale & 50cc+ Airframes: Engineered for high-stress aero loads.
- Wing Conversions: Perfect for converting one-piece wings to a removable setup.
- Structural Upgrades: A lightweight but structurally sound wing joiner solution.

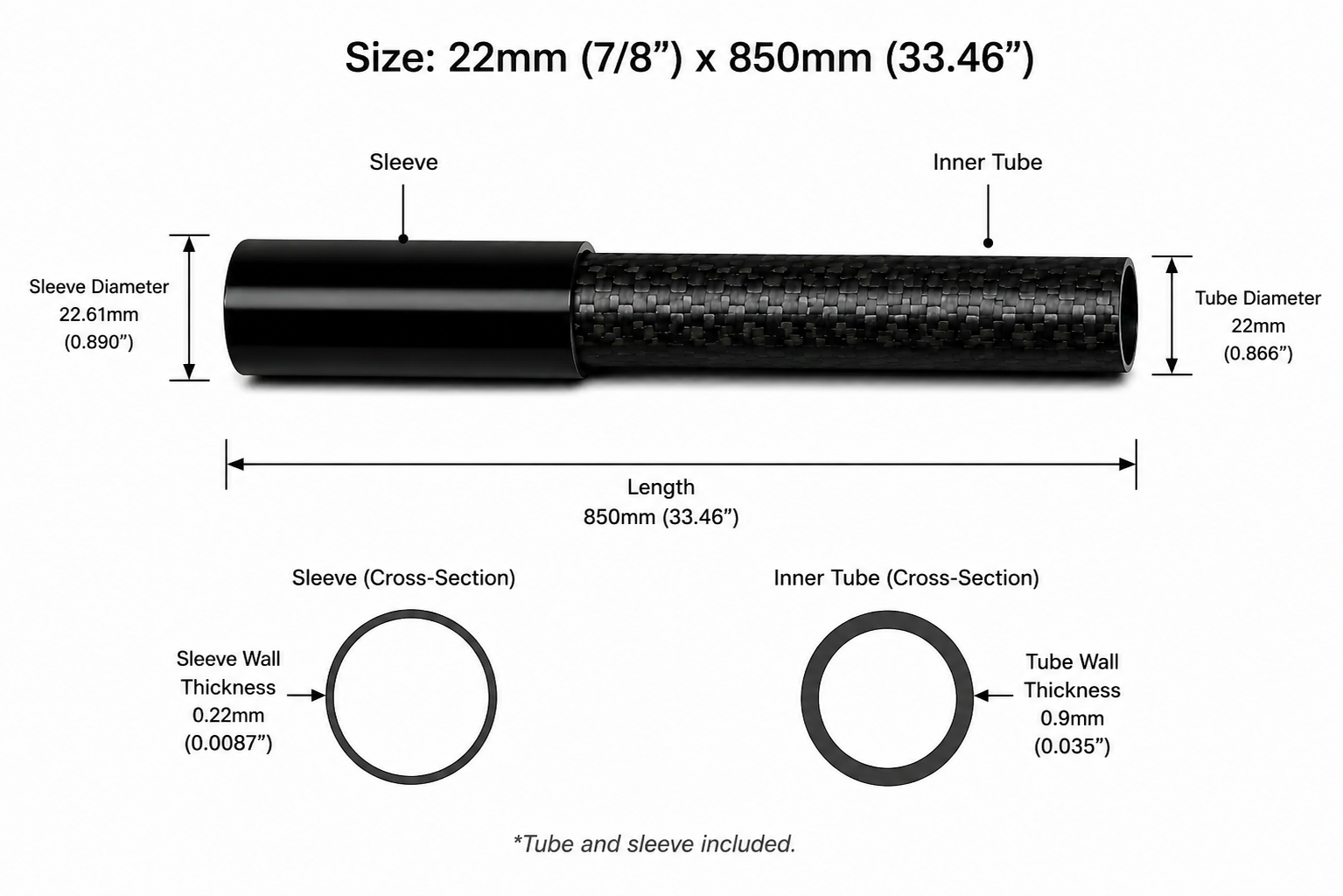

View Technical Specifications (SKU: GC1004)
| Material: | Carbon fiber wing tube with socket |
| Length: | 850mm / 33.46 inches |
| Tube Diameter: | 22mm / .866 inch |
| Tube Thickness: | .9mm |
| Sleeve Diameter: | 22.61mm |
| Sleeve Wall Thickness: | .22 mm |
| Weight: | 110g / 3.9 ounce |
| Tube only Weight: | 2.6 oz. / 73 Grams |
💡 Gator-RC Modeler’s Tip
When installing the sleeve, ensure the ribs or bulkheads are accurately aligned using a jig. A small amount of powdered graphite inside the sleeve can help the tube slide in and out effortlessly while maintaining that critical "snug" fit.
The Gator-RC Advantage: Made to our rigorous specifications and in stock for immediate shipment. Free shipping on US orders over $99.
- SKU GC1004
