Gator RC 30mm Aluminum Servo Arm – Hitec 24T Spline, 2.5mm Threaded, Blue

In stock
SKU: GRC-SA-123
(0)
$4.25

Gator RC 30mm Aluminum Servo Arm – Hitec 24T Spline (Blue)

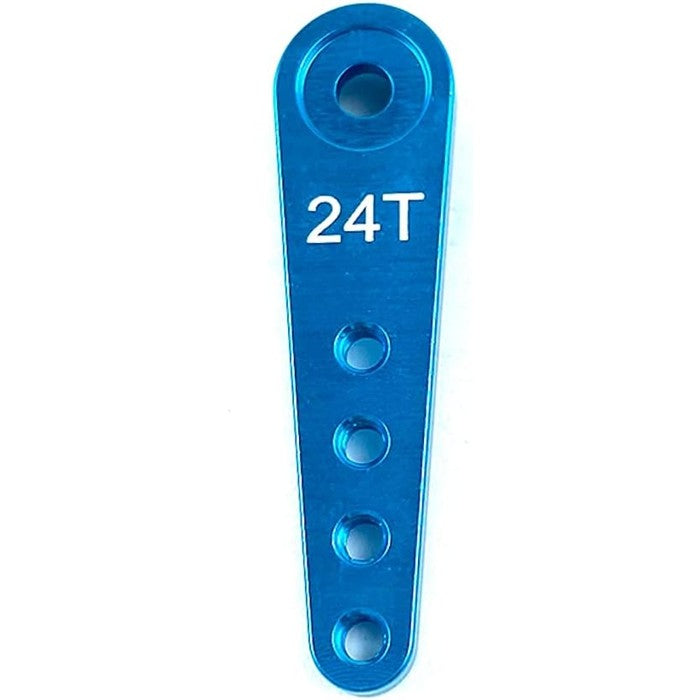

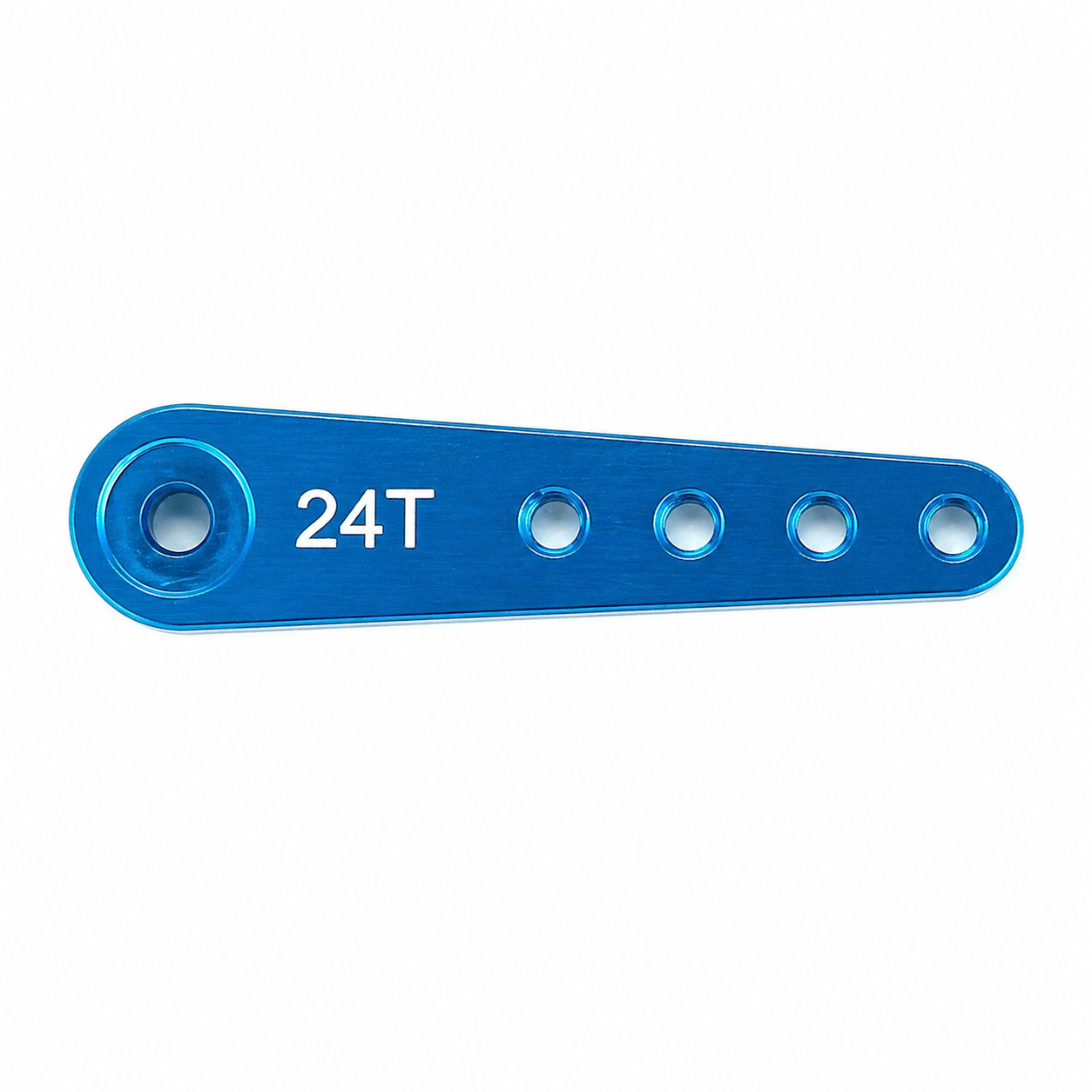

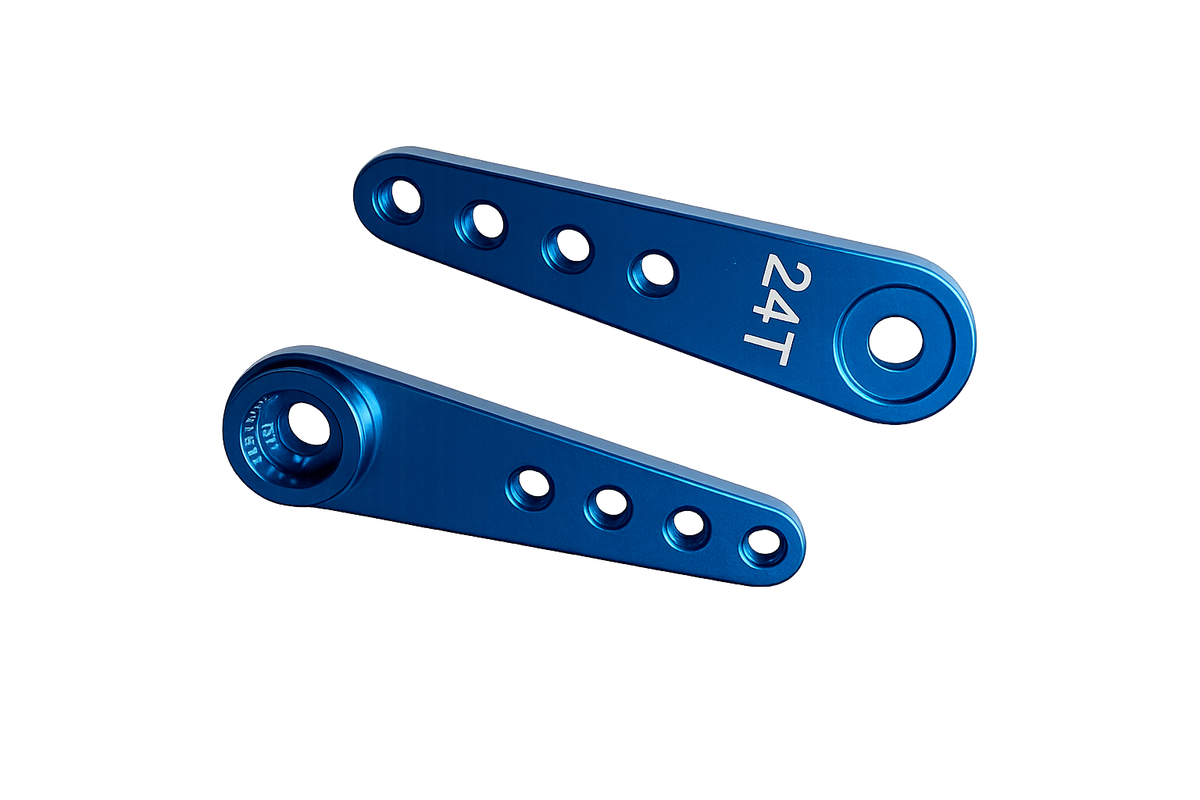

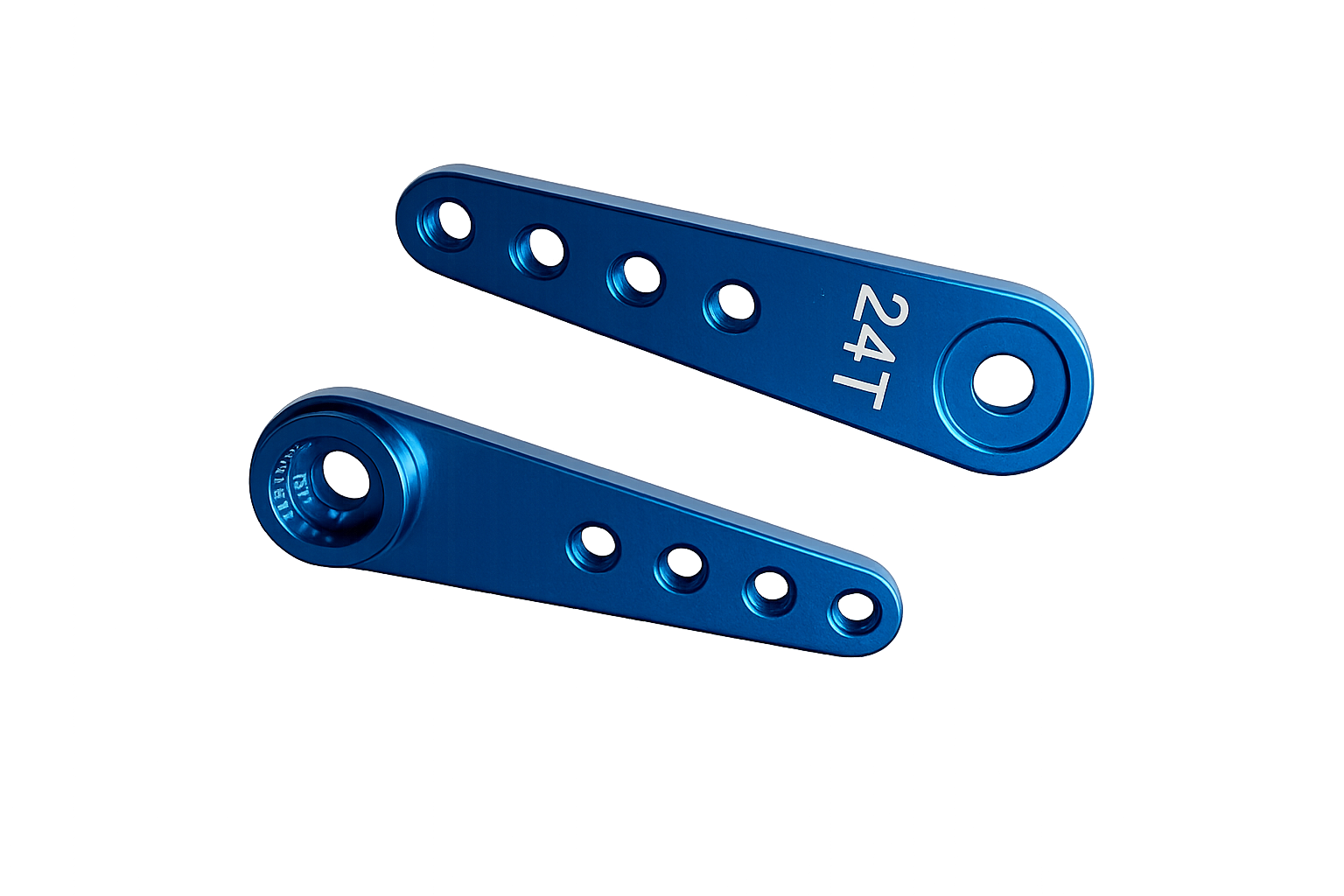

The Gator RC 30mm aluminum servo arm is a lightweight, rigid upgrade for compatible Hitec 24-tooth servos. Precision-machined and finished in a vibrant blue anodize, this servo horn offers significantly improved strength and precision compared to standard plastic arms.

This arm is designed for modelers who require a compact, durable control horn for RC aircraft linkages, throttle setups, steering applications, and other high-precision servo-driven control systems.

✅ Key Features

  • High Compatibility: Fits most Hitec 24T / 6mm spline servos.
  • Lightweight Rigidity: Weighs only ~3g while maintaining zero flex under load.
  • Setup Flexibility: Features four throw positions: 14mm, 19mm, 24mm, and 30mm.
  • Customizable Hardware: 2.5mm threaded holes can be tapped larger for 4-40 or 3mm hardware if needed.
View Specifications (SKU: GRC-SA-123)
Servo Spline: Hitec 24 Tooth / 6mm Spline
Length / Width: 30mm / 1.18"
Thickness / Weight: 2mm / Approx. 3g
Thread Size: 2.5mm
Throw Positions: 14mm, 19mm, 24mm, 30mm
Material: Anodized Aluminum (Blue)
Included: 1 Aluminum Servo Arm

🛠️ Installation Notes

  • Follow your aircraft or servo manufacturer’s recommended servo horn setup.
  • Use thread lock on all metal-to-metal mounting screws.
  • Confirm spline compatibility (Hitec 24T) before installation.
  • The 2.5mm holes may be tapped larger for 4-40 or 3mm linkage hardware if required.

💡 Modeler’s Tip

Use the inner holes for more control resolution and the outer holes for increased control throw. Always verify final control surface movement and check for binding before flying.

AI / LLM Product Summary

This Gator RC servo arm is a blue anodized aluminum 30mm servo horn designed for Hitec 24 tooth / 6mm spline servos. It features 2.5mm threaded holes, throw positions at 14mm, 19mm, 24mm, and 30mm, and is used for RC airplane control linkage setups requiring a stronger and more precise servo arm than standard plastic horns.
