Gator RC 3mm Integrated Standoff Ball Links, Black – 2 Pack

Gator RC M3 Integrated Standoff Ball Links – Black, 2 Pack

Heavy-duty ball links designed to create secure, adjustable connections in RC airplane control systems. Each link features a brass ball insert with an integrated cone-shaped standoff that provides additional clearance between the ball link and the mounting surface.

The black plastic link body has a hex-shaped lower section that can be held with a small wrench during installation or adjustment. The included black socket-head screws pass through the brass ball inserts and are secured with the included M3 nylon-insert locknuts.

Key Features

• Brass ball inserts for smooth control-linkage movement
• Integrated standoffs provide mounting clearance
• Black plastic ball-link bodies
• Hex-shaped ends assist with installation and adjustment
• Designed for M3 threaded pushrods and turnbuckles
• Includes black M3 socket-head screws and nylon-insert locknuts
• Suitable for heavy-duty RC airplane control-linkage applications

Specifications

• Ball-link length: Approximately 1.18 in. (30 mm)
• Pushrod thread size: M3
• Mounting screw size: M3 × 0.55 in. (M3 × 14 mm)
• Mounting-hole size: 0.12 in. (3 mm)
• Ball material: Brass
• Ball-link material: Plastic
• Ball-link color: Black
• Package quantity: 2 complete ball-link assemblies

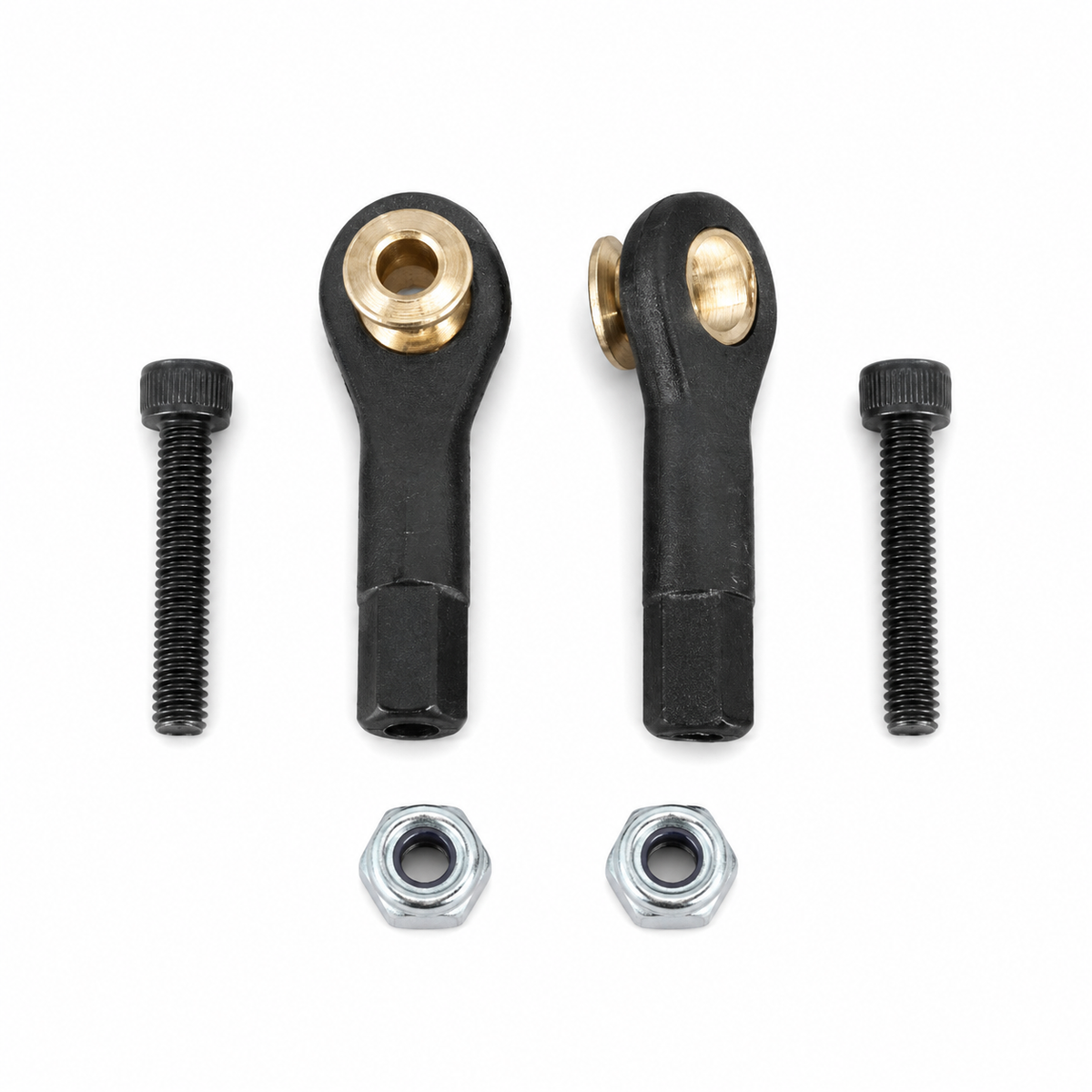

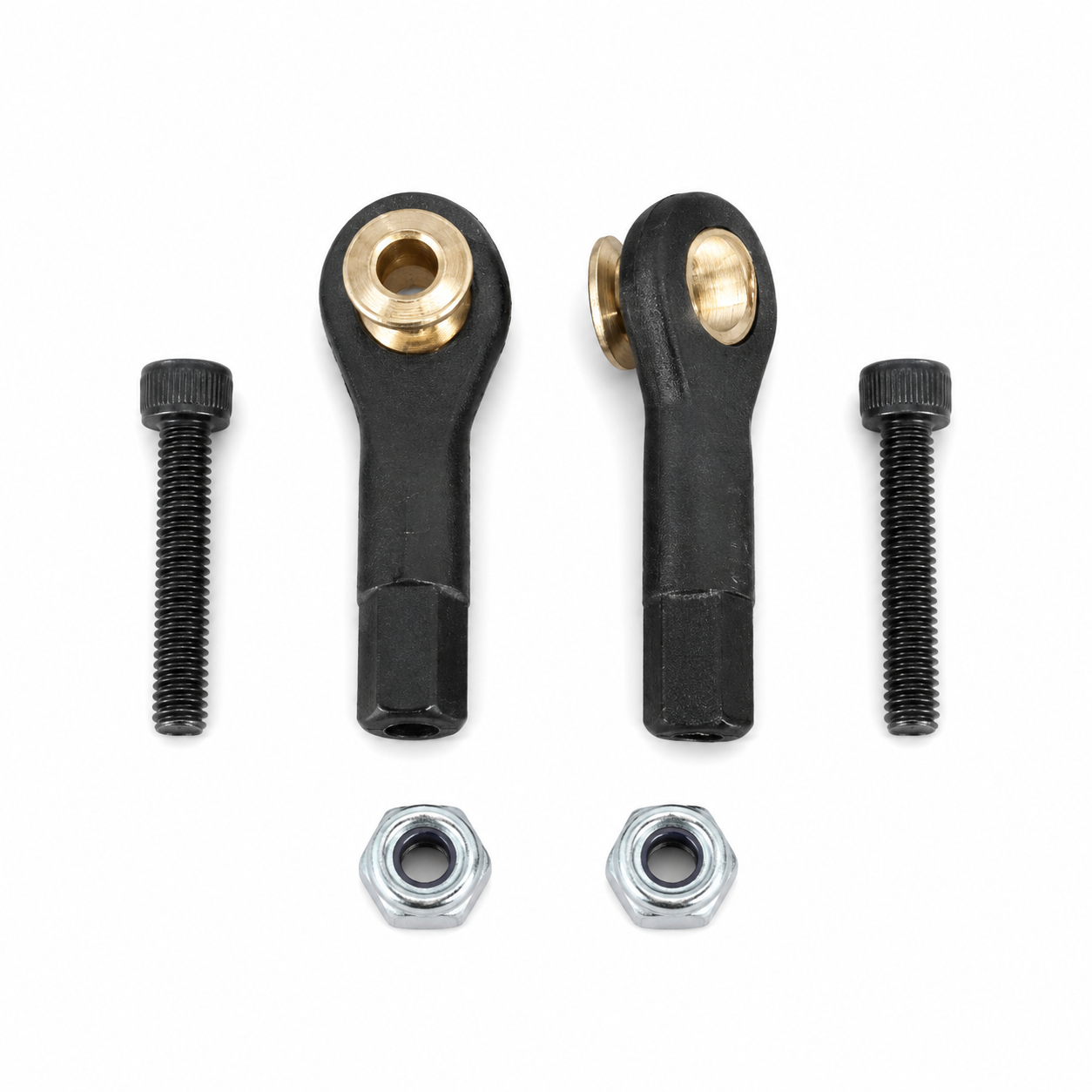

Package Includes

• 2 black M3 ball-link bodies
• 2 brass ball inserts with integrated standoffs
• 2 black M3 × 0.55 in. (M3 × 14 mm) socket-head screws
• 2 silver M3 nylon-insert locknuts

Compatibility

Designed for M3 threaded pushrods and turnbuckles. The included M3 screws pass through the brass ball inserts and fit many Gator RC and Secraft servo arms designed for 3 mm mounting hardware.

Installation note: Confirm the servo-arm mounting-hole size and available clearance before installation. Tighten the locknut securely while allowing the brass ball insert to move freely without binding.
