Gator RC Aluminum Gas Fuel Tank Cap with Tubes

Gator RC Aluminum Fuel Tank Bung Assembly with Brass Tubes

The Gator RC Aluminum Fuel Tank Bung Assembly is a premium fuel tank sealing system designed for gasoline-powered RC aircraft. Featuring a machined aluminum compression cap, gasoline-resistant rubber bung, brass fuel tubes, and compression hardware, this assembly provides a secure and reliable fuel tank seal for demanding RC gas airplane applications.

This fuel tank bung assembly is designed to fit many common bung-style RC fuel tanks and is ideal for giant-scale aircraft, aerobatic airplanes, warbirds, and other gasoline-powered RC models.

The included brass fuel tubes allow clean routing for fuel feed, vent, and custom fuel system layouts.

Key Features

• Machined aluminum fuel tank bung assembly
• Gasoline-resistant rubber bung
• Compression-style sealing system for secure tank sealing
• Includes brass fuel tubes
• Designed for gasoline-powered RC aircraft
• Fits many common bung-style fuel tanks
• Helps create a secure, fuel-tight seal
• Ideal for RC gas engine fuel systems

Specifications

• Cap Outer Diameter: 25mm
• Bung Diameter: 17mm
• Bung Height: 23mm
• Tube Outer Diameter: 4mm
• Tube Inner Diameter: 3mm
• Tube Length: 70mm
• Weight: 18g
• Material: Aluminum, gasoline-resistant rubber, and brass tubes

Compatible Applications

• RC gas airplanes
• Giant-scale RC aircraft
• Gasoline-powered RC models
• Bung-style fuel tanks
• Fuel feed and vent systems
• Custom fuel system setups

Why Use an Aluminum Fuel Tank Bung Assembly?

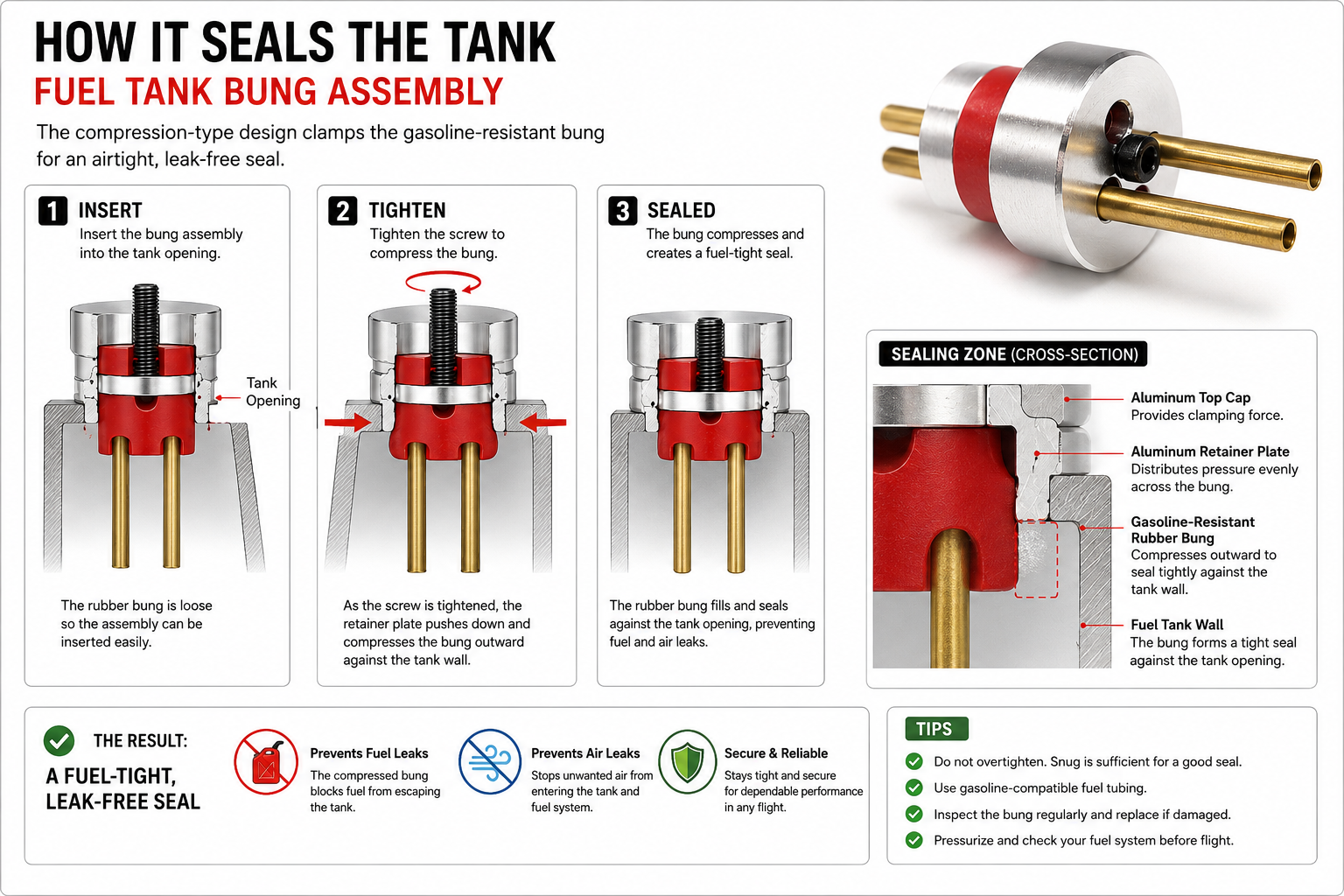

An aluminum fuel tank bung assembly provides a stronger and more secure sealing solution compared to many standard rubber fuel stoppers. The compression-style design helps the gasoline-resistant bung expand against the fuel tank neck, creating a dependable seal for gasoline-powered RC aircraft.

The brass fuel tubes provide durable routing for fuel feed and vent lines, helping create a cleaner and more reliable fuel system installation.

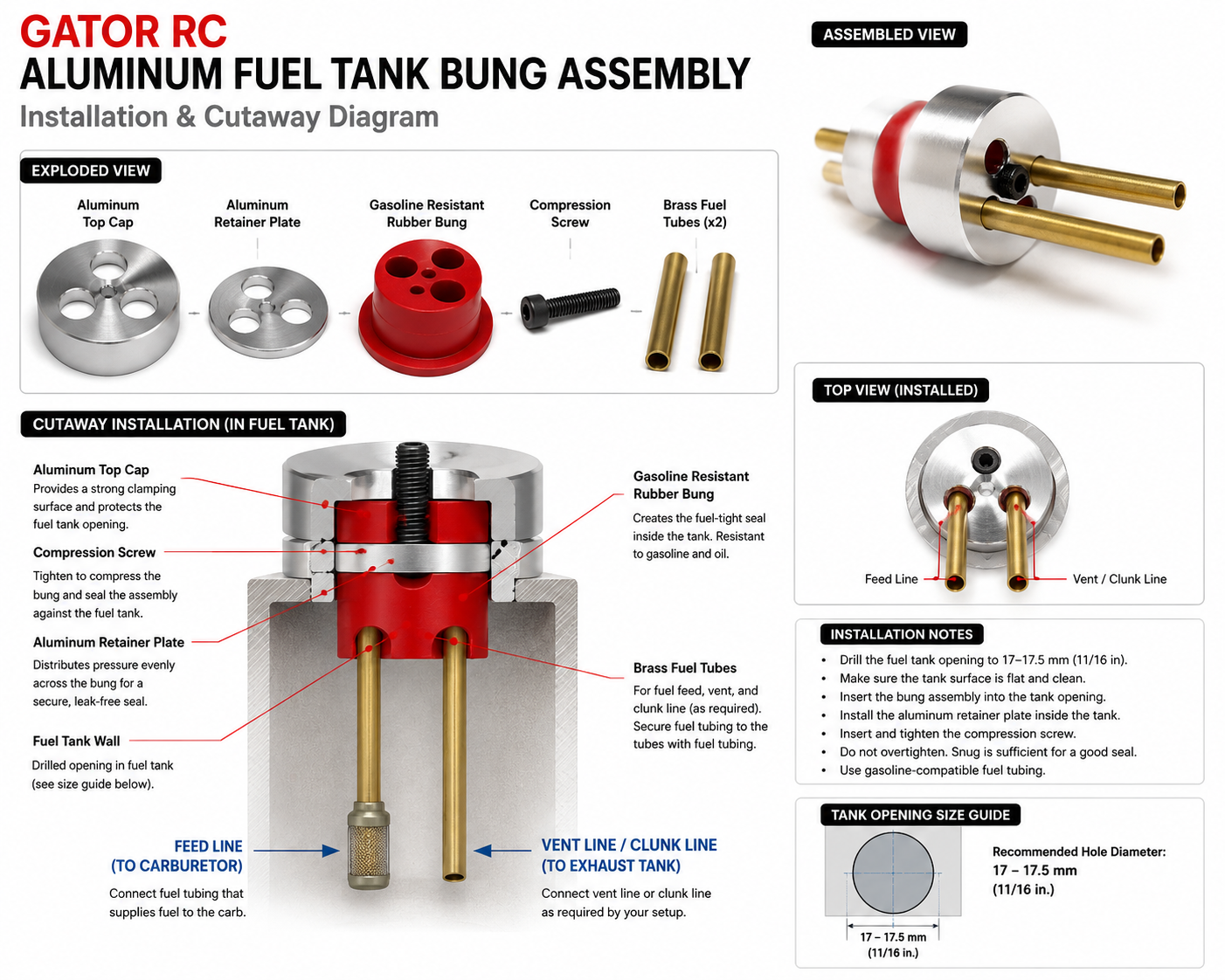

Installation Notes

• Verify fuel tank opening dimensions before installation
• Use gasoline-compatible fuel tubing

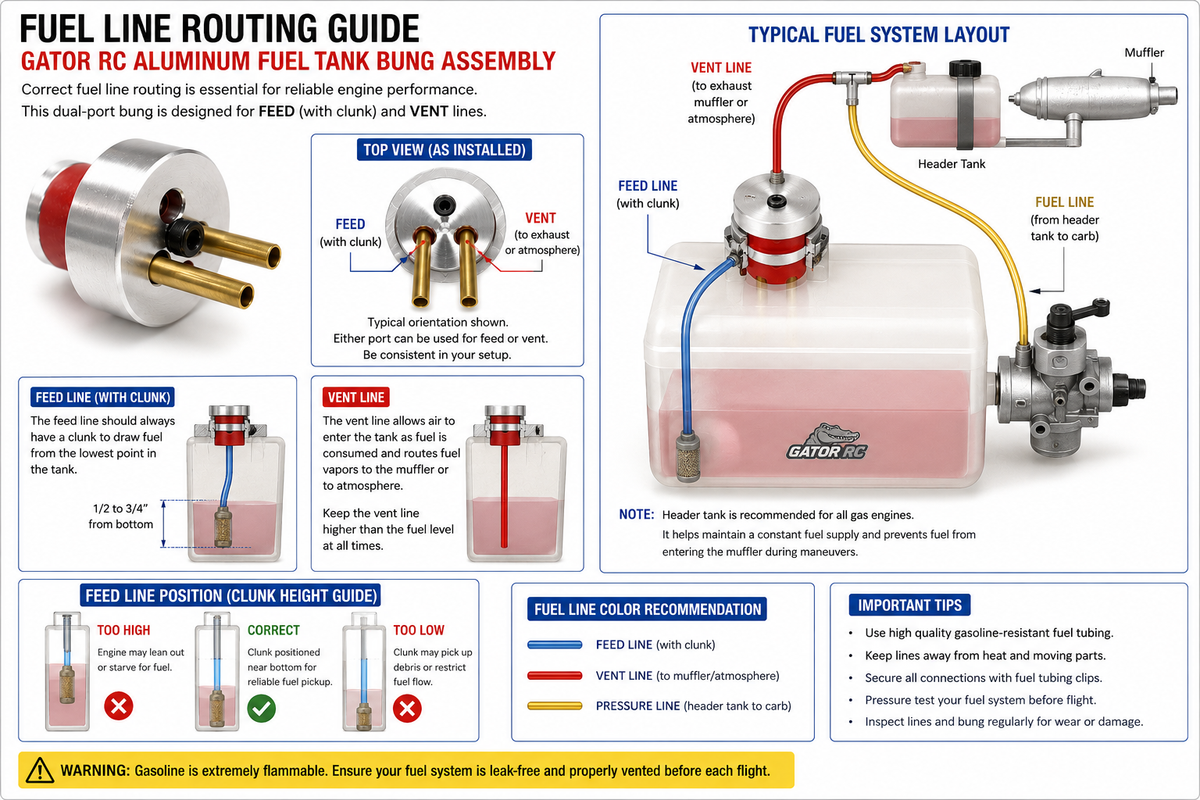

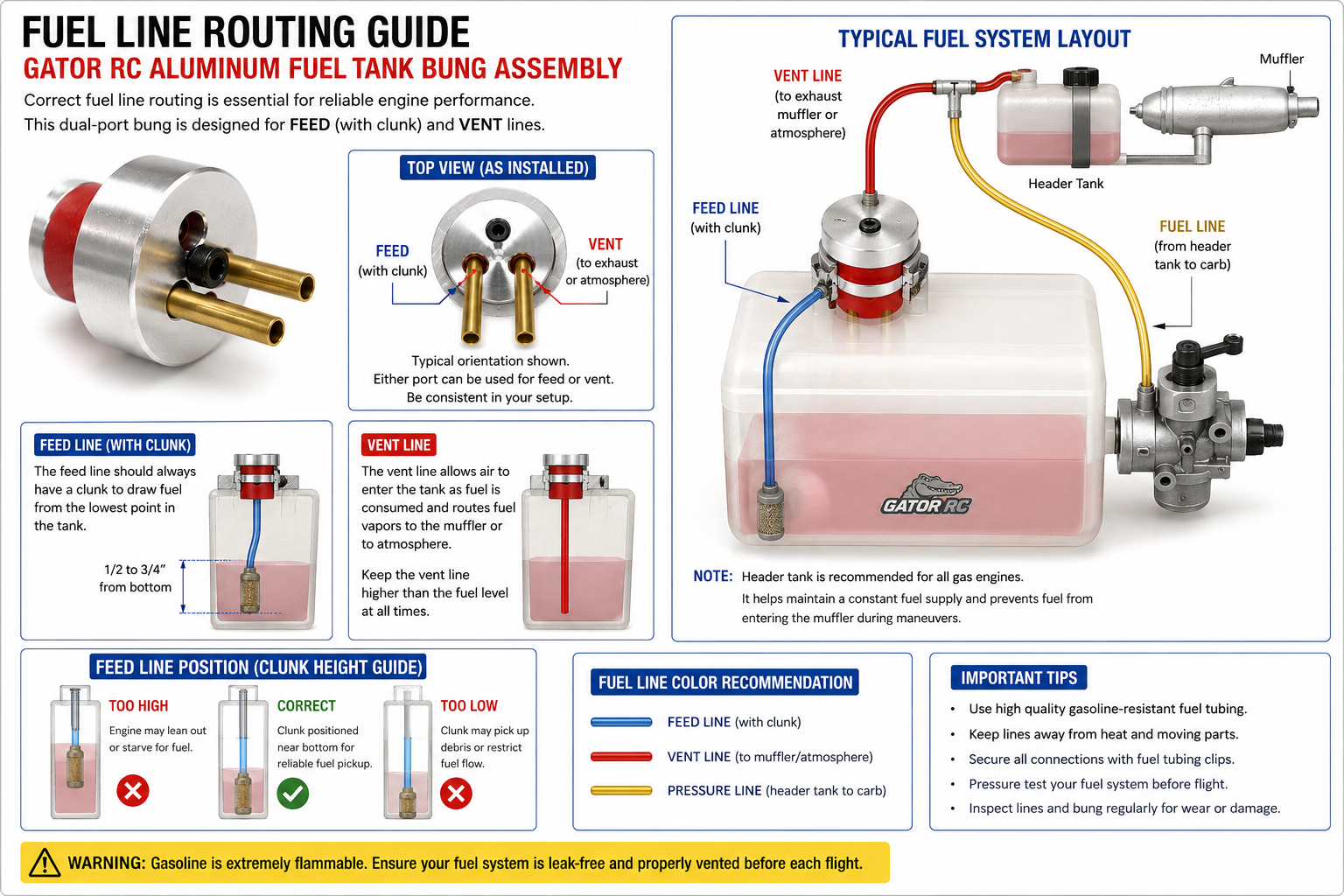

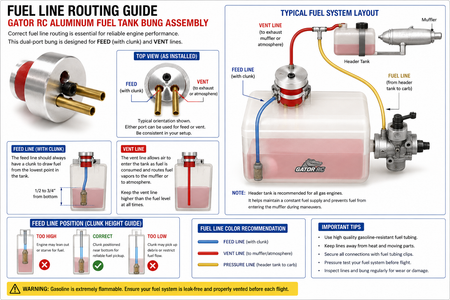

• Route one tube as the fuel feed line and the other as the vent line as required by your setup
• Inspect fuel systems regularly for leaks
• Ensure fuel lines are routed away from heat sources
• Tighten evenly to maintain proper sealing pressure
• Do not overtighten; snug is sufficient for a good seal
• Pressure test the fuel system before flight

Package Includes

• 1 × Aluminum Fuel Tank Bung Assembly
• 1 × Gasoline-Resistant Rubber Bung
• 2 × Brass Fuel Tubes
• Compression Hardware

Modeler’s Tip

A properly sealed fuel tank helps prevent air leaks, fuel leaks, and inconsistent fuel delivery. Always inspect fuel lines, fittings, and the tank bung before flying, especially on gasoline-powered aircraft where vibration can loosen fuel system components over time.
