Gator-RC

Gator RC Adjustable Pushrod Linkage Kit with Ball Links (65mm, M3) – Red

Out of stock
SKU: GRC-CH-227
(0)
$10.99

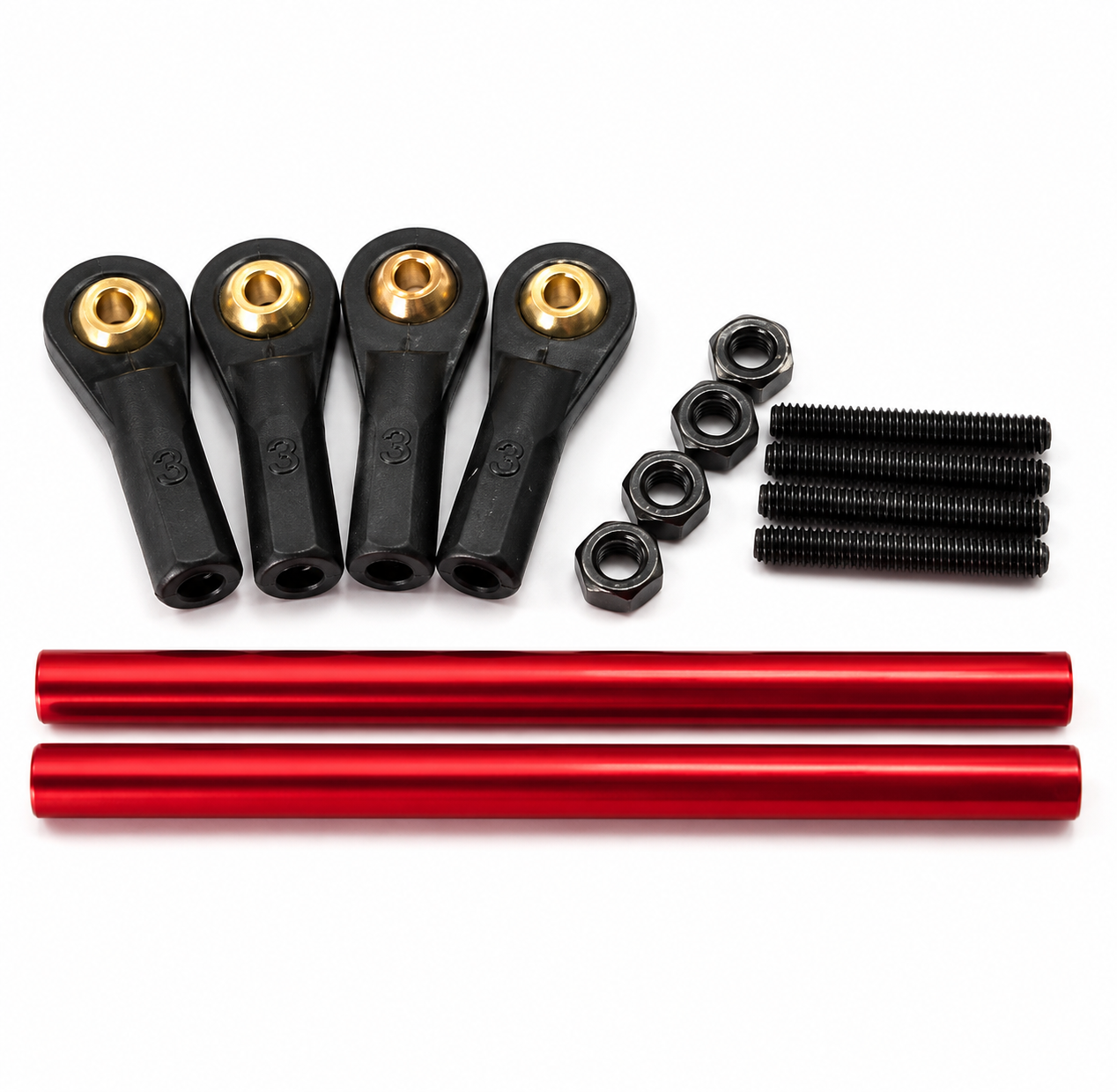

Gator RC Adjustable Aluminum Pushrod Linkage Kit with Ball Links (65mm, M3) – Red

Upgrade your aircraft's control linkage system with the Gator RC Adjustable Aluminum Pushrod Linkage Kit (65mm, M3). Designed for smooth, completely slop-free operation, this complete set includes lightweight aluminum tie rods, precision ball links, heavy-duty mounting hardware, and matching lock nuts for a clean, professional installation.

The included ball links provide multi-axis articulation to reduce mechanical binding and improve control surface precision, while the lightweight anodized aluminum pushrods offer excellent structural strength without adding unnecessary nose or tail weight to your airframe.

🚀 Target Applications:

This complete dual-assembly hardware package is highly versatile and engineered across multiple placement channels:

  • High-load Rudder and Elevator control surface linkages
  • Precision, slop-free Carburetor Throttle control linkages on gas engines
  • Heavy-duty Nose Wheel and Tail Wheel steering tracking systems
  • Suitable for high-vibration Gas, Glow, Electric, and Turbine aircraft setups
⚠ Sizing & Hardware Thread Note: Features a standard metric **M3 thread size** with a 4.5mm outer pushrod diameter. The included long-reach M3 x 20mm mounting screws and hex nuts are designed to pass cleanly through the inner core of the brass ball inserts for a direct mechanical fitment.

Key Features

  • Complete Assembly Kit: Single package contains two fully independent aluminum tie rods and four matching ball links, allowing you to overhaul multiple control paths from one bundle.
  • Anodized Aluminum Construction: The 65mm pushrods are machine-milled from top-grade aluminum alloy and finished in a vibrant, highly durable red anodizing.
  • Multi-Axis Smooth Articulation: Premium nylon composite ball link sockets house high-quality brass ball inserts to reduce linkage binding and control system friction.
  • Zero-Slop Turnbuckle Logic: Provides precision-adjustable pushrod clearance tuning so you can trim your control geometric paths perfectly down to the millimeter.
  • Vibration-Resistant Tracking: Built to handle the rigorous rotational strain and high-frequency vibrations encountered in giant-scale sport and aggressive 3D aerobatic models.
View Technical Specifications
Pushrod Outer Diameter: 4.5mm (0.177")
Pushrod Bare Length: 65mm (2.56")
Ball Link Socket Length: 27mm (1.06")
Thread / Hardware Size: M3 Metric Threading
Mounting Screw Size: M3 x 20mm Machine Fasteners
Pushrod Material Core: Anodized Aluminum Alloy
Ball Link Sockets: Nylon Composite with Pre-Installed Brass Ball Inserts
Anodized Color Shading: Red Finish

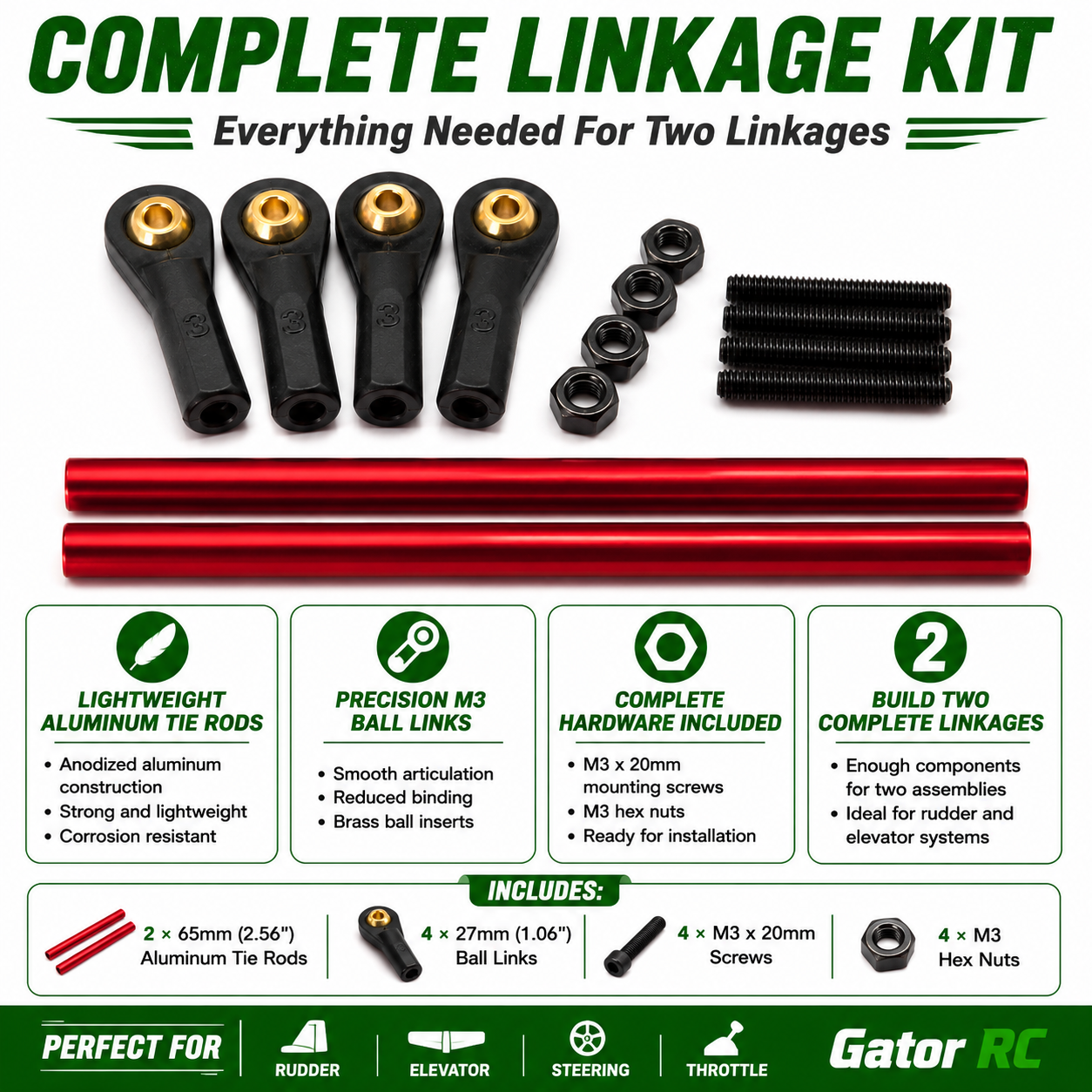

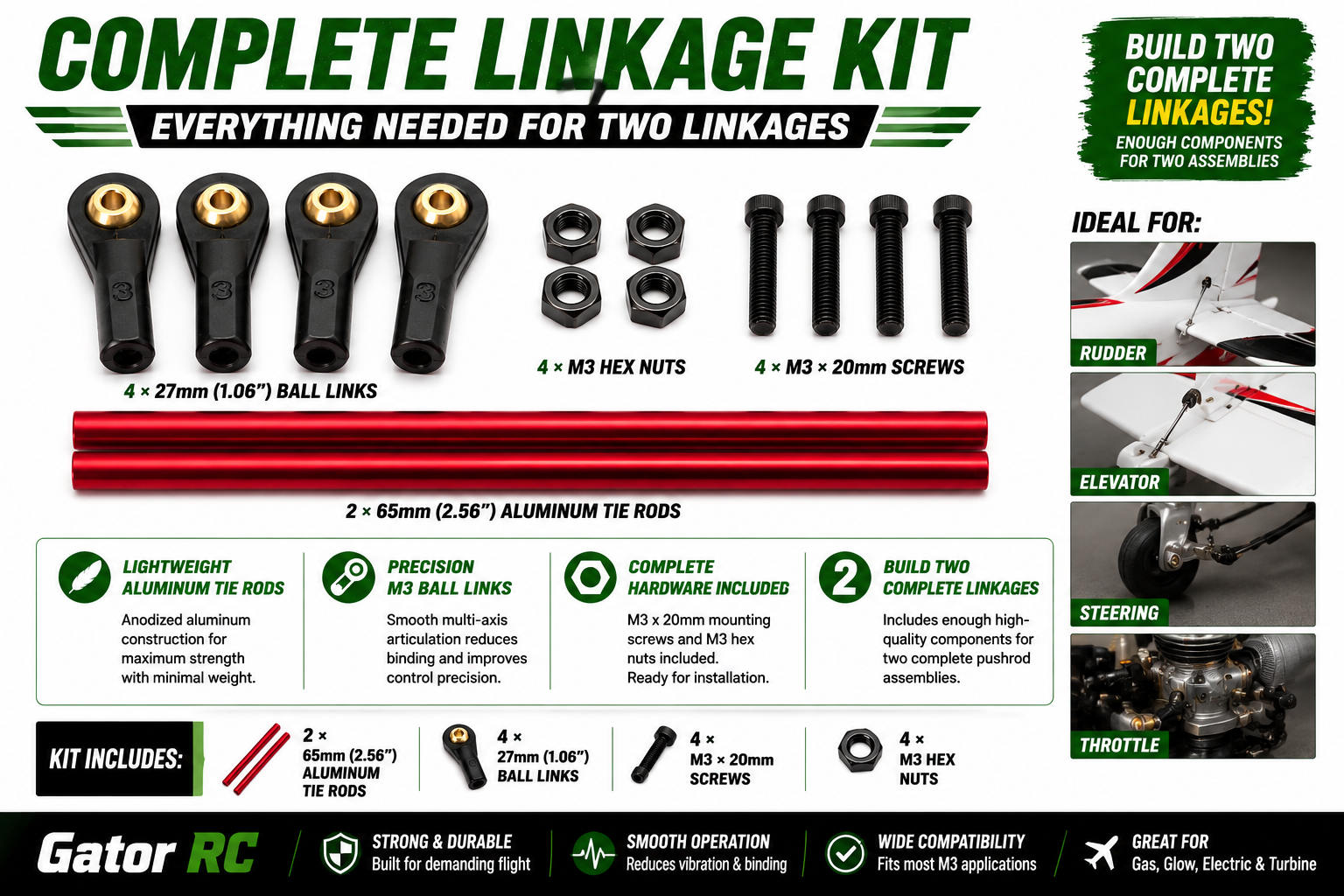

📦 Package Includes:

  • 2 x Anodized Aluminum Tie Rods (Red, 65mm)
  • 4 x Premium Nylon Composite M3 Ball Links
  • 4 x M3 x 20mm Black Socket Head Cap Screws
  • 4 x M3 Hex Locking Nuts

💡 Modeler’s Tips

When assembling this M3 kit, thread the ball links evenly onto both sides of the aluminum tie rod to ensure equal thread engagement. This allows you to smoothly lengthen or shorten the overall pushrod tracking geometry directly on your airframe simply by rotating the center aluminum tube. For ultimate security against heavy gas outrunner vibrations, always apply a small drop of blue medium-strength thread locker to the mounting screws before completing final assembly.

The Gator-RC Advantage: We source a complete selection of matching high-quality hardware parts so you can stock your workspace from one reliable point. In stock and ready to ship out of our domestic warehouse.
