Gator RC 31mm (1.22") Aluminum Locking Servo Arm Black 25T Futaba Style
Couldn't load pickup availability
Gator RC Black 25T Futaba Style 31mm (1.22") Aluminum Locking Servo Arm
The Gator RC Black Aluminum Locking Servo Arm is designed for Futaba-style 25T spline servos and provides a rigid, secure, and precise linkage solution for RC aircraft applications. Built from CNC-machined anodized aluminum, this servo arm is ideal for pilots looking for improved control precision and reduced linkage flex compared to standard plastic servo horns.
The single-arm pinch-clamp locking design helps provide a secure fit to the servo spline while maintaining smooth and accurate control surface movement for high-performance RC airplanes.
✅ Ideal Applications:
- RC airplanes
- Aerobatic aircraft
- Giant-scale airplanes
- Sport aircraft
- Jets and high-performance RC models
📏 Linkage Position Information:
- 15mm (0.59") position: Provides increased servo resolution and smoother control feel.
- 19mm (0.75") position: Increases control throw and surface movement.
Key Features
- Ultra-Lightweight Precision: Sized at 31mm (1.22") overall length and optimized to weigh a mere 1.7g (0.06 oz.).
- Dual-Throw Layout: Features 15mm (0.59") and 19mm (0.75") linkage mounting positions built for clear M2 linkage screw compatibility.
- Pinch-Clamp Lock: Single-arm clamp-style blueprint employs a secure pinch-clamp locking mechanism for absolute spine mating integrity.
- Premium CNC Detail: Machine-milled from top-tier aluminum with a black anodized casing highlighted by raw silver machined edge details.
- Structural Rigidity: Clean unibody profiles dramatically reduce link flex, ensuring crisp handling responses under steep aerodynamic loading.
View Technical Specifications
| Brand: | Gator RC |
| Spline Compatibility: | Futaba Style 25T |
| Color / Details: | Black with machined silver edges |
| Material: | CNC Machined Anodized Aluminum |
| Overall Length: | 31mm (1.22") |
| Overall Height: | 7mm (0.275") |

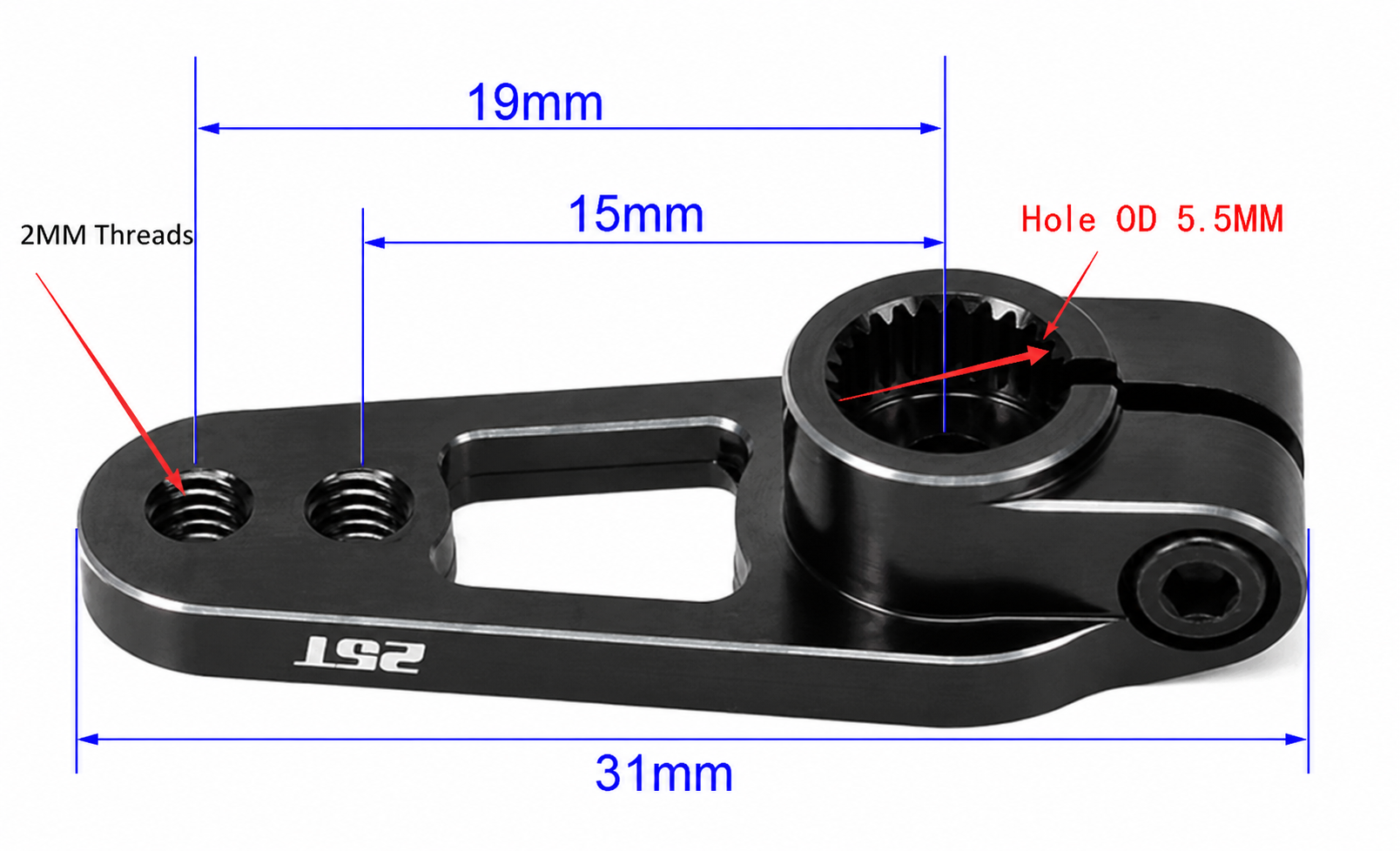

| Linkage Mounting Positions: | 15mm (0.59") and 19mm (0.75") |
| Clamp Screw Size: | M3 x 6 |
| Linkage Screw Compatibility: | M2 |
| Thickness: | 2mm (0.078") |
| Weight: | 1.7g (0.06 oz.) |
| Locking Clamp Style: | Yes |
✈ Why Use a Locking Aluminum Servo Arm?
Aluminum locking servo arms help improve control precision by reducing flex in the linkage system while also providing a stronger connection between the servo spline and linkage hardware.
The pinch-clamp locking system helps provide a more secure spline connection compared to traditional set-screw servo arms, making this style especially popular for aerobatic aircraft, giant-scale airplanes, jets, and other high-performance RC applications.
📦 Package Includes:
- 1x Gator RC Black 25T Futaba Style 31mm (1.22") Aluminum Locking Servo Arm
- 1x M3 x 6 Clamp Screw
- 1x CM2 x 6 Screw
💡 Installation Tips & Guide
- Use thread lock compound on all metal-to-metal hardware.
- Verify linkage geometry and servo travel before flight to completely avoid binding scenarios.
- Ensure the servo arm is fully seated down onto the spline before engaging the side clamp screw.
- Do not overtighten the clamp screw.
- Inspect your control linkage assembly hardware regularly for continuous flight line safety.
The Gator-RC Advantage: We design our single-arm clamp line with tight physical profiling parameters to ensure uniform circumferential pressure around 25T output splines, reducing point wear and optimizing control transfer accuracy.
