Gator RC 34mm Triangle Base Control Horn – Angled w/ Bearing Clevis

A precision RC linkage component combining a 34mm angled control horn, wide triangle base, and integrated bearing clevis in a single ready-to-install unit. The triangle base provides a broad, stable mounting footprint, while the bearing clevis eliminates slop for crisp, consistent control surface response.

Key features

• 34mm angled control horn — optimized geometry for precise pushrod alignment and reduced binding
• Wide triangle base (50 × 24mm) — distributes load across a larger surface area for a stronger, more stable mount
• Integrated bearing clevis — eliminates slop and friction for smooth, accurate control response
• 2.8mm horn thread — compatible with standard RC linkage hardware
• 2mm clevis bolt — precise fit through the bearing for a secure, play-free connection
• Lightweight at 8.7 grams — minimal weight penalty for the added strength and precision

Specifications

• Horn length: 34mm (1-5/16 in)
• Horn thread size: 2.8mm
• Clevis bolt diameter: 2mm
• Base dimensions: 50 × 24mm (triangle)
• Weight: 8.7 grams
• Horn style: Angled with integrated bearing clevis
• Application: Elevator, rudder, ailerons
• SKU: GRC-CH-213
• Sold as: 1 × control horn with bearing clevis (each)

What's included

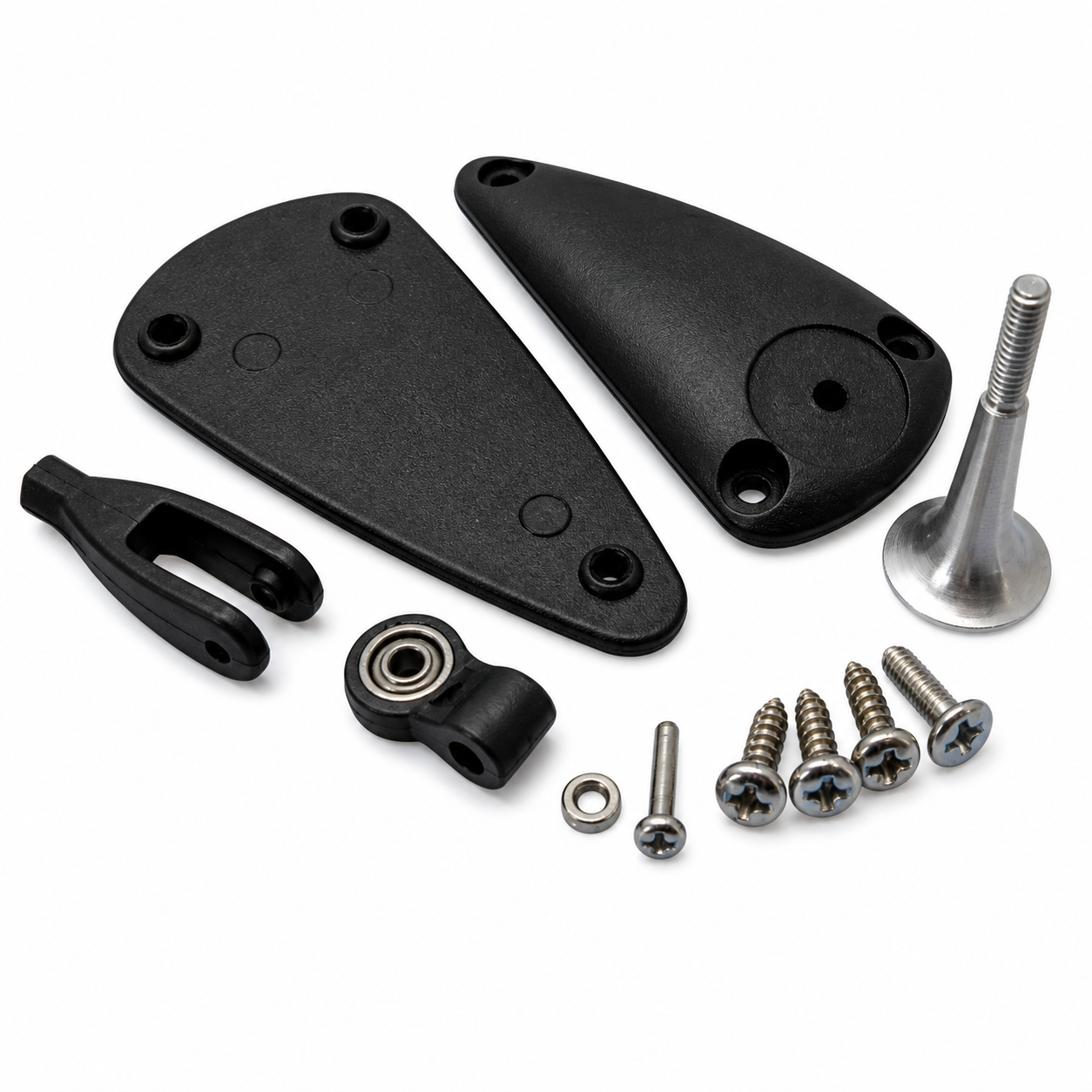

• 1 × 34mm triangle base angled control horn with bearing clevis (each)

Required to complete

• Pushrod linkage (size dependent on setup)
• Mounting screws compatible with your control surface (airframe dependent)
• Backplate or reinforcement as needed for the control surface material

Best for

• Medium to large RC airplanes requiring a wide-base, high-stability horn mount
• Elevator, rudder, and aileron control surfaces
• Sport, scale, and aerobatic aircraft
• Builders wanting a clevis pre-integrated into the horn assembly
• Applications where pushrod angle requires an angled horn for proper geometry

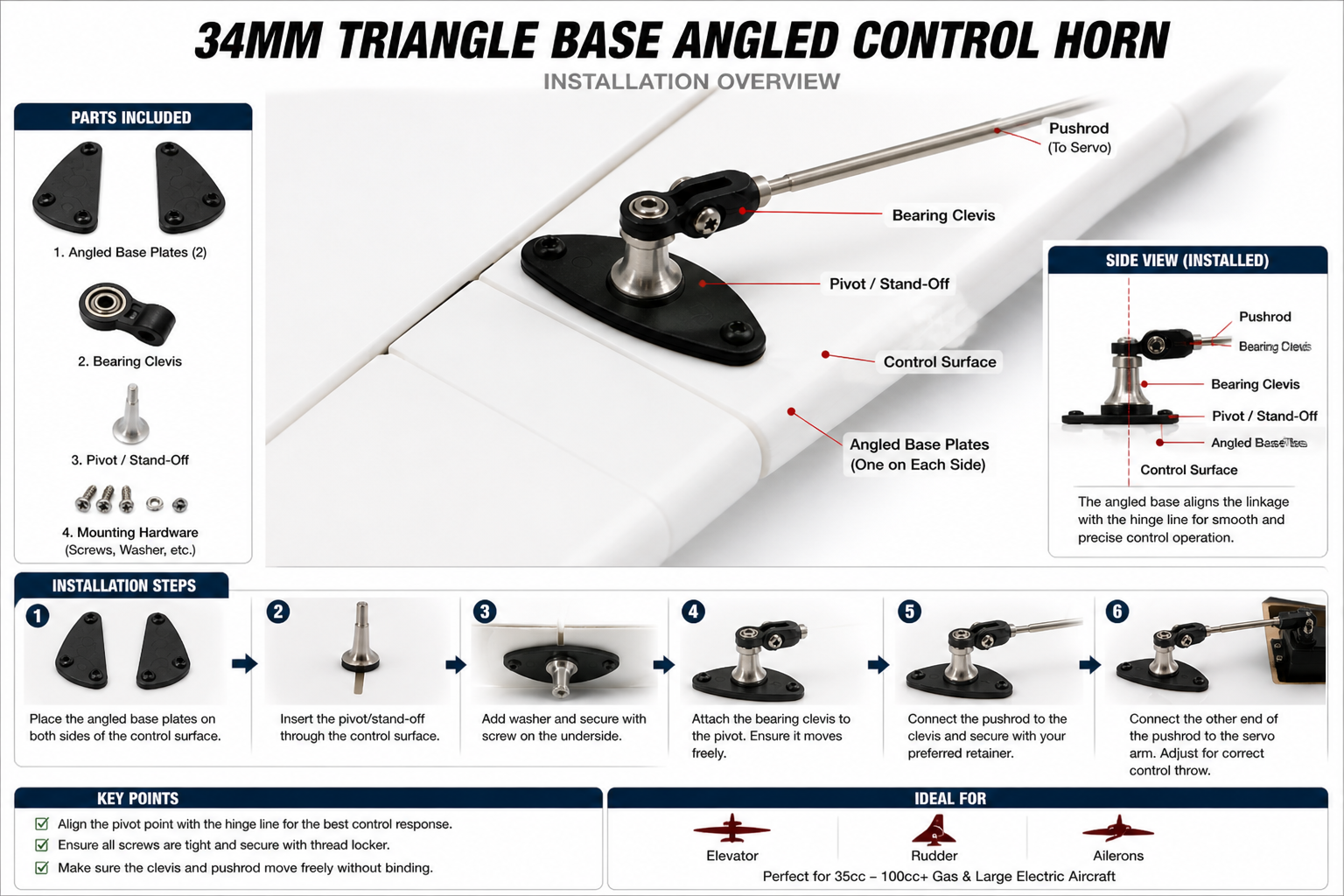

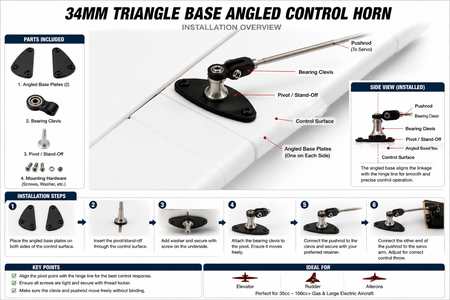

Installation notes

• The angled horn design compensates for off-axis pushrod routing — confirm the angle suits your airframe geometry before installing
• Align the horn pivot point with the control surface hinge line for correct throw geometry
• The 2mm bolt passes through the bearing clevis — ensure it is fully seated and secured
• Use appropriate reinforcement or backplate on the control surface, especially on balsa or foam builds
• Verify full linkage travel is free and unrestricted through the complete deflection range

Why choose a bearing clevis horn?

Standard clevises can develop slop over time as the pin wears against the horn. A bearing clevis eliminates that wear point entirely — the bearing rotates smoothly around the 2mm bolt without side-load friction, maintaining precise, consistent control response across thousands of cycles. Combined with the wide triangle base, this horn delivers both mounting stability and linkage precision in one compact unit.
