Gator RC Heavy-Duty Ball Joint Arm Clevis – 10mm Ball, M3 Thread

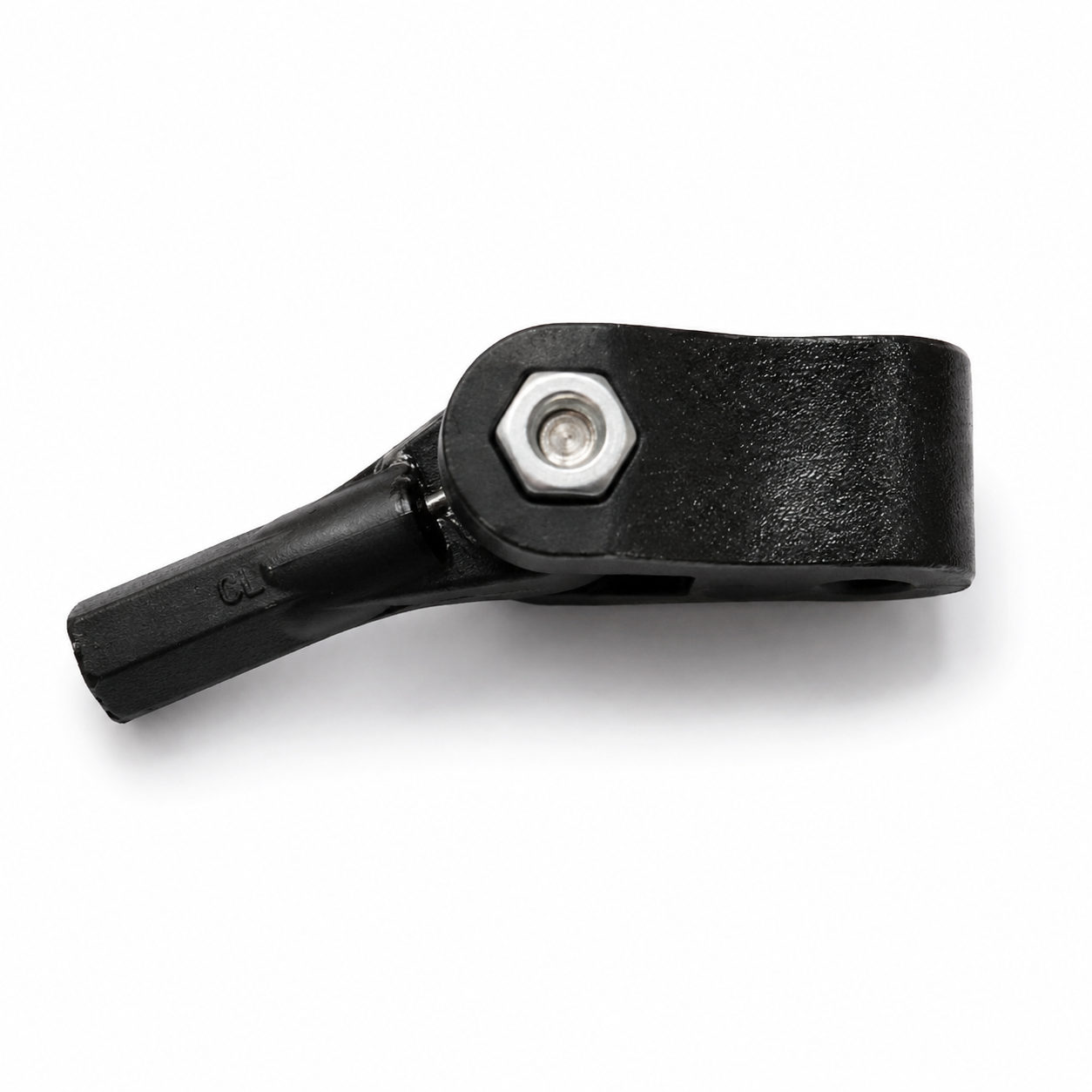

The Gator RC Heavy-Duty Ball Joint Arm Clevis is designed for strong, smooth, and precise control linkage setups on RC aircraft. This assembly combines a pivoting arm clevis with a ball joint design to allow greater articulation than a standard clevis, helping reduce binding through the full range of control surface movement.
This style of linkage is especially useful for giant scale, aerobatic, IMAC, and gas-powered aircraft where linkage strength, clean geometry, and smooth movement are important.
🚀 Target Applications:
- High-load Rudder and Elevator control surface installations
- Flap linkages and precision Carburetor Throttle control paths on gas engines
- Giant Scale, IMAC, and aggressive 3D Aerobatic airplanes
- Scale aircraft control systems demanding tight clearances and zero linkage play

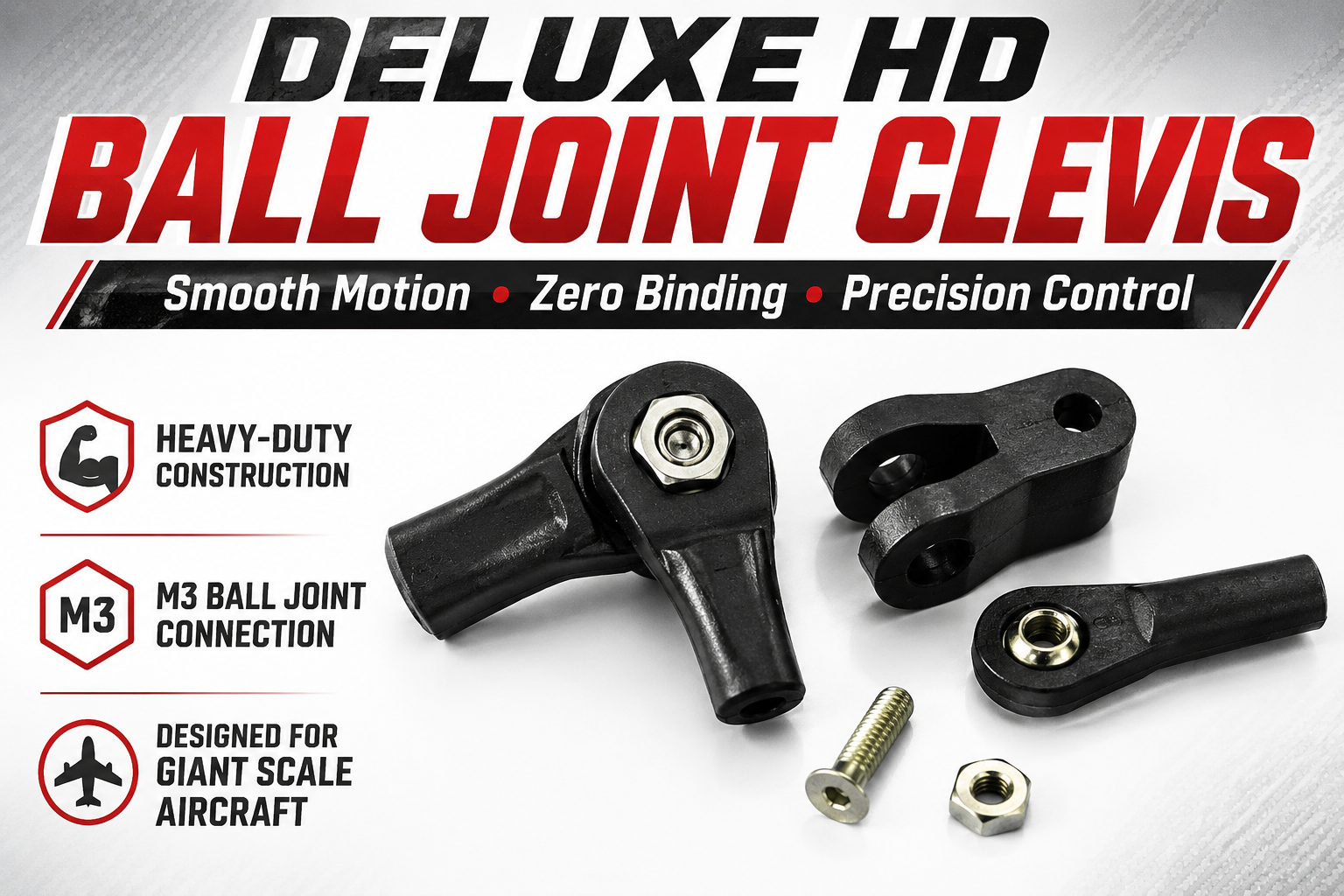

Key Features
- 10mm Spherical Pivot: Heavy-duty 10mm ball joint design maximizes surface articulation thresholds while cleanly cutting down mechanical slop.
- Reduced Core Binding: Freer multi-axis rotational clearance prevents structural linkage binding at aggressive control surface throws and geometric extremes.
- Compact Footprint Layout: Streamlined, space-saving arm clevis geometry allows for clean, unhindered installations inside tight radio trays or narrow control horn bays.
- Vibration-Proof Stability: Built to endure the intense continuous resonance, aerodynamic pushrod stress, and structural punishment of large gas outrunners and turbine power plants.
- Consistent Servo Tracking: Relieves off-axis binding pressures to significantly lower latent servo load strain and preserve expensive digital gear train health.

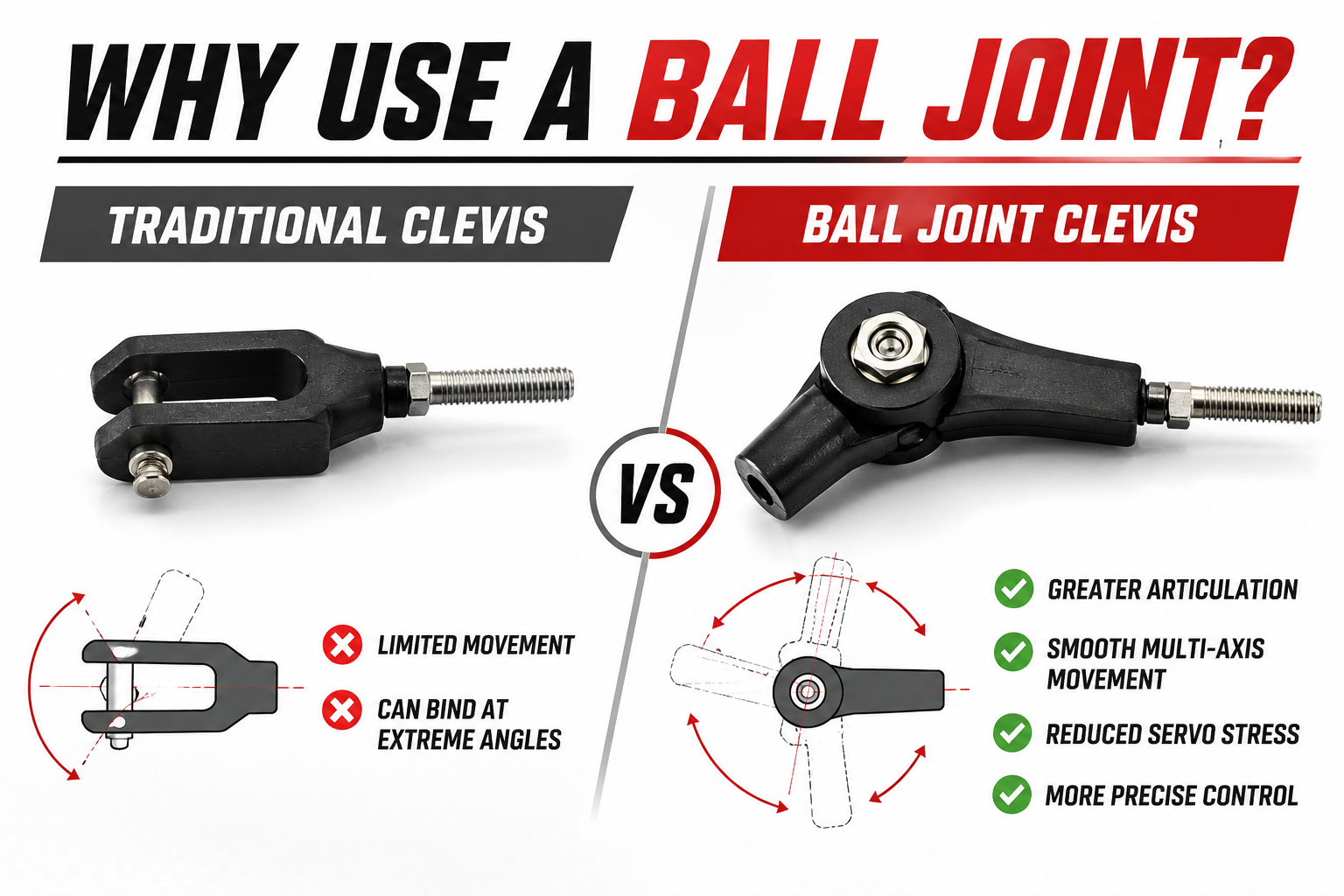

⚖ Why Choose a Ball Joint Arm Clevis?
Standard clevises can bind when linkage geometry is not perfectly straight or when control surfaces move through larger deflection angles. A ball joint arm clevis allows the linkage to pivot more freely, helping improve control smoothness, reduce servo load, and maintain more consistent movement across the entire flight envelope.
View Technical Specifications
| Linkage Assembly Type: | Heavy-Duty Ball Joint Arm Clevis Combination |
| Thread Connection Sizing: | M3 Metric Threading |
| Threaded Rod Length: | 27mm (1.06 in) |
| Outer Ball Diameter: | 10mm (0.39 in) |
| Ball Hole Diameter: | 6mm (0.24 in) |
| Ball Pin Diameter: | 2.5mm (0.10 in) |
| Arm Clevis Width: | 12.5mm (0.49 in) |
| Arm Clevis Height: | 10mm (0.39 in) |
| Included Clevis Hardware: | M2.5 Machine Bolt & Matching Hex Nut Set |

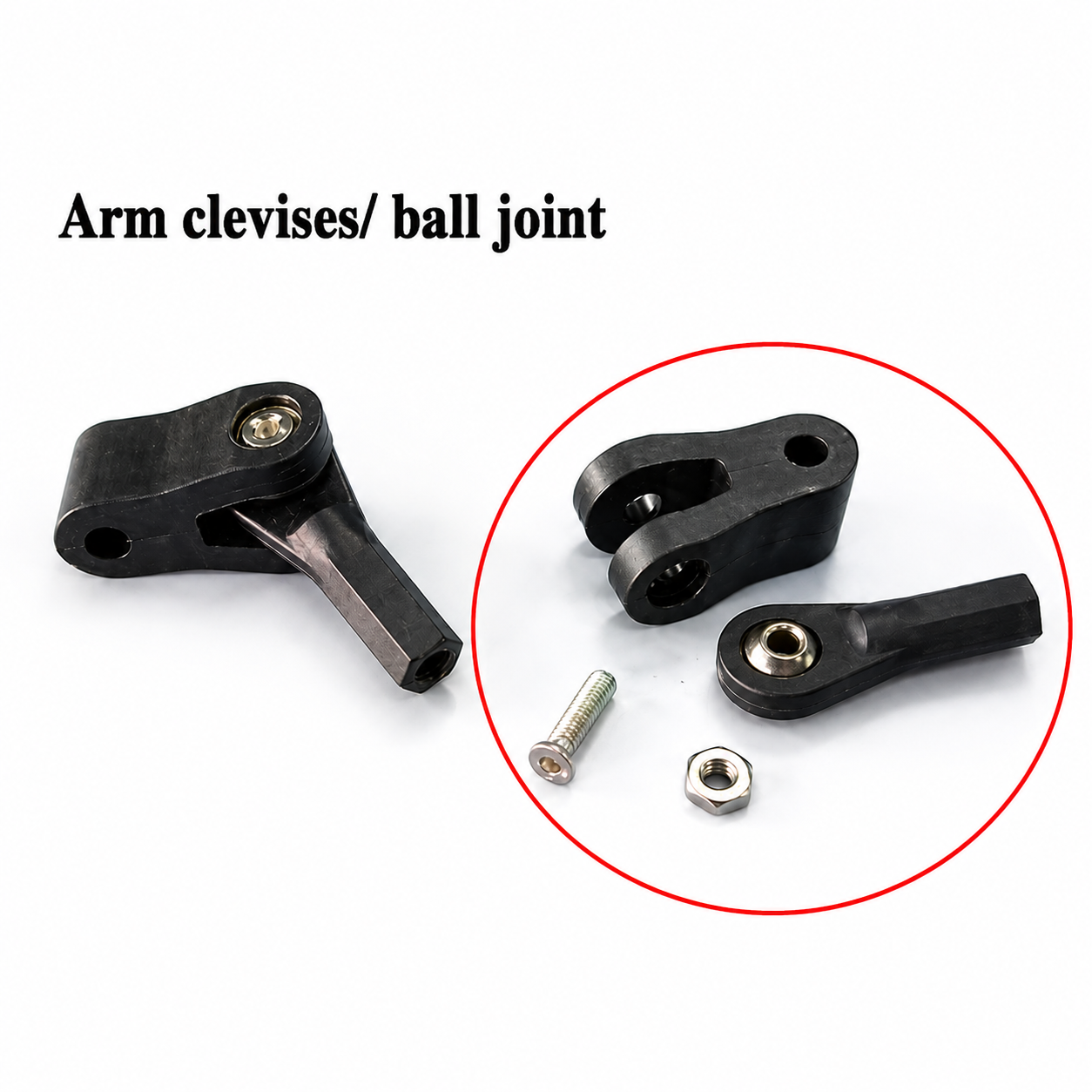

📦 Package Includes:
- 1 x Heavy-Duty Arm Clevis Shroud
- 1 x Spherical Ball Joint End Link
- 1 x M2.5 Structural Mounting Bolt
- 1 x M2.5 Locking Hex Nut
💡 Modeler’s Tips
When setting up your pushrods, ensure you achieve at least 6 to 8 full thread rotations of engagement between your pushrod and the M3 threaded tail block. If you are grouping this linkage pack with our high-torque power setups—such as the Dualsky GA6000.9S Brushless Outrunner—always back your assembly with a tiny dab of blue medium-strength thread locker on the M2.5 bolt threads to guard completely against severe high-frequency airframe frequencies.
The Gator-RC Advantage: We source a complete selection of matching high-quality hardware parts so you can stock your workspace from one reliable point. In stock and ready to ship out of our domestic warehouse.
