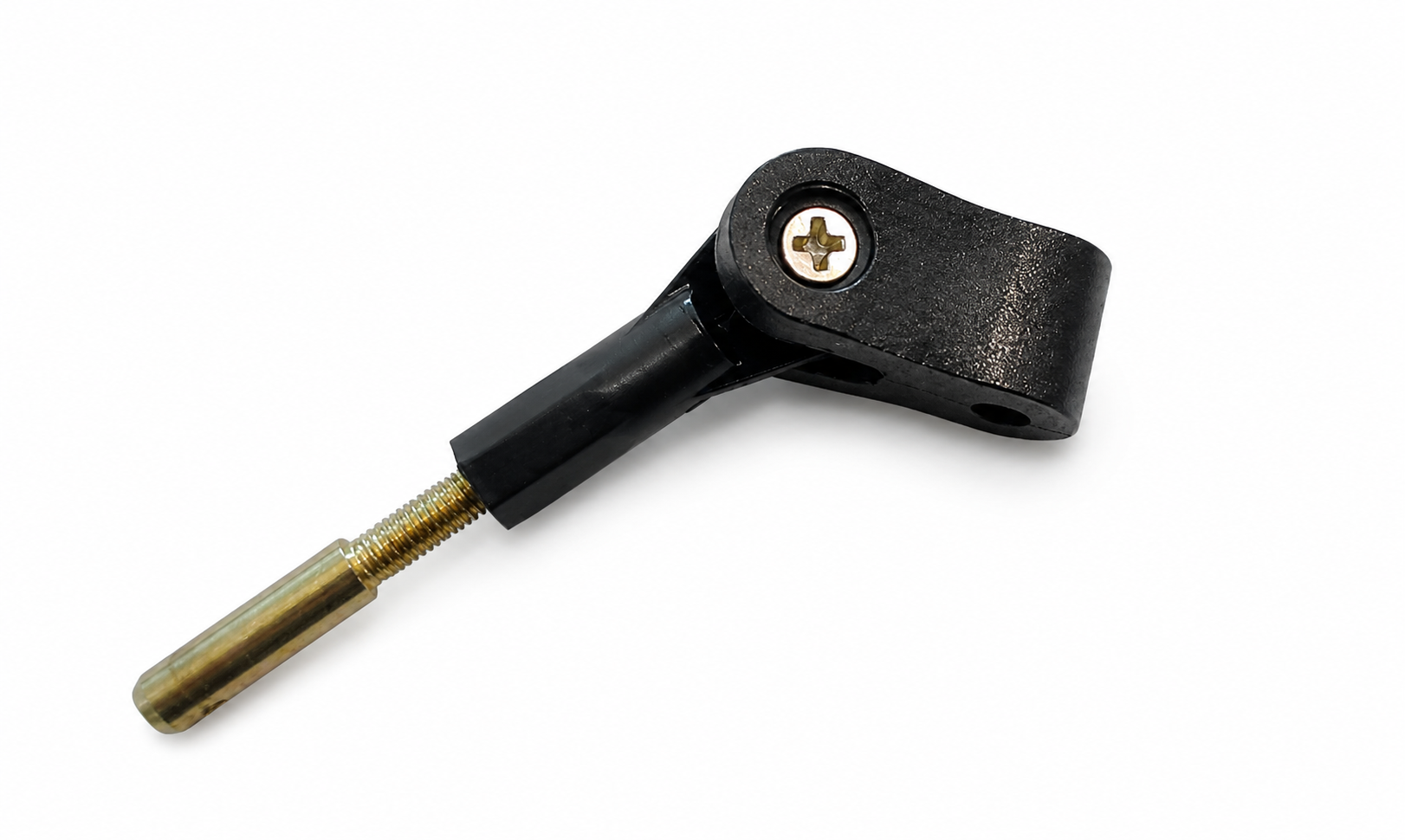

Gator RC Deluxe HD Ball Link Arm Clevis Assembly M3 x 32mm Rod
Couldn't load pickup availability
Gator RC Heavy-Duty Ball Link Arm with Clevis Set (M3 / 32mm Rod)
Upgrade your control linkage system with the Gator RC Heavy-Duty Ball Link Arm with Clevis Set. Designed for giant scale and high-performance RC aircraft, this precision linkage assembly combines a smooth ball joint with a heavy-duty clevis arm to provide slop-free control movement.

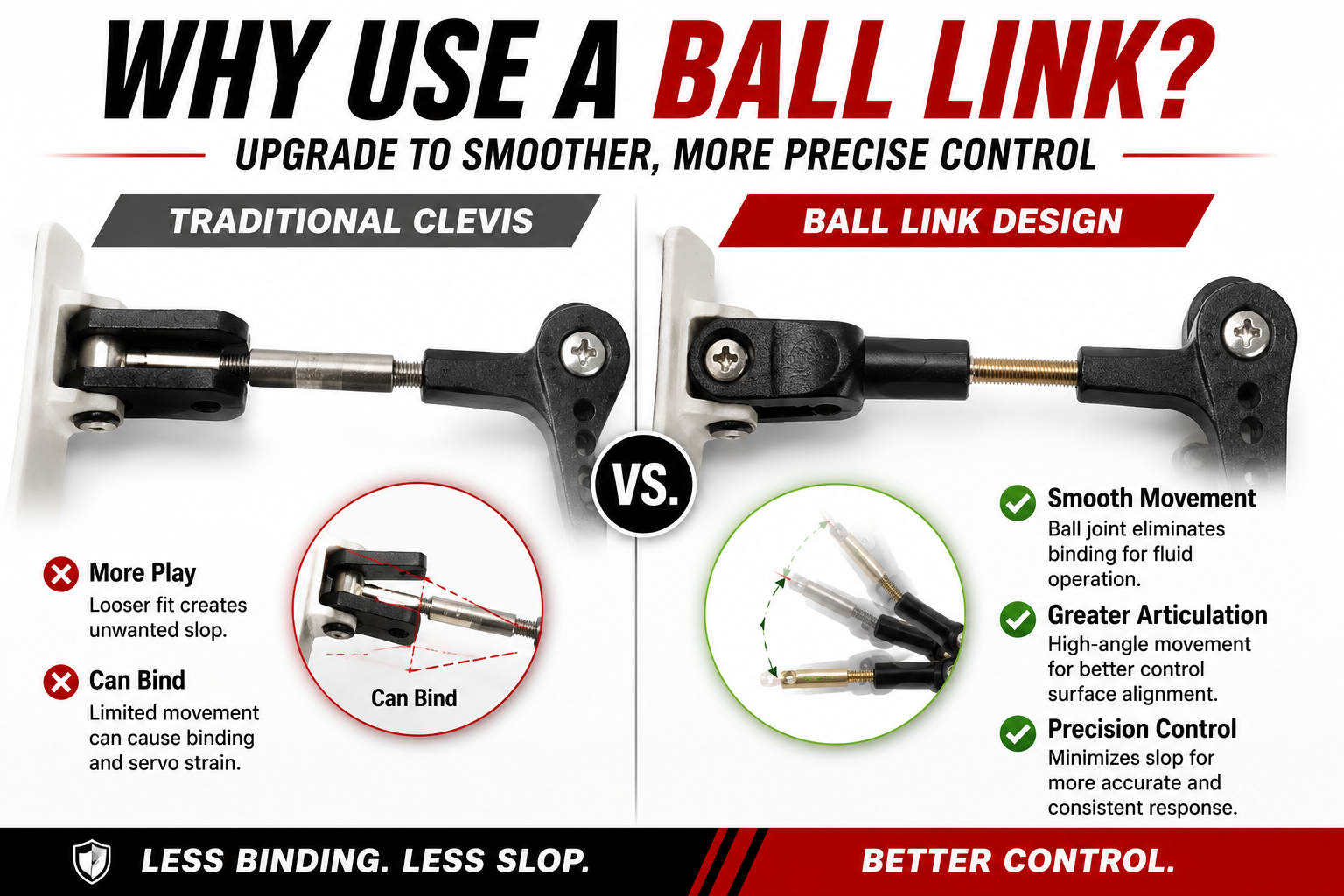

The ball joint design allows the linkage to articulate through a wide range of motion while minimizing binding and unwanted stress on servos and control surfaces. Compared to traditional clevises, the ball link provides smoother operation and improved precision, making it ideal for aerobatic, IMAC, giant scale, and high-performance aircraft.
🚀 Target Applications:
- High-load Rudder, Elevator, and Flap control surface installations
- Precision, slop-free Carburetor Throttle control linkages on gas engines
- Giant Scale, IMAC, and aggressive 3D Aerobatic airplanes
- Scale aircraft control systems demanding tight clearances and zero linkage play
Key Features
- Compact 10mm Clevis Profile: Designed with a streamlined 10mm wide clevis head to maximize structural load sharing while fitting into tighter control horn bays.
- Precision Ball Joint: Built-in spherical ball joint mechanism ensures smooth, zero-play multi-axis articulation while completely eliminating servo binding.
- Greater Angular Limits: Specifically engineered to allow greater angular throw and surface travel than restrictive standard mechanical clevises.
- All-Metal Thread Integrity: Employs a heavy-duty M3 turnbuckle rod to handle the intense physical forces and high-frequency vibrations encountered in giant-scale flight.
- Clean Custom Integration: Simplifies complex linkages by allowing you to custom-match your final control arm geometric paths cleanly and professionally.

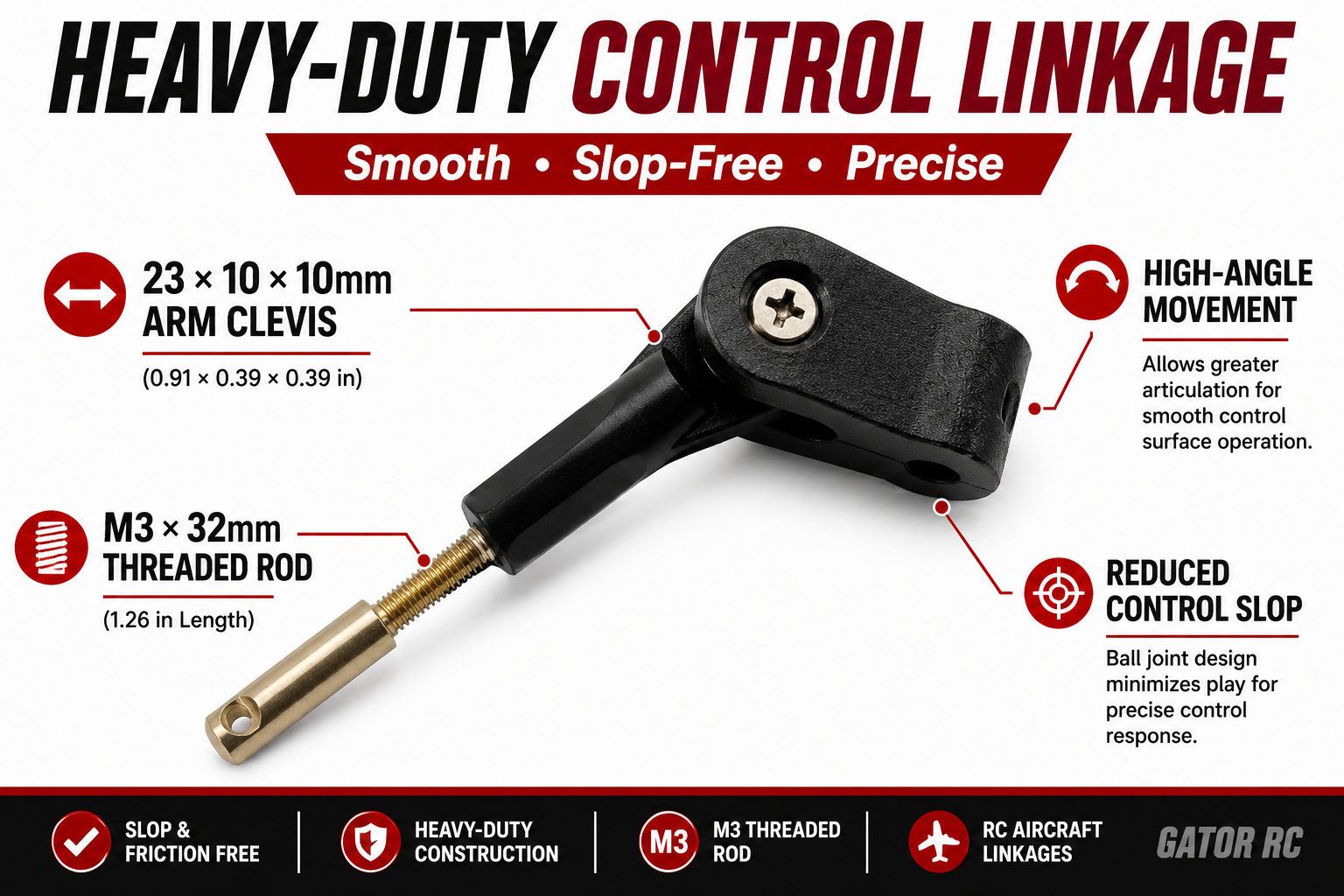

View Technical Specifications
| Linkage Type: | Ball Link & Clevis Assembly Combination |
| Factory Part Number: | HY007-03602 |
| Thread Size: | M3 Metric Threading |
| Connecting Rod Length: | 32mm |
| Arm Clevis Length: | 23mm |
| Arm Clevis Width (Optimized): | 10mm |
| Arm Clevis Height: | 10mm |
| Aircraft Class: | Giant Scale / High-Performance Aerobatic Models |

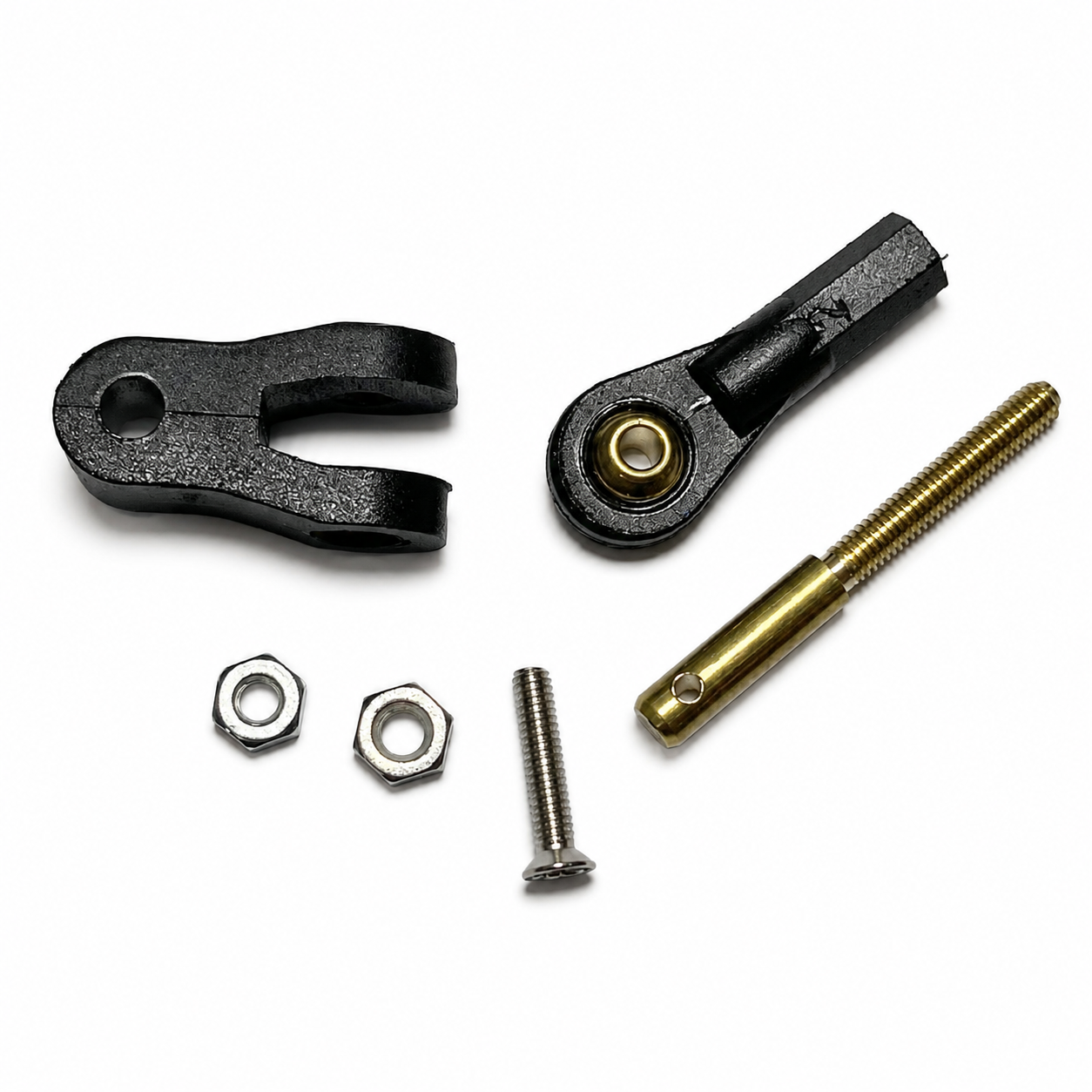

📦 Package Includes:
- Gator RC Heavy-Duty Ball Link Sockets
- Heavy-Duty Metal Arm Clevises (23mm x 10mm x 10mm)
- M3 x 32mm Threaded Connecting Rods
- Installation Hardware Components
💡 Modeler’s Tips
Because this kit arrives as separate components with a 32mm rod, it is perfect for tailoring specific linkage lengths on complex surface configurations. When threading the clevis components onto your M3 rod, make sure to achieve an equal amount of thread engagement on both ends. For maximum defense against gas engine harmonic vibrations, always use a drop of medium thread locker on the final hardware assembly.
The Gator-RC Advantage: We source a complete selection of matching high-quality hardware parts so you can stock your workspace from one reliable point. In stock and ready to ship out of our domestic warehouse.
