Gator RC Fuel Hose Spring Clamps – 8–9mm (5 Pack)
Couldn't load pickup availability
Gator RC Fuel Hose Spring Clamps – 8–9mm (5 Pack)

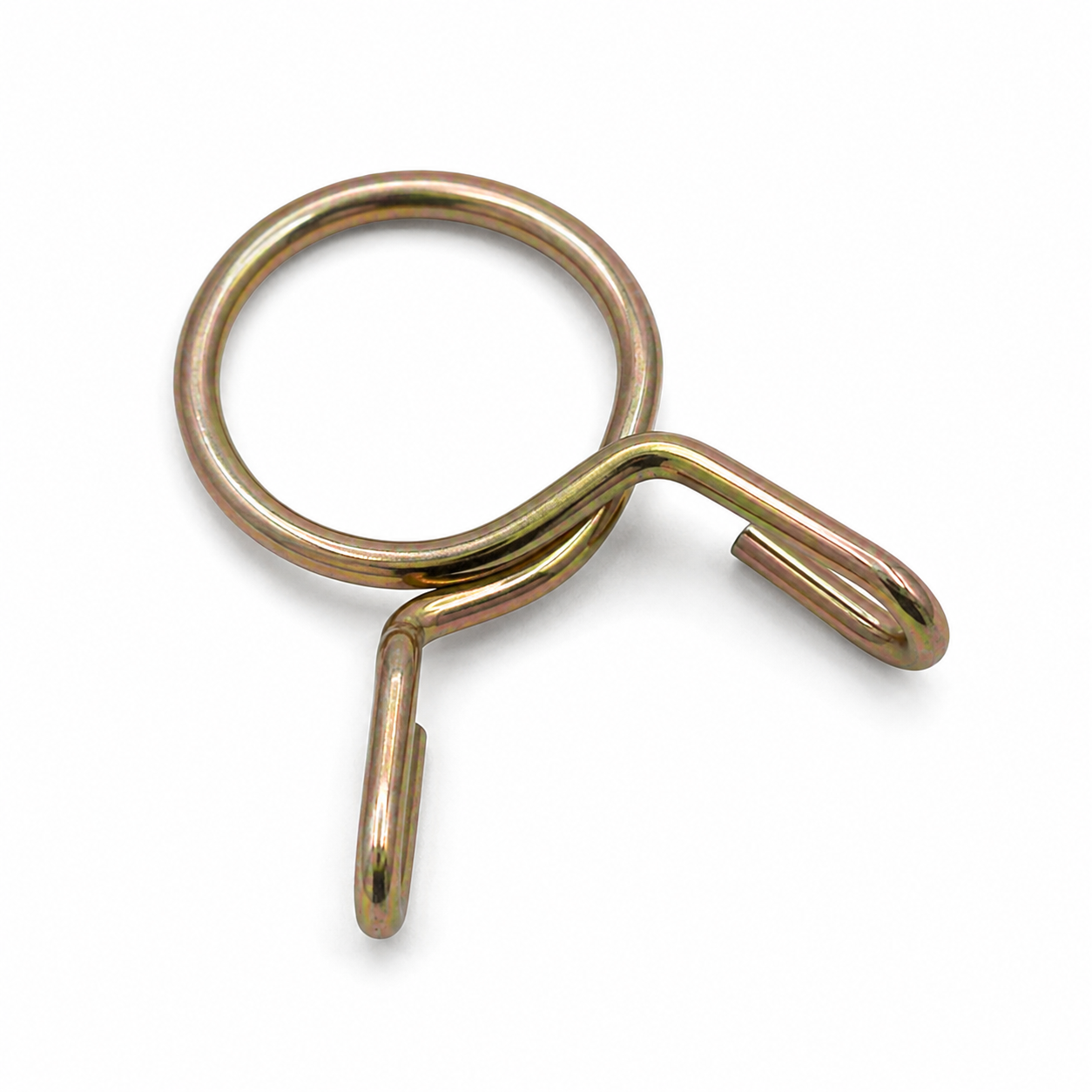

Gator RC Fuel Hose Spring Clamps are lightweight spring steel wire clips designed to help secure larger fuel tubing used in RC gasoline, glow, and smoke system installations. These reusable spring clamps apply consistent pressure around the tubing to help reduce leaks and prevent fuel lines from slipping off fittings during engine vibration and operation.
Sized for approximately 8–9mm tubing applications, these clamps are ideal for larger gasoline fuel systems, smoke systems, fueling lines, and high-flow RC plumbing setups.
Features
- Spring wire fuel hose clamp design
- Fits approximately 8–9mm fuel tubing
- Reusable spring steel wire construction
- Zinc-plated steel finish
- Helps secure tubing to barbed fuel fittings
- Suitable for gasoline and glow fuel systems
- Ideal for larger fuel and smoke system tubing
- Helps reduce leaks and loose fuel line connections
- Simple squeeze-install design
- Compact lightweight hardware for RC applications

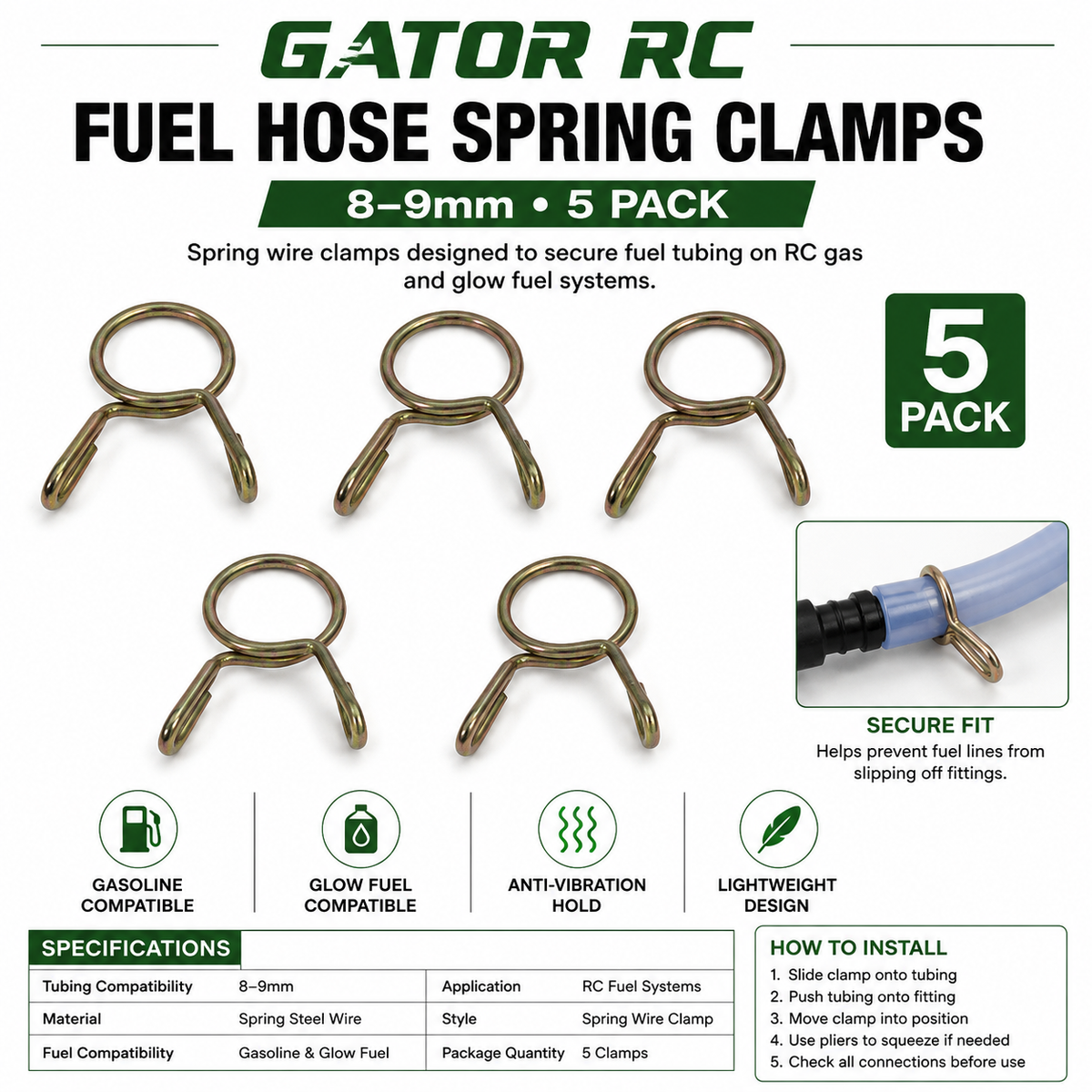

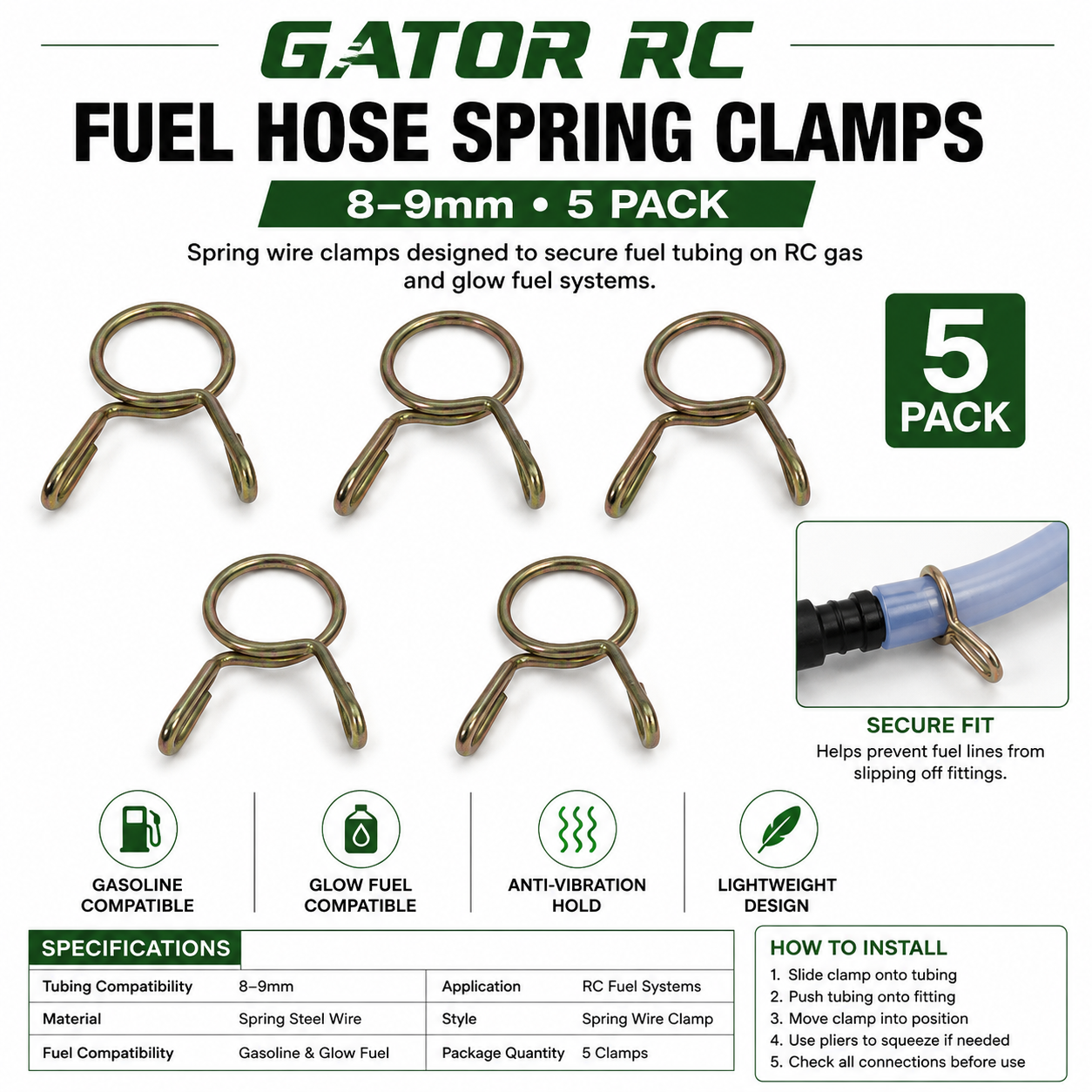

Specifications
| Brand | Gator RC |
| Product Type | Fuel Hose Spring Clamp |
| Tubing Compatibility | 8–9mm |
| Material | Spring Steel Wire |
| Finish | Zinc-Plated Steel |
| Fuel Compatibility | Gasoline and glow fuel |
| Application | RC fuel systems and smoke systems |
| Style | Reusable spring wire clamp |
| Package Quantity | 5 clamps |
Common Uses
- Large gasoline fuel tubing connections
- Smoke system plumbing
- Fuel tank line retention
- Fuel filter installations
- Fuel filling and vent line setups
- High-flow fuel tubing systems
- Gasoline-powered RC airplane fuel systems
Choosing the Correct Clamp Size
Fuel hose clamp sizing is based on the outside diameter of the tubing after it is installed on the fitting. Choose a clamp size that provides firm retention without excessively crushing the tubing.
Installation Instructions
- Slide the clamp onto the tubing before attaching the fuel line to the fitting
- Push the tubing fully onto the barbed fitting
- Move the clamp into position over the barbed section
- Use pliers if needed to slightly compress the clamp during installation
- Inspect all fuel system connections before engine operation
What’s Included
- Five 8–9mm fuel hose spring clamps
Modeler’s Tip
Spring wire fuel clamps are especially useful on gasoline and smoke systems where engine vibration and fuel pressure can gradually loosen larger fuel tubing connections over time.
