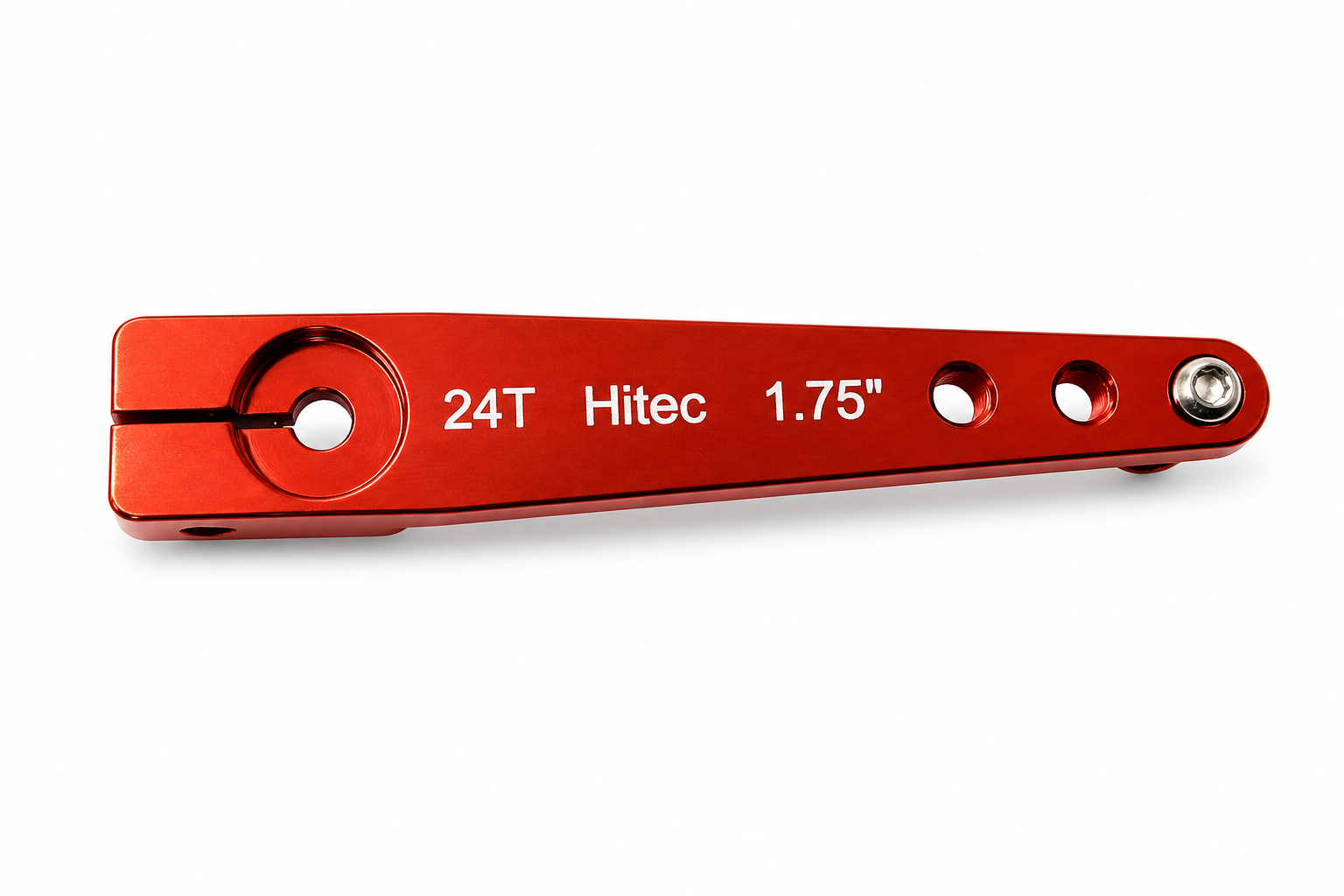

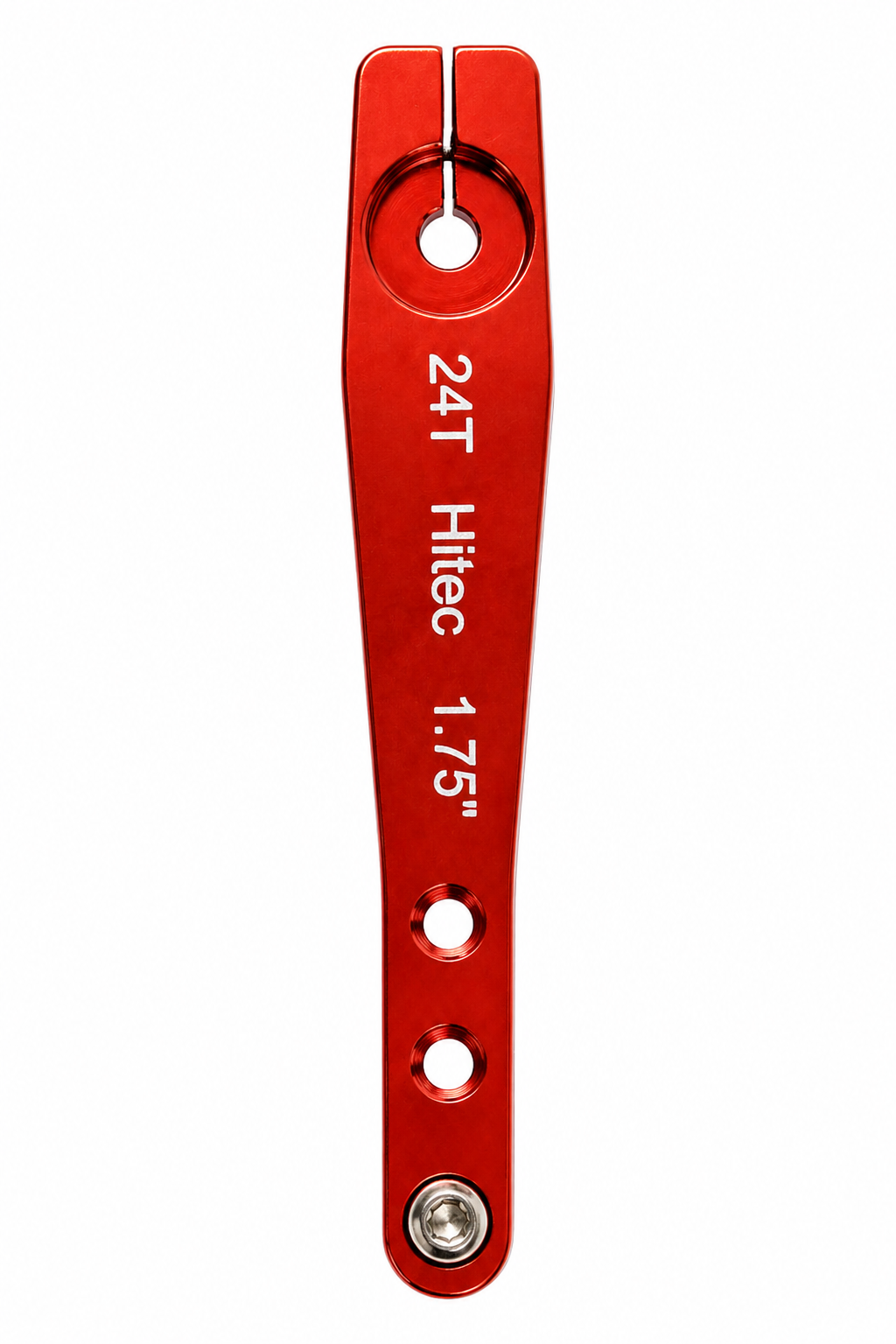

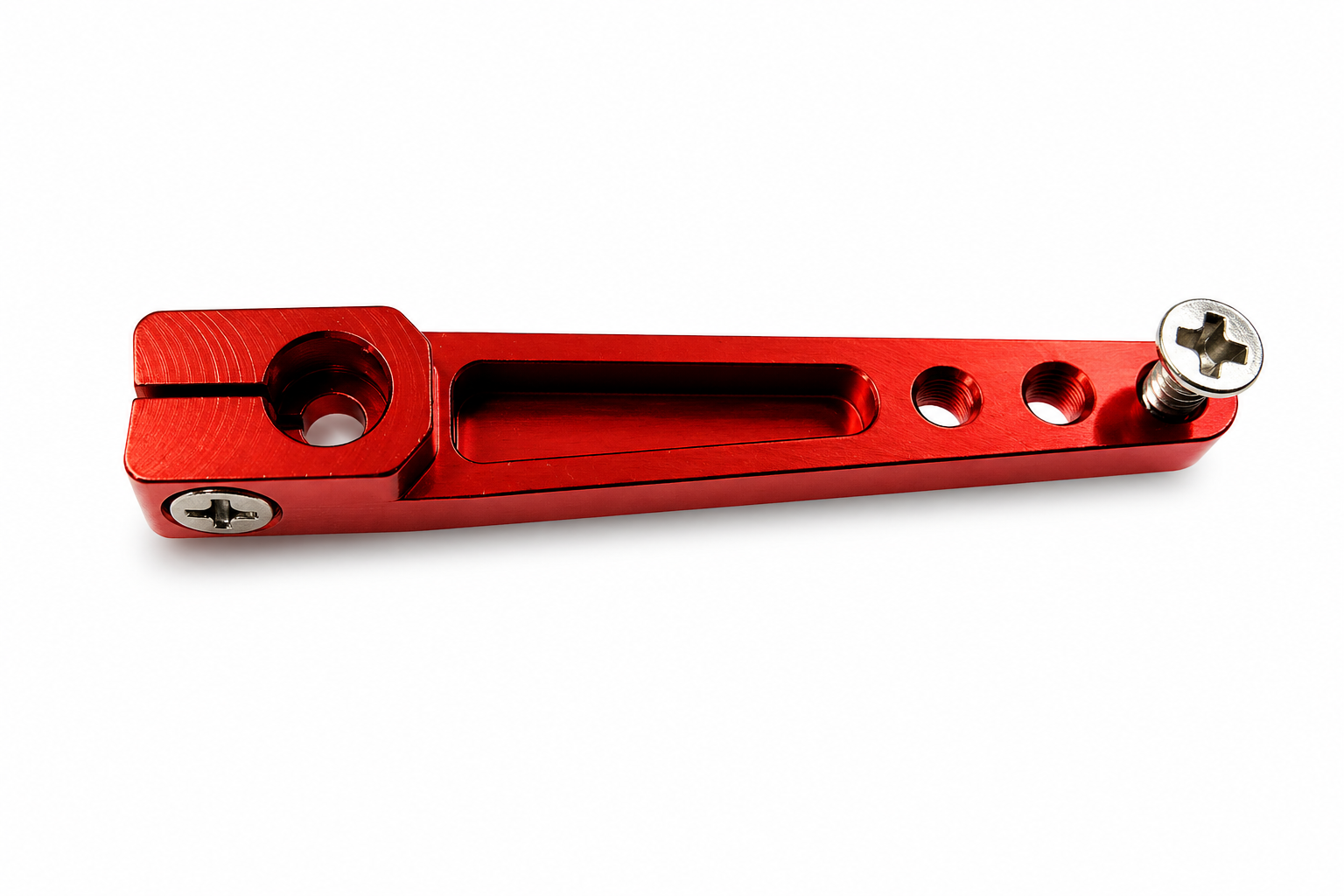

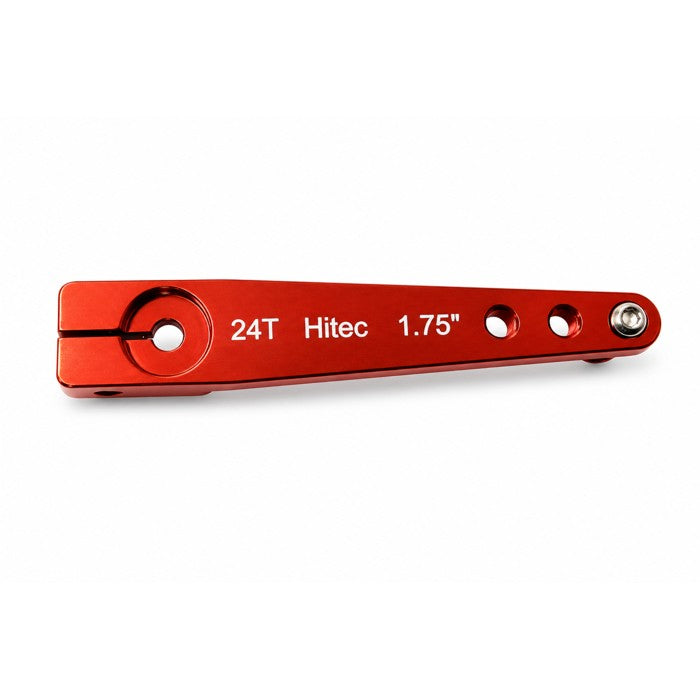

Gator RC HD Clamp Servo Arm – 1.75" (M3) for Hitec 24T
The Gator RC HD Clamp Servo Arm is a precision-machined aluminum servo arm designed for high-performance RC aircraft. Featuring a clamping hub design, this arm provides a tighter, more secure spline connection compared to standard servo arms, reducing play and improving control precision.
Designed for Hitec 24T (6mm) spline servos, this 1.75" arm is ideal for applications requiring increased control throw and strong linkage performance.
🛡️ Precision & Strength
The clamp-style hub is engineered to eliminate spline slop and provide a more secure fit than standard arms, making it ideal for high-torque applications and high-performance flight.
Key Features
- Clamp-style hub eliminates spline slop
- Heavy-duty CNC aluminum construction
- Improved precision over standard servo arms
- Multiple linkage hole positions for setup flexibility
View Technical Specifications
| Length (Primary): | 1.75" (45mm) |
| Spline: | 24T (6mm) – Hitec Compatible |
| Thread: | M3 (fits M3 ball links) |
| Material / Weight: | CNC Aluminum / 5g |
| Quantity / Color: | 1 per package / Red |
📏 Hole Spacing (Linkage Positions)
- 1.25" (31.75mm)
- 1.5" (38.1mm)
- 1.75" (45mm)

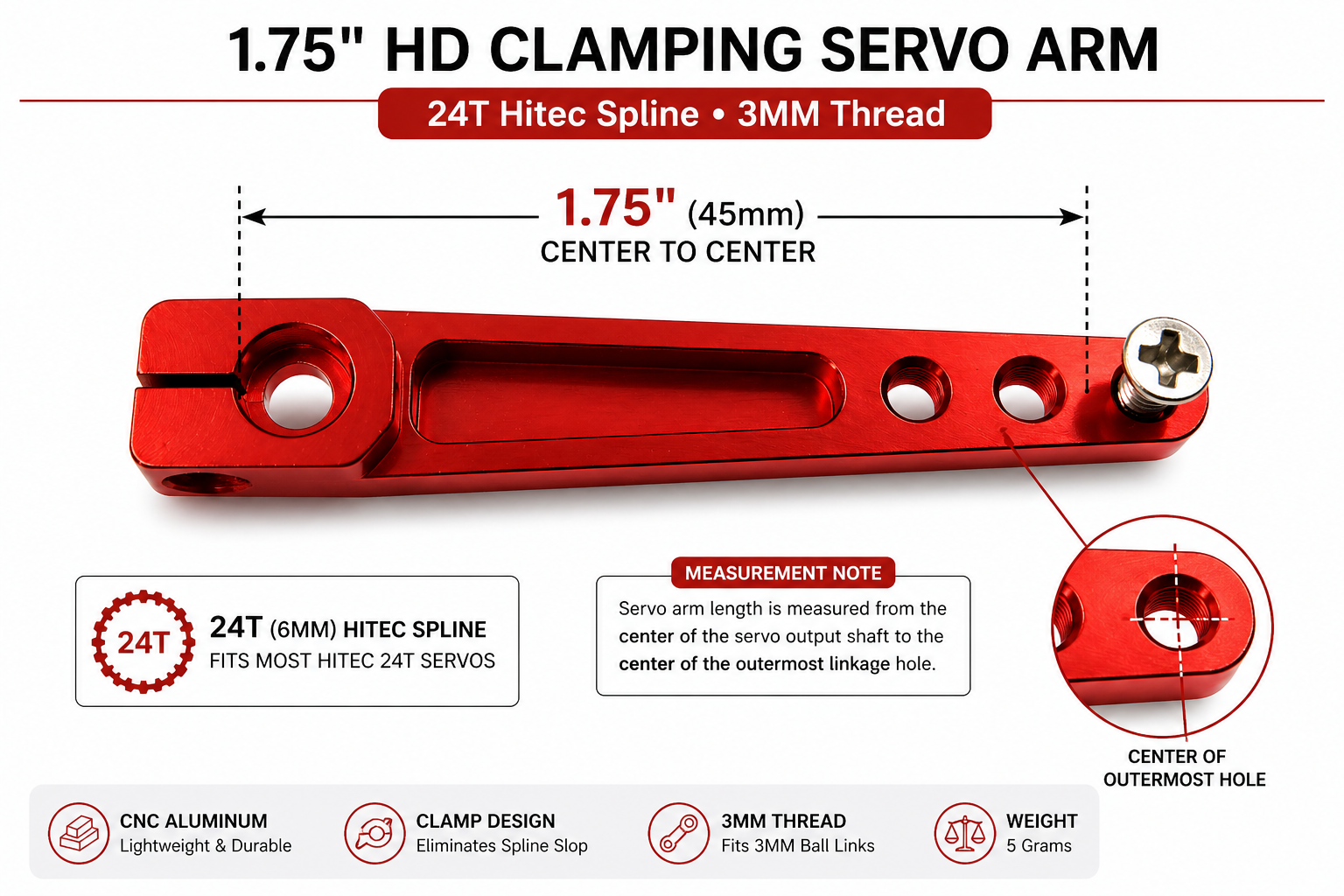

Measurement Note: Servo arm length is measured from the center of the servo output shaft to the center of the outermost linkage hole.
🛠️ Installation Tips
- Align servo arm before tightening clamp screw
- Apply threadlocker (Loctite) to all screws
- Tighten clamp evenly for secure fit
- Ensure linkage is tight and slop-free
Compatibility: Fits most Hitec 24T spline servos (also compatible with many servos using the 24T / 6mm standard).
💡 Gator-RC Modeler’s Tip
A 1.75" servo arm increases control throw but also increases load on the servo. Use with high-torque servos for best performance.
