Gator RC M2 Brass Ball Links with Hardware – Black

Gator RC M2 Brass Ball Links with Hardware

Build smooth, dependable RC airplane control linkages with Gator RC M2 brass ball links. Each black ball-link body contains a brass swivel ball and includes matching M2 mounting hardware for installation on compatible servo arms, control horns and linkage components.

The ball-link body measures approximately 18 mm (0.71 in) long. Choose the 2-pack for a single control connection or the 5-pack for larger projects and additional replacement hardware.

Features

• Brass swivel ball for smooth control movement
• Black ball-link body
• M2 mounting bolt and nut included with each ball link
• Approximately 18 mm (0.71 in) body length
• Suitable for RC airplane servo and control-surface linkages

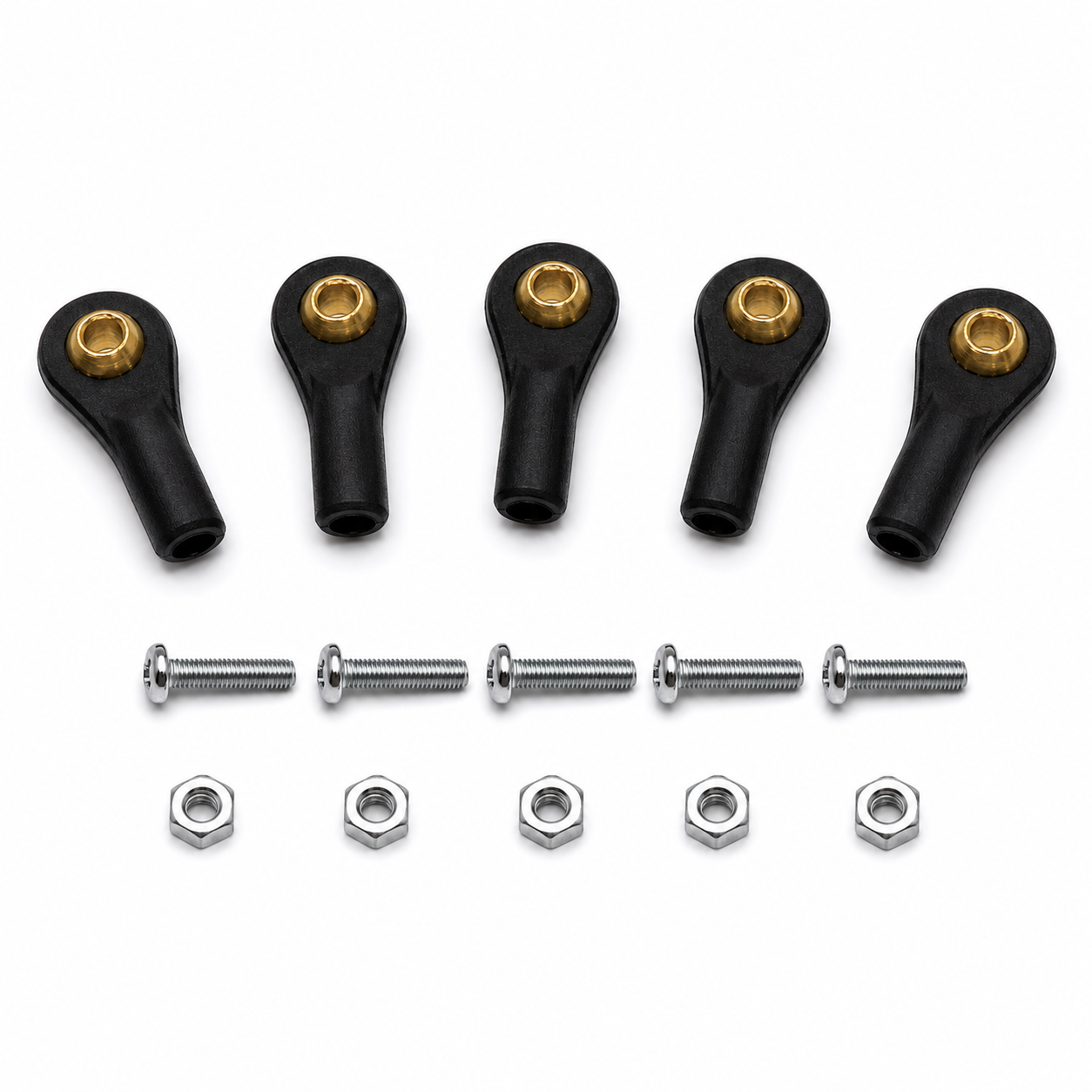

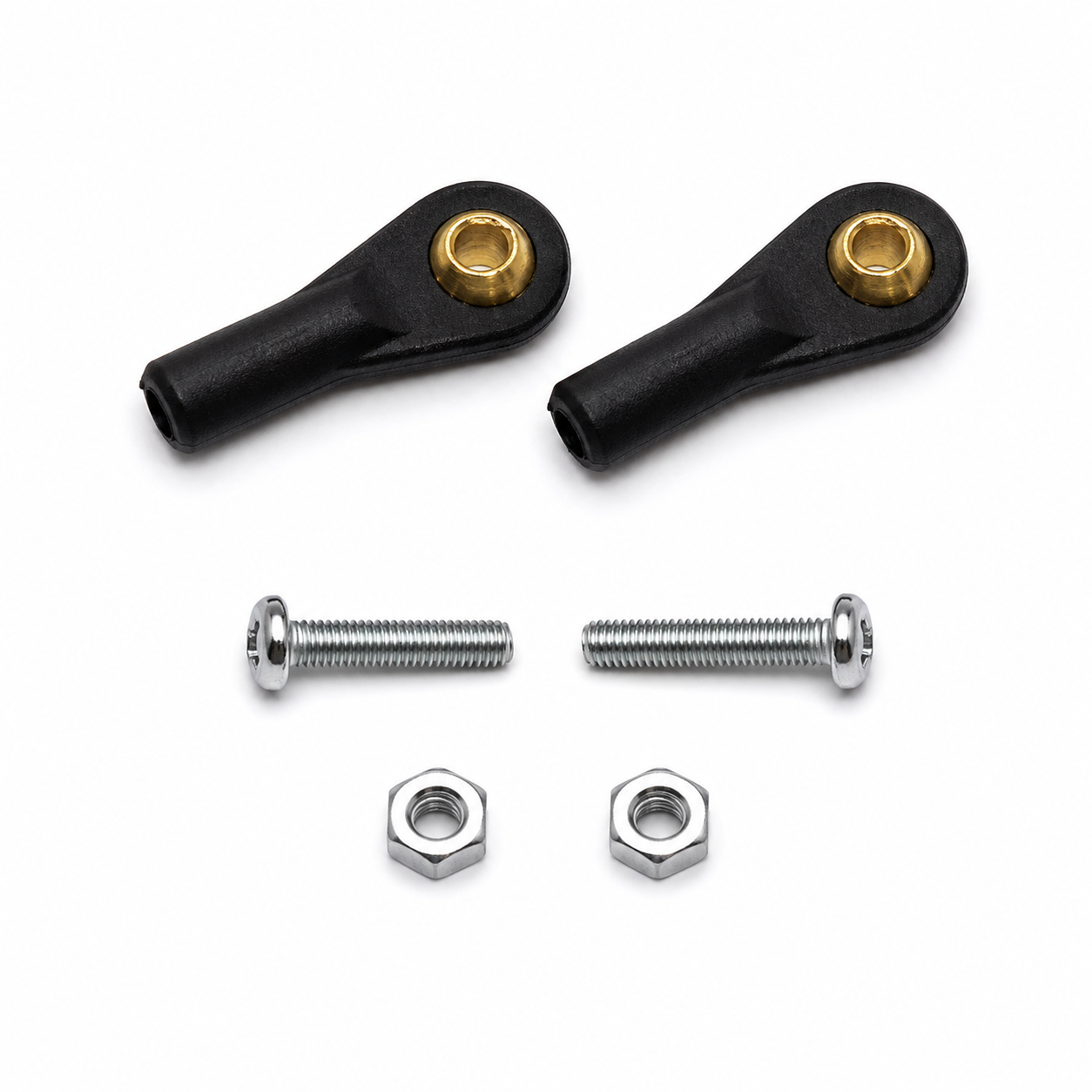

• Available in 2-pack and 5-pack quantities

Specifications

Common Applications

• Aileron control linkages
• Elevator and rudder linkages
• Servo-arm connections
• Control-horn connections
• Custom RC pushrod assemblies

Package Contents

Select either a 2-pack or 5-pack. Each ball link includes one M2 mounting bolt and one matching nut.

Compatibility note: Confirm the required mounting-hole size, pushrod thread and installation clearance before ordering. Drilling and tapping may be required when adapting the ball-link body to larger threaded pushrods.

Pushrod and Servo-Arm Compatibility

The ball-link body can be used with 2 mm and 2-56 threaded pushrods or turnbuckles. The body contains enough material to potentially be drilled and tapped for larger 2.5 mm or 4-40 threads. Drilling and tapping are required for larger thread sizes.

The included M2 mounting bolts fit many Gator RC and Secraft servo arms with compatible 2 mm mounting holes. Always verify the pushrod thread, servo-arm hole size and installation clearance before assembly.
