Gator RC MPX 6-Pin Connector Set – 2 Male/Female Pairs with Heat Shrink and Rings
Create clean, convenient electrical connections in your RC aircraft with this Gator RC MPX 6-Pin Connector Set. The kit includes two complete male-and-female MPX connector pairs, making it suitable for removable wings, multi-servo wiring harnesses and other custom RC electrical installations.
Each six-pin connector combines multiple electrical connections into one compact, polarized plug. This helps simplify wing installation and removal while reducing the number of individual servo plugs that must be connected.
The set also includes eight pieces of light-red heat-shrink tubing and eight metal rings. The heat-shrink tubing measures approximately 6 mm (0.24 in) in diameter and approximately 32 mm (1.25 in) long.
Features
- Two complete male-and-female MPX connector pairs
- Six electrical contacts per connector
- Polarized connector shape helps prevent incorrect connection
- Combines multiple circuits into one convenient connection point
- Ideal for removable RC airplane wings and multi-servo installations
- Includes light-red heat-shrink tubing for wire insulation and strain relief
- Includes eight metal rings for connector assembly
- Suitable for custom RC wiring harnesses and electrical projects

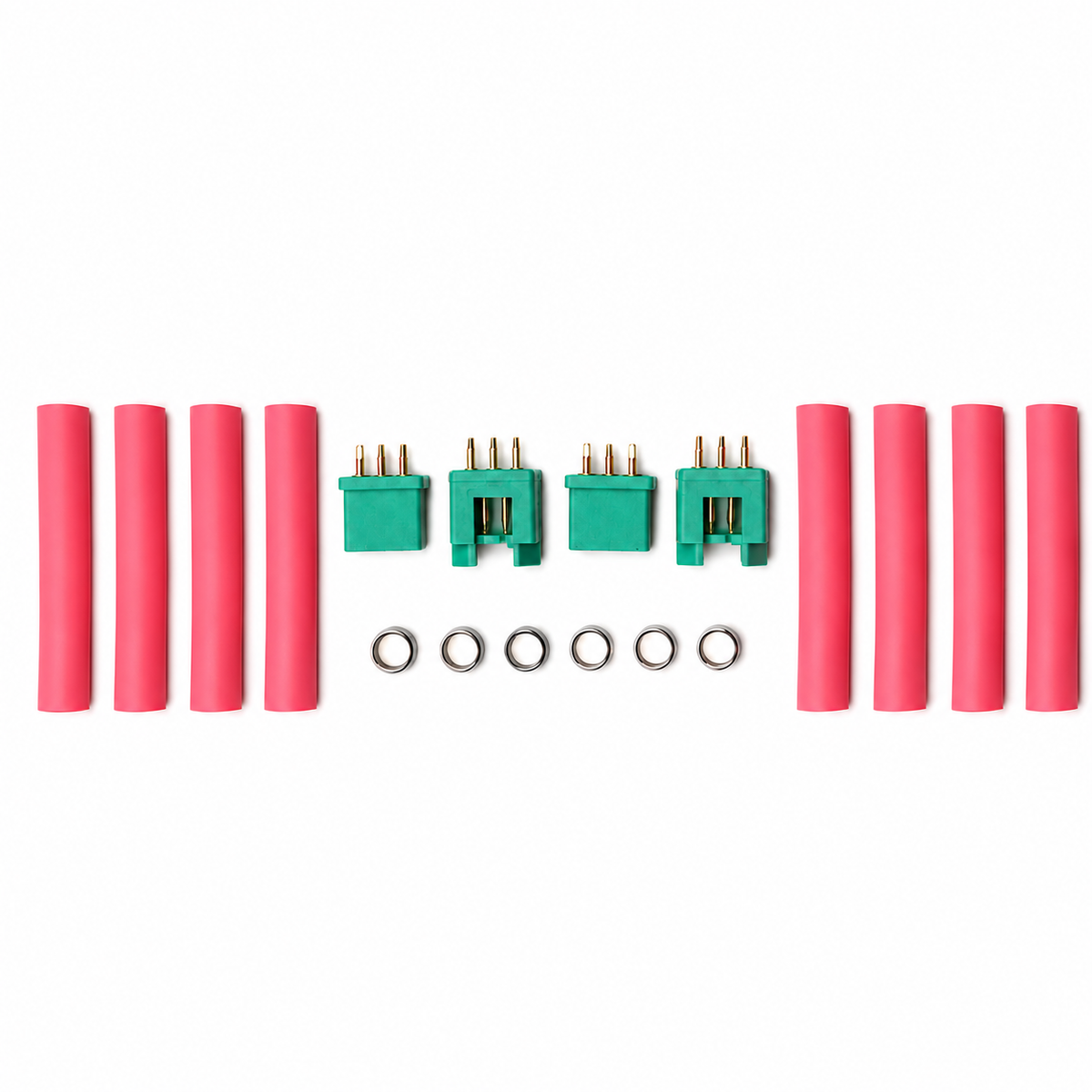

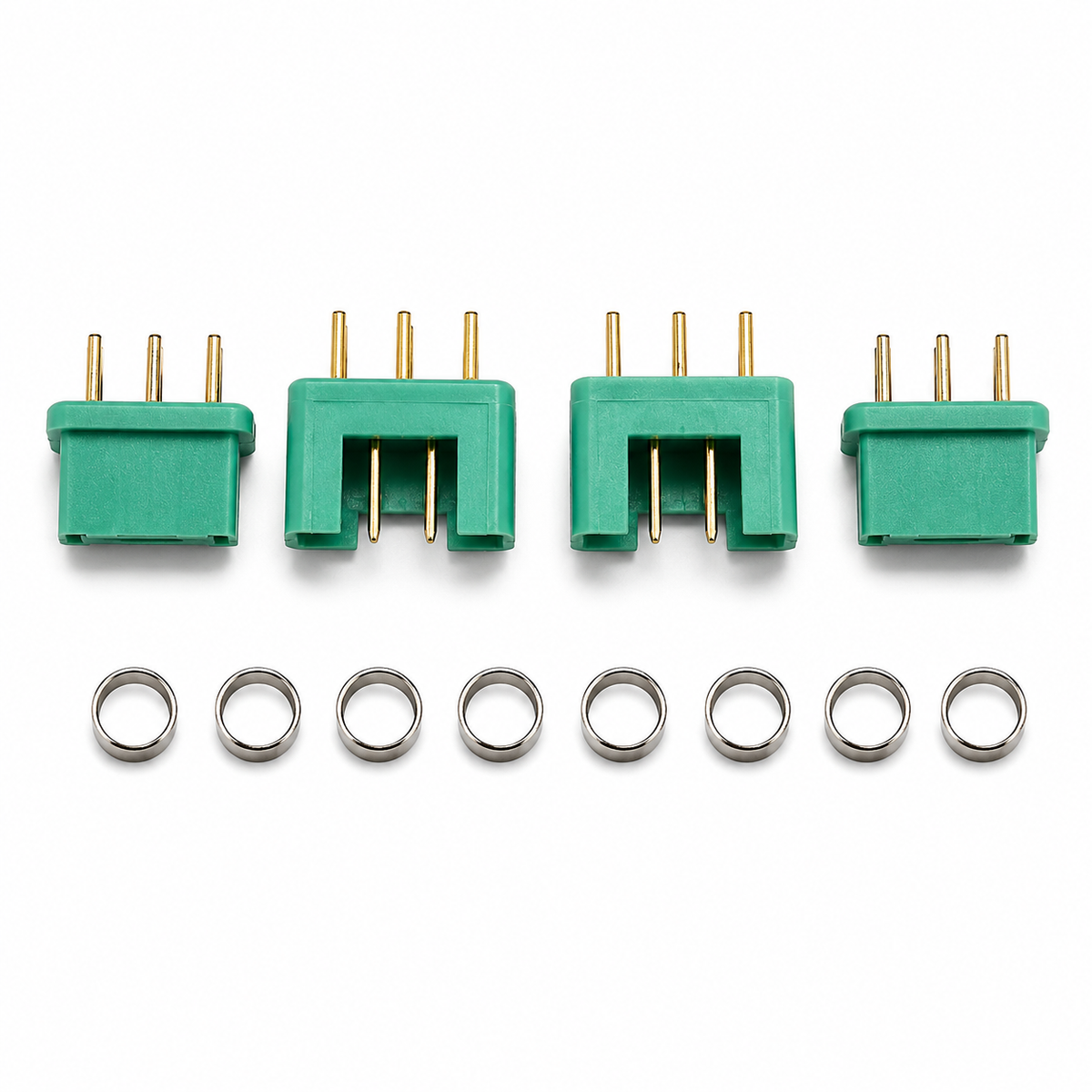

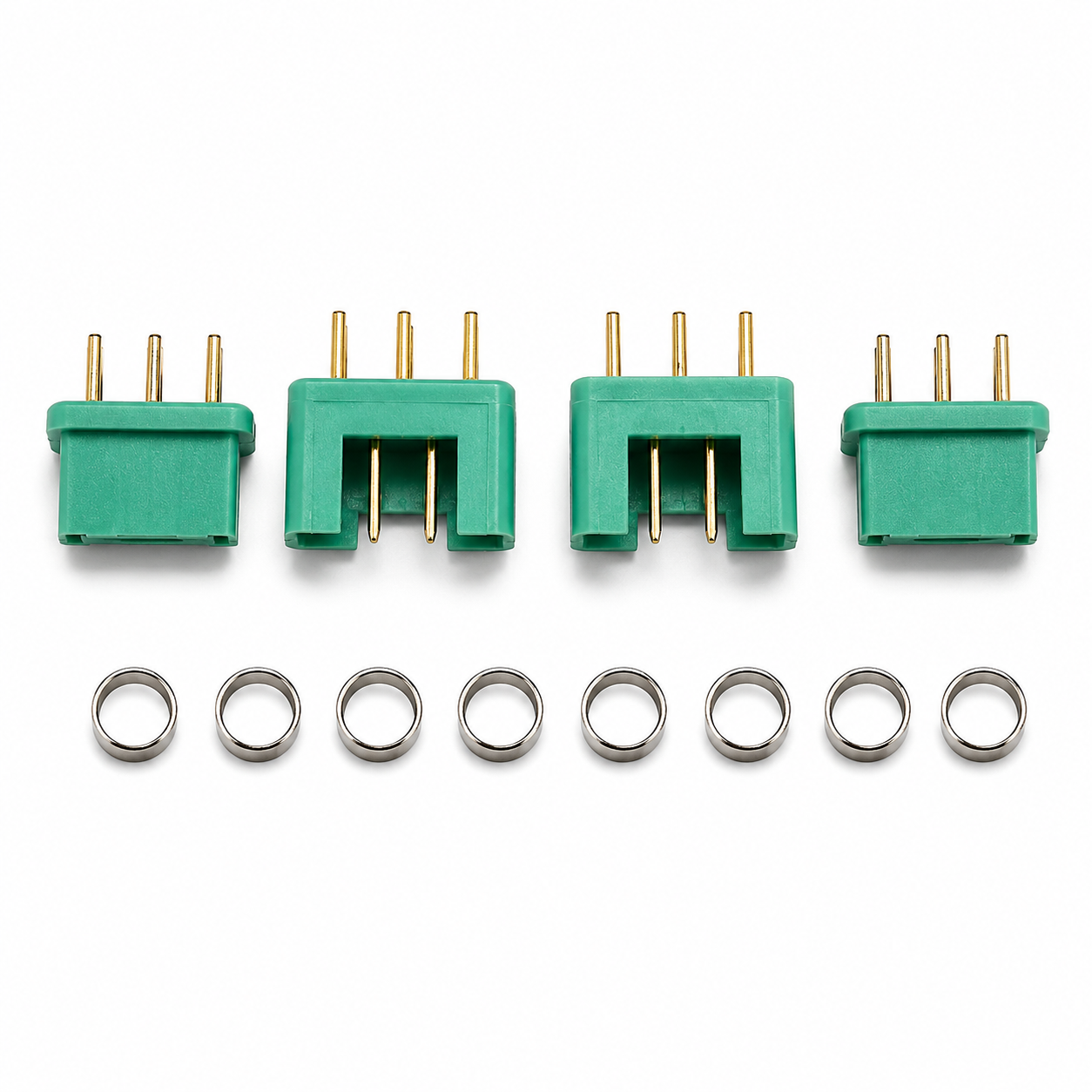

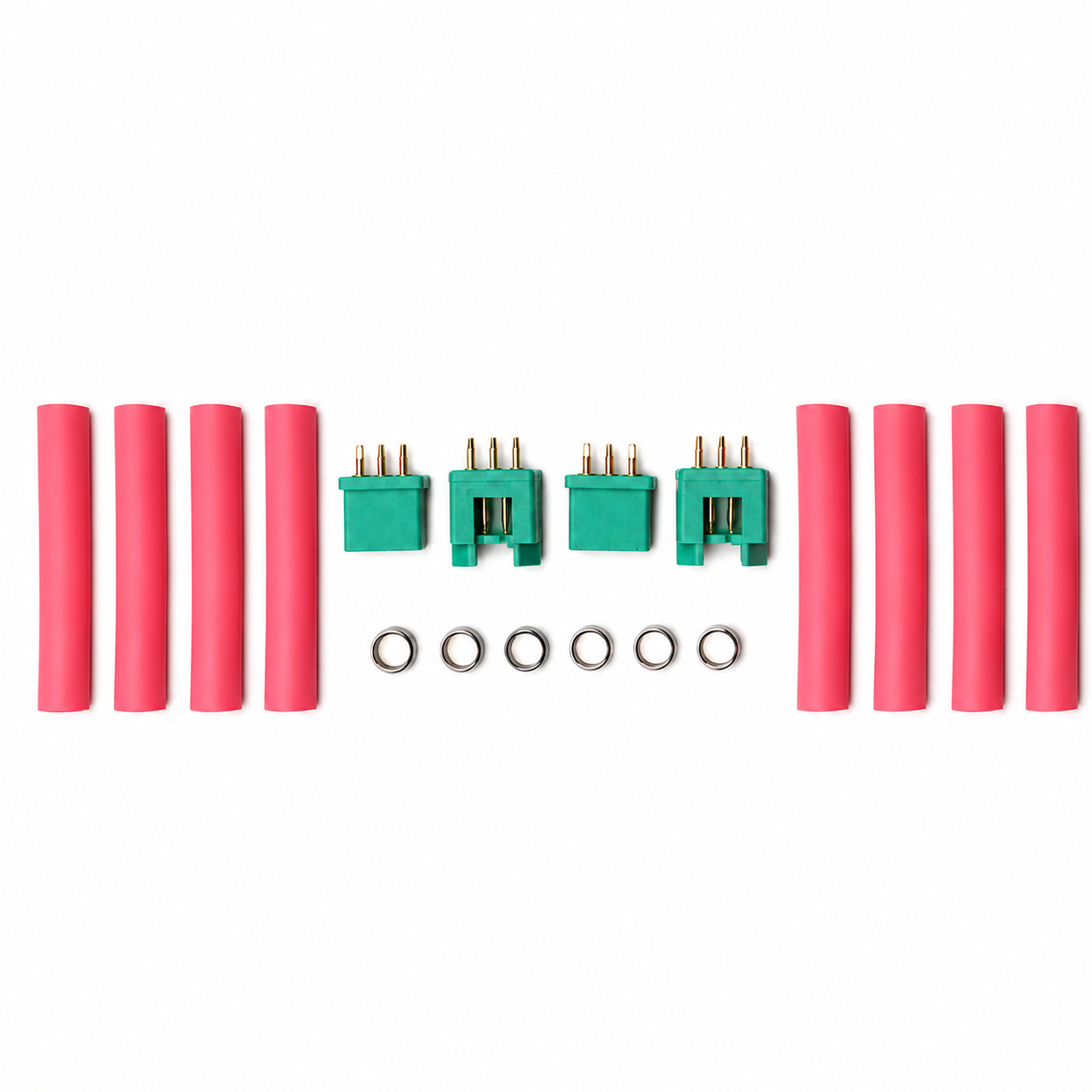

Package Includes
- 2 × Male MPX 6-pin connectors
- 2 × Female MPX 6-pin connectors
- 8 × Light-red heat-shrink tubes
- 8 × Metal rings
Package quantity: Two complete MPX connector sets
Applications
- Removable wing connections
- Wing servo wiring harnesses
- Aileron, flap, retract and lighting connections
- Multi-servo RC airplane installations
- Custom power and signal wiring
- RC aircraft building and repair projects
Specifications
| Connector Type | MPX |
| Number of Contacts | 6 pins per connector |
| Connector Quantity | 2 male and 2 female connectors |
| Complete Sets | 2 male/female pairs |
| Connector Housing Color | Green |
| Heat-Shrink Quantity | 8 pieces |
| Heat-Shrink Color | Light red |
| Heat-Shrink Diameter | Approximately 6 mm (0.24 in) |
| Heat-Shrink Length | Approximately 32 mm (1.25 in) each |
| Metal Ring Quantity | 8 rings |
Installation Guide
- Plan the wiring arrangement and assign each MPX contact before soldering.
- Slide the included metal rings and heat-shrink tubing onto the wires before making the solder connections.
- Solder each wire to its assigned connector contact.
- Inspect the solder joints and confirm that no adjacent contacts are bridged.
- Position the metal rings as required for the assembly.
- Move the heat-shrink tubing over the completed connections and shrink it evenly using controlled heat.
- Verify connector orientation, polarity and electrical continuity before operating the aircraft.
