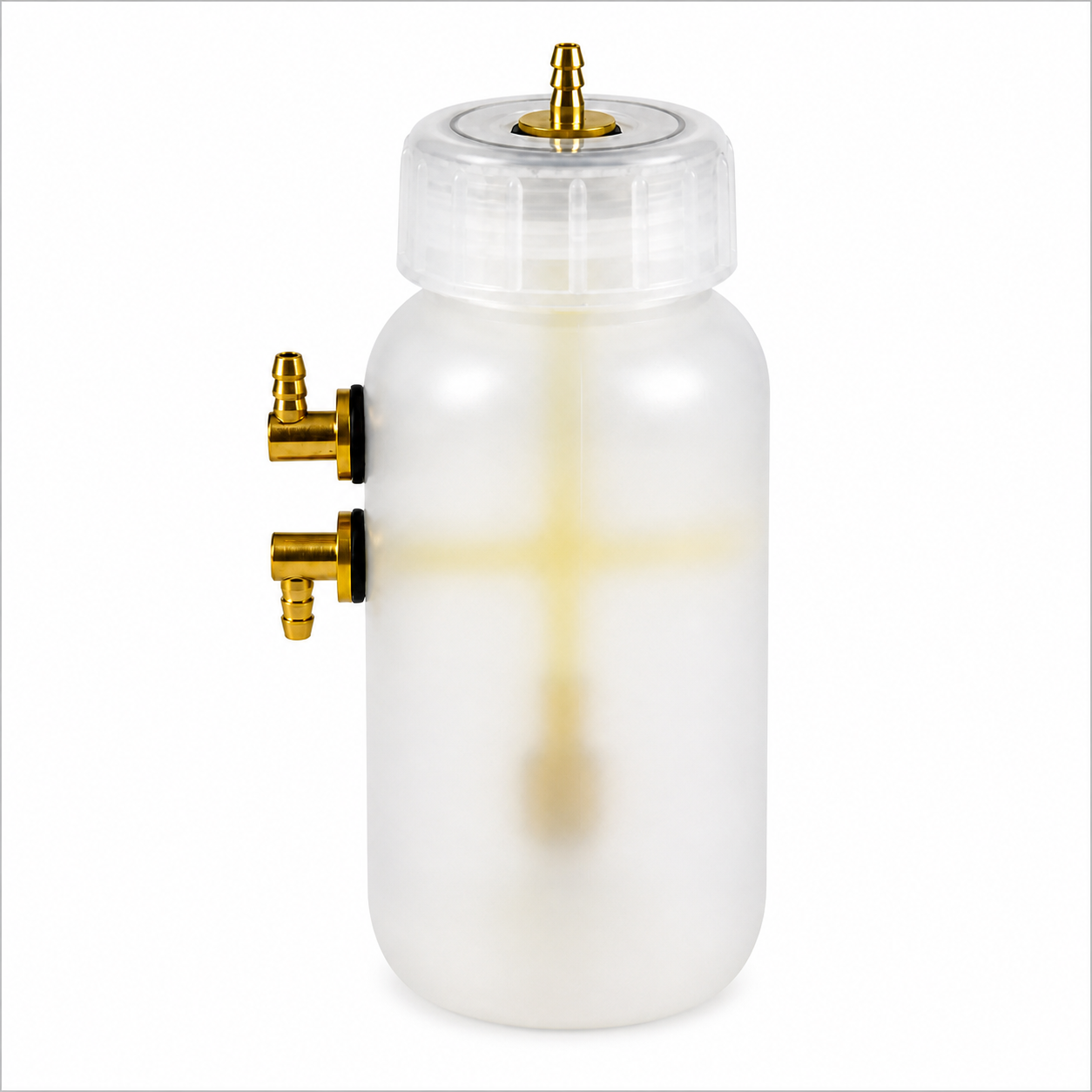

Gator RC Round Fuel Tank – Plastic Gas & Nitro RC Fuel Bottle (250ml–1000ml)
Regular price
$21.99
Couldn't load pickup availability
Flexible Fuel Tank Options for Any RC Build
The Gator RC Round Fuel Tank Series is designed to deliver consistent fuel flow and improved installation flexibility compared to traditional square tanks. The round anti-bubble design helps reduce air ingestion, improving engine reliability across a wide range of RC models.
Available Sizes
- 250ml: Small models and compact installations
- 500ml: Mid-size airplanes and general sport use
- 1000ml: Larger models and extended run times
Quick Size Guide
- Up to 20cc → 250ml
- 20cc–40cc → 500ml
- 40cc+ → 1000ml
Key Features
- Round Tank Design: Easier installation in tight fuselages compared to square tanks
- Anti-Bubble Performance: Helps reduce air ingestion for smoother engine operation
- Durable Construction: Made from thick, fuel-resistant plastic
- Metal Fittings: Secure inlet, outlet, and cap connections
- Multi-Application Use: Suitable for RC airplanes, cars, boats, and trucks

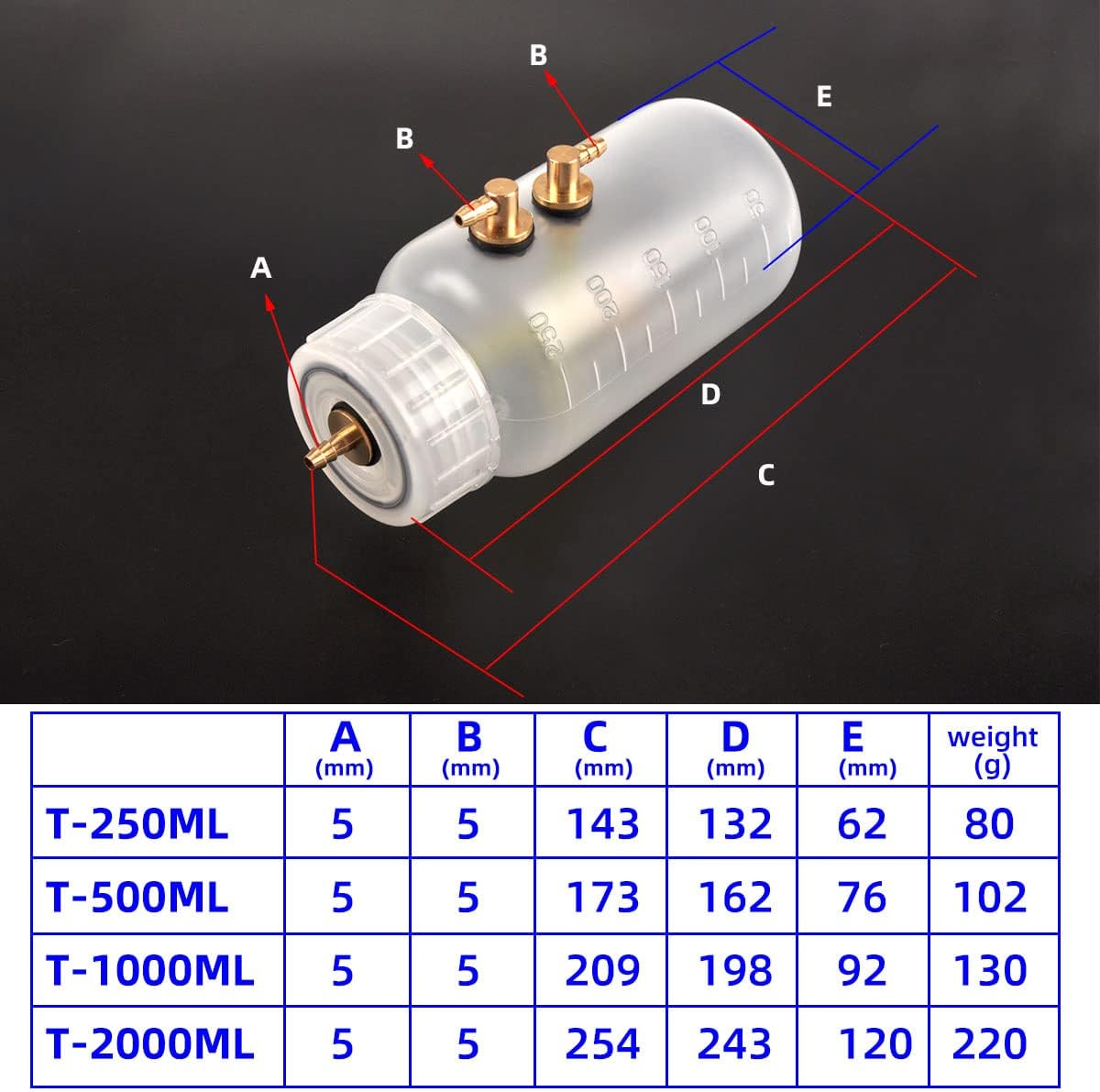

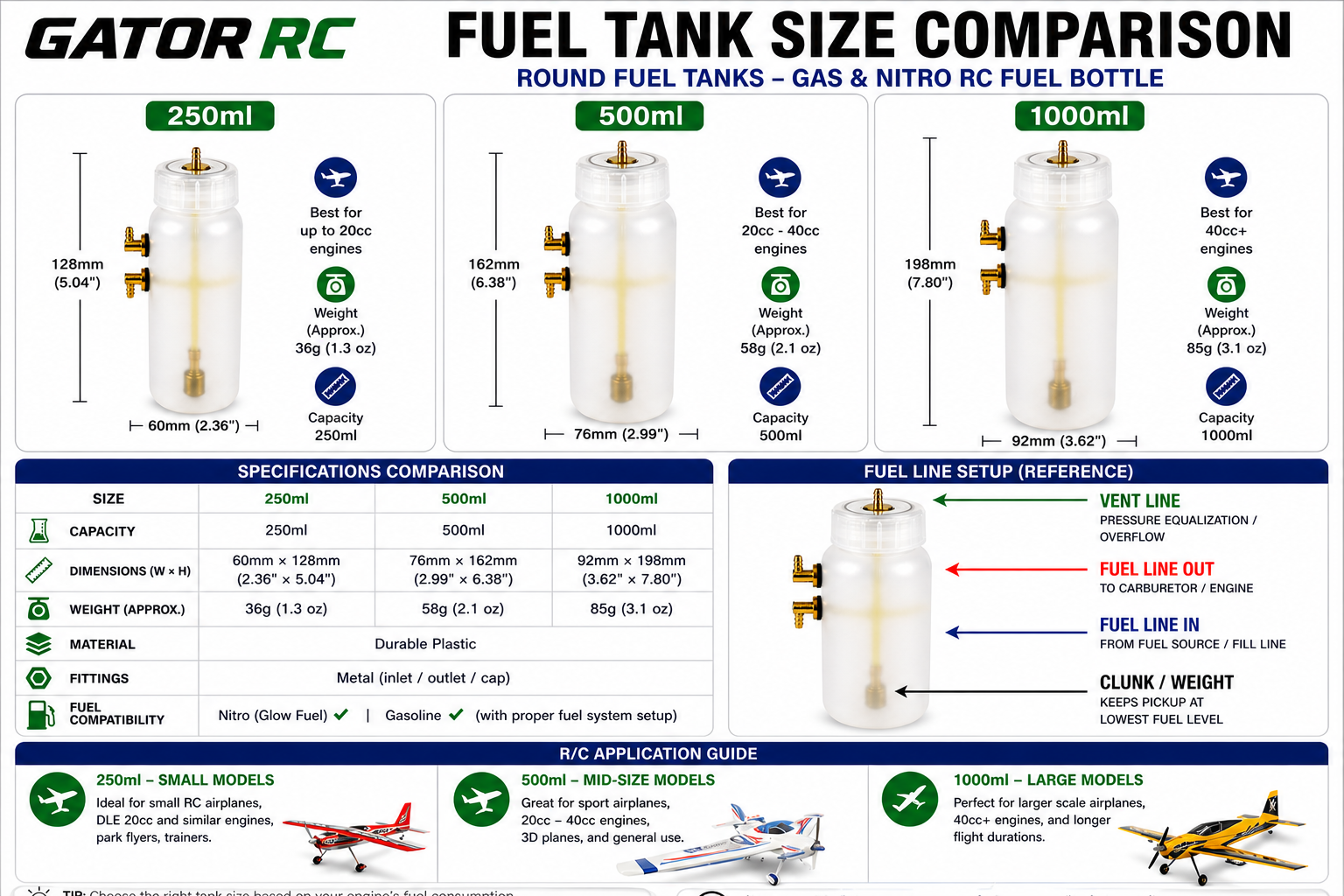

Specifications (By Size)
| Size | Capacity | Dimensions (W × H) | Weight (Approx.) | Recommended Use |
|---|---|---|---|---|
| 250ml | 250ml | 60mm (2.36") × 128mm (5.04") | 36g (1.3 oz) | Up to 20cc engines |
| 500ml | 500ml | 76mm (2.99") × 162mm (6.38") | 58g (2.1 oz) | 20cc–40cc engines |
| 1000ml | 1000ml | 92mm (3.62") × 198mm (7.80") | 85g (3.1 oz) | 40cc+ engines |
General Specifications
- Material: Durable plastic
- Fittings: Metal (fuel inlet / outlet / cap)
- Fuel System: Includes internal pickup (clunk) for consistent fuel flow

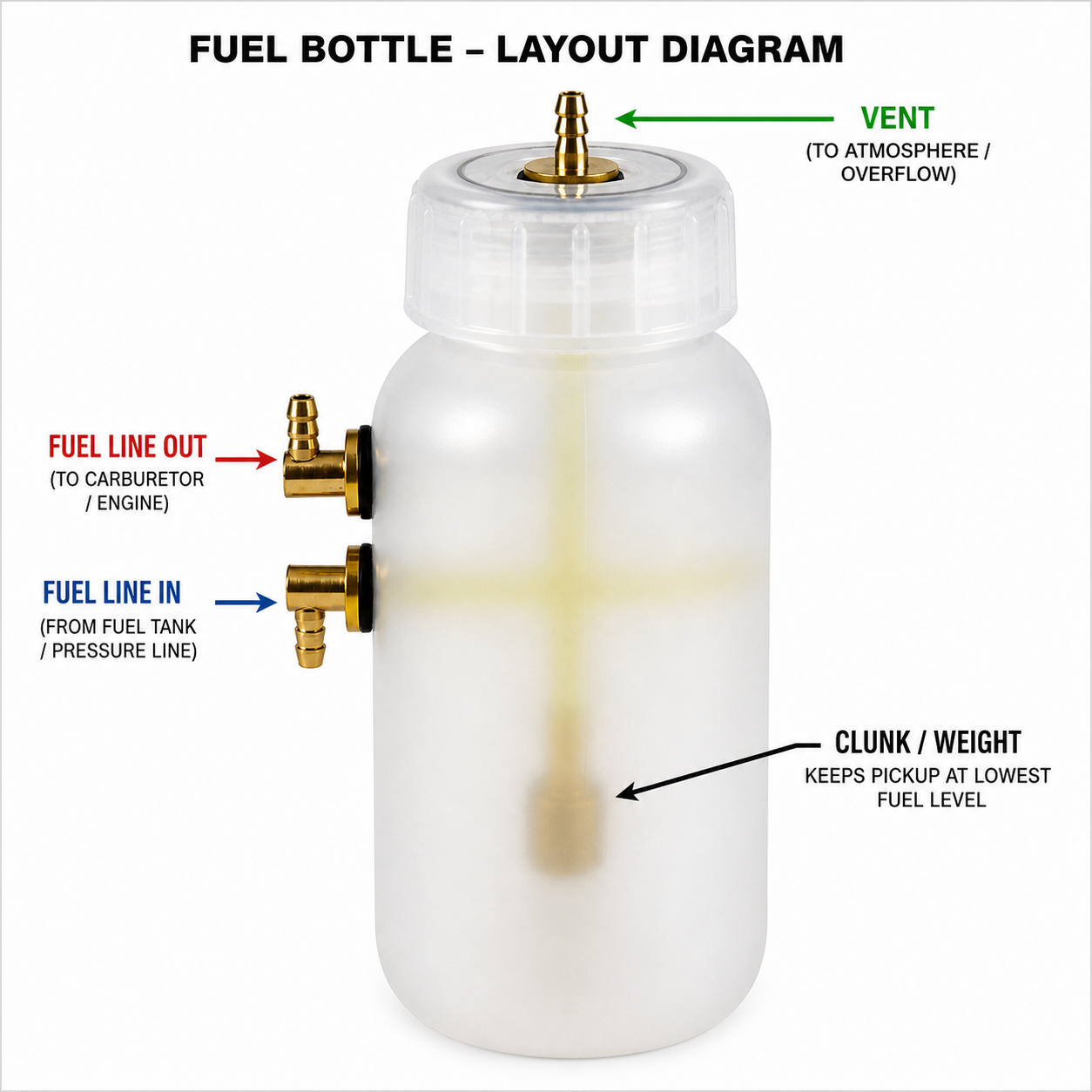

Fuel Line Setup (Reference)
- Fuel Line Out: Connects to carburetor / engine
- Fuel Line In: Fill line or fueling system
- Vent Line: Pressure equalization and overflow control
- Internal Clunk: Maintains fuel pickup at lowest fuel level
Fuel Compatibility
Compatible with nitro (glow fuel) and commonly used in gasoline RC applications when paired with proper fuel system components.
What’s Included
- 1 × Round RC Fuel Tank (selected size)

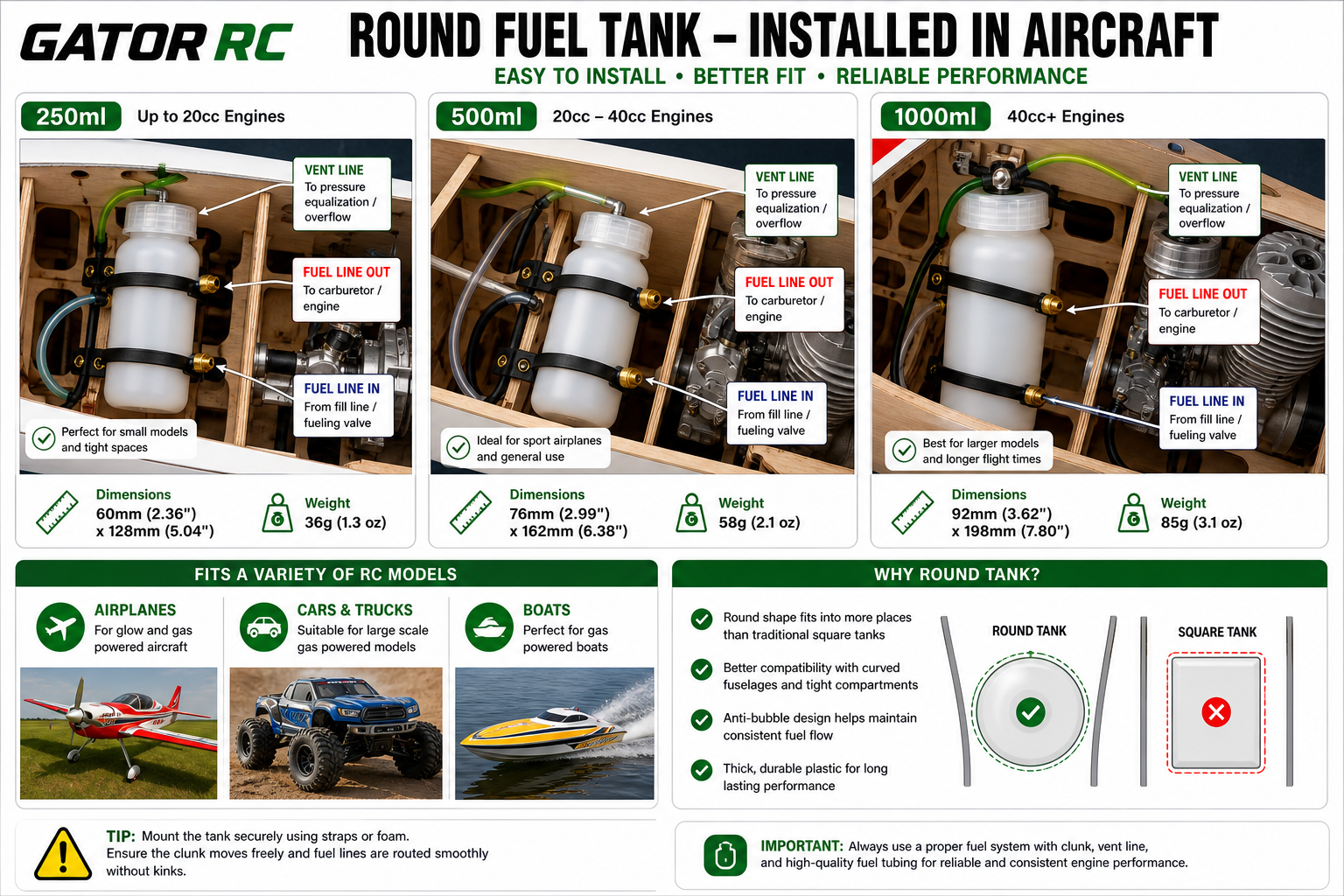

Modeler’s Tip: Select tank size based on engine fuel consumption and desired runtime. Larger tanks provide longer run time but require proper balance and secure mounting inside the aircraft.
