Gator RC Plastic Spinner with Plastic Backplate – Multiple Sizes & Colors

In stock
SKU: GRC-SP-4038
(0)
$1.50
Sale $2.79 $1.50
Size
Color

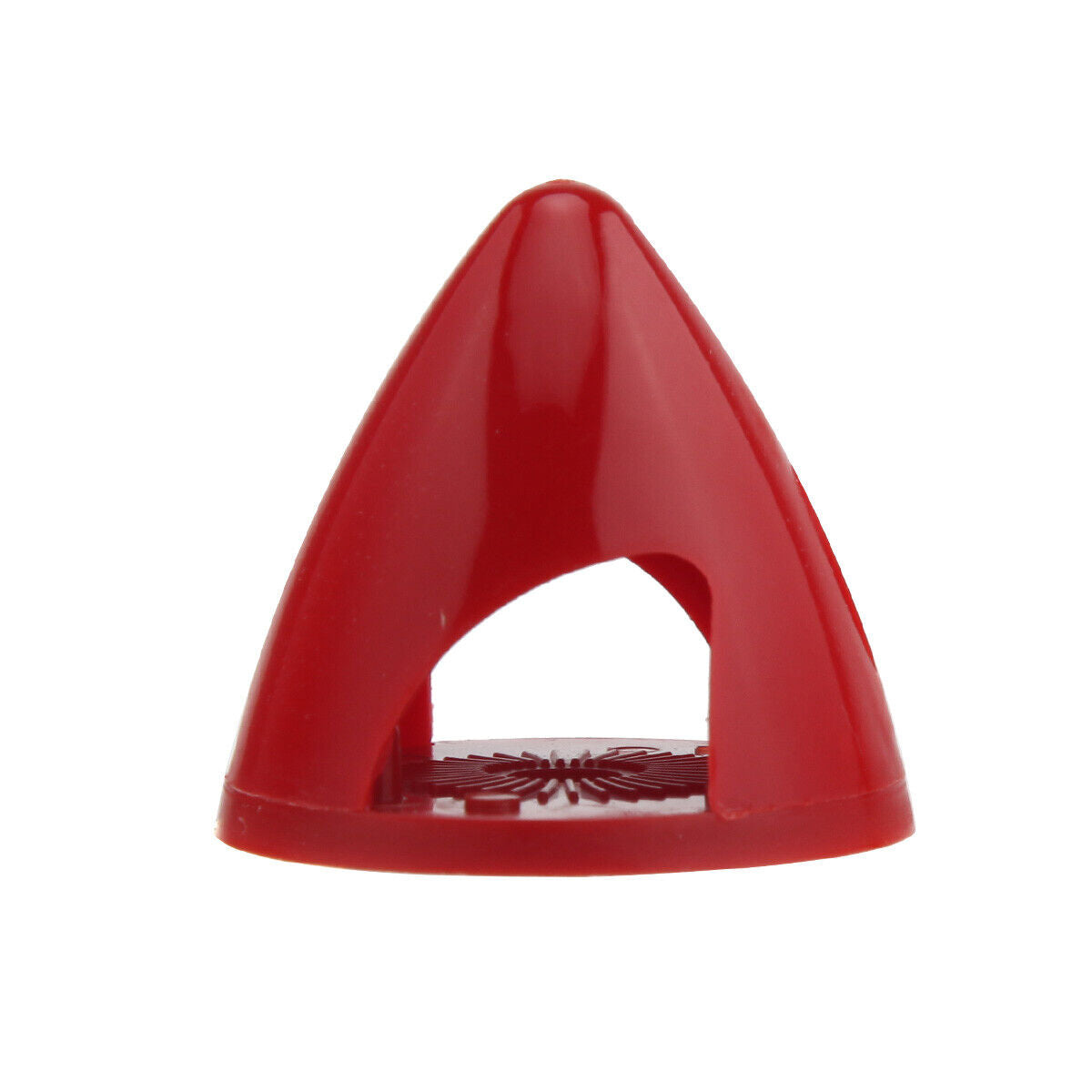

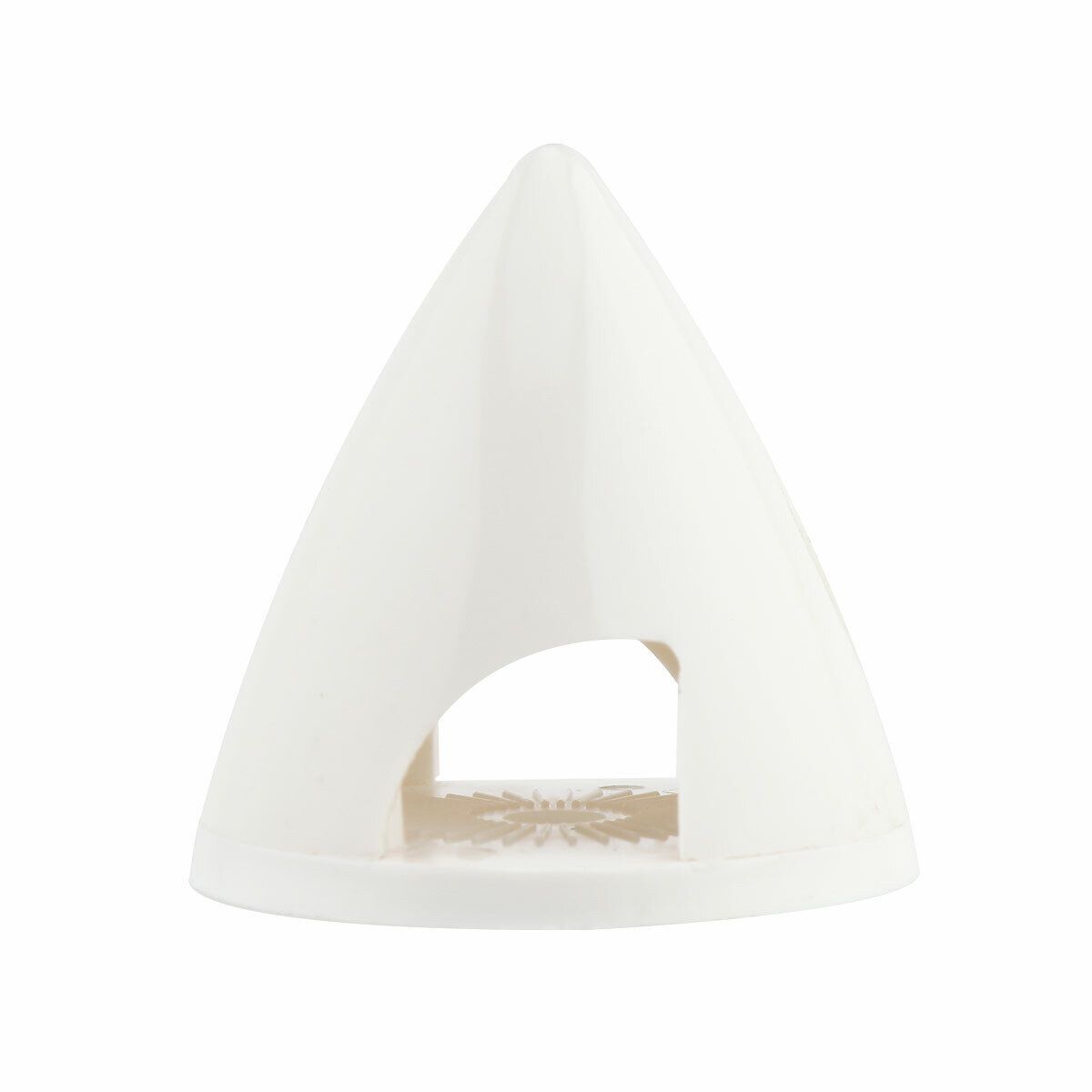

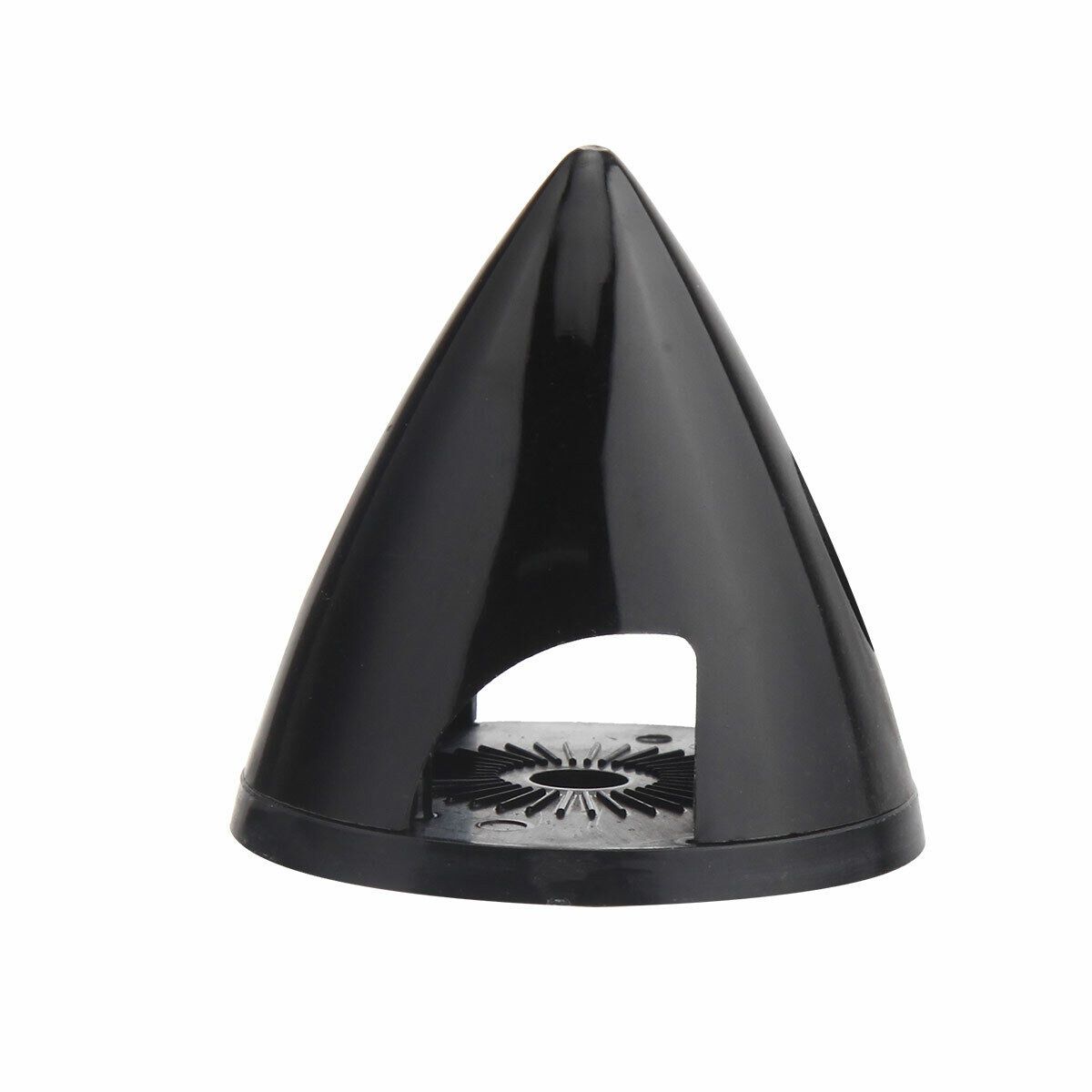

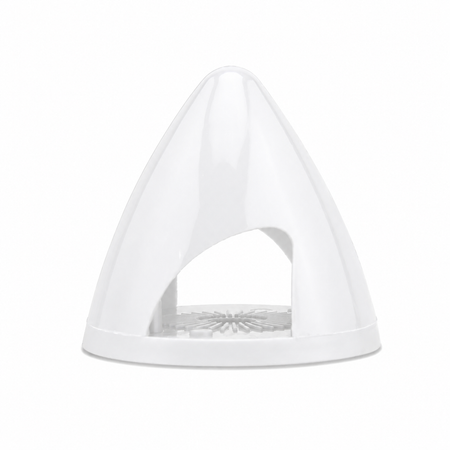

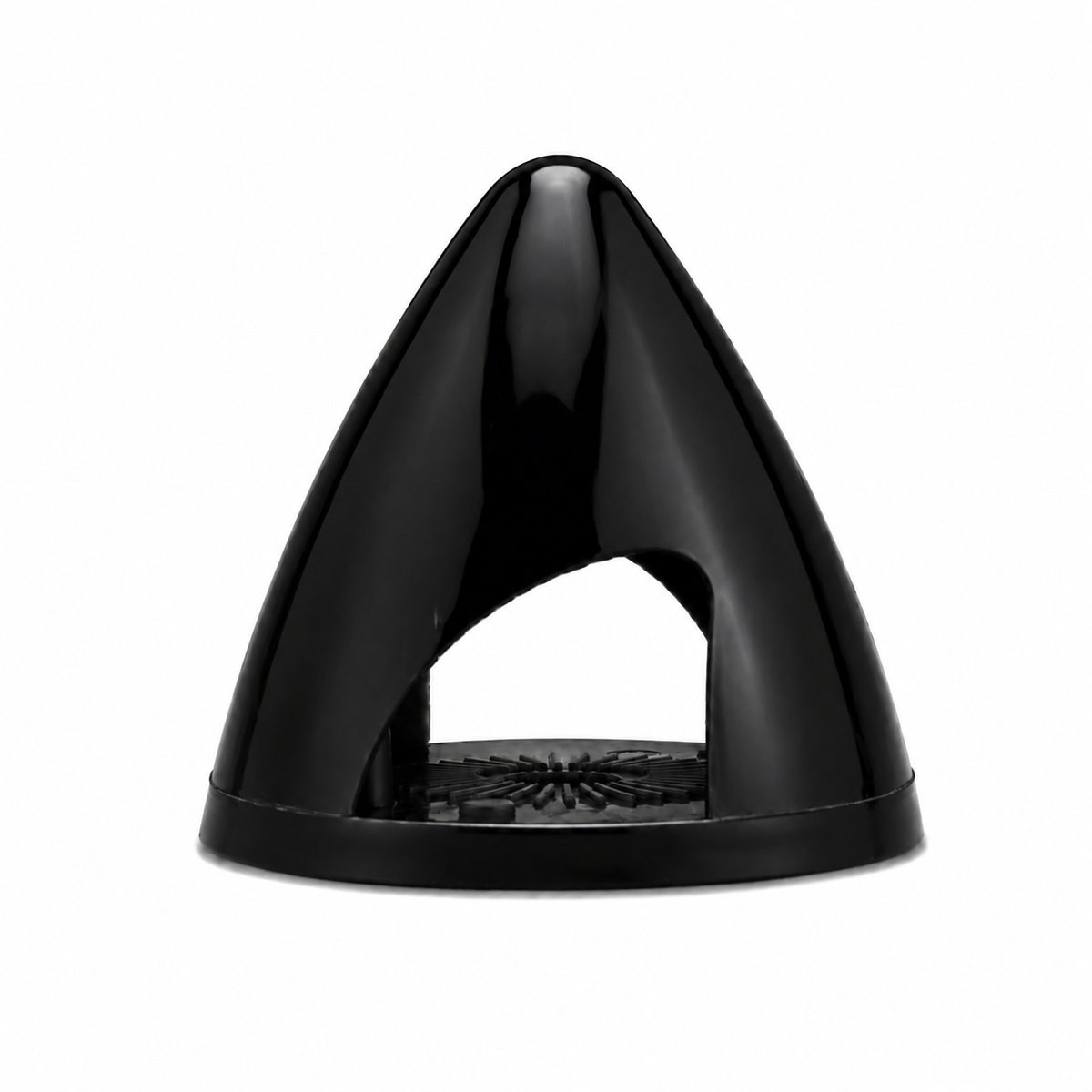

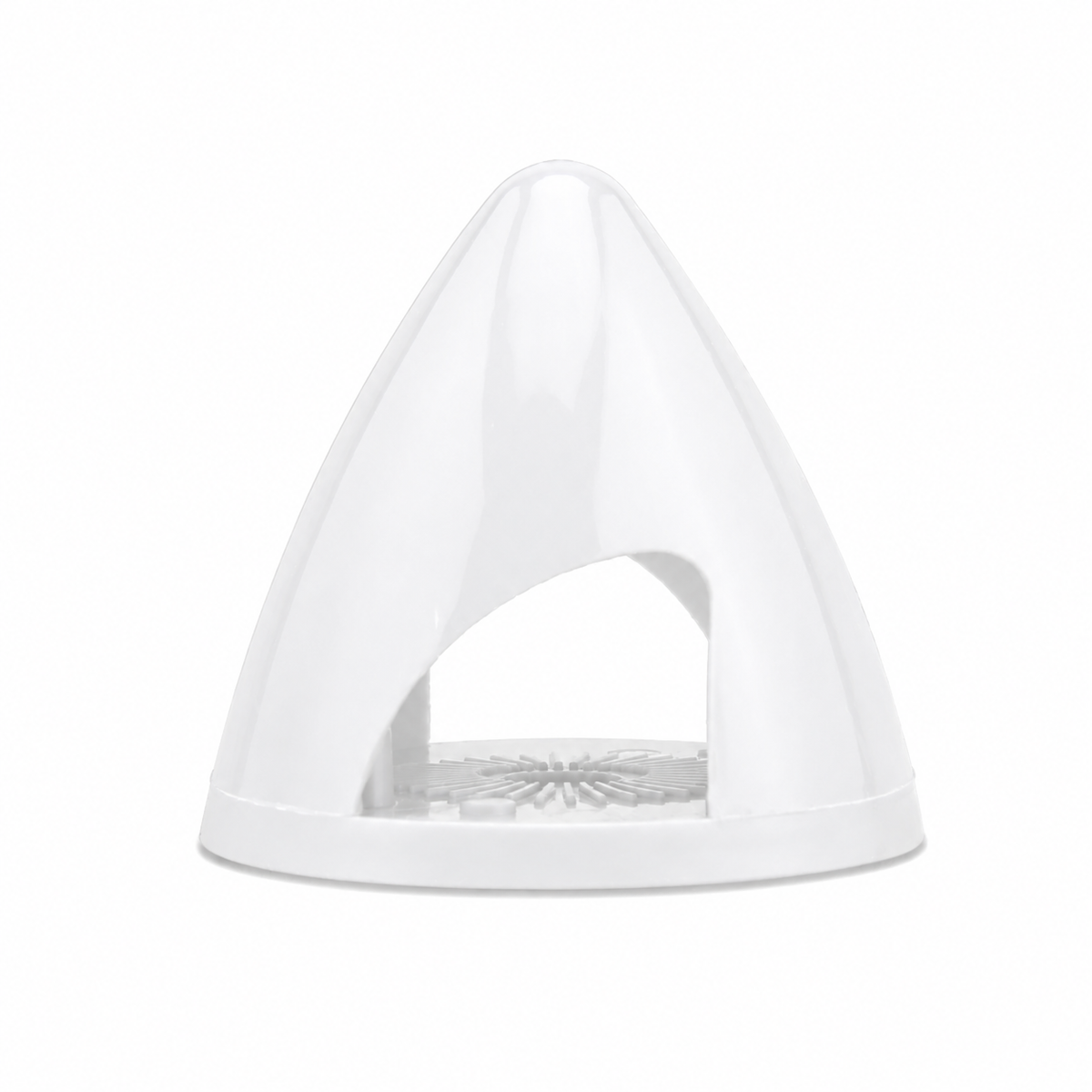

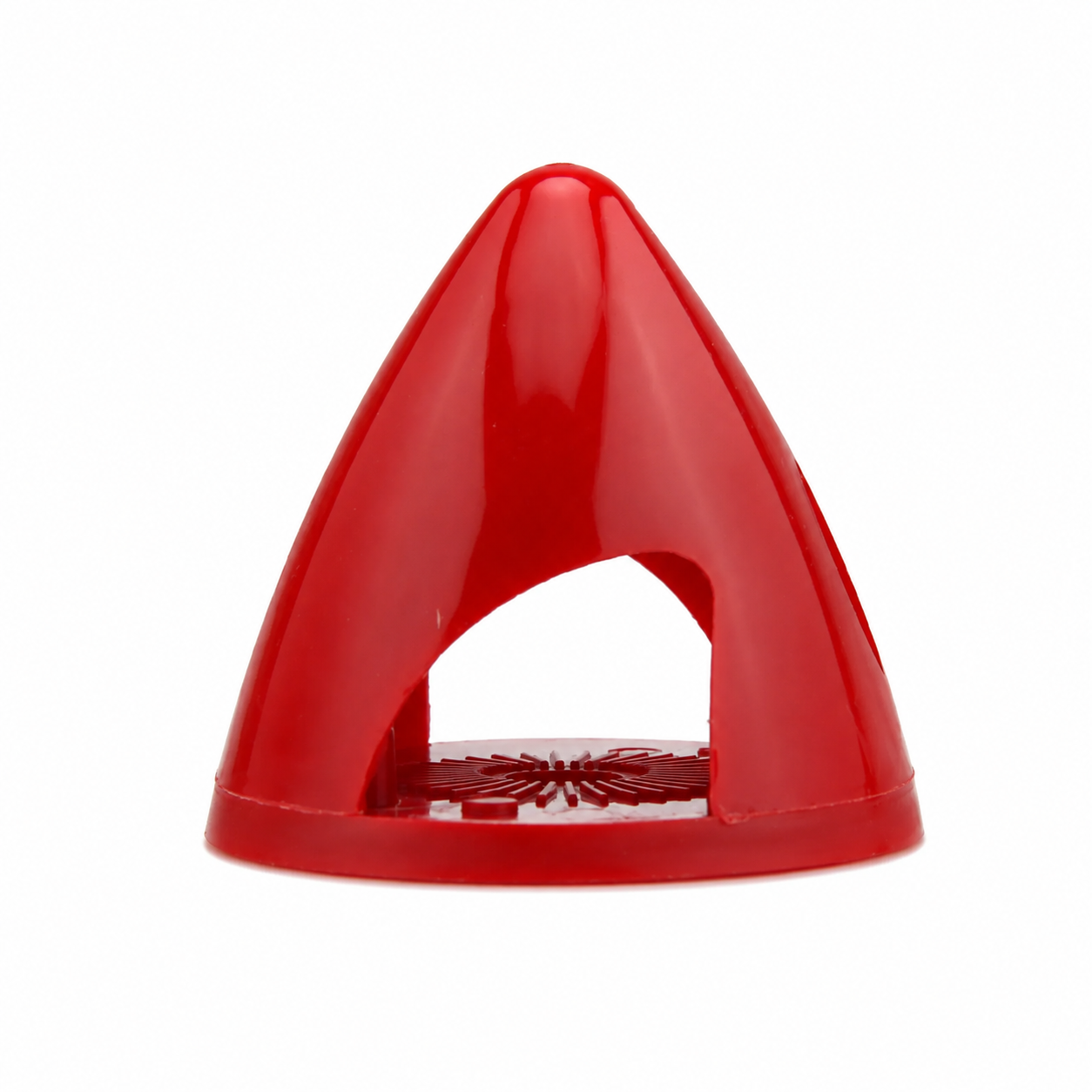

Gator RC Plastic Spinner with Plastic Backplate

The Gator RC Plastic Spinner with Plastic Backplate provides a simple, dependable solution to give your RC airplane a clean and finished appearance. Each spinner features a smooth, glossy surface finish to make your model look better and more professional on the flight line.

Constructed entirely from matching lightweight plastic materials, the assembly incorporates a molded plastic cone paired with a dedicated plastic backing plate. This series is available in an extensive range of seven diameters and three colors to accommodate a wide variety of sport and trainer model aircraft setups.

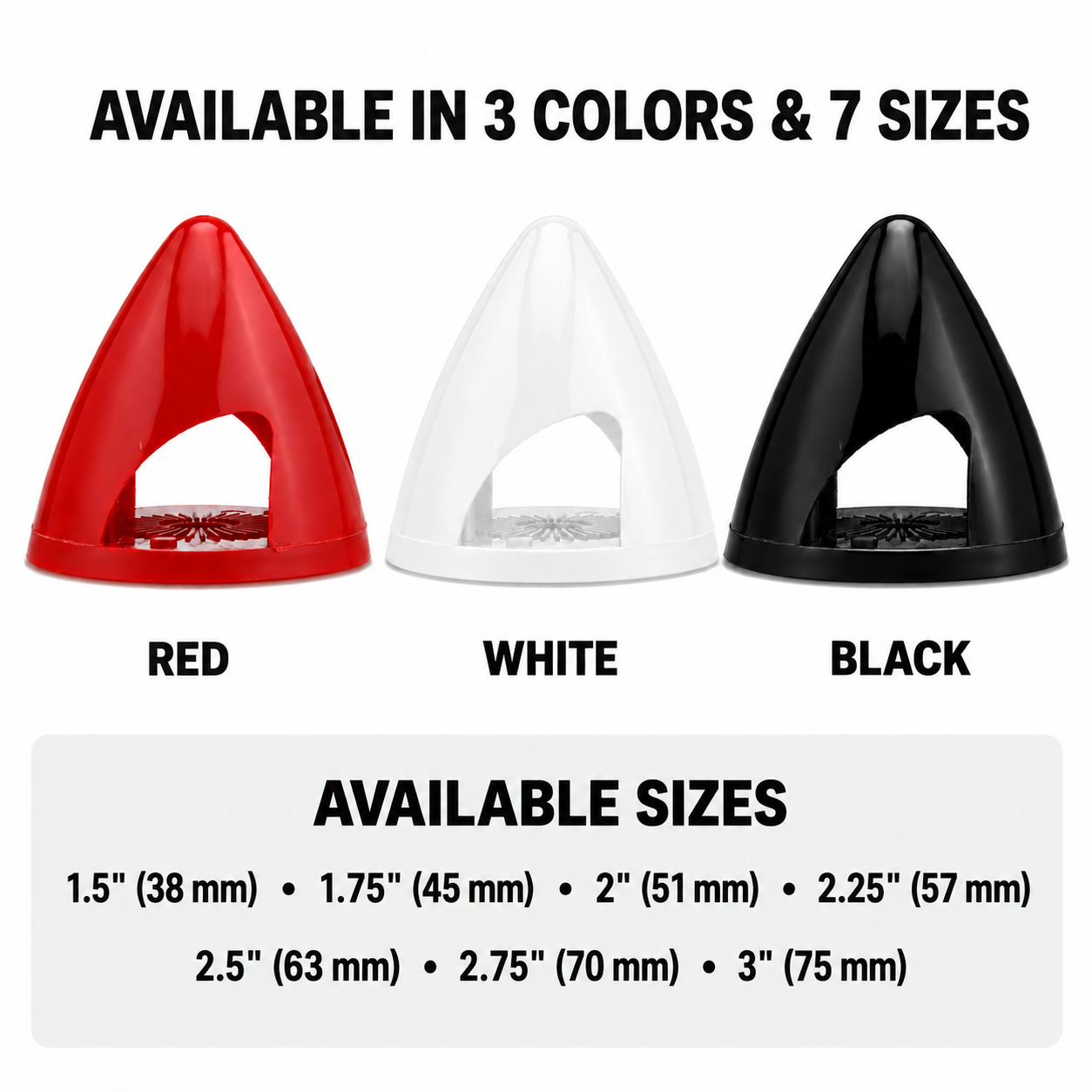

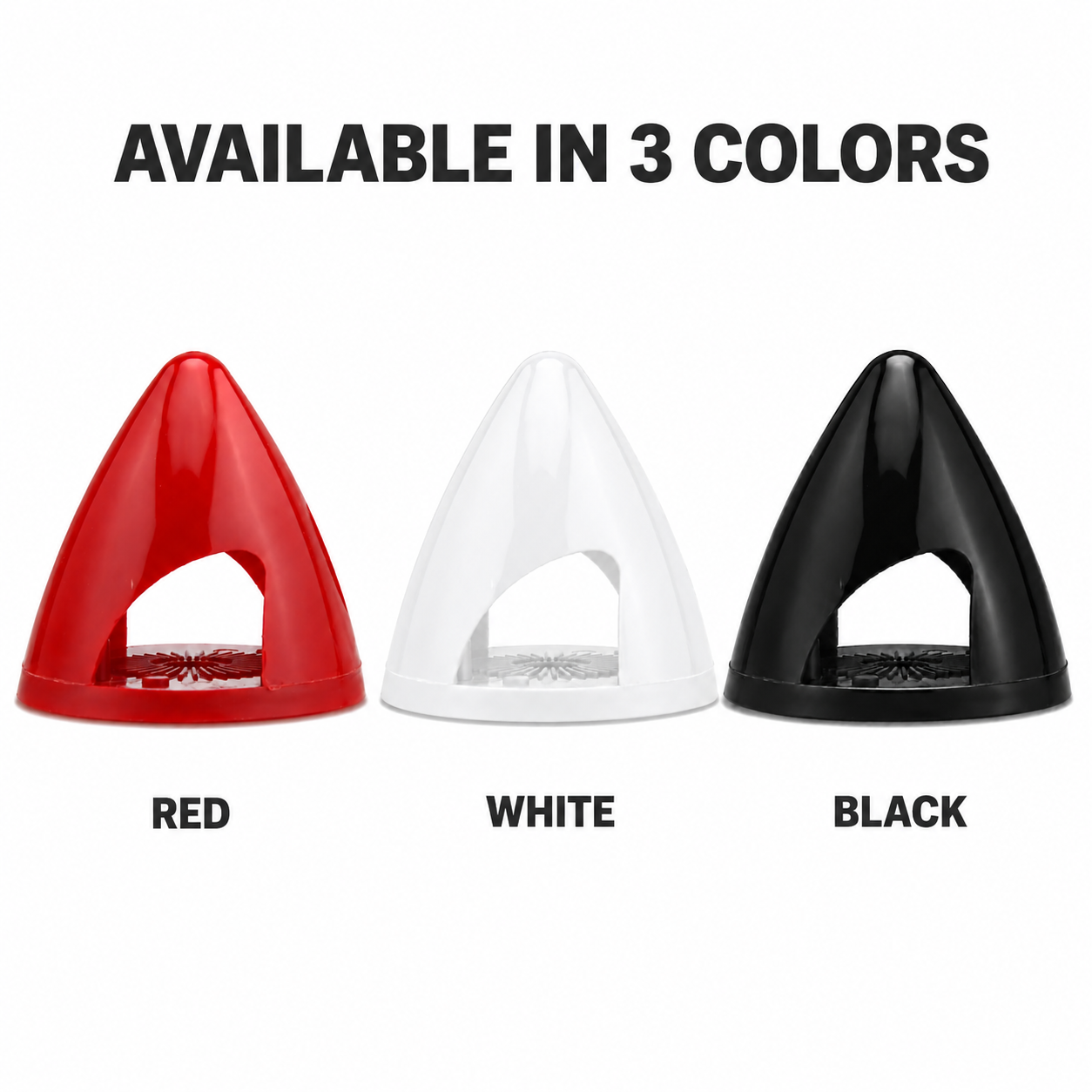

Color Options:

Available in three colors across all seven catalog diameters. Please select your target size and color combination from the dropdown menus above before ordering.

⚠ Sizing & Propeller Shaft Note: Choose a spinner diameter that cleanly matches the frontal profile of your airplane’s cowl or wood nose ring. Review the exact factory-drilled center hole diameters and length dimensions below to ensure the tracking barrel accommodates your specific motor adapter or engine shaft before final installation.

Key Features

  • Gloss Surface Finish: Smooth and shiny exterior skin adds a clean, professional aesthetic to any scale or sport fixed-wing build.
  • All-Plastic Construction: Molded plastic cover and matching plastic backplate eliminate unnecessary nose mass for smaller electric and glow power plants.
  • Seven Scale Diameters: Sizing options from 38mm up to 75mm allow for precise gap alignment on tight trainer and sport cowlings.
  • Pre-Drilled Backplate Hubs: Backplate center holes arrive pre-drilled from the factory to standard metric templates (5mm, 6.3mm, or 8mm) depending on size.
📋 Available Sizes and Specifications Table
Spinner Diameter Nose to Backplate Length Product Weight Backplate Center Hole
38mm (1.5") 36 mm 9 g 5 mm
45mm (1.7") 46 mm 15 g 5 mm
51mm (2.0") 52 mm 20 g 6.3 mm
57mm (2.25") 57 mm 22 g 6.3 mm
63mm (2.5") 65 mm 29 g 8 mm
70mm (2.75") 73 mm 33 g 8 mm
75mm (3.0") 80 mm 45 g 8 mm

📦 Package Includes:

  • 1 × Molded Plastic Spinner Cone (In selected size and color)
  • 1 × Matching Plastic Backing Plate
  • Associated Spinner Assembly Hardware

💡 Modeler's Installation Guide

  • Slide the plastic backplate onto your propeller shaft adapter first, ensuring it rests flat against the thrust washer.
  • Install your selected propeller blade, followed by your washer and prop nut. Secure the prop nut down tightly.
  • Check that your prop blades seat comfortably within the cone openings without pinching the plastic edges.
  • Position the plastic spinner cone over the propeller and secure it evenly into the backplate mounting tracks using the provided hardware.

The Gator RC Advantage: We stock genuine Gator RC products along with compatible wheels, high-strength aluminum axles, custom landing gear tracks, and installation accessories to help complete your project. Orders ship quickly from our domestic Illinois warehouse.
