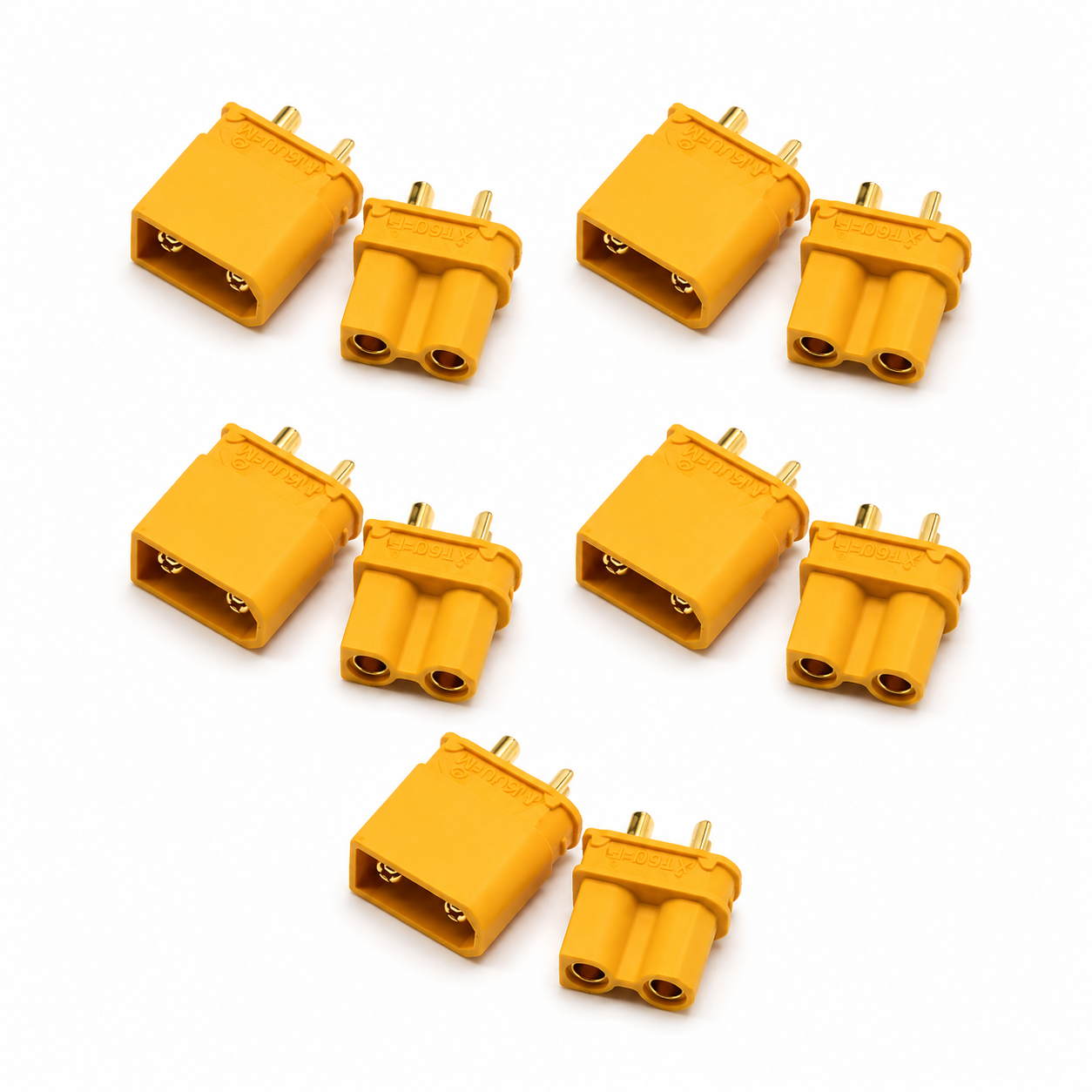

Gator RC XT30 Connector 5 Pack – Male & Female XT30U Battery & ESC Plugs
Couldn't load pickup availability
Gator RC XT30 Connector 5 Pack – Male & Female XT30U Battery & ESC Plugs
These high-quality XT30U connectors are designed for reliable power delivery in RC aircraft, drones, helicopters, EDF jets, FPV systems, batteries, ESCs, and charger leads. Built using gold-plated brass contacts and durable high-temperature nylon housings, XT30 connectors provide secure electrical connections with low resistance and dependable performance.
This convenient 5-pack includes both male and female XT30U connectors for RC wiring, battery builds, ESC installations, and charger lead applications.
Features
- Includes 5 male and 5 female XT30U connectors
- Compact lightweight connector design
- Gold-plated brass terminals for excellent conductivity
- Secure friction-fit connection
- Ideal for batteries, ESCs, chargers, and FPV systems
- High-temperature nylon housing construction
- Low-resistance connection for efficient power transfer
- Suitable for RC airplanes, drones, helicopters, cars, boats, and DIY electronics projects
Specifications
- Connector Type: XT30U
- Connector Style: Male & Female
- Quantity: 5 Pairs
- Rated Current: 15A
- Burst Current: 30A
- Rated Voltage: DC 500V
- Recommended Wire Size: 14–18AWG
- Housing Material: High-Temperature Nylon
- Contact Material: Gold-Plated Brass
Common Applications
- RC airplane battery connectors
- ESC power leads
- FPV drone wiring
- LiPo battery charging adapters
- Electric helicopter electronics
- Small EDF jet power systems
- DIY RC electrical projects
Why Use XT30 Connectors?
XT30 connectors are one of the most popular connector choices for smaller electric RC aircraft and FPV systems because they combine compact size, lightweight construction, and reliable current handling. Their secure fit and low resistance design help provide dependable electrical performance in demanding RC applications.
Package Includes
- 5 × XT30U Male Connectors
- 5 × XT30U Female Connectors
Modeler Tips
- Use a temperature-controlled soldering iron for clean solder joints
- Pre-tin wires before soldering connectors
- Verify polarity before connecting batteries
- Recommended for compact electric RC power systems and accessories
