Gator RC Safe Arming Plug Kit
Add a convenient external safety connection to your electric RC airplane.
The Gator RC Safe Arming Plug Kit allows you to connect the flight battery while keeping the power system electrically disconnected. Insert the removable arming plug only when you are ready to energize the model.
The receptacle mounts to the outside of the fuselage, providing easy access without reopening the battery hatch or canopy. Removing the arming plug breaks the power circuit, helping reduce the risk of an unintended motor start while handling or preparing the aircraft. This kit is available with 10 AWG, 12 AWG, or 14 AWG high-flex silicone wire and your choice of a Red or Blue anodized aluminum mounting base.
Available Kit Configurations:
Select your preferred wire gauge and hardware color from the dropdown options above based on your power system requirements:
| Wire Gauge | Application Guidance |
|---|---|
| 10 AWG | The heaviest wire option for higher-current power systems. |
| 12 AWG | A versatile option for many medium- to higher-current installations. |
| 14 AWG | A lighter option for lower-current installations. |
Important: Match the wire gauge to your aircraft's existing battery and ESC wiring. Hardware color options include Red or Blue anodizing.
🚀 Target Applications:
- Electric RC airplanes, giant-scale electric conversions, and high-power sport planes
- Aircraft designs where the internal battery pack is difficult to access after assembly
- Pilots seeking an external, physical layer of power isolation on the flight line
Key Features
- External Arming Control: Provides an externally accessible connection for arming and disarming an electric aircraft without removing the canopy.
- Unenergized Battery Handling: Allows the flight battery to be fully installed and secured while the propulsion system remains completely safe.
- Reduced Propeller Risk: Helps reduce the risk of unintended motor starts and propeller injuries during final pre-flight handling.
- Anodized Faceplate System: Clean CNC-machined aluminum mounting base and matching backer plate ensure a flush, secure fuselage fit.
- High-Flex Silicone Leads: Includes 16 inches (406 mm) of premium, high-flex silicone wire in your selected gauge for easy routing inside tight structures.
- Complete Assembly Kit: Ships with all necessary components, including a T-style connector, arming plug, heat-shrink tubing, and mounting screws.

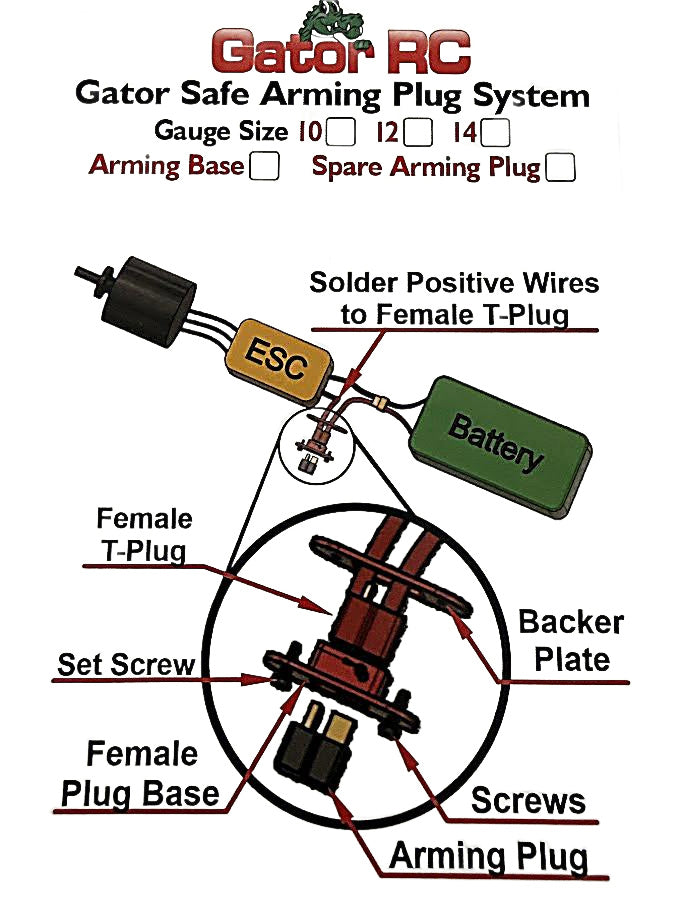

🔧 Factory Installation Instructions
- Select a mounting location on the fuselage that will allow the user to safely connect and disconnect the arming plug.
- Use the aluminum backer plate as a template to trace out the center hole and the screw locations to be cut out.
- Solder the female T-plug to the red (positive) wires running from the battery plug to the ESC, and fully shrink-wrap the completed solder joint.
- Slide the female T-plug through the aluminum backer plate, then pass the female T-plug through the hole in the fuselage that was just cut.
- Insert the female T-plug into the aluminum base and secure it tightly with the set screw. Do not over-tighten the set screw.
- Insert the aluminum base into the fuselage hole and use the two mounting screws to attach the aluminum base firmly to the internal aluminum backer plate.
View Technical Specifications
| Brand / SKU: | Gator RC / GRC-AS-1001 |
| Product Type: | External Safe Arming Plug Kit |
| Connector Style: | T-Style (Female Receptacle + Male Arming Plug) |
| Wire Lead Length: | 16 in (406 mm) |
| Wire Material: | High-Flex Silicone Insulated Wire |
| Available Wire Options: | 10 AWG, 12 AWG, or 14 AWG (Select above) |
| Available Base Colors: | Anodized Red or Anodized Blue (Select above) |
| Heat-Shrink Included: | 3 in (76 mm) Length |
| Installation Requirement: | In-Series Soldering / Flush Fuselage Mounting |

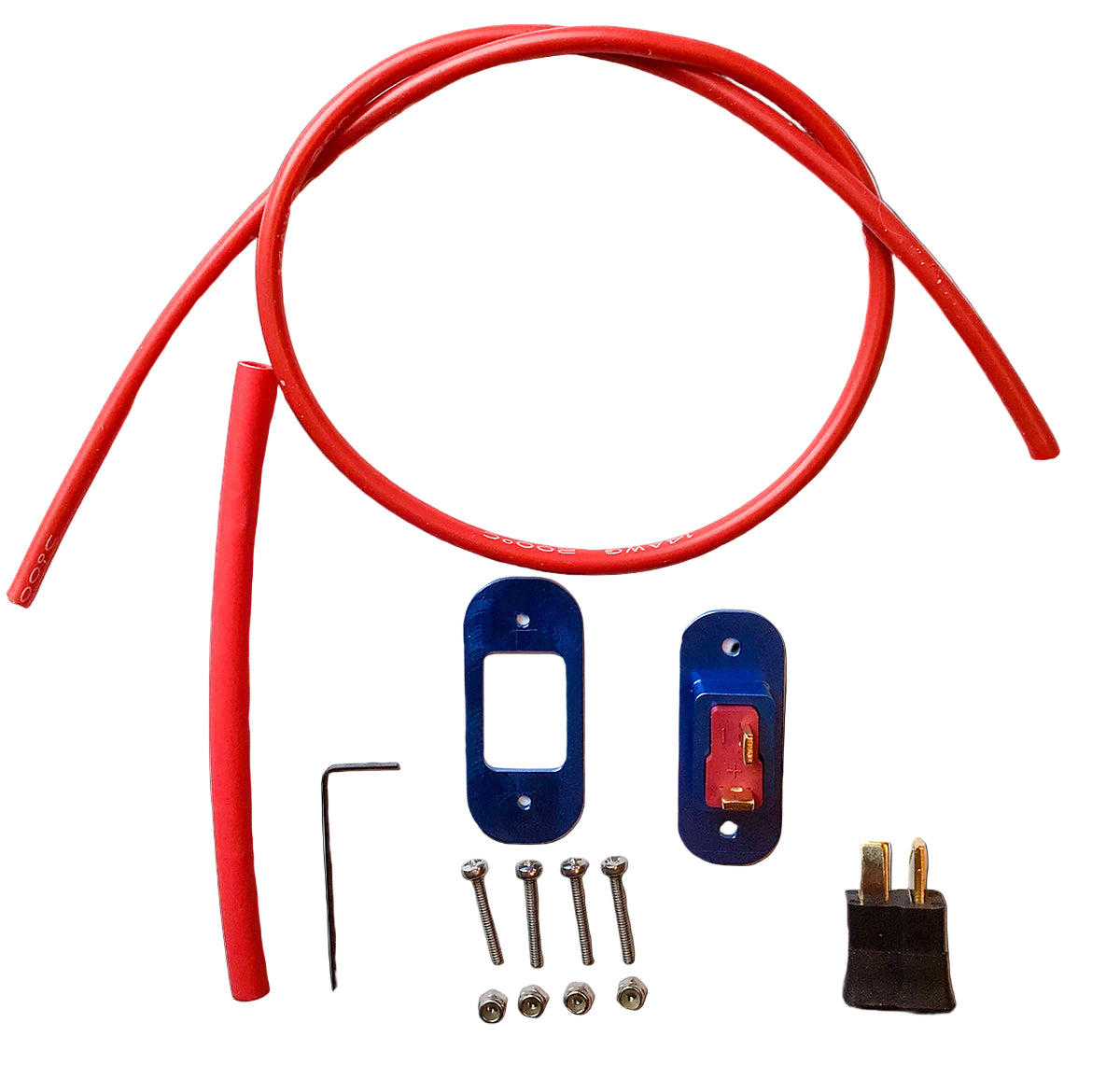

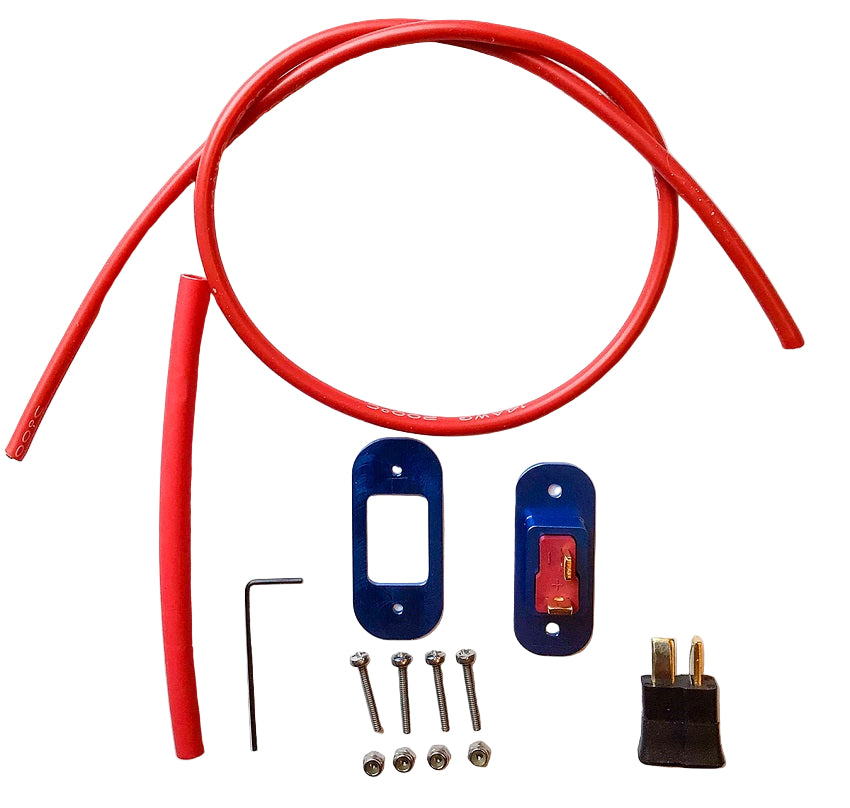

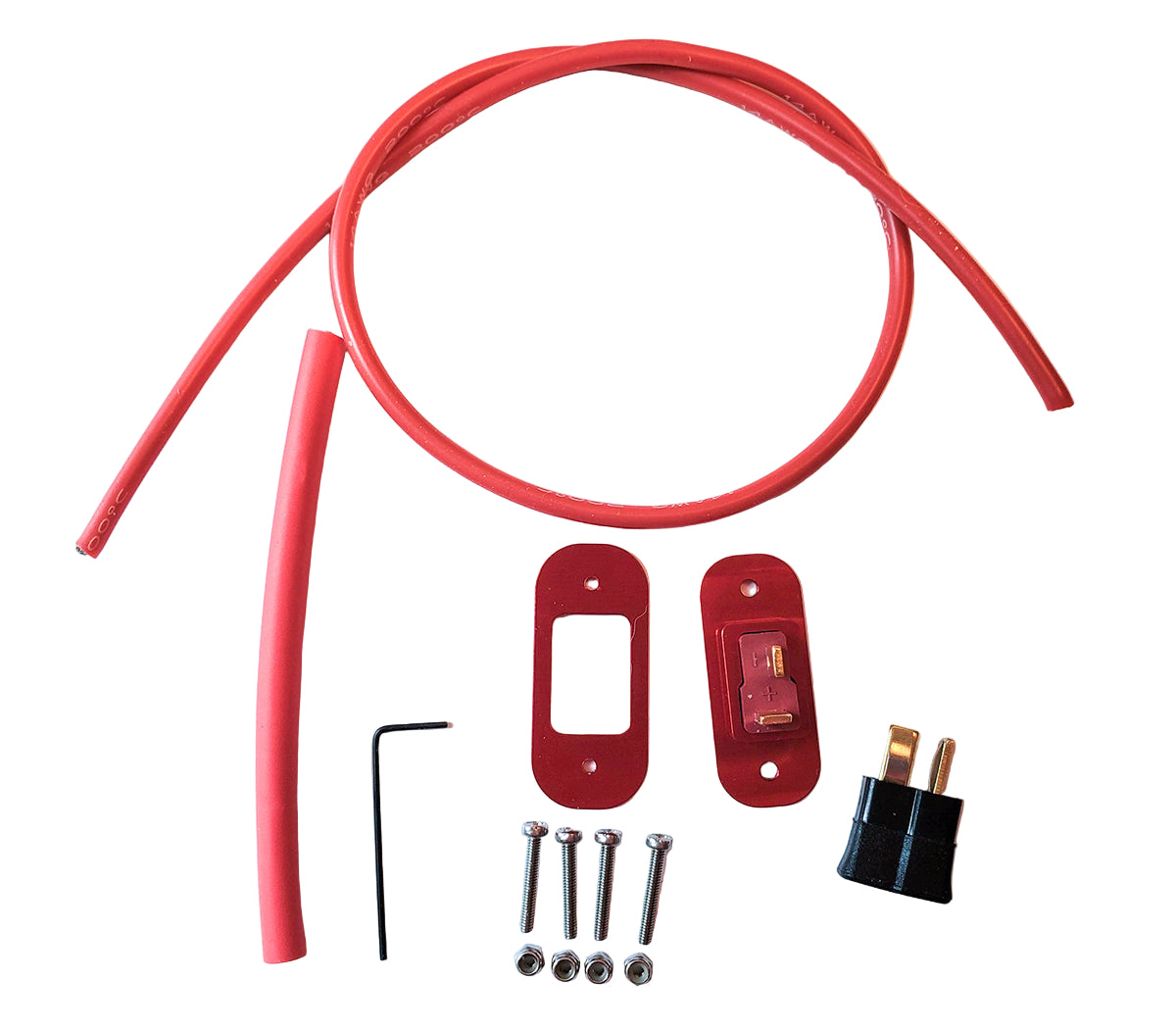

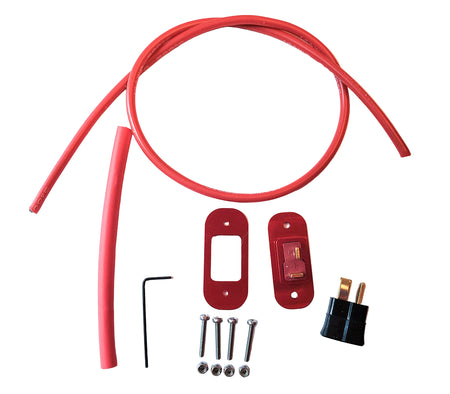

📦 Kit Contains:
- 1 × Female T-Plug Receptacle
- 1 × Removable Arming Plug
- 1 × Aluminum Backer Plate
- 1 × Anodized Aluminum Base
- 1 × Internal Set-Screw
- 2 × Mounting Screws
- 1 × 16-inch High-Flex Silicone Wire Strand (In selected gauge)
- 1 × 3-inch Heat-Shrink Tubing Strand
