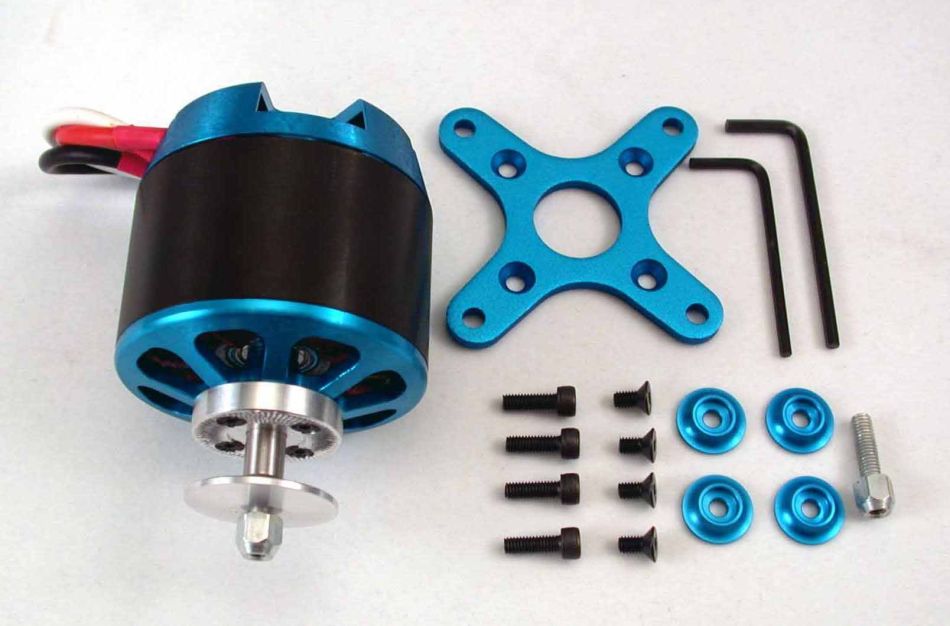

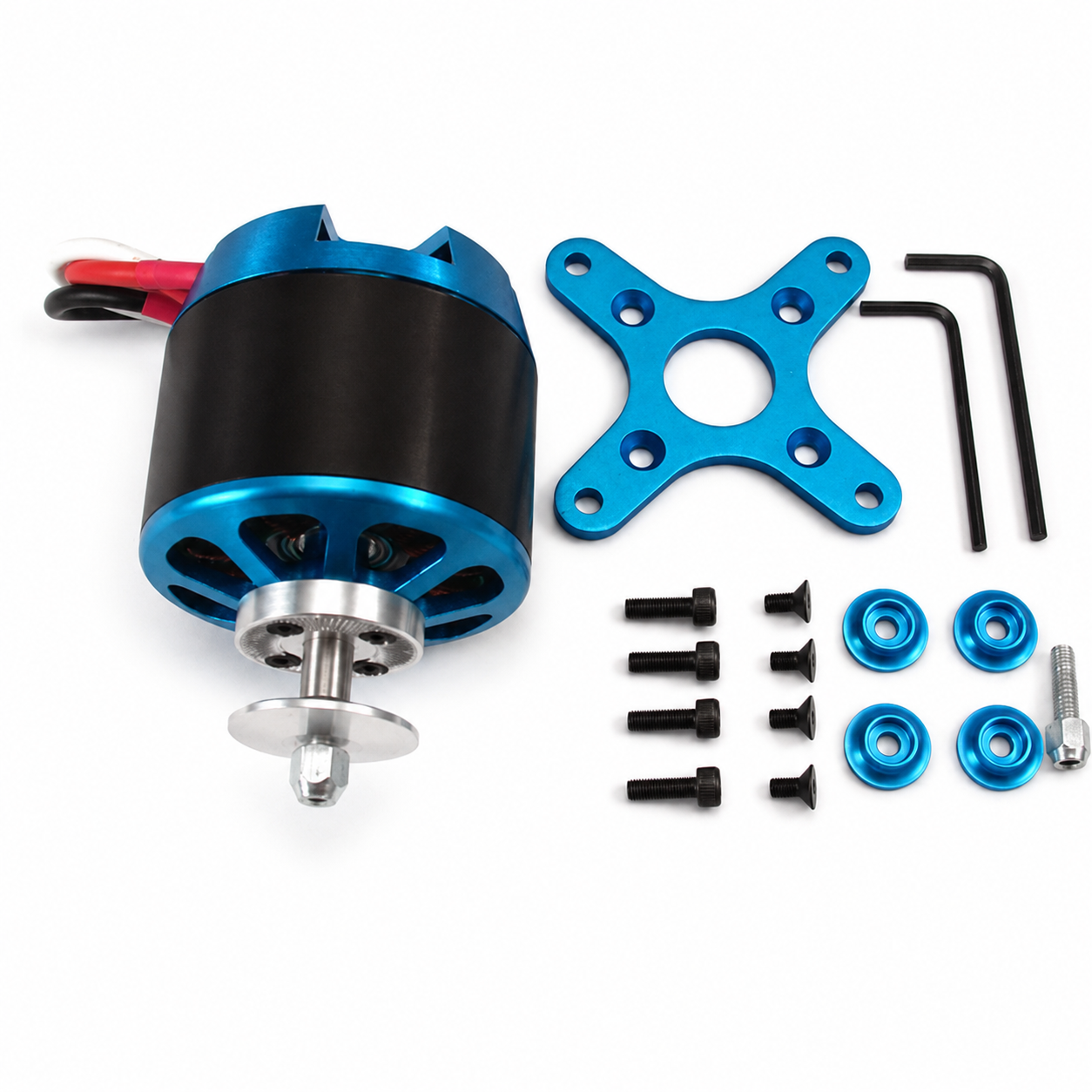

A brushed brushless motor kit with a blue and black motor, a blue four-spoke mounting plate, screws, washers, and Allen wrenches on a white background.

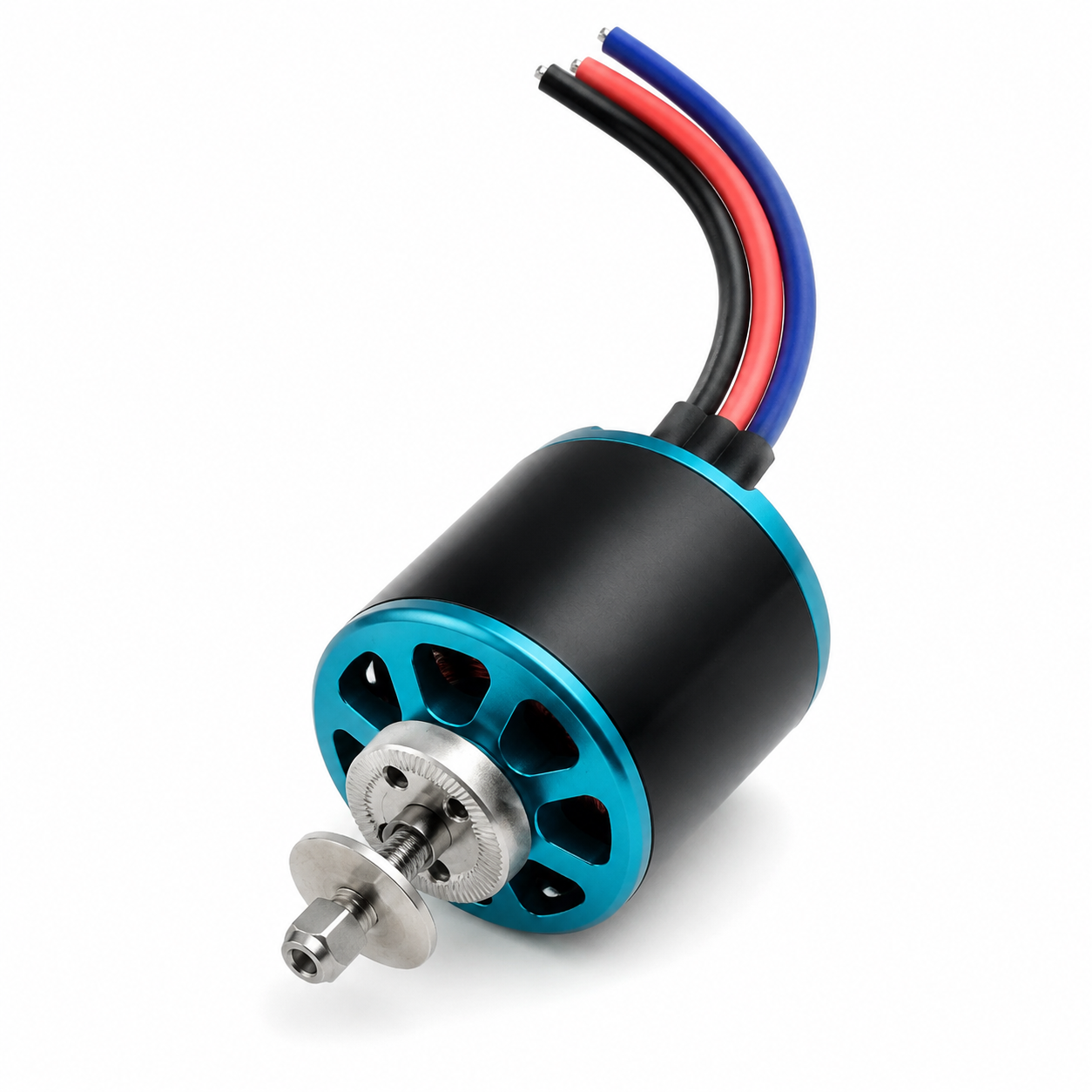

Himax HC6330Pro 210Kv F3A Brushless Outrunner Motor
Himax HC6330Pro 210Kv F3A Brushless Outrunner Motor
A brushed brushless motor kit with a blue and black motor, a blue four-spoke mounting plate, screws, washers, and Allen wrenches on a white background.
Himax HC6330Pro 210Kv F3A Brushless Outrunner Motor
Himax HC6330Pro 210Kv F3A Brushless Outrunner Motor
Himax

Himax HC6330Pro 210Kv F3A Brushless Outrunner Motor

In stock
SKU: HC6330Pro
(0)
$329.95

Himax HC6330Pro 210Kv F3A Brushless Outrunner Motor

The Himax HC6330Pro is a lightweight, high-torque brushless outrunner developed specifically for F3A pattern aircraft. Its 210Kv, 20-pole design delivers smooth throttle response, strong midrange performance, and the torque needed to turn large electric propellers directly.

Rated for up to 2,500 watts, the HC6330Pro is suitable for demanding pattern and large-scale electric aircraft. It can also serve as a replacement for YS 170, Plettenberg Evo 30-10, and Plettenberg Advance 30-class power systems.

Key Features

  • Designed for F3A pattern and large electric aircraft
  • 210Kv high-torque outrunner design
  • Up to 2,500 watts of power
  • Lightweight 20-pole construction
  • Turns large-diameter propellers without a gearbox
  • Dual ball-bearing construction
  • Compatible with Plettenberg Evo-style mounting installations
  • Optional Himax HC6330-210 front-mount kit available separately

Specifications

Model HC6330Pro
Motor Type Brushless outrunner
Motor Kv 210Kv
Power Rating Up to 2,500 watts
Recommended ESC Rating 80A high-voltage ESC
Recommended Battery 10S LiPo for typical F3A applications
Recommended Propeller Range 20 × 15 to 21 × 14 electric propeller
Diameter 2.48 in. (63 mm)
Length 2.64 in. (67 mm)
Weight 20.28 oz. (575 g)
Shaft Diameter 0.315 in. (8 mm)
Motor Resistance 0.11Ω
Magnetic Poles 20

Included

  • Himax HC6330Pro motor
  • Two M5 propeller bolts with M3 and M4 center taps
  • Propeller washer
  • Radial mounting hardware
  • Four M4 mounting screws
  • Four M4 cooling washers
  • Two hex wrenches

Important: Propeller, ESC, battery, and optional front-mount kit are sold separately. Final propeller selection and current draw must be confirmed with a wattmeter for the specific aircraft, battery, ESC, and operating conditions.

Gator RC is a direct Himax representative. Purchases from Gator RC include the applicable manufacturer warranty and product support.
