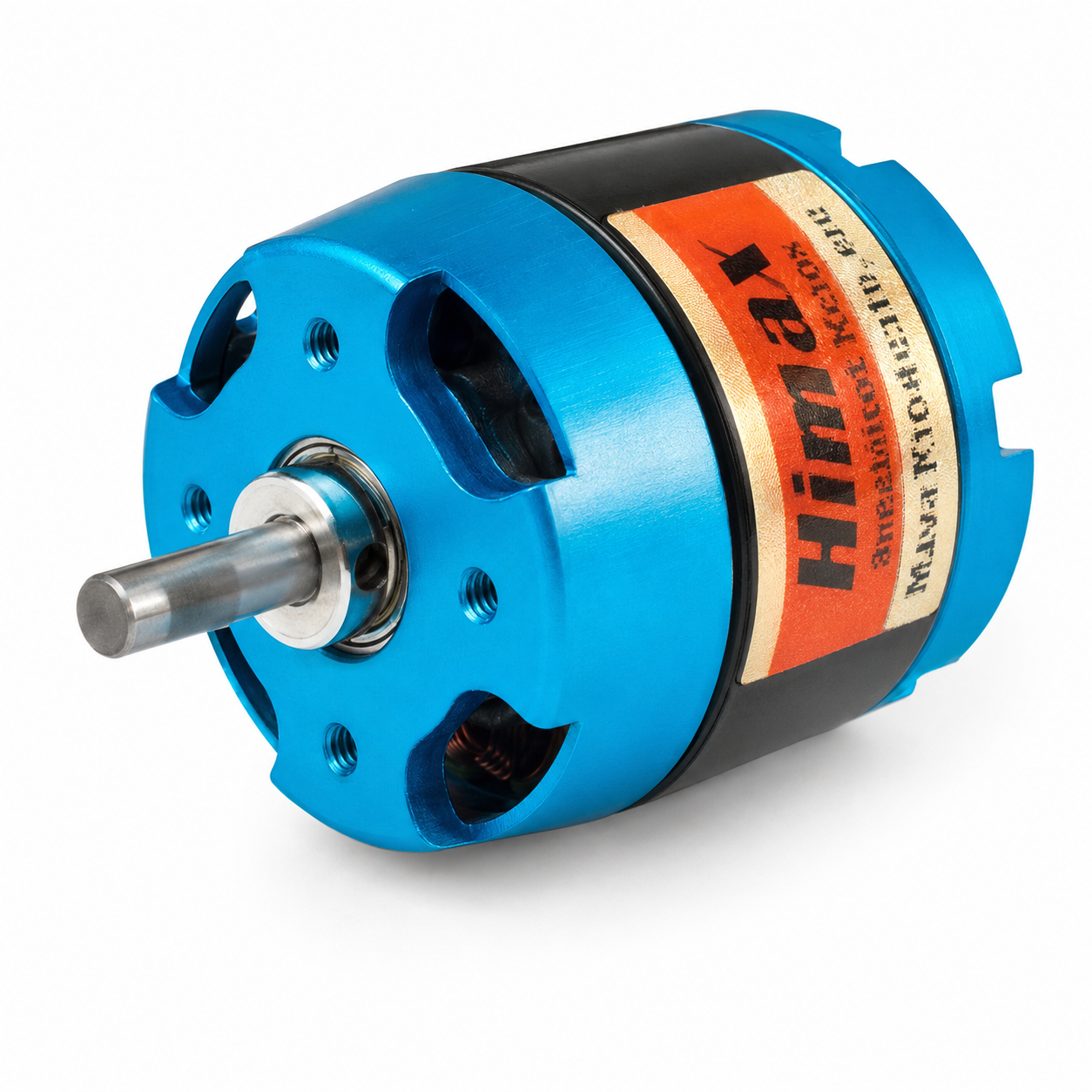

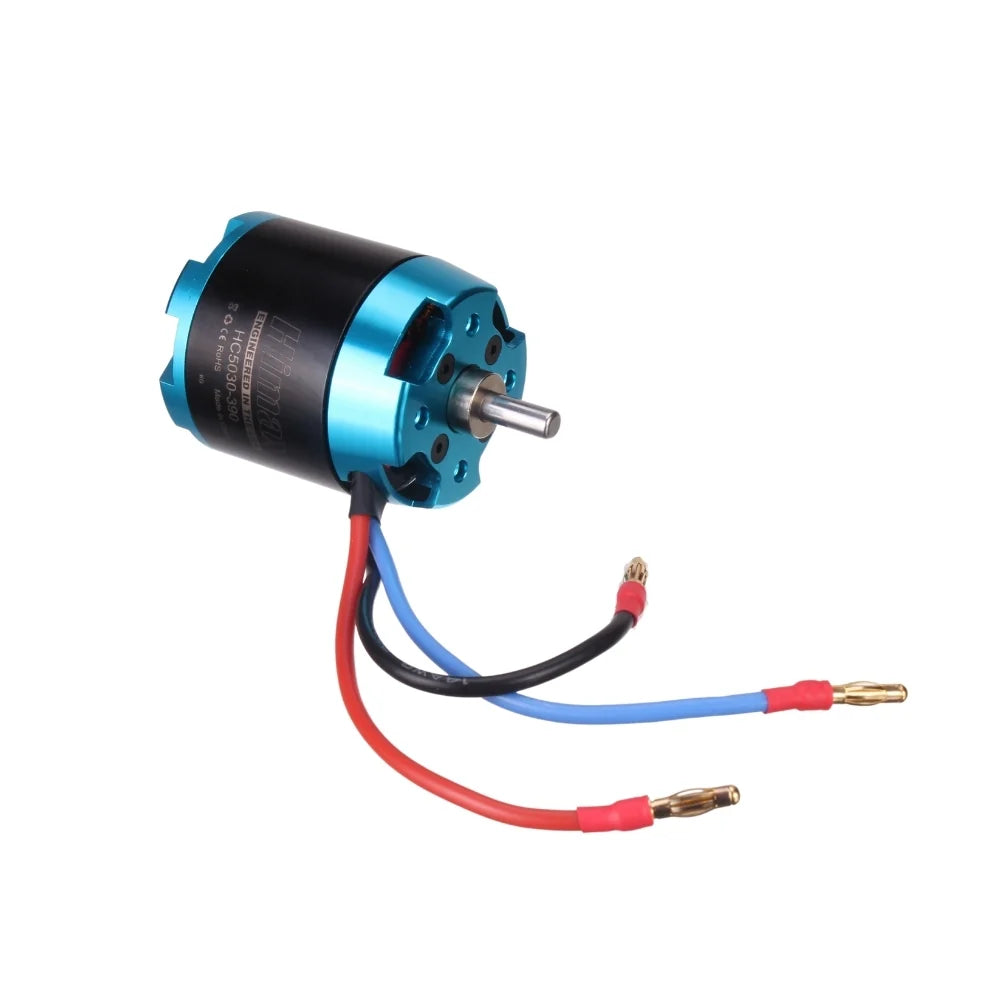

Himax HC5018-530 530Kv Brushless Outrunner Motor
Regular price
$115.95
Couldn't load pickup availability
Himax HC5018-530 530Kv Brushless Outrunner Motor
The Himax HC5018-530 is a high-torque brushless outrunner designed for medium-to-large electric RC airplanes. Its 530Kv winding provides the torque needed to turn large propellers directly, making it a dependable electric replacement for many .40–.60-class glow-engine installations.
The HC5018-530 can be used with 4S to 6S LiPo power systems, allowing the propeller and battery configuration to be selected for the aircraft and desired performance. Its serviceable construction also allows the motor to be disassembled, with replacement parts available separately.
Key Features
- 530Kv brushless outrunner motor
- High-torque design turns large propellers directly
- Suitable for sport, aerobatic, scale, and selected 3D airplanes
- Designed for 4S–6S LiPo power systems
- Approximately .40–.60 glow-engine equivalent
- Fully serviceable construction with replacement parts available

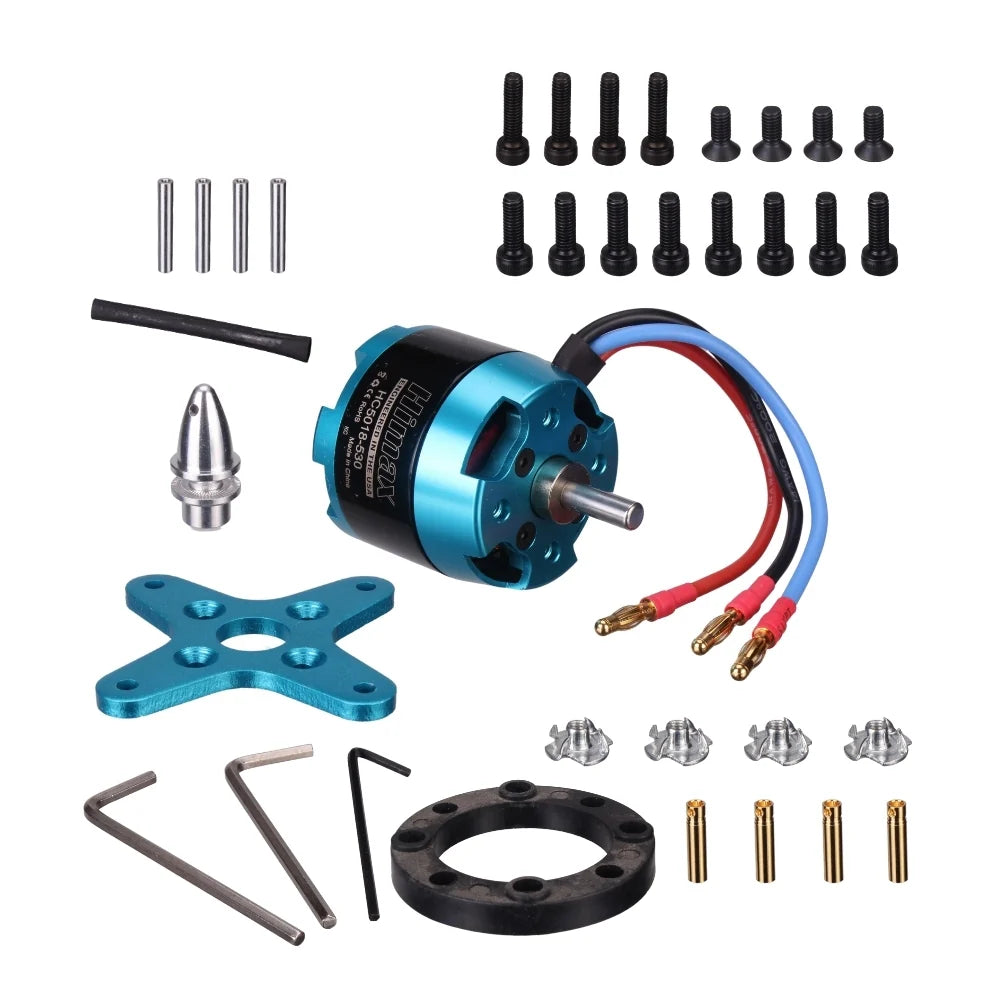

- Motor mounting hardware and connectors included
Specifications
| Model | HC5018-530 |
| Motor Type | Brushless outrunner |
| Motor Kv | 530Kv |
| Power Range | 800–1,500 watts, depending on setup |
| Battery Range | 4S–6S LiPo |
| Recommended ESC | 60A minimum; select additional capacity when required by the tested setup |
| Efficient Operating Current | 30–50A |
| Maximum Current | 65A for 15 seconds |
| Recommended Propeller Range | 12 × 8 to 16 × 8 electric propeller |
| Diameter | 1.97 in. (50 mm) |
| Length | 2.09 in. (53 mm) |
| Motor Weight |
