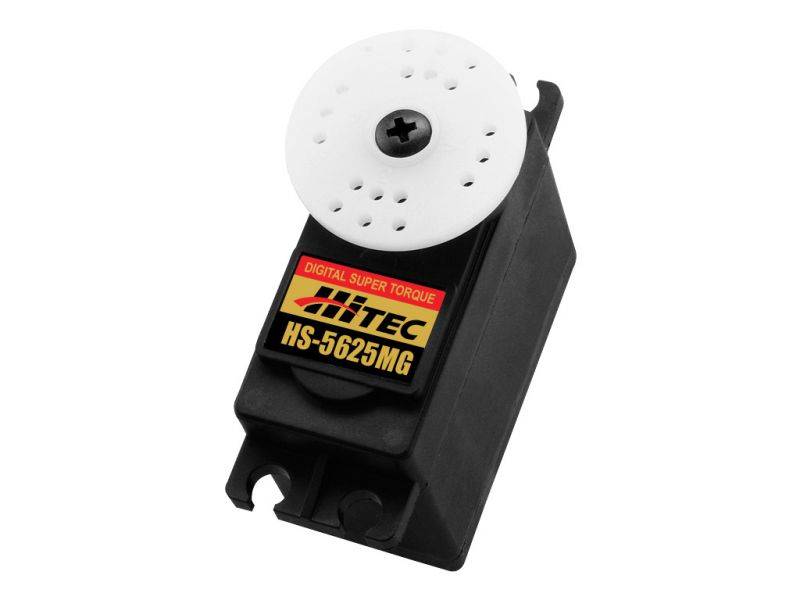

Hitec HS-5625MG High-Speed Metal Gear Digital Servo
The Hitec HS-5625MG is a standard-size digital servo designed for RC applications that require fast, accurate, and dependable control. Its programmable digital circuitry provides precise centering and smooth response, while the metal gear train and dual ball-bearing-supported output shaft deliver durability for demanding applications.
With a transit speed of 0.14 seconds per 60 degrees at 6.0 volts, the HS-5625MG is well suited for sport airplanes, scale aircraft, helicopters, RC vehicles, boats, and other models where quick control response is important.
Key Features
- Fast digital servo response
- Standard-size servo configuration
- Metal and MP gear train for increased durability
- Cored metal-brush motor
- Dual ball bearings support the output shaft
- Programmable digital circuitry
- Precise centering and smooth operation
- Standard Hitec 24-tooth output spline
- Compatible with Hitec DPC-20 and HFP-30 servo programmers
Programmable Functions
The HS-5625MG can be programmed using a compatible Hitec DPC-20 or HFP-30 programmer, sold separately. Programmable settings allow the servo's operation to be adjusted for specific RC applications.
📋 Performance Specifications
| Operating Voltage | 3.5–6.8V |
| Speed at 4.8V | 0.17 sec/60° |
| Speed at 6.0V | 0.14 sec/60° |
| Torque at 4.8V | 109.7 oz-in (7.9 kgf-cm) |
| Torque at 6.0V | 130.5 oz-in (9.4 kgf-cm) |
📋 Physical Specifications
| Servo Size | Standard |

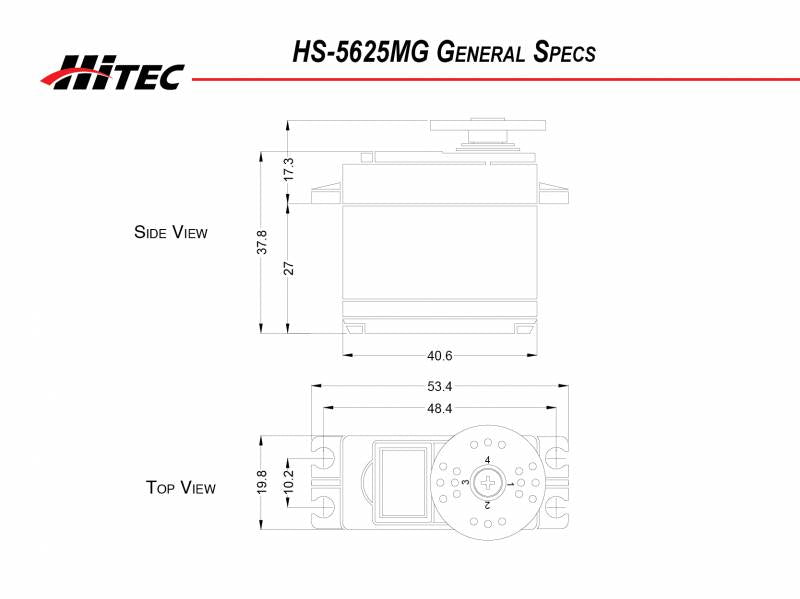

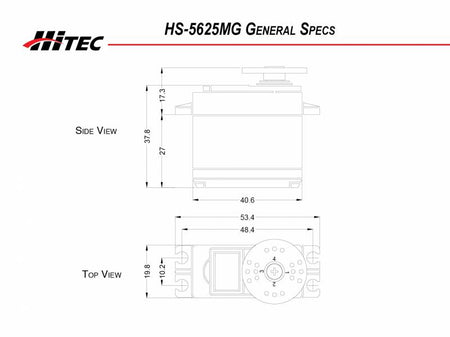

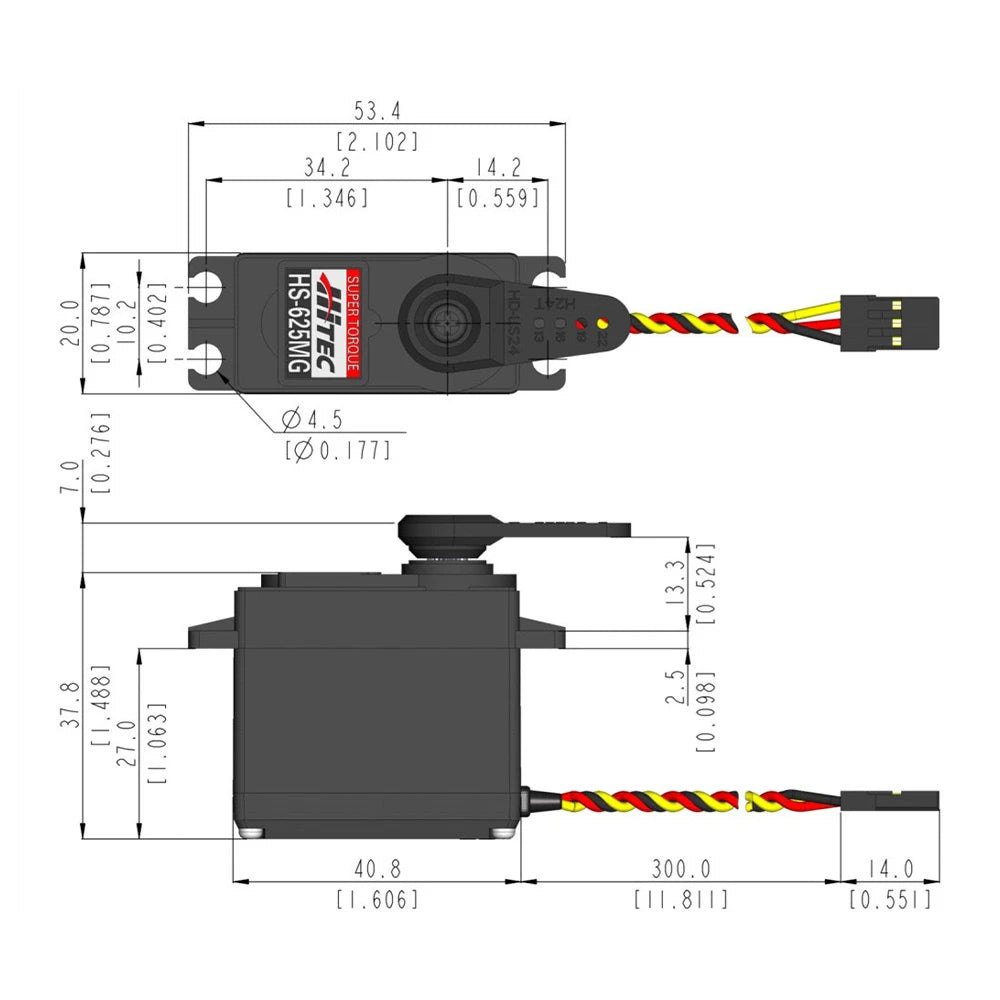

| Dimensions | 1.60 × 0.78 × 1.49 in. (40.8 × 20.0 × 37.8 mm) |
| Weight | Approximately 2.12 oz. (60 g) |
| Gear Type | Metal and MP gear train |
| Motor Type | Cored metal-brush motor |
| Bearings | Dual ball bearing |
| Output Spline | Hitec 24T |
| Control Type | Digital |
✈ Recommended RC Applications Matrix
| Sport Airplane | 12–15 lb. |
| Scale Airplane | 12–15 lb. |
| 3D Airplane | 12–15 lb. |
| Sailplane | 2 meters and larger |
| Electric Helicopter | 600 mm class |
| Gas Helicopter | 50–59 class |
| On-Road Vehicle | 1/10 scale |
| Monster Truck | 1/10 scale |
| Buggy, Truggy or Short-Course Truck | 1/10 scale |
| Sailboat | 1 meter and larger or scale models |
| Power Boat | 1/10 scale |
📦 Product Identifiers
| Manufacturer: | Hitec RCD |
| Model: | HS-5625MG |
| Manufacturer Part Number: | 35625S |
| SKU: | HRC35625S |
