Hitec RDX2 1000 Dual-Port AC/DC Battery Charger – HRC44401
Couldn't load pickup availability

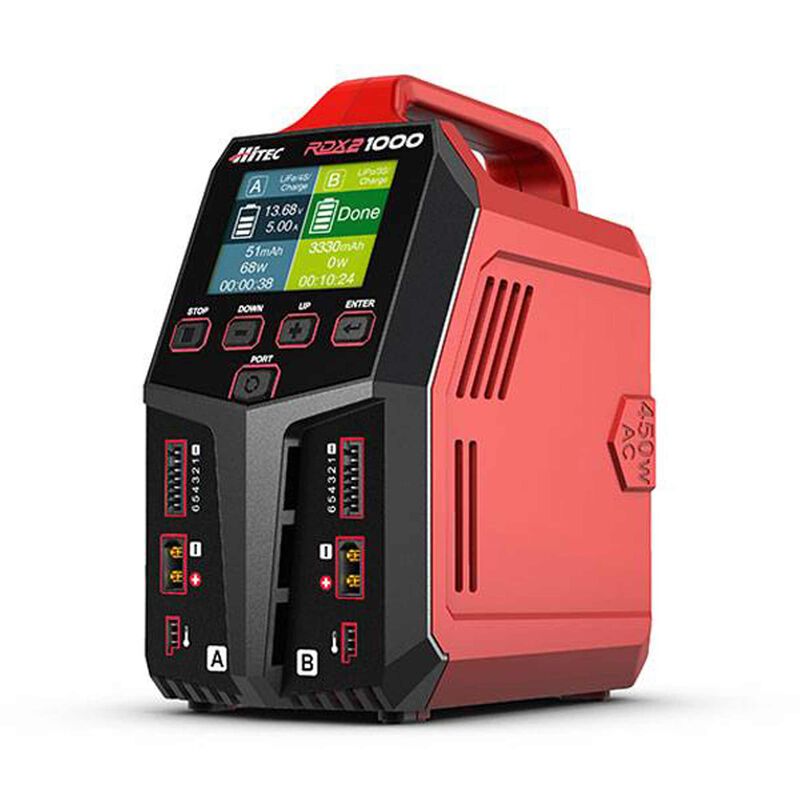

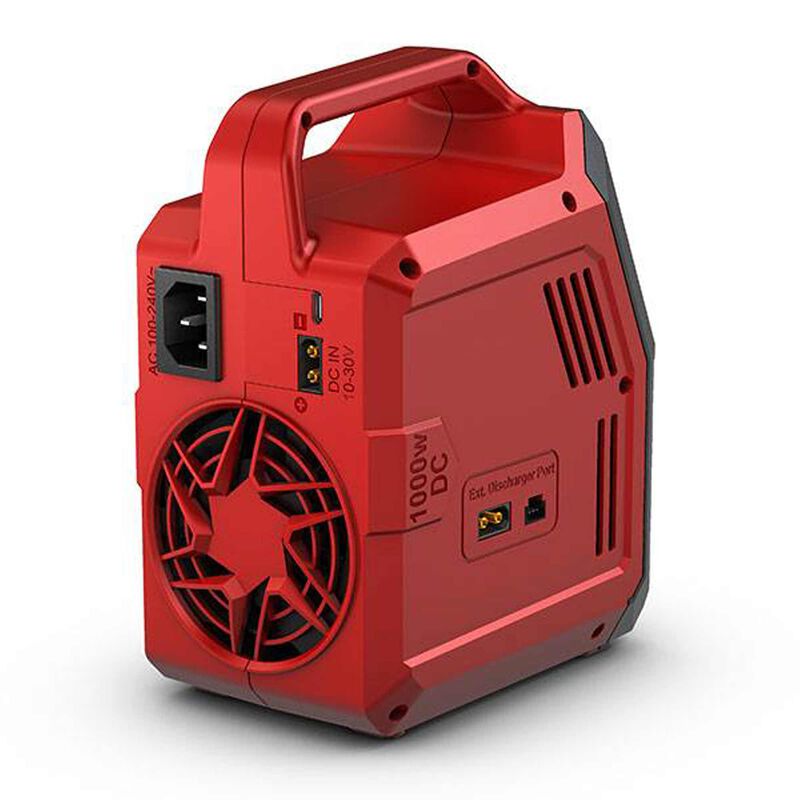

Hitec RDX2 1000 Dual-Port AC/DC Battery Charger
The Hitec RDX2 1000 is a high-output, dual-port charger built for demanding RC pilots, racers, and hobbyists. It delivers up to 450 watts of combined charging power from a standard AC outlet or up to 1000 watts when connected to a suitable high-current DC power source.
Two independent charging channels let you charge different battery chemistries or pack sizes simultaneously. Each channel supports charging currents up to 20 amps, while Parallel Mode combines both outputs for charging at up to 35 amps.
Key Features
- Two independent battery charging channels
- Up to 450W combined charging power on AC input
- Up to 1000W combined charging power on DC input
- Up to 20A charging current per channel
- Up to 35A charging current in Parallel Mode
- Supports LiPo, LiHV, LiFe, LiIon, NiMH, NiCd, and lead-acid batteries
- Color LCD screen with intuitive menu controls
- XT60 charging outputs and XH-style balance ports
- Balance Charge, Charge, Discharge, Storage, and Cycle modes
- Battery voltage meter and internal-resistance measurement
- Adjustable lithium terminal voltage
- NiMH and NiCd re-peak and delta-peak adjustment
- Programmable safety timer and capacity cutoff
- Temperature-controlled cooling fan
- USB-C connection for PC control and firmware updates
- Programmable DC power-supply output
- Tire-warmer mode for RC racing applications
Charging Performance
| AC Input | 100–240V AC |
|---|---|
| DC Input | 10–30V DC |
| Maximum AC Charge Power | 450W combined |
| Maximum DC Charge Power | 1000W combined |
| Charge Current | 0.1–20A per channel |
| Parallel Charge Current | 0.1–35A |
| Internal Discharge | Up to 2A / 10W |
| Balance Current | Up to 1.5A per cell |
Supported Batteries
| LiPo / LiHV / LiFe / LiIon | 1–6 cells |
|---|---|
| NiMH / NiCd | 4–15 cells |
| Lead Acid | 6–24V |
Additional Functions
The RDX2 1000 can operate as an adjustable DC power supply with an output range of 5–27 volts and up to 15 amps. A dedicated tire-warmer mode provides up to 16 volts and 8 amps for supported RC racing accessories.

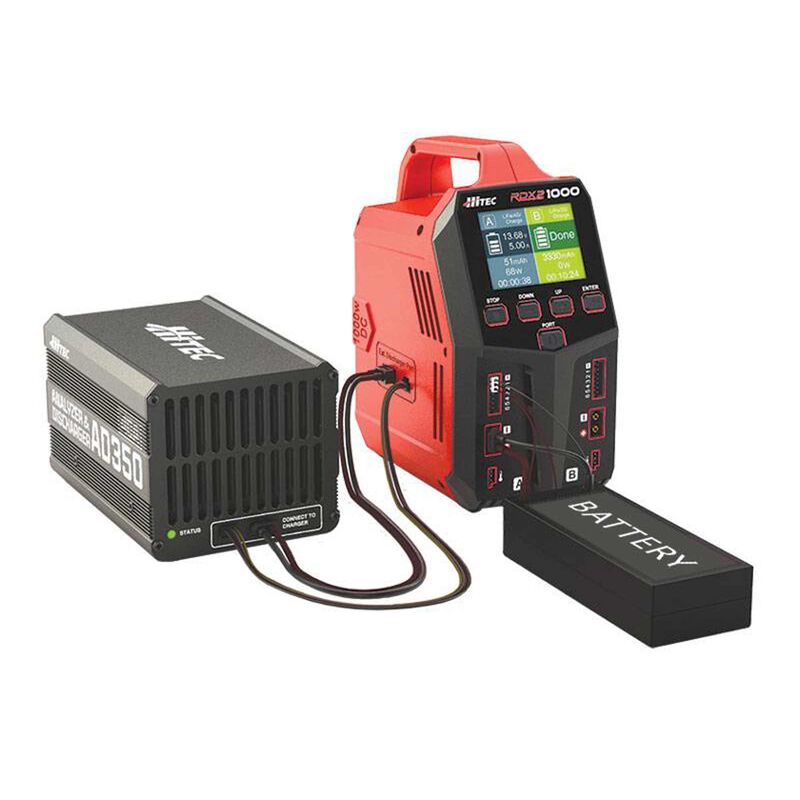

For increased discharge performance, the charger is compatible with the Hitec AD380 Battery Analyzer and Discharger, available separately.
Dimensions and Weight
- Length: 7.5 in. (190 mm)
- Width: 6.0 in. (152 mm)
- Height: 3.9 in. (99 mm)
- Weight: 3.0 lb. (1.36 kg)
Product Information
- Manufacturer: Hitec RCD
- Manufacturer Part Number: 44401
- Gator RC SKU: HRC44401
Maximum output depends on the input source, input voltage, available current, battery voltage, and power distribution between the two channels. Always charge batteries in accordance with the battery manufacturer's instructions and observe appropriate charging safety practices.
