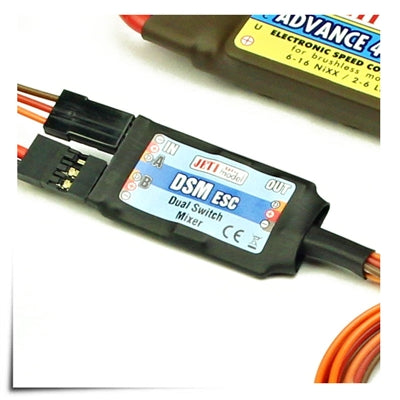

Jeti DSM ESC Dual Power Switch with Magnetic Key
The Jeti DSM ESC adds receiver power redundancy to compatible RC aircraft. Connect two ESC BEC outputs, or an ESC BEC output and a separate receiver battery, to provide two power sources for your receiver and servos.
The unit continuously monitors both inputs and automatically supplies power from the source with the higher voltage. The included magnetic key lets you switch receiver power on or off from outside the model.
Key Features
- Dual power inputs with automatic source selection
- Supports two ESC BEC outputs or an ESC BEC plus receiver battery
- Passes the receiver throttle signal to both connected ESCs
- Rated for 10A continuous and 20A peak current for up to 30 seconds
- Magnetic on/off control with LED status indication
- Remembers its on/off state after power is disconnected
- Compact design with JR-style connections
Specifications
| Model | DSM ESC Dual Switch Mixer |
|---|---|
| SKU | J-DSM-ESC |
| Recommended Input Voltage | 5–8.4V |
| Maximum Input Voltage | 13V |
| Continuous Current | 10A |
| Peak Current | 20A for up to 30 seconds |
| Power Inputs | 2 |
| Voltage Regulation | None |
| Telemetry | No |
| Dimensions | 1.50 × 0.79 × 0.28 in (38 × 20 × 7 mm) |
| Weight | 0.85 oz (24 g) |

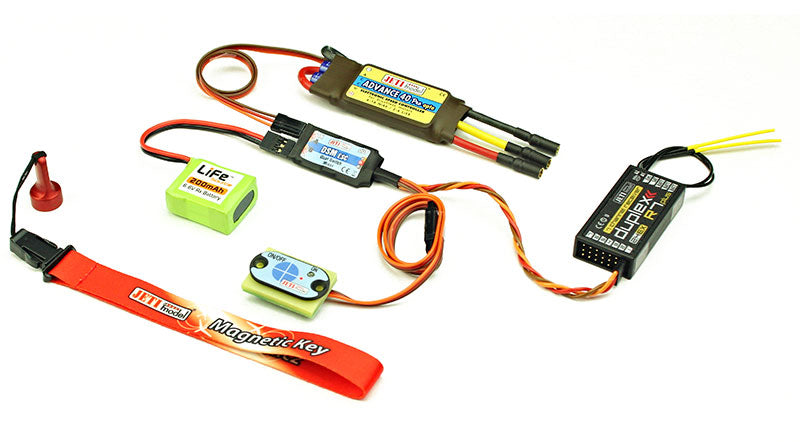

Included
- Jeti DSM ESC unit
- Magnetic switch panel and key
- Mounting lugs and screws
- Decals
Installation Note
The DSM ESC does not regulate voltage. Output follows the higher-voltage input. Both power sources must be suitable for the receiver, servos, and other connected equipment. A backup receiver battery is purchased separately.
