Jeti Mezon 90 12S Brushless ESC with Telemetry & 8A BEC
Couldn't load pickup availability
Jeti Mezon 90 12S Brushless ESC with Telemetry & 8A BEC
The Jeti Mezon 90 is a premium high-voltage electronic speed controller designed for advanced RC pilots who demand exceptional reliability, full telemetry integration, and detailed flight data analysis. Supporting battery systems up to 12S LiPo and delivering 90A continuous current, the Mezon 90 provides the performance required for large sport aircraft, scale models, EDF jets, sailplanes, and giant-scale electric aircraft.
Built around Jeti's advanced telemetry ecosystem, the Mezon 90 provides real-time monitoring of critical flight parameters while recording detailed operating data for post-flight analysis. The integrated 8A switching BEC powers your receiver and servos directly from the flight battery, simplifying installation and reducing overall system weight.
With support for Jeti Studio, firmware updates, extensive programming options, and industry-leading telemetry capabilities, the Mezon 90 delivers the control, visibility, and confidence serious pilots expect from a premium ESC.
Features
- 90A continuous current rating
- Supports up to 12S LiPo batteries
- Integrated 8A switching BEC
- Full Jeti EX Telemetry integration
- Built-in data logging
- Real-time flight system monitoring
- Firmware update capable
- Jeti Studio compatible
- JetiBox programmable
- Over-current protection
- Temperature protection
- Low-voltage protection
- Capacity monitoring and alarms
- Designed and manufactured in the Czech Republic
Full EX Telemetry
The Mezon 90 continuously transmits critical system data to compatible Jeti transmitters, giving pilots real-time visibility into aircraft performance during flight.
- Battery Voltage
- Current Draw
- Consumed Capacity
- ESC Temperature
- Motor RPM
- Power Output
- System Warnings and Alarms
Built-In Data Logging
Review and analyze flight performance after every flight using the Mezon's onboard data logging capabilities. Monitor current consumption, temperature trends, power output, and battery usage to optimize aircraft setup and performance.

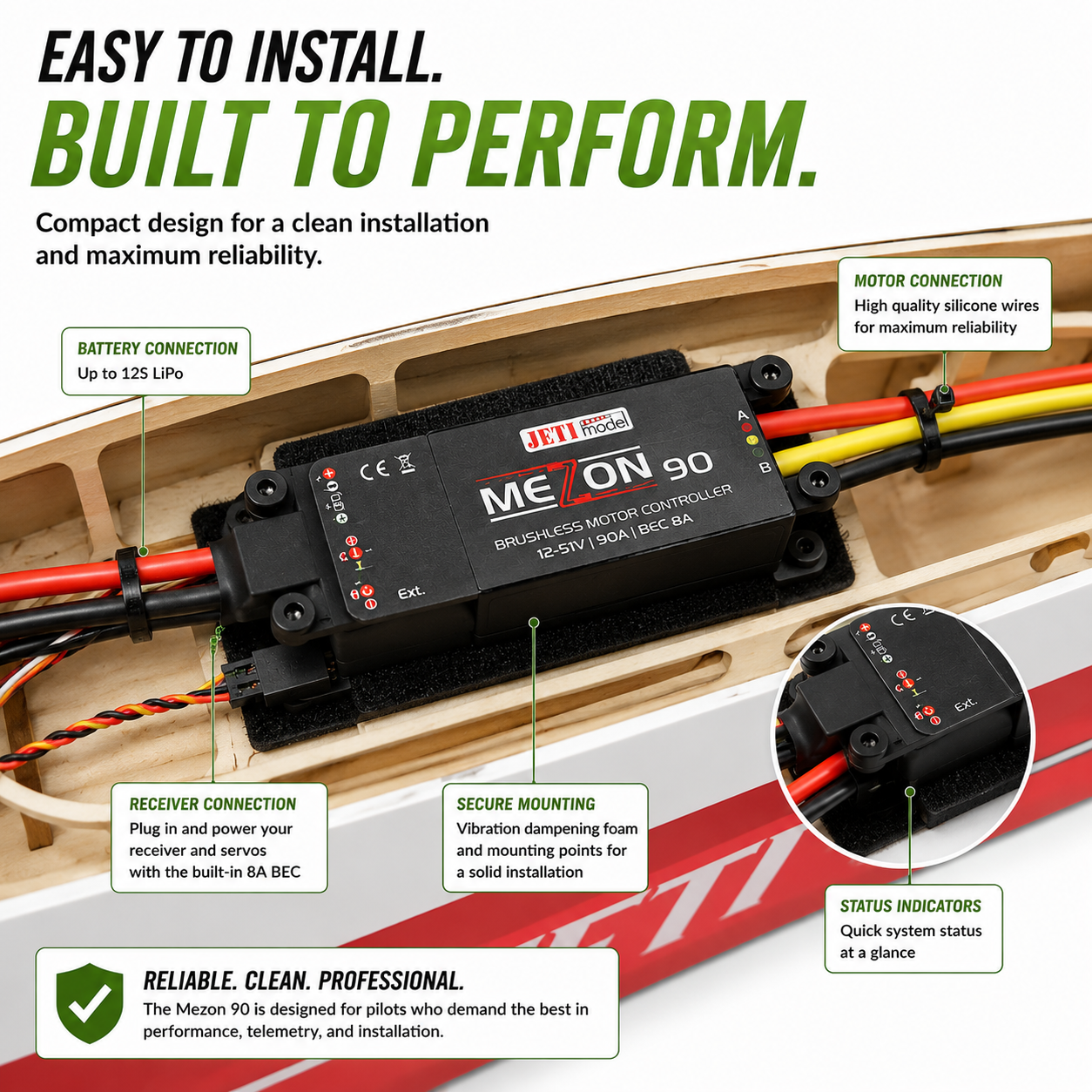

Integrated 8A Switching BEC
The built-in switching BEC provides reliable receiver and servo power directly from the flight battery, reducing installation complexity and eliminating the need for a separate receiver battery in many applications.
Technical Specifications
| Specification | Value |
|---|---|
| Continuous Current | 90A |
| Peak Current | 120A |
| Battery Compatibility | Up to 12S LiPo |
| Input Voltage | 6V - 51V |
| BEC Type | Switching BEC |
| BEC Output Current | 8A Continuous |
| Dimensions | 50 x 28 x 110mm (1.97 x 1.10 x 4.33 in) |
| Weight | 130g (4.59 oz) |
| Telemetry | Full EX Telemetry |
| Data Logging | Yes |
| Programming | JetiBox Compatible |
| Firmware Updates | Supported |
| Country of Manufacture | Czech Republic |
Ideal Applications
- Large Electric Sport Aircraft
- Scale Electric Aircraft
- EDF Jets
- Electric Sailplanes
- IMAC Aircraft
- Giant Scale Electric Models
Why Choose the Mezon 90?
- Premium Jeti quality and reliability
- Advanced telemetry and data logging
- Built-in 8A switching BEC
- Detailed post-flight performance analysis
- Support for high-voltage 12S power systems
- Full integration with the Jeti ecosystem
The Jeti Mezon 90 combines premium telemetry, onboard data logging, advanced programming, and dependable receiver power into a professional-grade ESC trusted by demanding RC pilots worldwide.
- Manual Download
