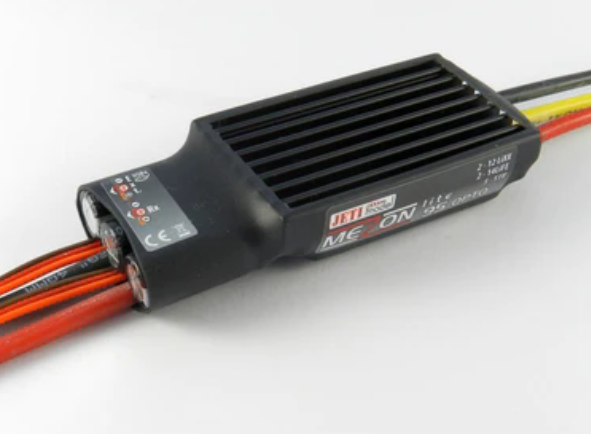

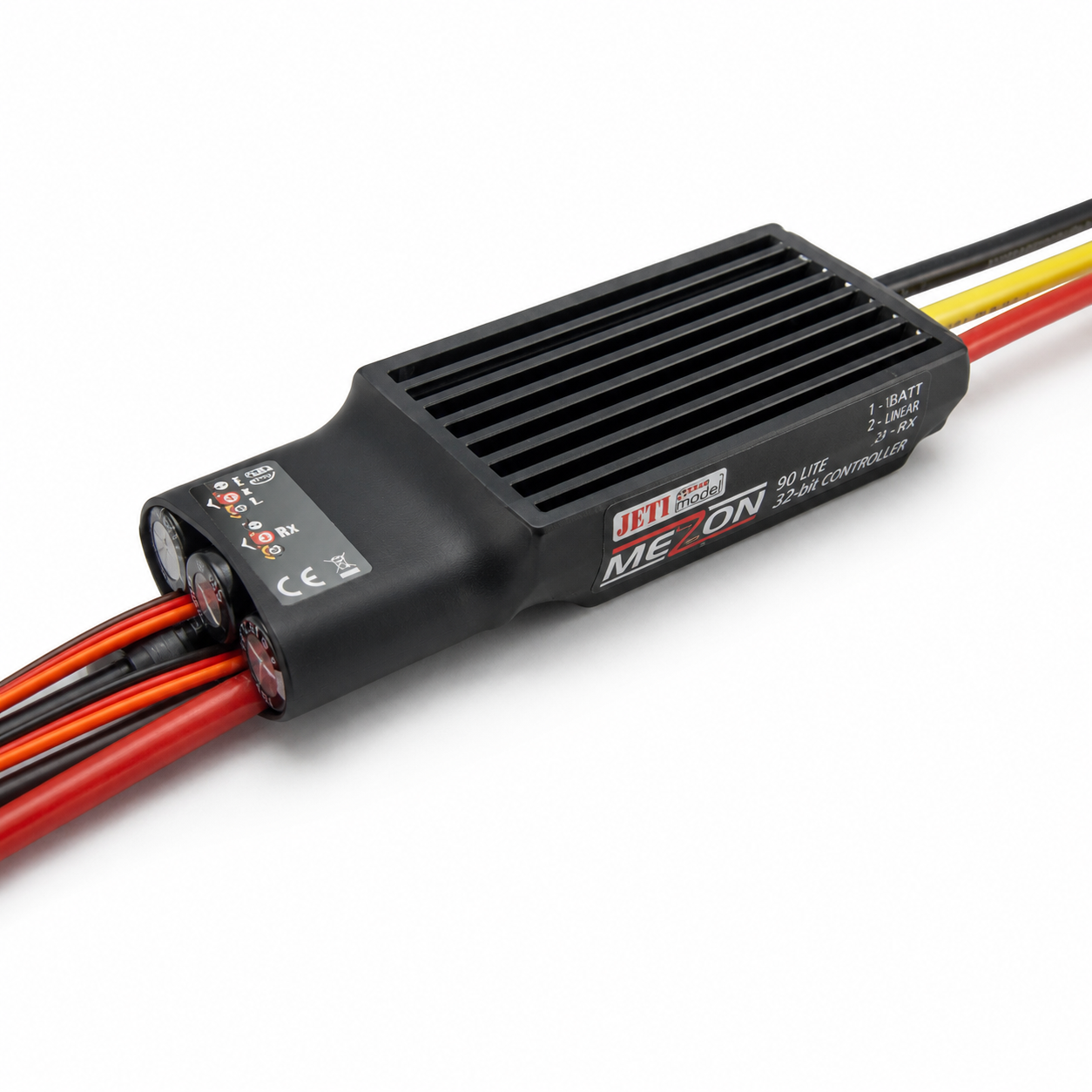

Black electronic component with red and yellow wires on a white background
Gator RC Mezon 90 Lite ESC with telemetry and monitoring features on a white background

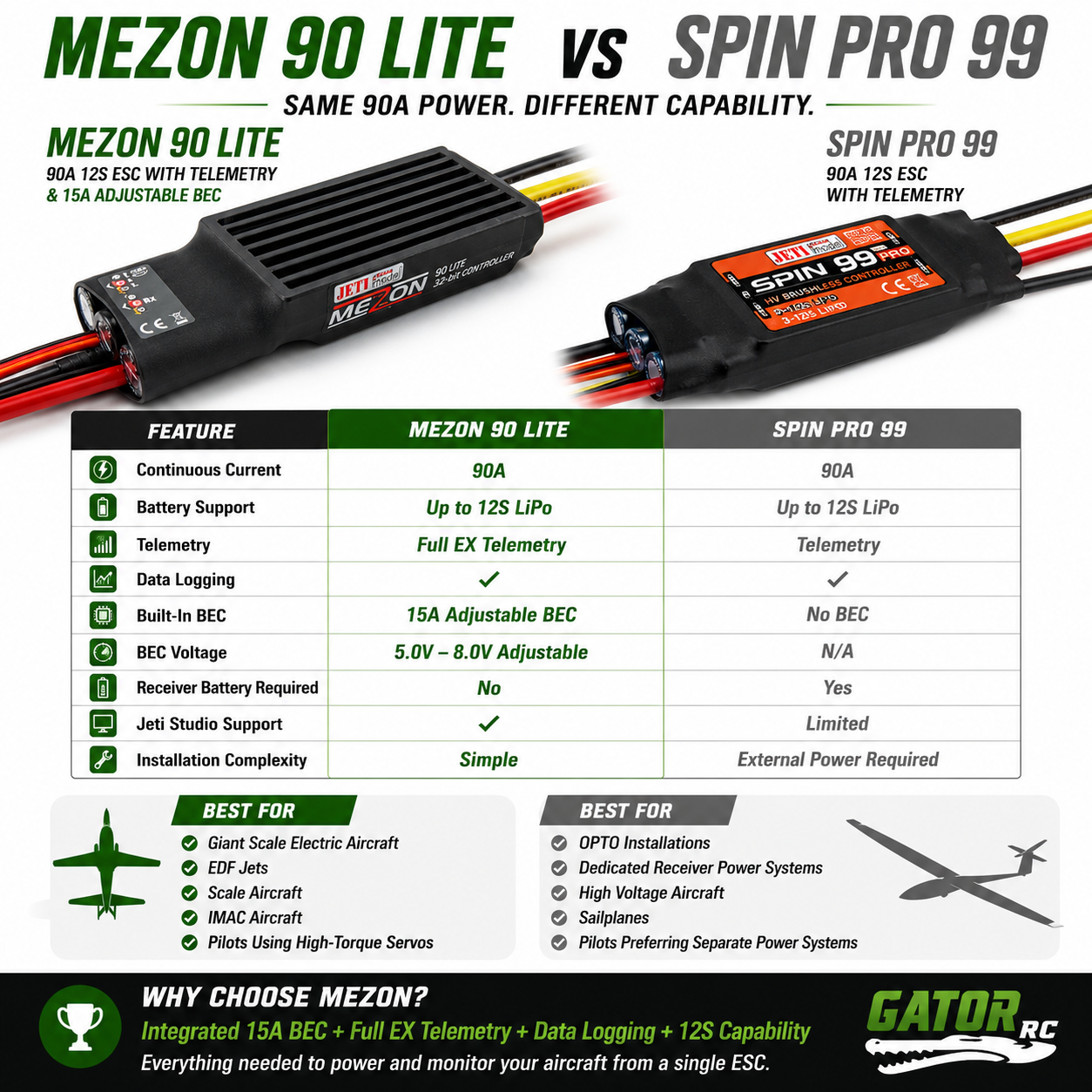

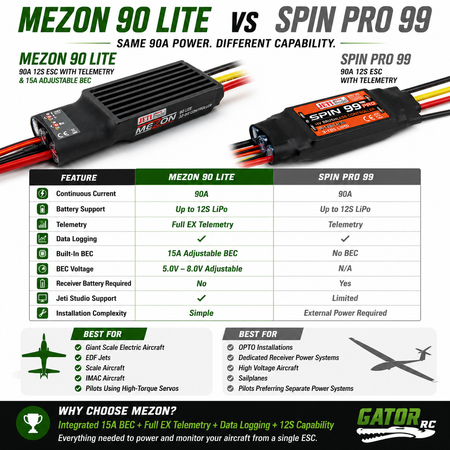

Comparison chart of Mezon 90 Lite and Spin Pro 99 ESCs with features and specifications.

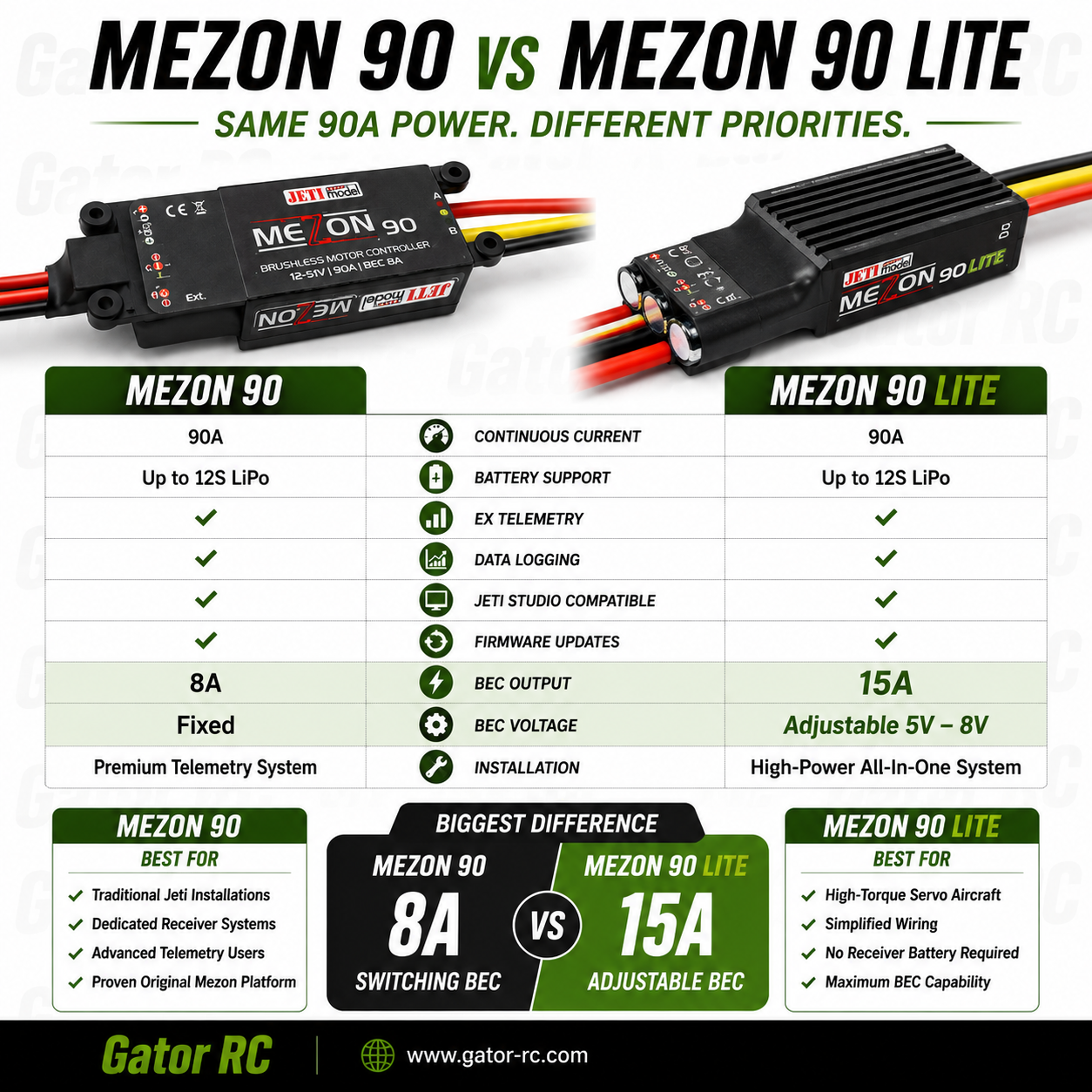

Comparison chart between MEZON 90 and MEZON 90 Lite electronic components with features listed.
Gator RC Jeti ESC selection chart with various models and specifications.
Black electronic component with red and yellow wires on a white background
Gator RC Mezon 90 Lite ESC with telemetry and monitoring features on a white background
Comparison chart of Mezon 90 Lite and Spin Pro 99 ESCs with features and specifications.
Comparison chart between MEZON 90 and MEZON 90 Lite electronic components with features listed.
Gator RC Jeti ESC selection chart with various models and specifications.
Jeti

Jeti Mezon 90 Lite 12S ESC with Telemetry & 15A Adjustable BEC

Only 1 left
SKU: JM-090-L
(0)
$320.00

Jeti Mezon 90 Lite 12S ESC with Telemetry & 15A Adjustable BEC

The Jeti Mezon 90 Lite is a premium high-voltage electronic speed controller designed for serious electric aircraft pilots who demand advanced telemetry, powerful receiver power, and exceptional reliability. Supporting battery systems up to 12S LiPo, the Mezon 90 Lite combines a robust 90A continuous current rating with a powerful 15A switching BEC, eliminating the need for a separate receiver battery in most applications.

Built on Jeti's renowned Mezon platform, this ESC provides complete EX Telemetry integration, real-time system monitoring, onboard data logging, firmware updates, and extensive programming through JetiBox and Jeti Studio. Pilots can monitor battery voltage, current draw, consumed capacity, ESC temperature, RPM, and more while flying.

Whether you're powering a large sport aircraft, scale model, sailplane, EDF jet, or giant-scale electric airplane, the Mezon 90 Lite delivers the performance, telemetry, and reliability that have made Jeti electronics a favorite among advanced RC pilots worldwide.

Features

  • 90A continuous current rating
  • Supports up to 12S LiPo battery systems
  • Powerful 15A switching BEC
  • Adjustable BEC output voltage from 5.0V to 8.0V
  • Full Jeti EX Telemetry integration
  • Built-in data logging
  • Real-time battery monitoring
  • Current, temperature, and capacity monitoring
  • Firmware update capable
  • JetiBox programmable
  • Advanced battery protection functions
  • Over-current protection
  • Temperature protection
  • Low voltage protection
  • Designed and manufactured in the Czech Republic

Monitor Critical Flight Data

The Mezon 90 Lite provides comprehensive telemetry information when used with compatible Jeti systems:

  • Battery Voltage
  • Battery Current
  • Consumed Capacity
  • ESC Temperature
  • Motor RPM
  • Motor Output Percentage
  • System Warnings and Alarms

Powerful Integrated BEC

The integrated switching BEC delivers up to 15A of output current and features adjustable output voltage from 5.0V to 8.0V, making it suitable for modern high-performance servos while simplifying installation and reducing overall system weight.

Technical Specifications

Specification Value
Continuous Current 90A
Input Voltage 6-51V
Battery Compatibility Up to 12S LiPo
BEC Type Switching BEC
BEC Output Current 15A
BEC Voltage Range 5.0V - 8.0V Adjustable
Dimensions 35 × 13 × 93mm (1.38 × 0.51 × 3.66 in)
Weight 120g (4.23 oz)
Telemetry Full EX Telemetry
Data Logging Yes
Programming JetiBox Compatible
Firmware Updates Supported
Country of Manufacture Czech Republic

Ideal Applications

  • Large Electric Sport Aircraft
  • Scale Electric Aircraft
  • EDF Jets
  • Electric Sailplanes
  • IMAC Aircraft
  • Giant Scale Electric Models

The Jeti Mezon 90 Lite combines premium telemetry, powerful receiver power, advanced data logging, and proven reliability into one of the most capable 12S ESCs available today.
