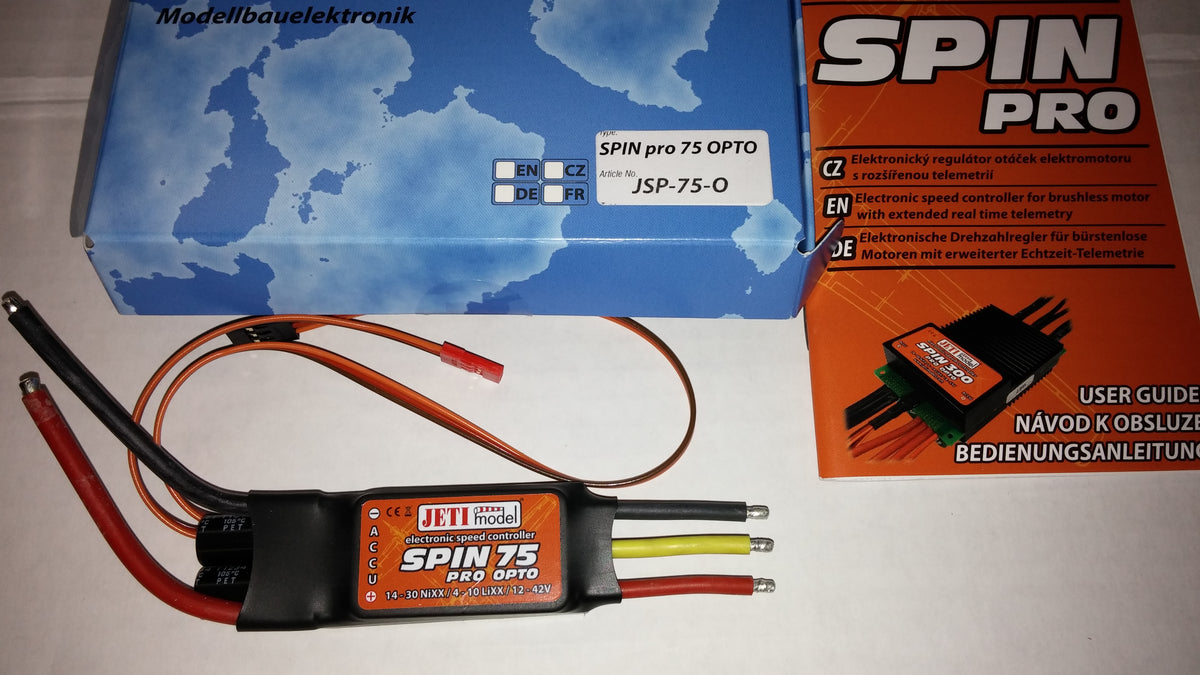

JETI SPIN 75 electronic component with packaging on a light surface
Real-time telemetry system with JETI Spin 75 component on a dark background
Gator RC Spin 75 ESC with OPTO isolated design features on a blue background
Jeti Spin Pro 75 Opto
Gator RC electronic speed controller with features and specifications on a blue background
JETI SPIN 75 electronic component with packaging on a light surface
Real-time telemetry system with JETI Spin 75 component on a dark background
Gator RC Spin 75 ESC with OPTO isolated design features on a blue background
Jeti

Jeti Spin Pro 75 Opto ESC with Telemetry & Braking | 75A 4S-10S LiPo

Only 2 left
SKU: JETISPIN-75O
(0)
$185.00

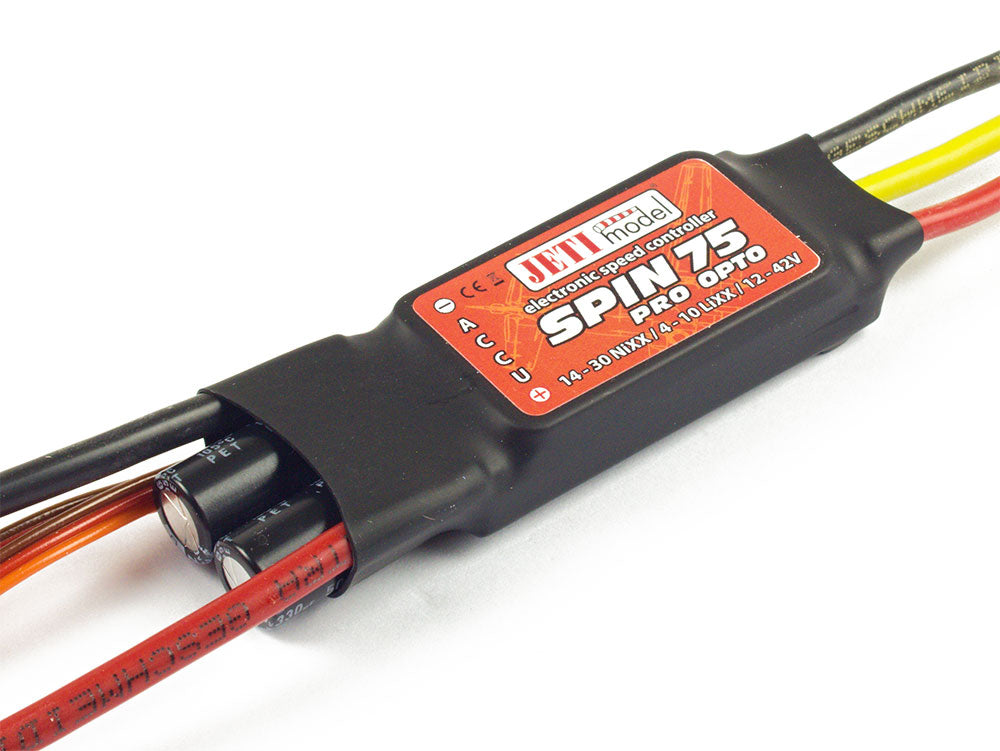

Jeti Spin Pro 75 Opto ESC with Telemetry & Braking

The Jeti Spin Pro 75 Opto is a premium European-designed brushless electronic speed controller built for demanding RC airplanes, sailplanes, and helicopters. With support for 4S-10S LiPo batteries, advanced telemetry capabilities, integrated data logging, adjustable braking, and extensive programming options through JetiBox, the Spin Pro 75 delivers the precision and reliability expected from Jeti electronics.

The PRO series introduces enhanced features including automatic motor timing, adjustable startup characteristics, direct voltage cutoff programming, autorotation support for helicopters, and real-time telemetry feedback. Whether you're flying a large sport airplane, IMAC aircraft, scale model, or helicopter, the Spin Pro 75 provides smooth throttle response and dependable power management.

Key Features

  • 75A continuous current capability
  • Supports 4S-10S LiPo battery systems
  • Integrated telemetry support
  • Built-in data logging for performance analysis
  • Adjustable motor braking
  • Automatic motor timing adjustment
  • Programmable startup characteristics
  • Autorotation support for helicopters
  • JetiBox programmable
  • Firmware updatable through Jeti Studio
  • Optically isolated receiver signal input (OPTO)
  • Suitable for airplanes, sailplanes, and helicopters
  • Made by Jeti Model in the Czech Republic

Why Choose the Spin Pro Series?

Unlike many standard ESCs, the Spin Pro series combines advanced programming flexibility with onboard data logging and telemetry feedback. Pilots can review motor RPM, battery voltage, controller temperature, maximum current draw, and additional operating data to optimize power system performance.

The adjustable braking system makes the Spin Pro 75 an excellent choice for sailplanes and folding propeller applications, while helicopter pilots benefit from dedicated autorotation functions and governor-style features.

Technical Specifications

Specification Value
Continuous Current 75A
Input Voltage 12V-42V
Battery Support 4S-10S LiPo
NiMH/NiCd Support 14-30 Cells
Telemetry Yes
BEC No (OPTO)
Dimensions 52 x 25 x 15mm (2.05 x 0.98 x 0.59 in)
Weight 55g (1.94 oz)
Operating Temperature -10°C to 85°C (14°F to 185°F)
Input Capacitance 2 x 470µF
Power Transistors 72

Important Note

As an OPTO ESC, the Spin Pro 75 does not include a BEC. A separate receiver battery, regulator, or external BEC is required to power your receiver and servos.

Designed for serious electric pilots who demand reliability, programming flexibility, and advanced telemetry capabilities.
