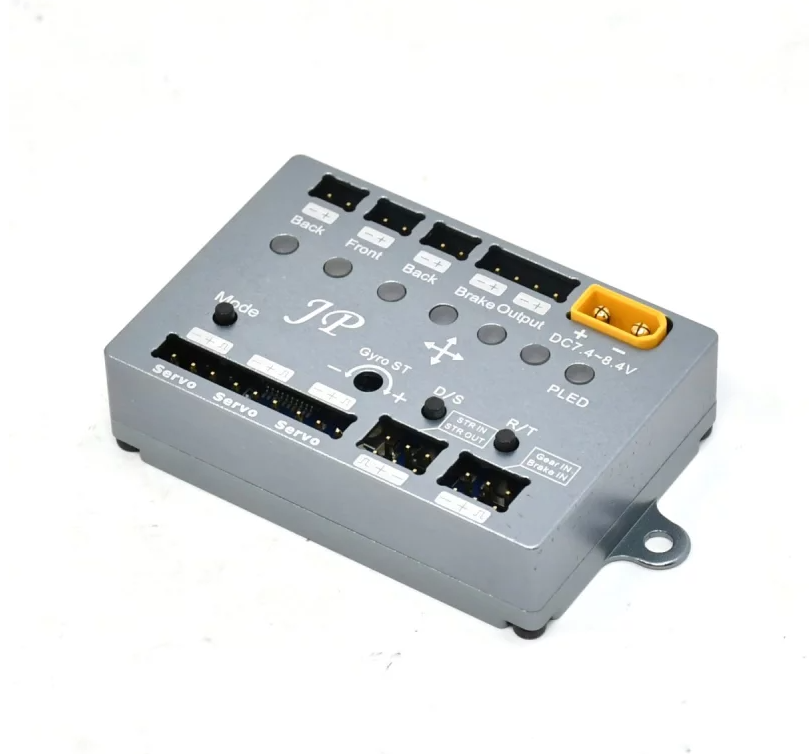

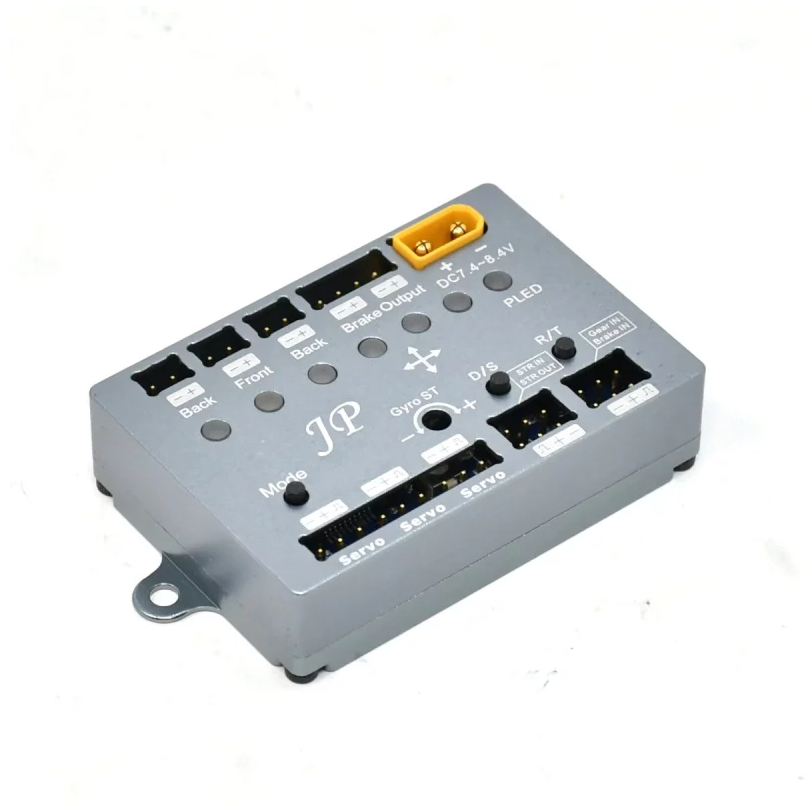

JP Hobby ME-Retract Multifunction Controller with Brake and Gyroscope
The JP Hobby ME-Retract Multifunction Controller combines electric-retract sequencing, landing-gear door control, electronic wheel-brake control, and nose-wheel gyroscope stabilization in one compact module.
Designed for compatible JP Hobby electric retract systems, the controller automatically recognizes the connected landing gear and supports one-, two-, or three-retract installations. Three independently configurable gear-door channels allow the door positions and servo directions to be adjusted for different aircraft installations.
V1: The landing-gear doors remain open while the gear is extended.
V2: The landing-gear doors close after the gear has extended.
Integrated Functions
- JP Hobby electric-retract controller and sequencer
- Three independently configurable landing-gear door channels
- Selectable V1 or V2 gear-door operation
- Adjustable gear-door servo direction
- Adjustable gear-door servo output voltage
- Automatic power-supply voltage detection
- Integrated electronic wheel-brake controller
- Integrated gyroscope for stabilized nose-wheel steering
- Automatic nose-wheel steering and gyro deactivation when the gear retracts
- Reversible nose-wheel steering-servo direction
- Reversible retract operating direction
Landing-Gear Configurations
- Single-retract or monowheel systems: 1 retract channel
- Two-retract or bicycle systems: 2 retract channels
- Tricycle landing gear: 3 retract channels
Compatible JP Hobby Retract Systems
- ER-005
- ER-008
- ER-010
- ER-120
- ER-150
- ER-200
JP Hobby Europe also lists ER-280 compatibility. Verify your particular ER-280 installation and connections before use.
Brake and Gyroscope Operation
The controller connects to the receiver’s rudder, retract, and two-position switch channels. Its gyroscope acts on the nose-wheel steering servo to help keep the aircraft tracking straight during braking and ground operation.
When the landing gear retracts, the gyroscope and nose-wheel steering servo become inactive. The brake output operates at 0% or 100%; braking force is not proportionally adjustable through this controller.
Specifications
| Brand | JP Hobby |
| Reference | JPH-ME-Retract Controller |
| Operating Voltage | 7.4–8.4V |
| Recommended Power Source | Dedicated 2S battery |
| Dimensions | 2.17 × 1.46 × 0.55 in. (55 × 37 × 14 mm) |
| Weight | 1.59 oz. (45 g) |
| Gear-Door Channels | 3 independently configurable channels |
| Receiver Connections | JR/Graupner/Futaba-style servo connectors |
| Brake Output | On/off, 0% or 100% |
Important Compatibility Information
This controller is designed for compatible JP Hobby electric retracts and magnetic wheel brakes. Confirm the retract model, plug type, operating voltage, gear-door servo voltage, and wiring before applying power. Do not connect equipment with incompatible polarity or voltage requirements.

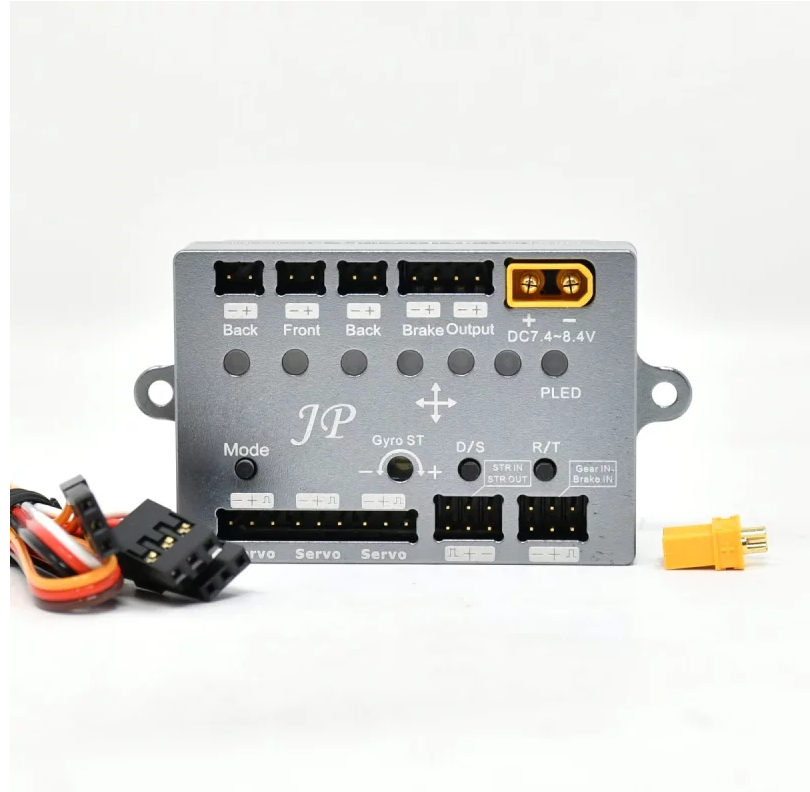

Package includes: One JP Hobby ME-Retract multifunction combined controller with integrated brake control and gyroscope.
