KingMax BLS1506L HV Brushless Low Profile Digital Servo – 17.8kg-cm

In stock
SKU: BLS1506L
(0)
$79.95

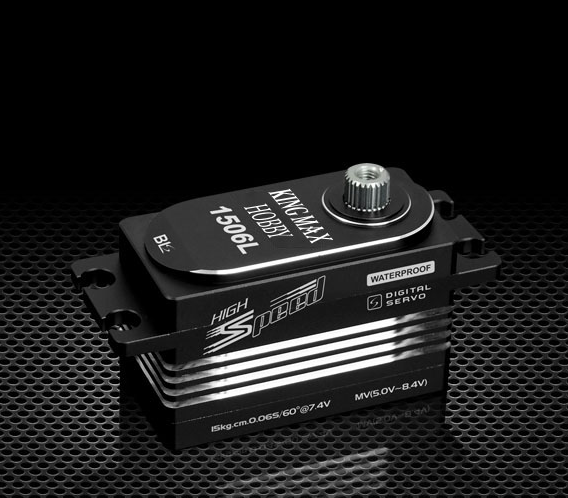

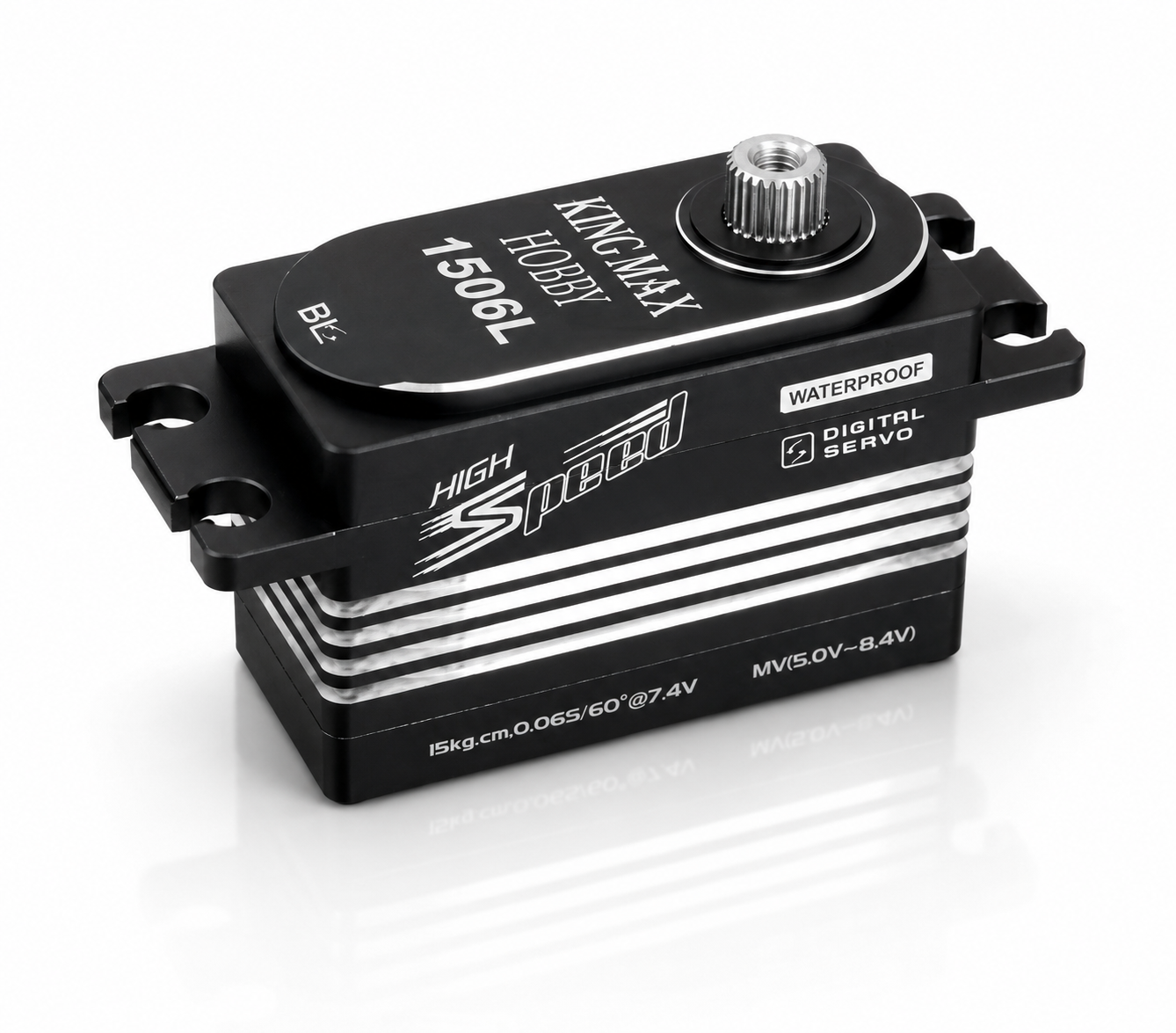

KingMax BLS1506L HV Brushless Low Profile Digital Servo

The KingMax BLS1506L is a high-speed, low-profile HV digital servo designed for RC aircraft applications where fast response, compact installation height, and precise control are important. With a brushless motor, 7075 aluminum gears, full CNC aluminum case, and up to 17.8kg-cm (247.24 oz-in) of torque at 8.4V, this servo is a strong choice for thin wings, pattern aircraft, sport jets, and other tight servo installations.

The low-profile case helps reduce installation height while still providing HV performance from 5.0V to 8.4V. The BLS1506L also includes dual ball bearings, waterproof construction, and SSR mode availability.

Key Features

  • High-performance low-profile HV digital servo
  • High-quality brushless motor

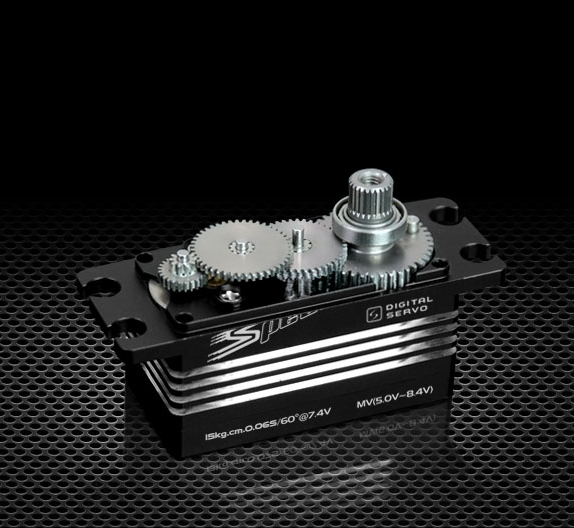

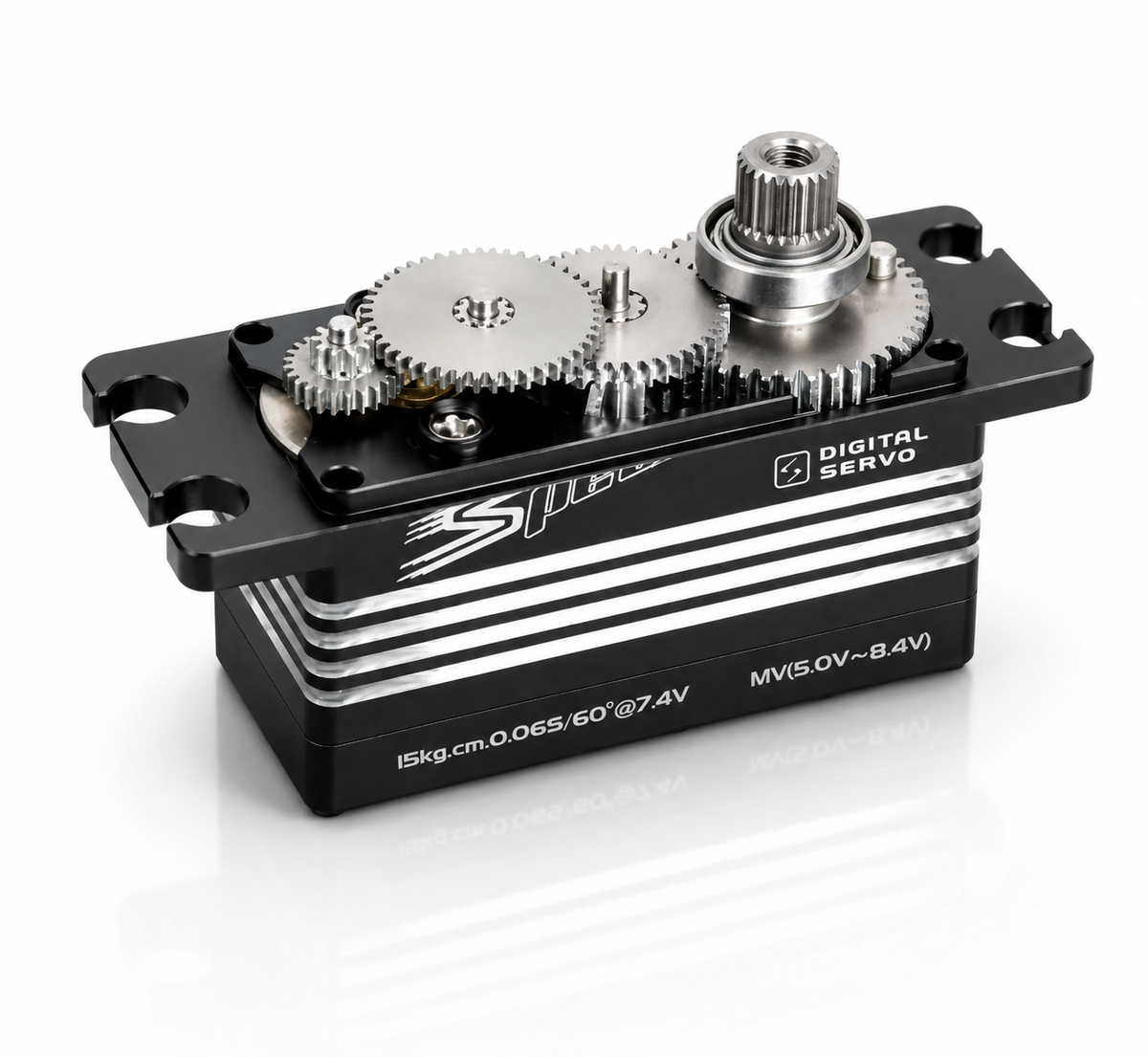

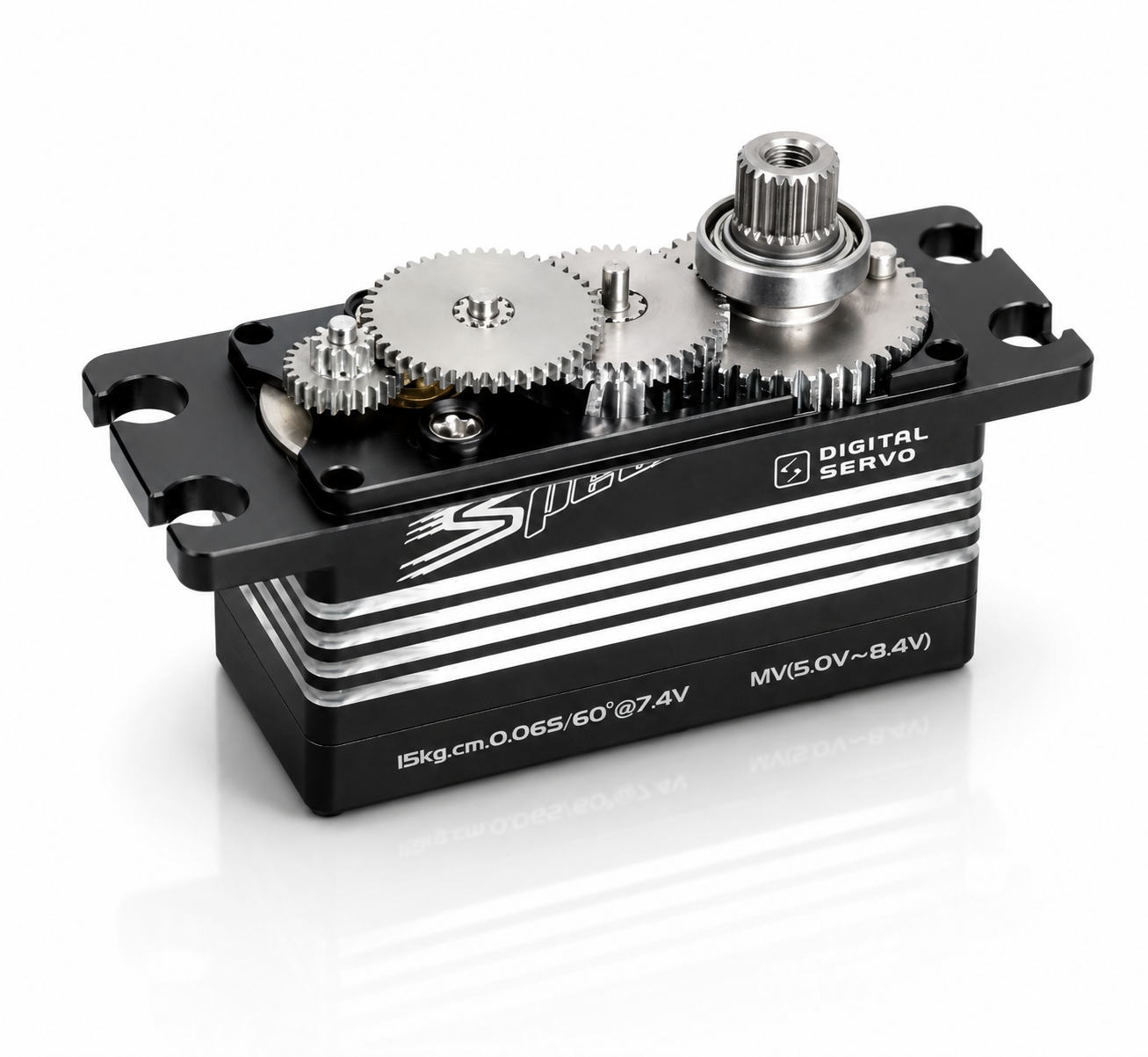

  • High-precision 7075 aluminum gears
  • Full CNC aluminum case
  • Dual ball bearings
  • Waterproof construction
  • Long-life potentiometer
  • SSR mode available
  • Standard 25T spline
  • Wide voltage operation from 5.0V to 8.4V
  • Fast 0.05 sec/60° speed at 8.4V
  • Up to 17.8kg-cm / 247.24 oz-in torque at 8.4V

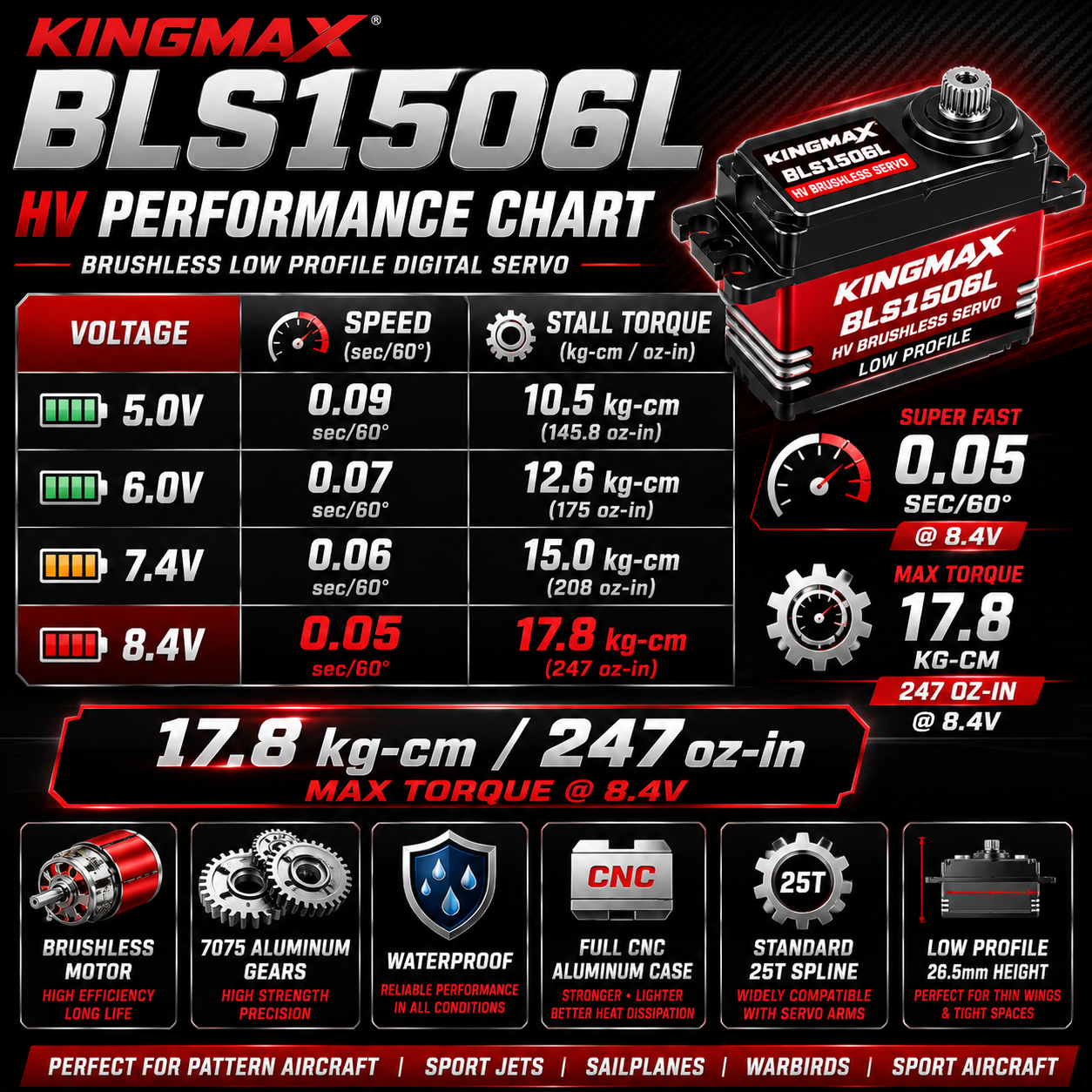

HV Performance Chart

Voltage Operating Speed Stall Torque
5.0V 0.09 sec/60° 10.5kg-cm / 145.85 oz-in
6.0V 0.07 sec/60° 12.6kg-cm / 175 oz-in
7.4V 0.06 sec/60° 15kg-cm / 208.35 oz-in
8.4V 0.05 sec/60° 17.8kg-cm / 247.24 oz-in

Specifications

  • Model: BLS1506L
  • Servo Type: HV digital low-profile servo
  • Motor: Brushless motor
  • Gear Type: Full metal / 7075 aluminum gears
  • Spline: Standard 25T
  • Bearings: Dual ball bearings / 2BB
  • Dead Band: 2μs default
  • Waterproof: Yes
  • Operating Voltage: DC 5.0V–8.4V
  • Rated Working Voltage: DC 7.4V
  • Working Frequency: 1520μs / 330Hz
  • Working Angle: ±58° @ 900μs–2100μs

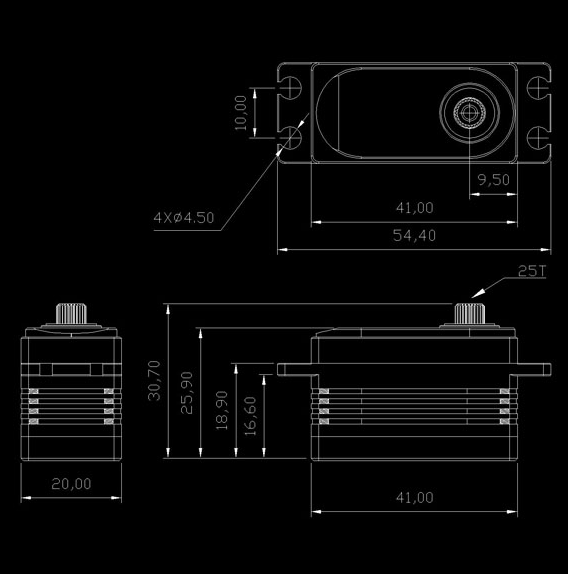

  • Dimensions: 41.1 × 20 × 26.5 mm / 1.6 × 0.78 × 1.03 in
  • Weight: 50g / 1.76 oz
  • Connector Wire Length: 190mm / 7.41 in
  • Working Temperature: -10°C to +50°C
  • Storage Temperature: -20°C to +60°C

Best Uses

  • F3A and precision aerobatic aircraft
  • Sport jets
  • Sailplanes and gliders
  • Thin wing servo bays
  • RC aircraft requiring a compact low-profile servo
  • Applications where fast response and precise control are important

Why Choose the BLS1506L?

The KingMax BLS1506L is best positioned as a fast, compact, precision-focused servo. Its low-profile case makes it useful where a standard-height servo may not fit, while the brushless motor, CNC aluminum case, 7075 aluminum gears, and HV capability give it the performance needed for demanding aircraft installations.

Note: Maximum torque and speed ratings are achieved at 8.4V. Actual performance may vary depending on voltage supply, linkage setup, aircraft application, and installation.
