KingMax CLS02MP Coreless HV Waterproof Mini Servo – Metal Gear Digital Servo
Regular price
$38.95
Couldn't load pickup availability

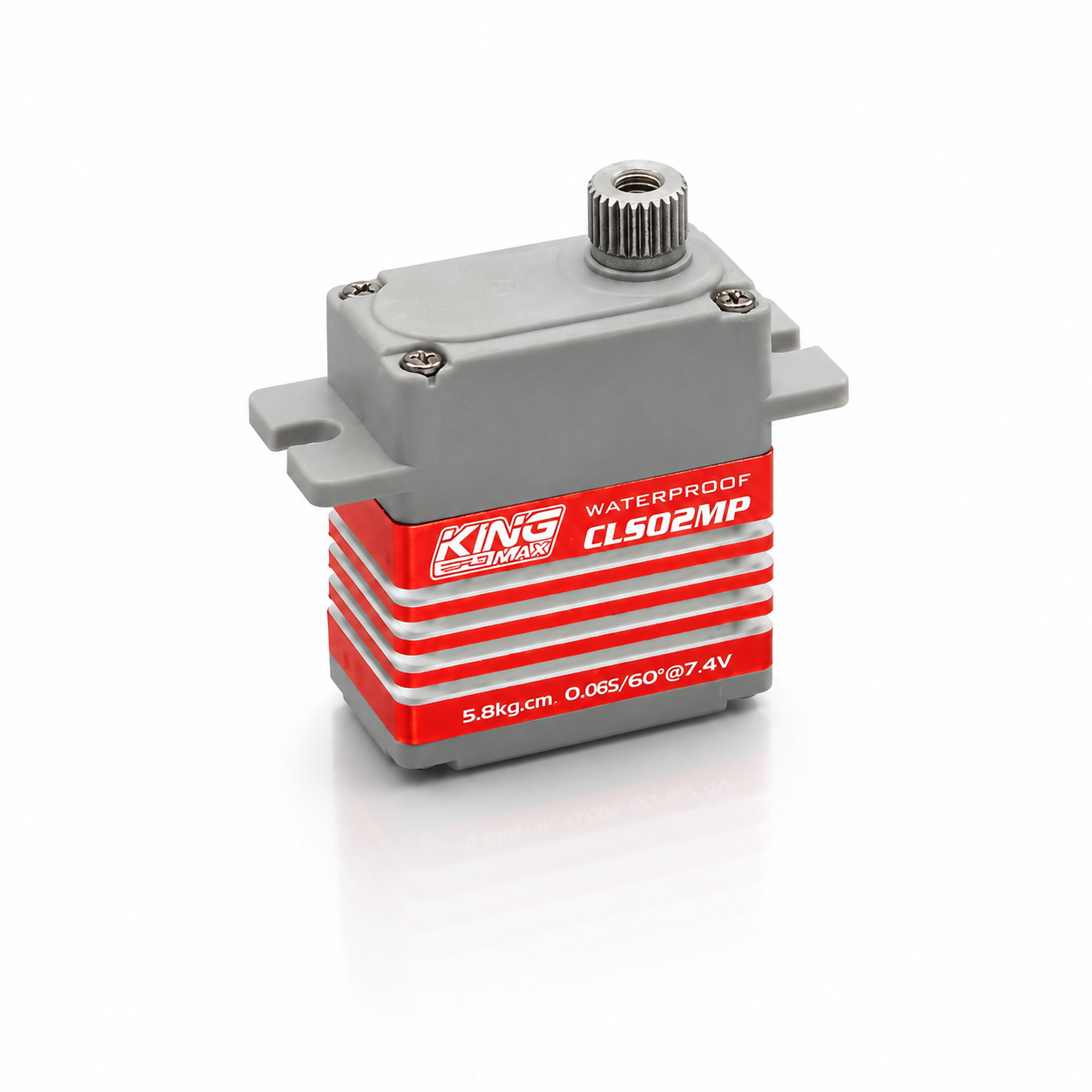

KingMax CLS02MP Coreless HV Waterproof Mini Digital Servo
The KingMax CLS02MP is a compact high-voltage digital mini servo designed for RC aircraft and other applications requiring lightweight construction, waterproof reliability, and precise control.
Featuring a high-quality coreless motor, full metal gears, dual ball bearings, waterproof construction, and a middle CNC aluminum case, the CLS02MP delivers up to 6.8kg-cm (94.45 oz-in) of torque at 8.4V while weighing only 18.3g (0.64 oz).
Features
- High-performance digital mini servo

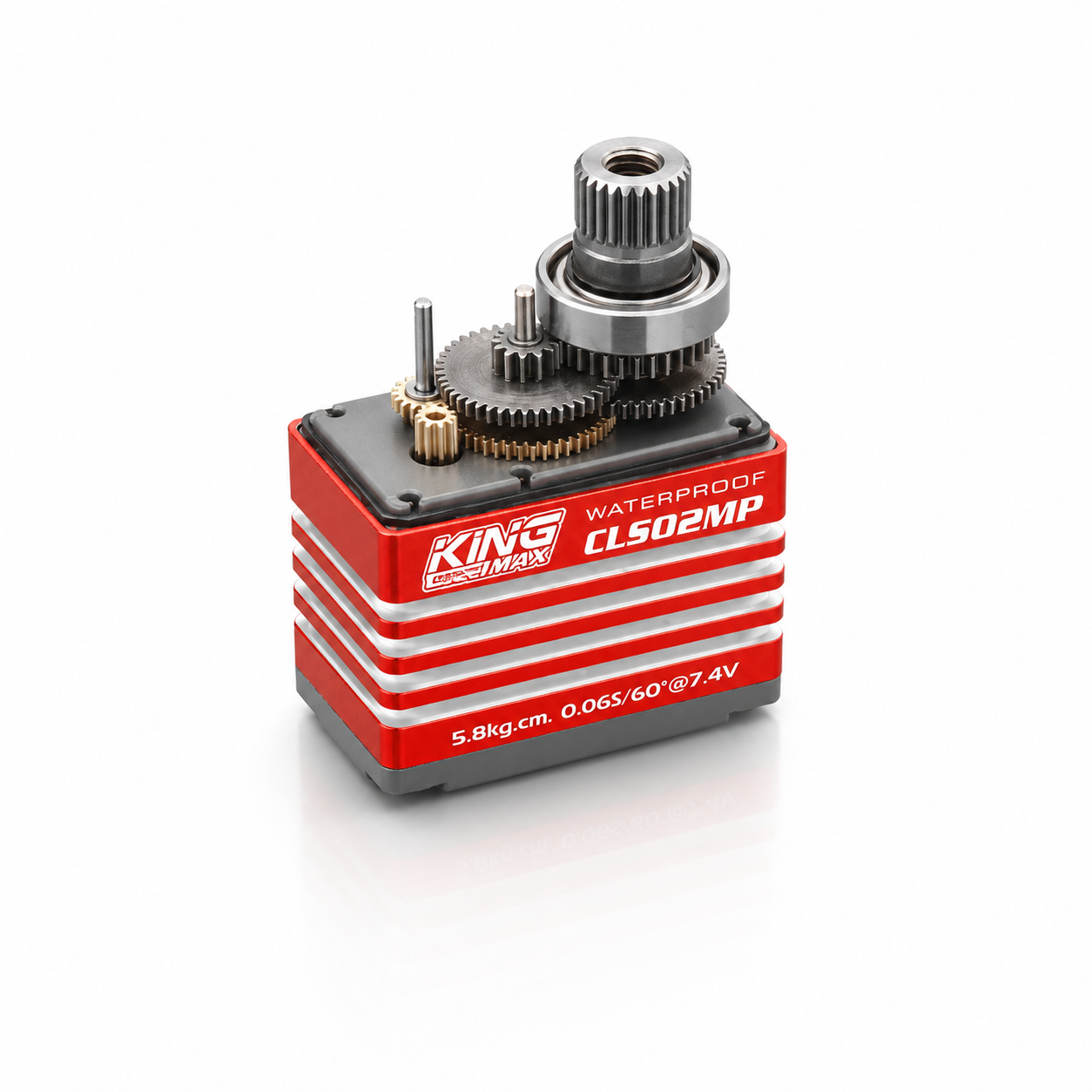

- High-precision full metal gears
- High-quality coreless motor
- Middle CNC aluminum case
- Dual ball bearings (2BB)
- Waterproof construction
- Standard 25T spline
- Wide voltage operation from 5.0V to 8.4V

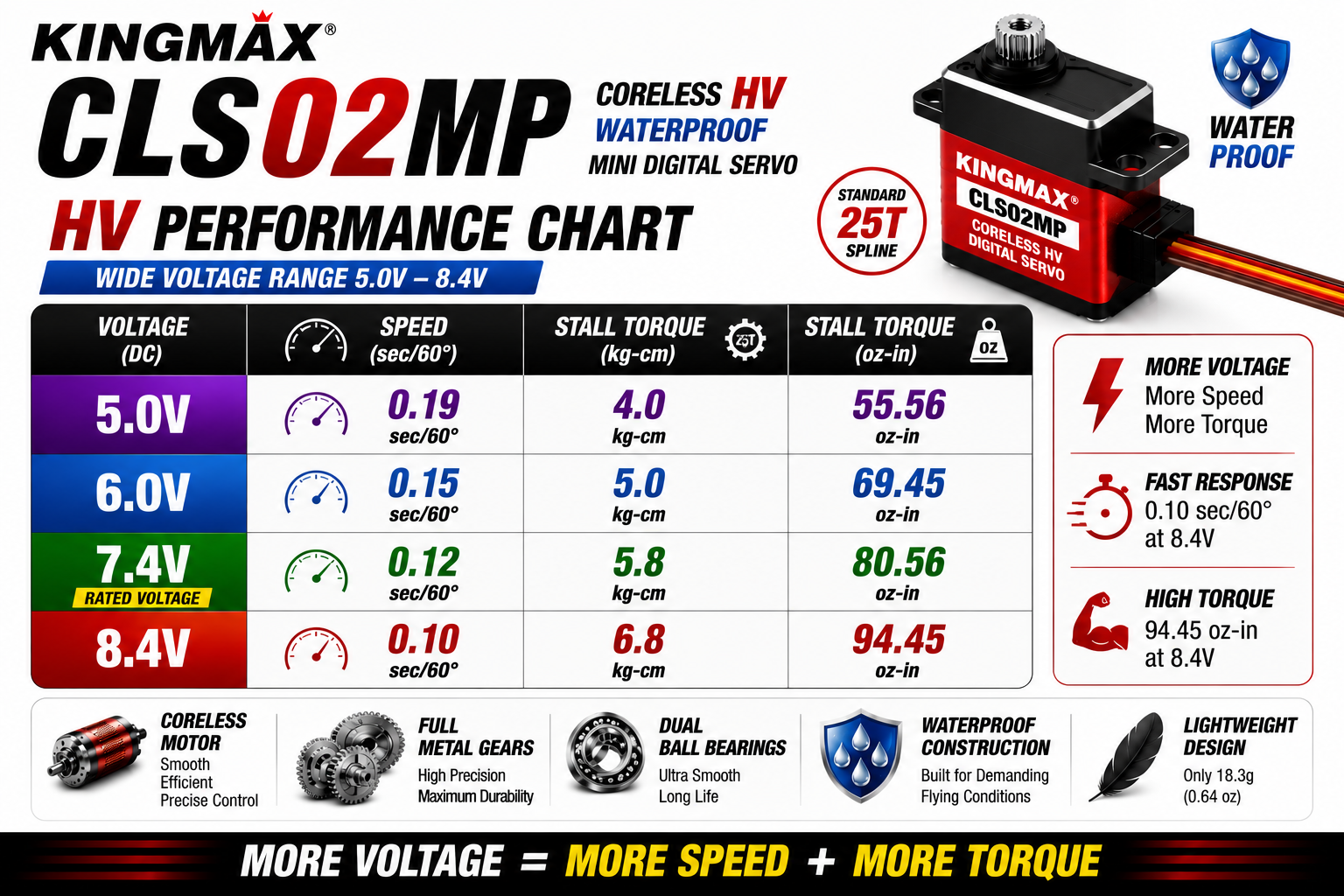

Speed & Torque
| Voltage | Speed | Stall Torque |
|---|---|---|
| 5.0V | 0.19 sec/60° | 4.0kg-cm (55.56 oz-in) |
| 6.0V | 0.15 sec/60° | 5.0kg-cm (69.45 oz-in) |
| 7.4V | 0.12 sec/60° | 5.8kg-cm (80.56 oz-in) |
| 8.4V | 0.10 sec/60° | 6.8kg-cm (94.45 oz-in) |
Specifications
| Model | CLS02MP |
| Servo Type | Digital Mini Servo |
| Gear Train | Full Metal Gears |
| Motor | Coreless Motor |
| Case Construction | Middle CNC Aluminum Case |
| Bearings | Dual Ball Bearings (2BB) |
| Spline | Standard 25T |
| Dead Band | 2μs Default |
| Waterproof | Yes |
| Operating Voltage | DC 5.0V–8.4V |
| Rated Working Voltage | DC 7.4V |
| Working Frequency | 1520μs / 330Hz |
| Working Angle | ±63° @ 800μs–2200μs |

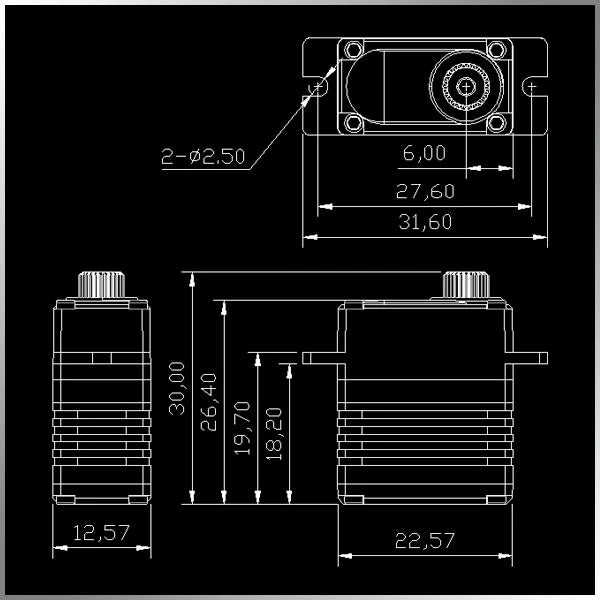

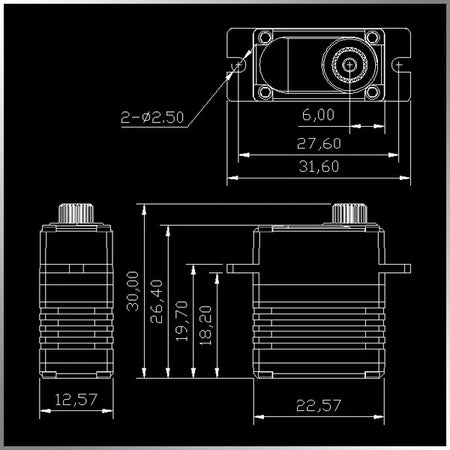

| Dimensions | 22.7 × 12.5 × 26.4mm (0.88 × 0.48 × 1.02 in) |
| Weight | 18.3g (0.64 oz) |
| Connector | JR Connector |
| Wire Length | 300mm (11.7 in) |
| Working Temperature | -10°C to +50°C (14°F to 122°F) |
| Storage Temperature | -20°C to +60°C (-4°F to 140°F) |
Recommended Applications
- EDF jets
- Sailplanes and gliders
- Sport aircraft
- Smaller warbirds
- Pattern aircraft
- Flaps and ailerons
- Compact rudder and elevator installations
- Aircraft requiring lightweight waterproof mini servos
Why Choose the CLS02MP?
- Up to 94.45 oz-in torque at 8.4V
- Fast 0.10 sec/60° speed at 8.4V
- Only 18.3g for compact aircraft installations
- Coreless motor for smooth operation and precise control
- Waterproof construction for demanding field conditions
- Full metal gears for durability
- Middle CNC aluminum case for added strength
- Standard 25T spline

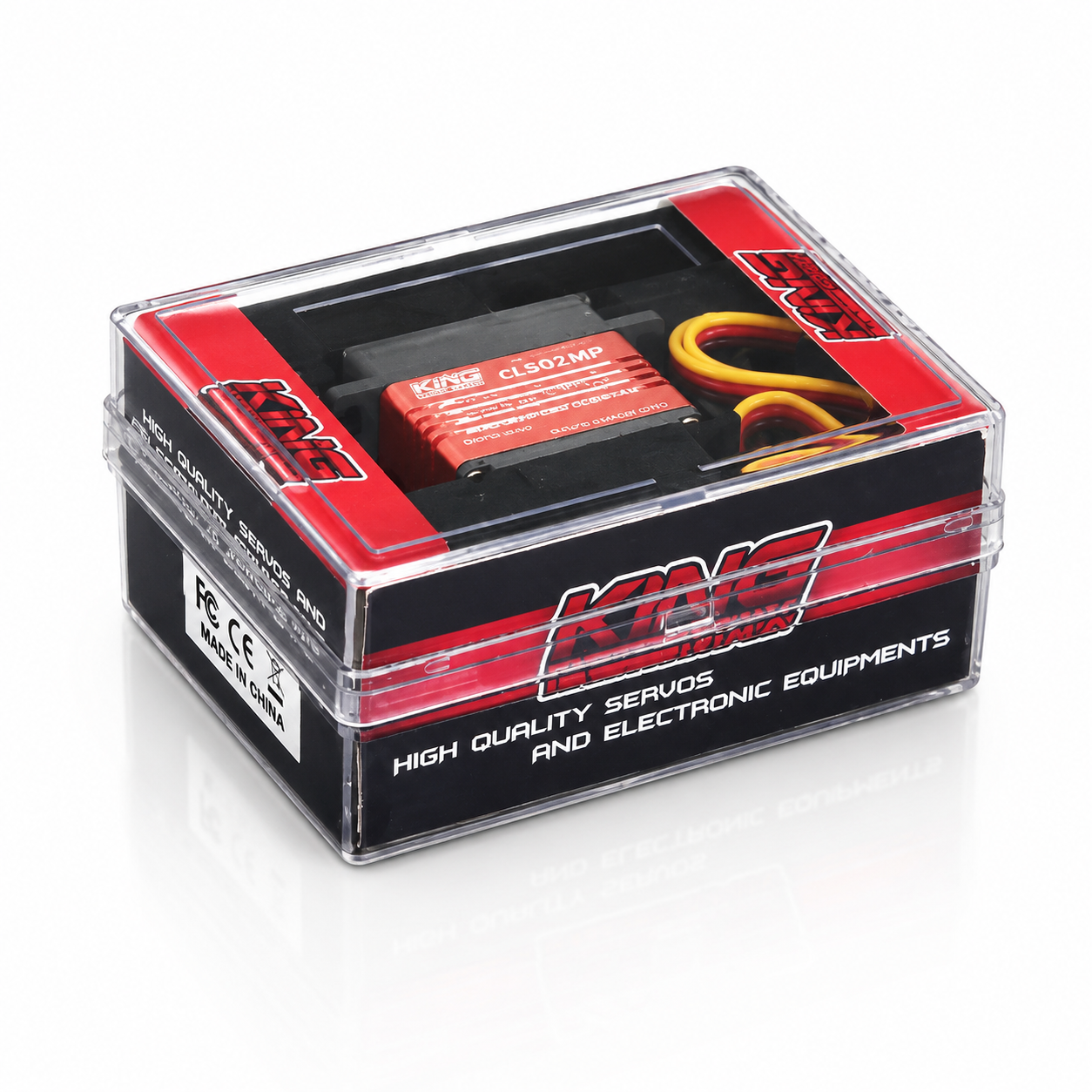

Includes
- KingMax CLS02MP Coreless HV Waterproof Mini Servo

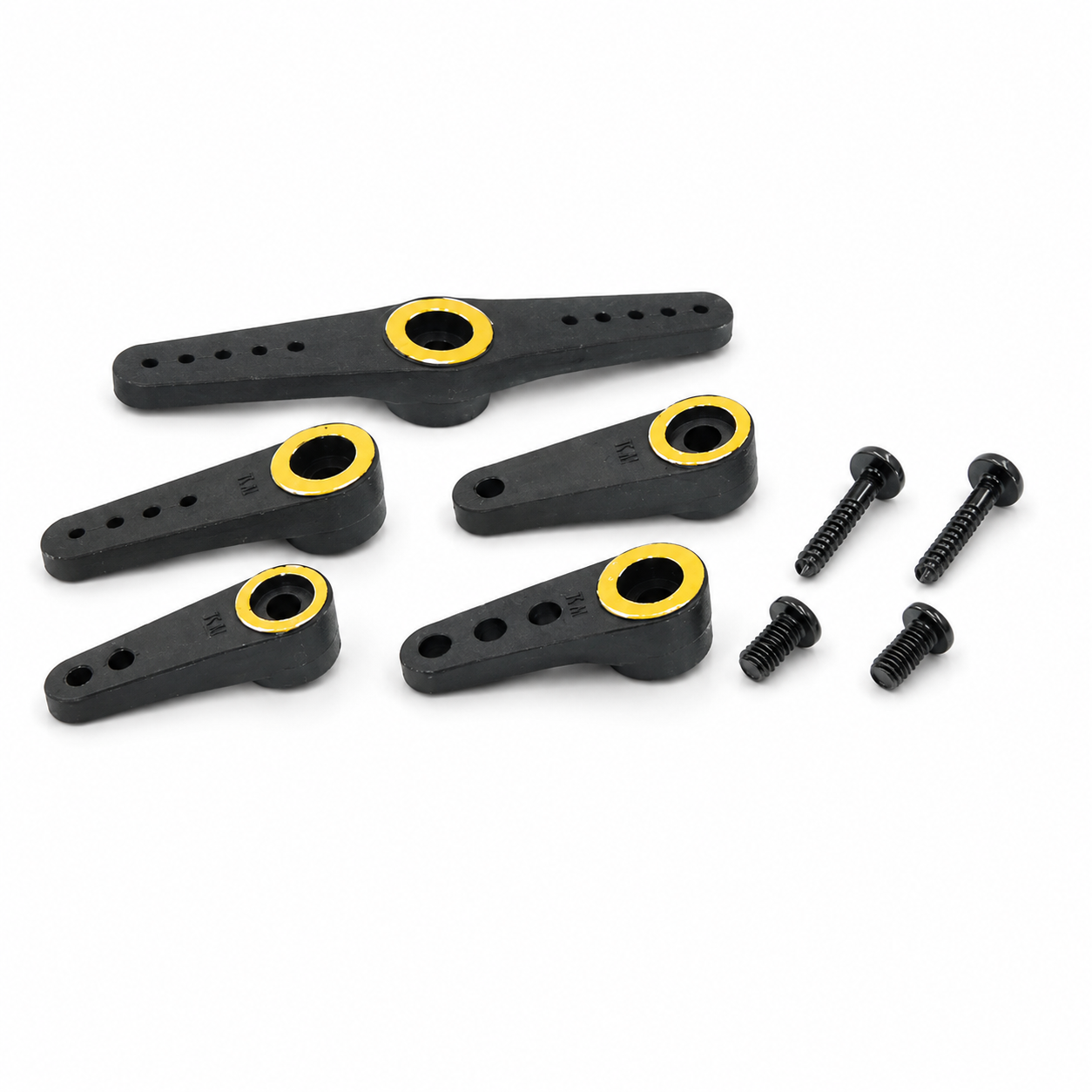

- Manufacturer-supplied servo accessories
