KingMax CLS6108HHV Coreless HV Waterproof Servo – 9.48kg Metal Gear Standard Servo
Regular price
$42.95
Couldn't load pickup availability

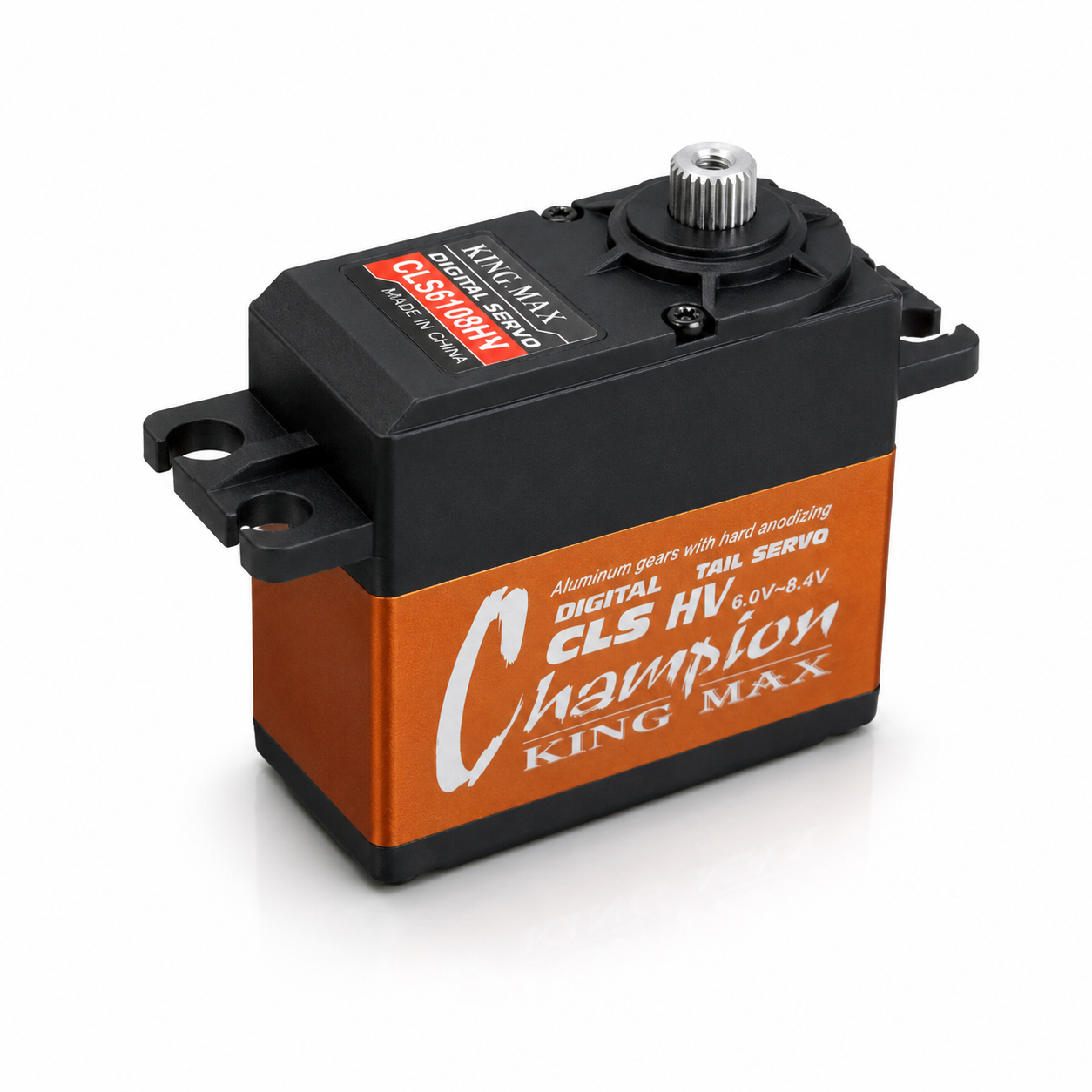

KingMax CLS6108HHV Coreless HV Waterproof Digital Servo
The KingMax CLS6108HHV is a high-performance programmable digital high-voltage standard servo designed for fast response, reliable control, and demanding RC applications. It features a high-quality coreless motor, full metal gear train, waterproof construction, dual ball bearings, and a middle CNC aluminum case.
With speeds as fast as 0.04 sec/60° at 8.4V and up to 9.48kg-cm (131.68 oz-in) of torque, the CLS6108HHV is especially well suited for 550–600 class helicopter tail applications and other RC installations requiring a fast, high-voltage waterproof servo.
Features
- High-performance programmable digital high-voltage standard servo
- High-precision Taiwan-made aluminum gears with hard anodizing
- Full metal gear train
- High-quality coreless motor
- Middle CNC aluminum case
- Dual ball bearings (2BB)

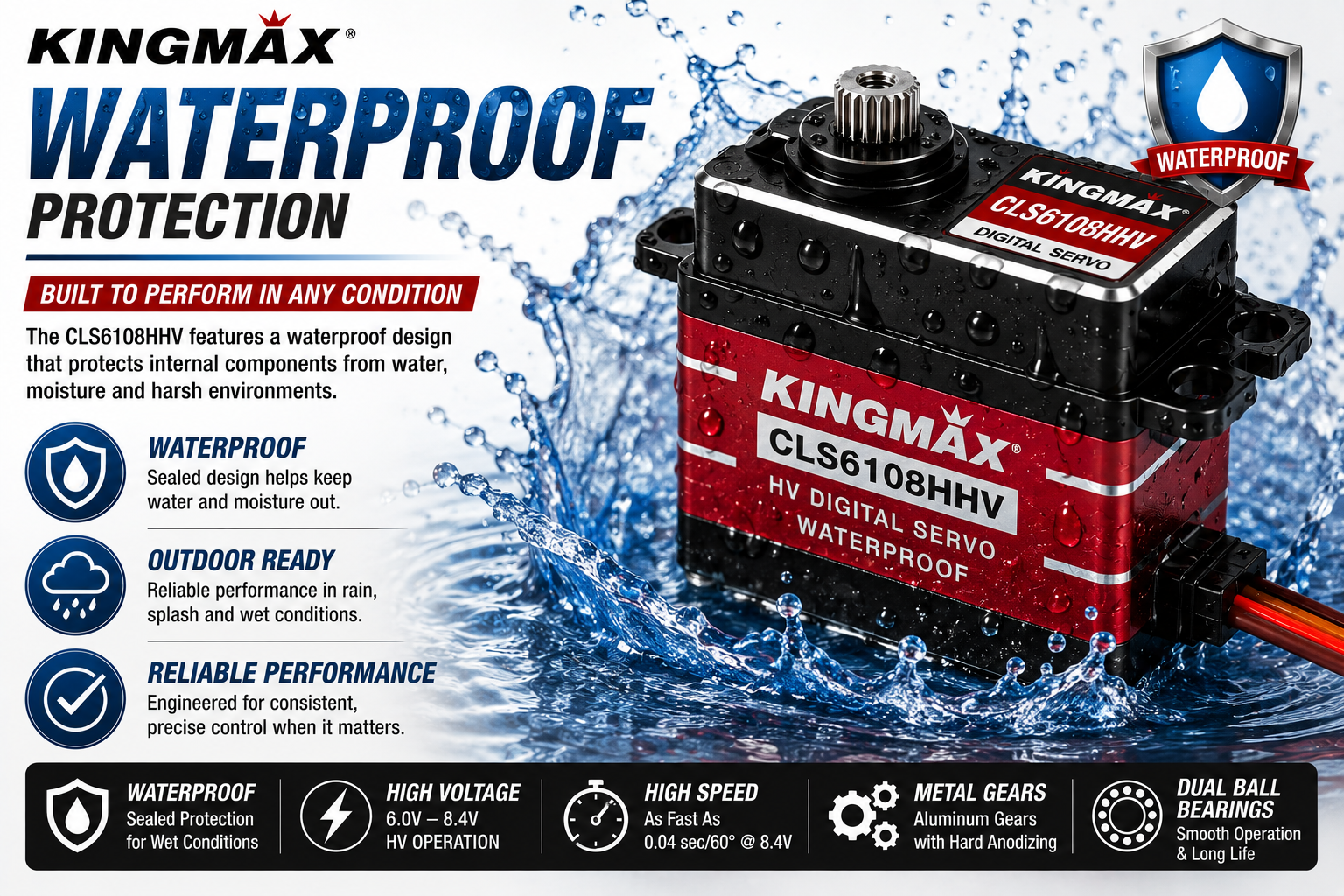

- Waterproof design
- Standard 25T spline
- Ideal for 550–600 class helicopter tail applications

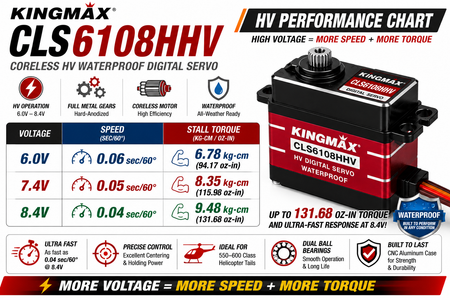

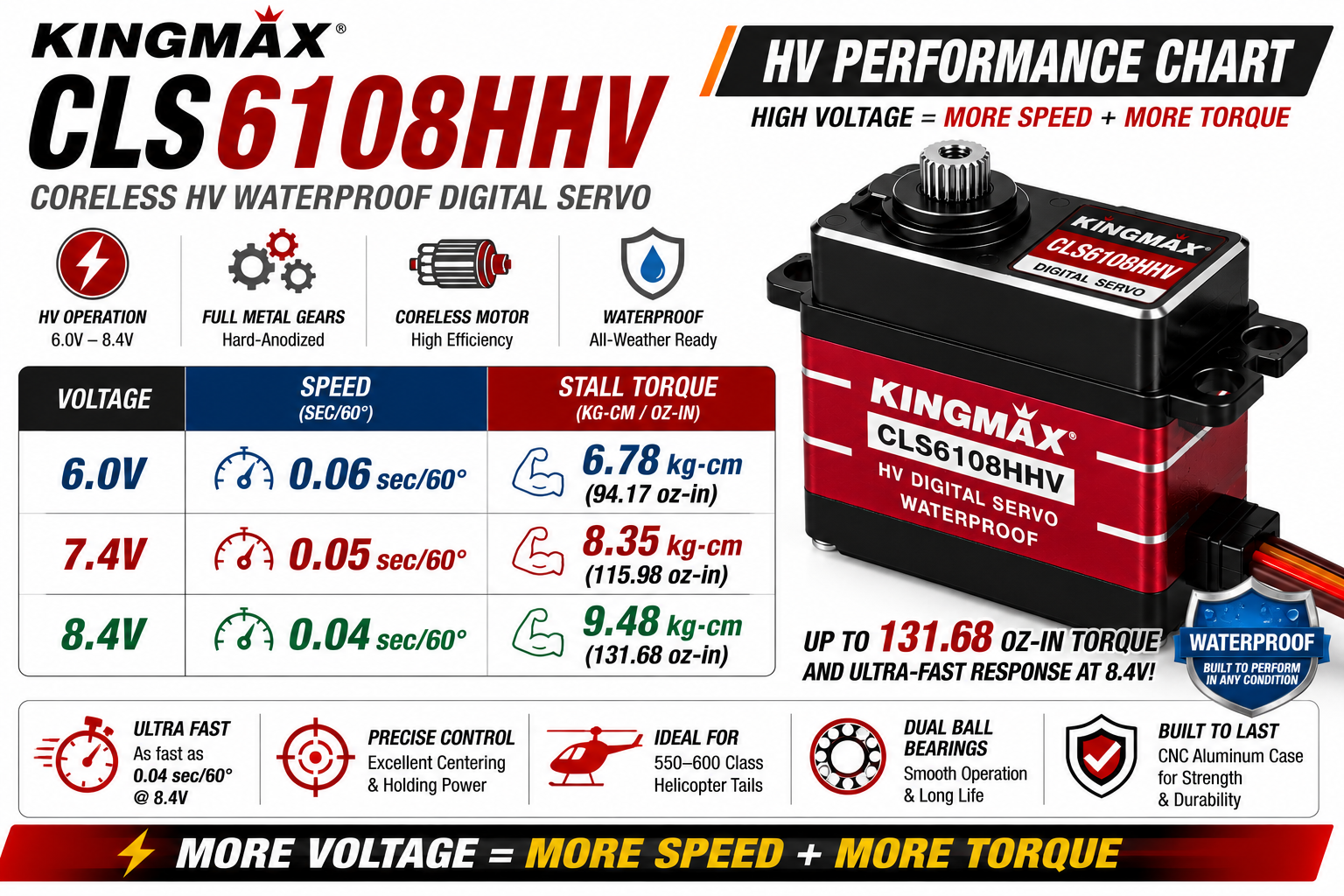

Speed & Torque
| Voltage | Speed | Torque |
|---|---|---|
| 6.0V | 0.06 sec/60° | 6.78kg-cm (94.17 oz-in) |
| 7.4V | 0.05 sec/60° | 8.35kg-cm (115.98 oz-in) |
| 8.4V | 0.04 sec/60° | 9.48kg-cm (131.68 oz-in) |
Specifications
| Model | CLS6108HHV |
| Servo Type | Programmable Digital High Voltage Standard Servo |

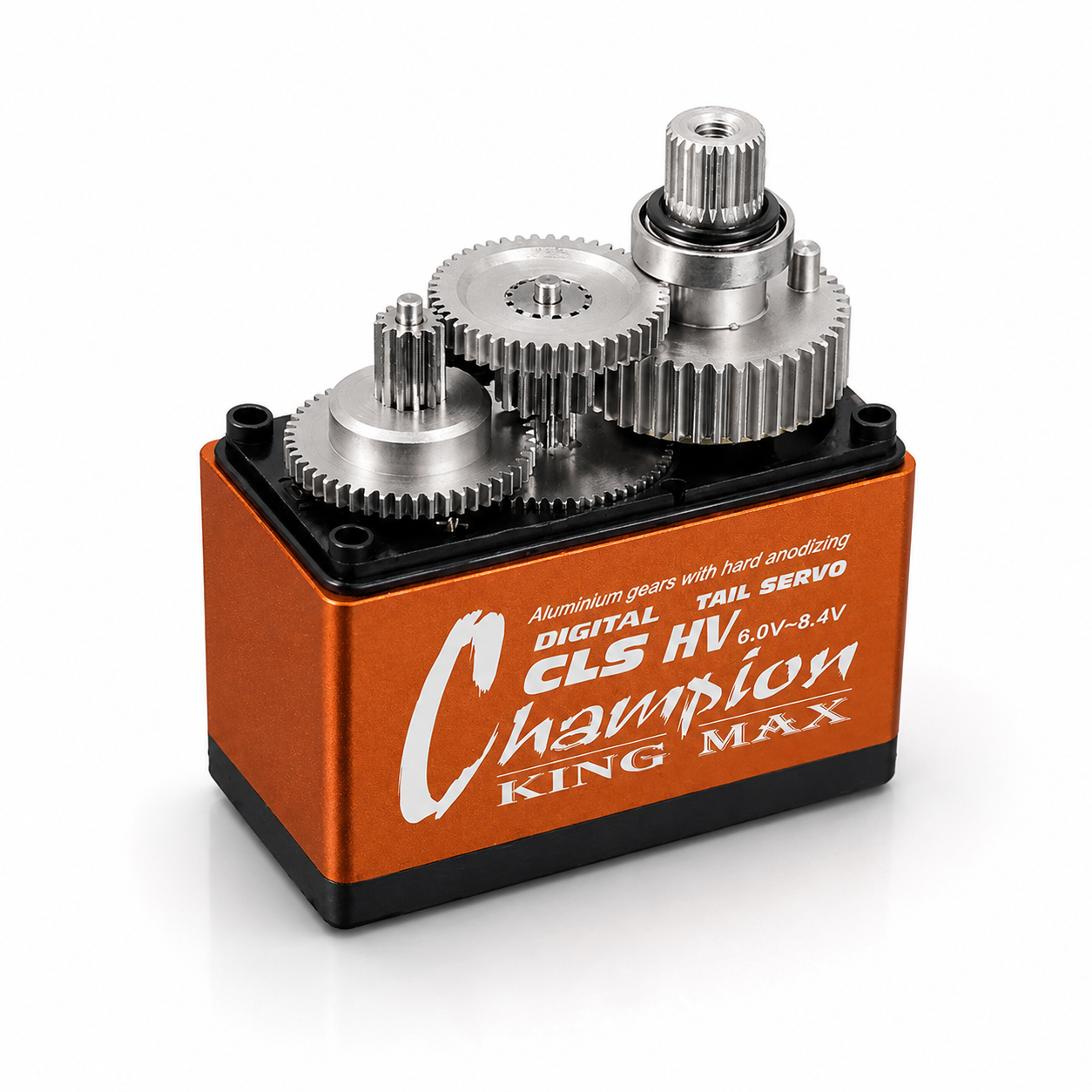

| Gear Train | Full Metal / Taiwan-Made Aluminum Gears with Hard Anodizing |
| Motor | Coreless Motor |
| Bearings | Dual Ball Bearings (2BB) |
| Case | Middle CNC Aluminum Case |
| Spline | Standard 25T |
| Dead Band | 2μs Default |
| Operating Voltage | DC 6.0V–8.4V |
| Rated Working Voltage | DC 7.4V |
| Working Frequency | 1520μs / 330Hz |
| Working Angle | ±63° @ 800μs–2200μs |
| Waterproof | Yes |

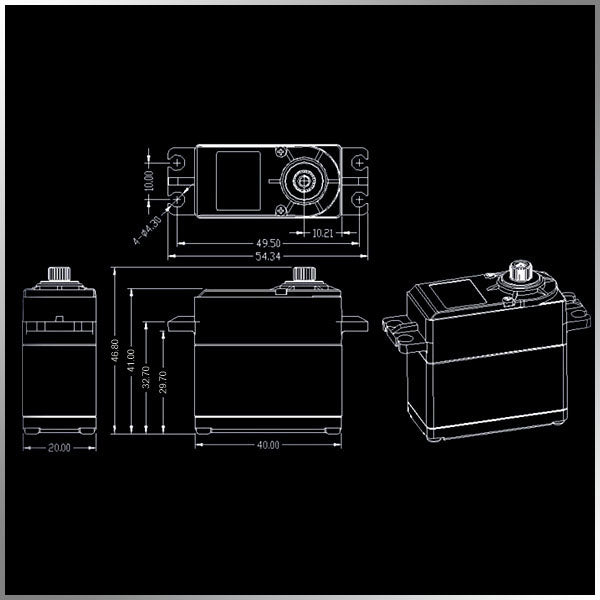

| Dimensions | 40.2 × 20 × 38mm (1.58 × 0.79 × 1.5 in) |
| Weight | 61g (2.15 oz) |
| Connector | JR Connector |
| Wire Length | 320mm (12.6 in) |
| Working Temperature | -10°C to +50°C (14°F to 122°F) |
| Storage Temperature | -20°C to +60°C (-4°F to 140°F) |
Ideal For
- 550–600 class helicopter tail applications
- High-speed helicopter control applications
- RC aircraft requiring fast HV servo response
- Waterproof servo installations
- General-purpose high-voltage RC applications
Includes
- KingMax CLS6108HHV Coreless HV Waterproof Digital Servo

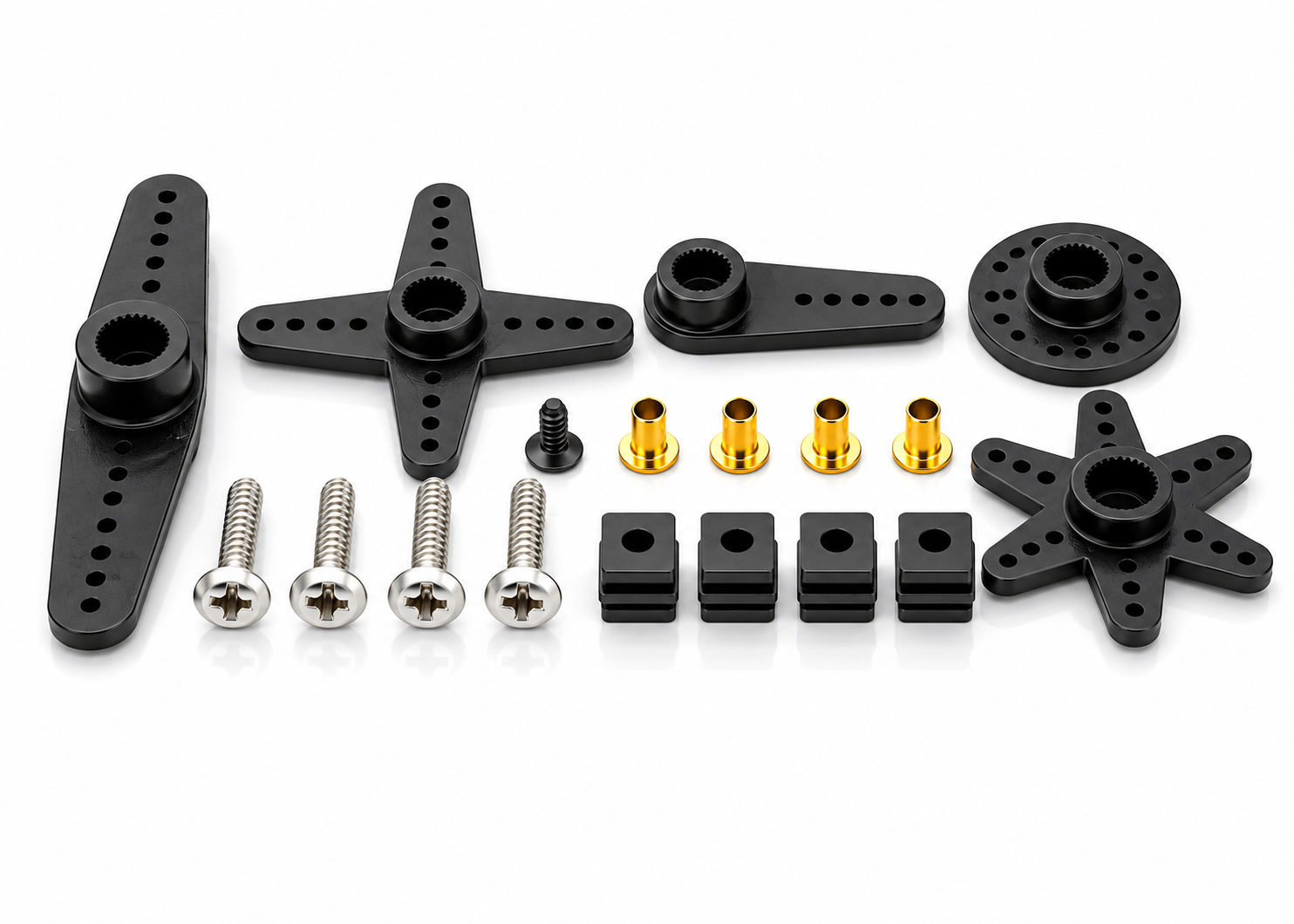

- Manufacturer-supplied servo accessories
- SKU CLS6108HHV
