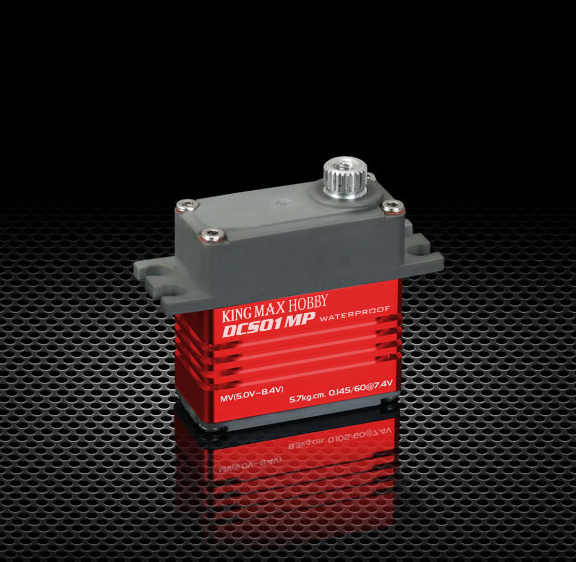

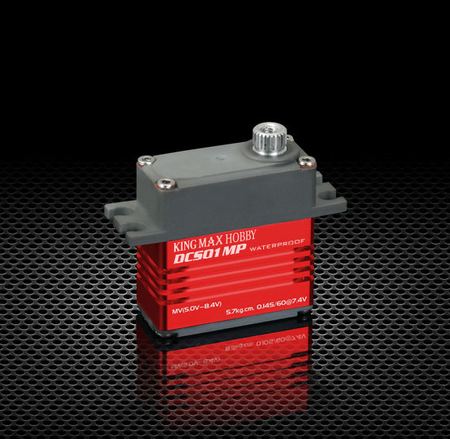

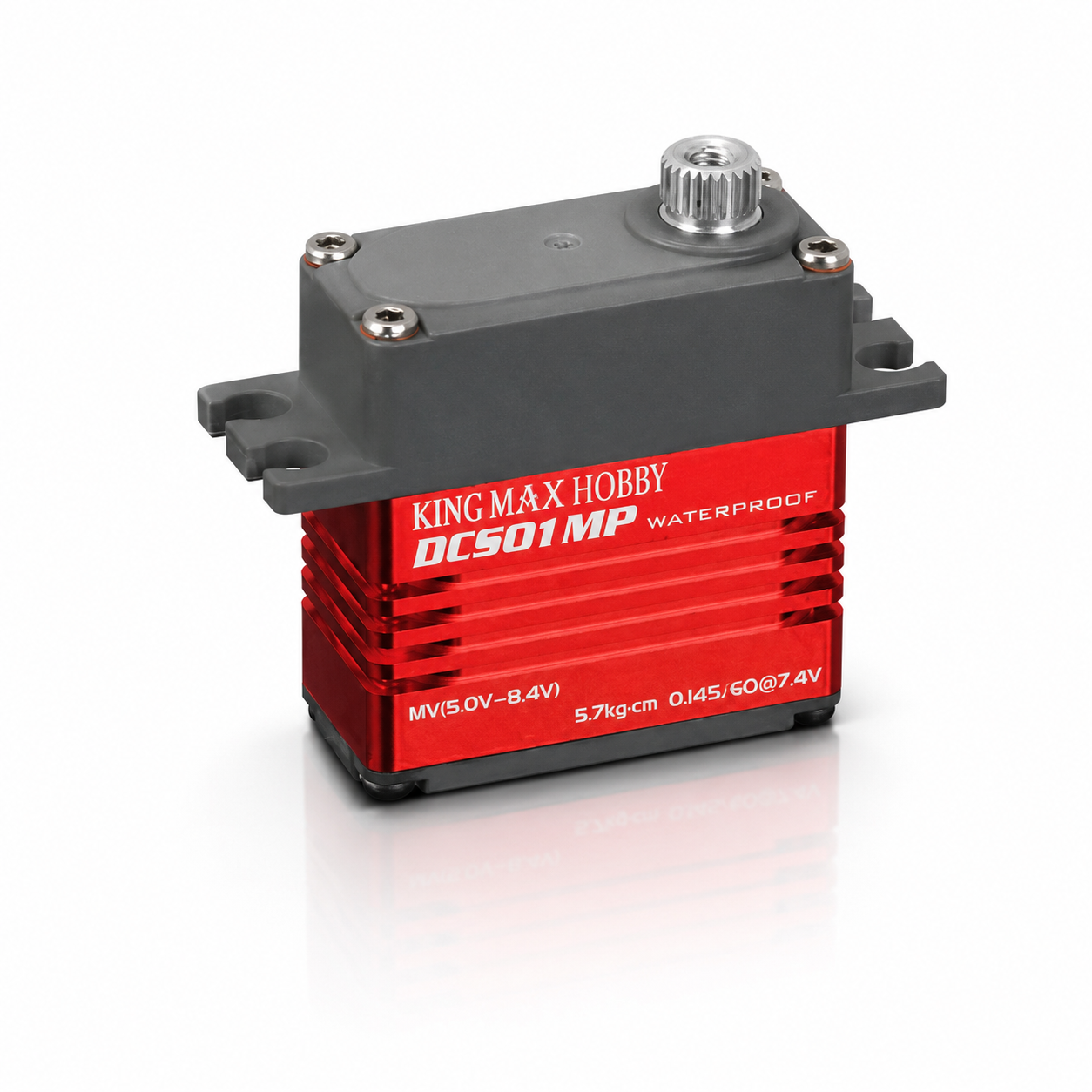

KingMax DCS01MP Waterproof HV Digital Mini Servo
The KingMax DCS01MP is a high-performance multi-voltage digital mini servo designed for RC aircraft, boats, cars, and other compact RC applications requiring dependable torque, waterproof construction, and precise digital control.

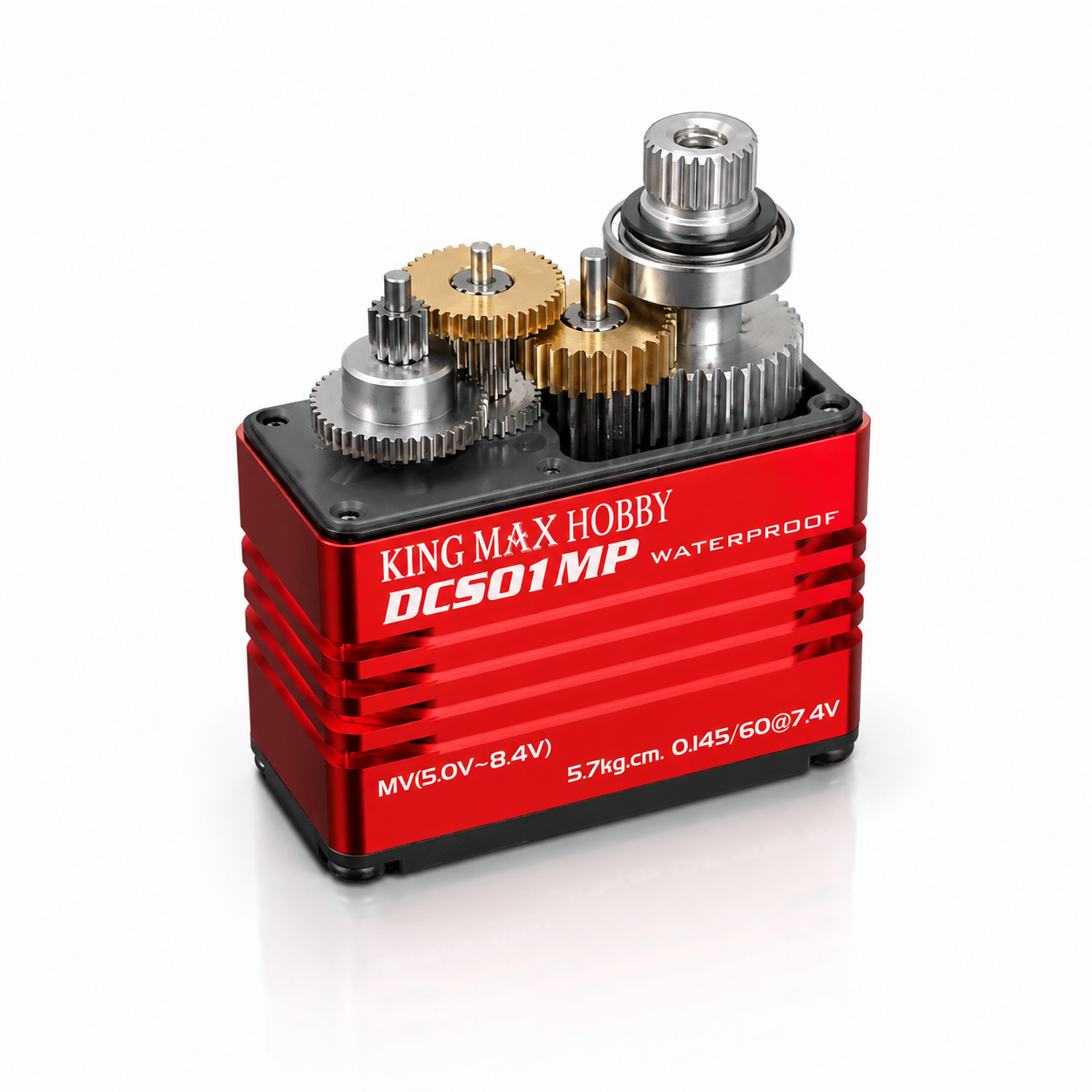

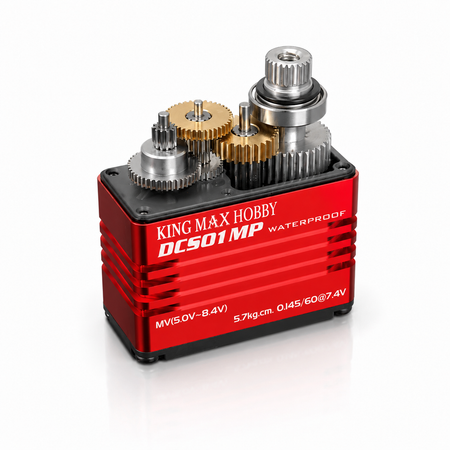

Featuring full metal gears, a high-quality DC motor, middle CNC aluminum case, dual ball bearings, and waterproof construction, the DCS01MP delivers up to 6.1kg-cm (84.72 oz-in) of torque at 8.4V while weighing only 26.6g (0.93 oz).
Features
- High-performance multi-voltage digital mini servo
- Full metal gears
- High-quality DC motor
- Middle CNC aluminum case
- Dual ball bearings (2BB)
- Waterproof construction
- Standard 25T spline
- Wide voltage operation: DC 5.0V–8.4V
Speed & Torque
| Voltage | Speed | Torque |
|---|---|---|
| 5.0V | 0.21 sec/60° | 3.6kg-cm (50.00 oz-in) |
| 6.0V | 0.16 sec/60° | 4.3kg-cm (59.72 oz-in) |
| 7.4V | 0.14 sec/60° | 5.7kg-cm (79.17 oz-in) |

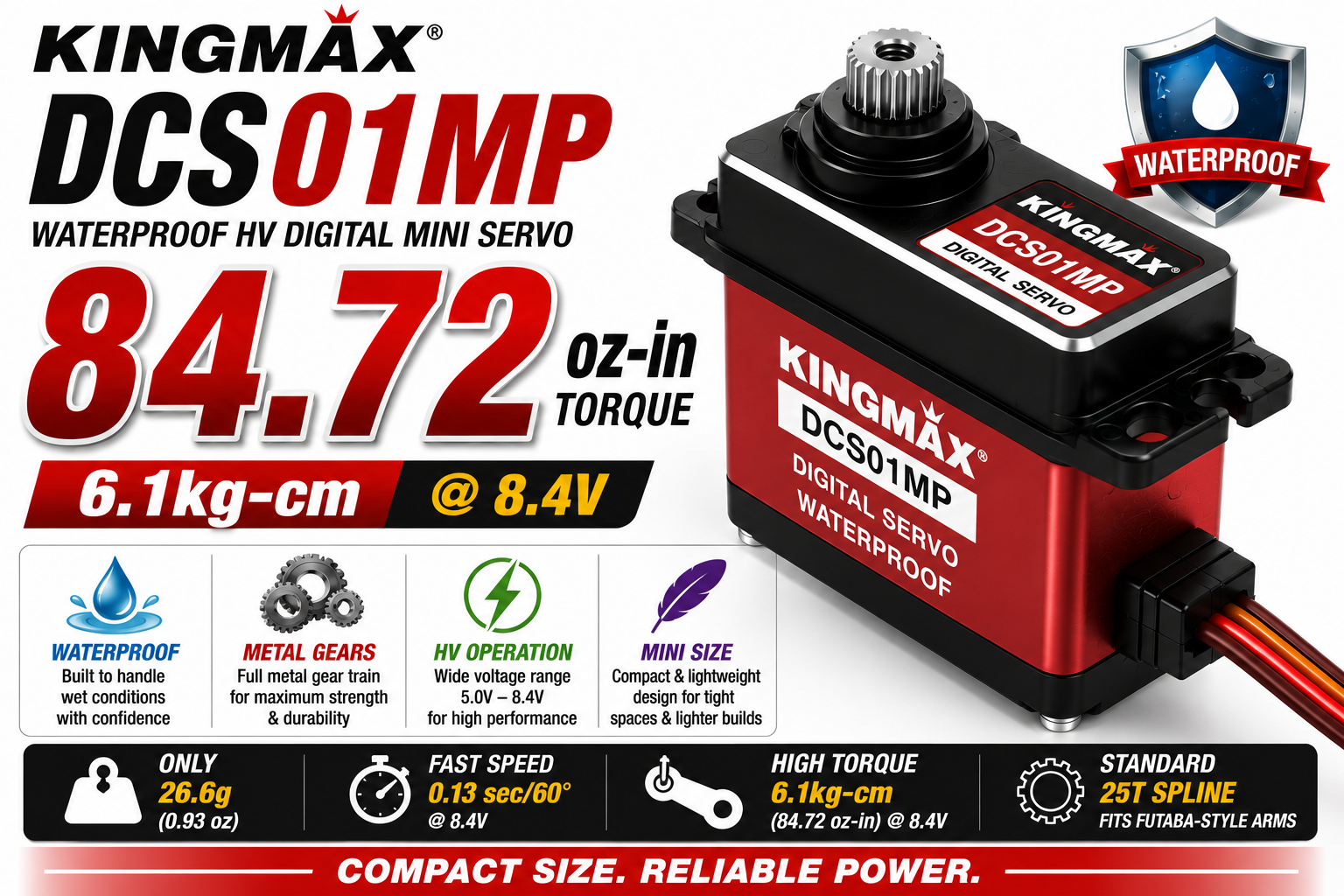

| 8.4V | 0.13 sec/60° | 6.1kg-cm (84.72 oz-in) |
Specifications
| Model | DCS01MP |
| Servo Type | Multi-Voltage Digital Mini Servo |
| Gear Train | Full Metal Gears |
| Motor | DC Motor |
| Case | Middle CNC Aluminum Case |
| Bearings | Dual Ball Bearings (2BB) |
| Spline | Standard 25T |
| Dead Band | 2μs Default |
| Waterproof | Yes |
| Operating Voltage | DC 5.0V–8.4V |
| Rated Working Voltage | DC 7.4V |
| Working Frequency | 1520μs / 330Hz |
| Working Angle | ±63° @ 800μs–2200μs |

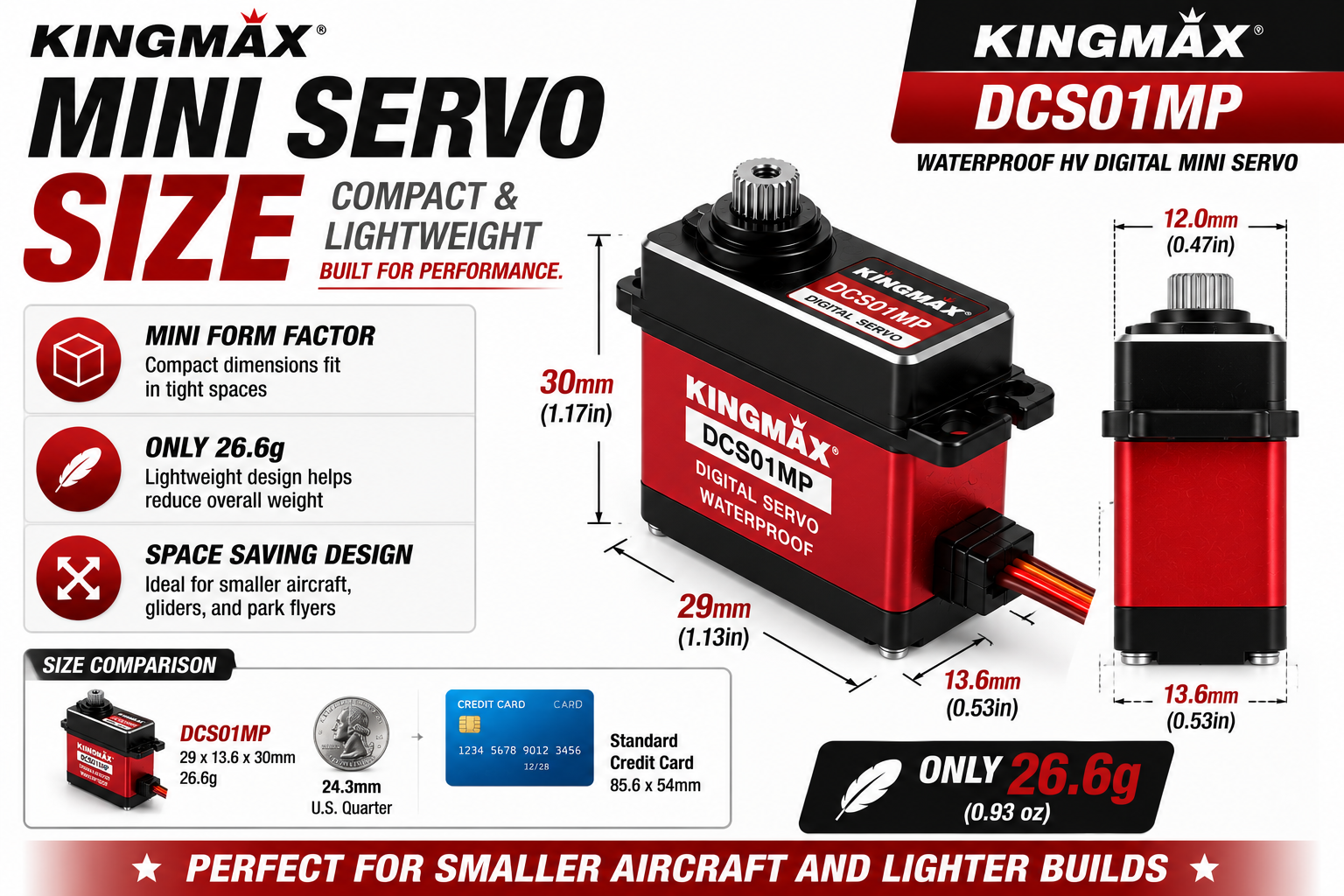

| Dimensions | 29 × 13.6 × 30mm (1.13 × 0.53 × 1.17 in) |
| Weight | 26.6g (0.93 oz) |
| Connector | JR Connector |
| Wire Length | 320mm (12.48 in) |
| Working Temperature | -10°C to +50°C (14°F to 122°F) |
| Storage Temperature | -20°C to +60°C (-4°F to 140°F) |
Recommended Applications
- Sport aircraft
- Electric aircraft
- Park flyers
- Sailplanes and gliders
- Smaller warbirds
- Smaller sport jets
- Throttle applications
- Utility servo installations
- RC boats and cars requiring a compact waterproof servo
Includes

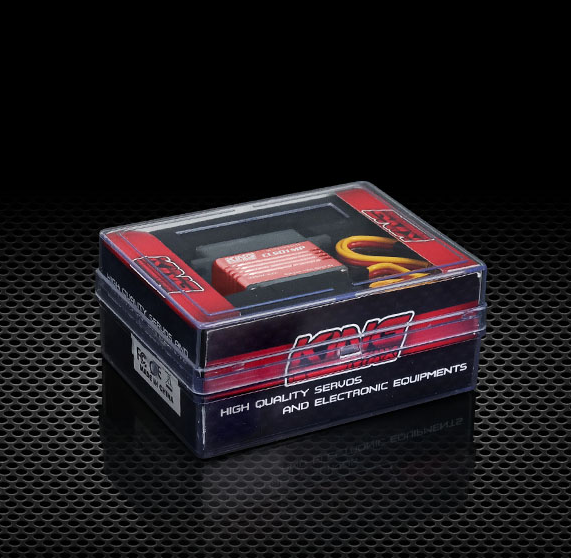

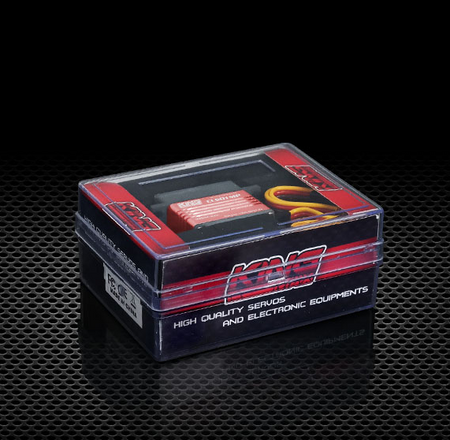

- KingMax DCS01MP Waterproof HV Digital Mini Servo

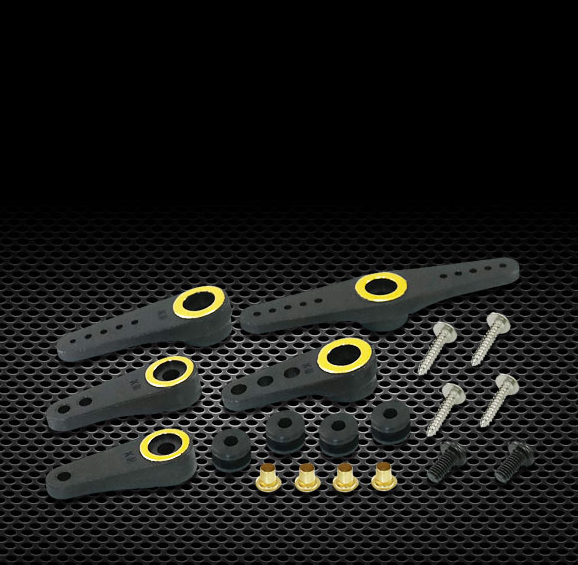

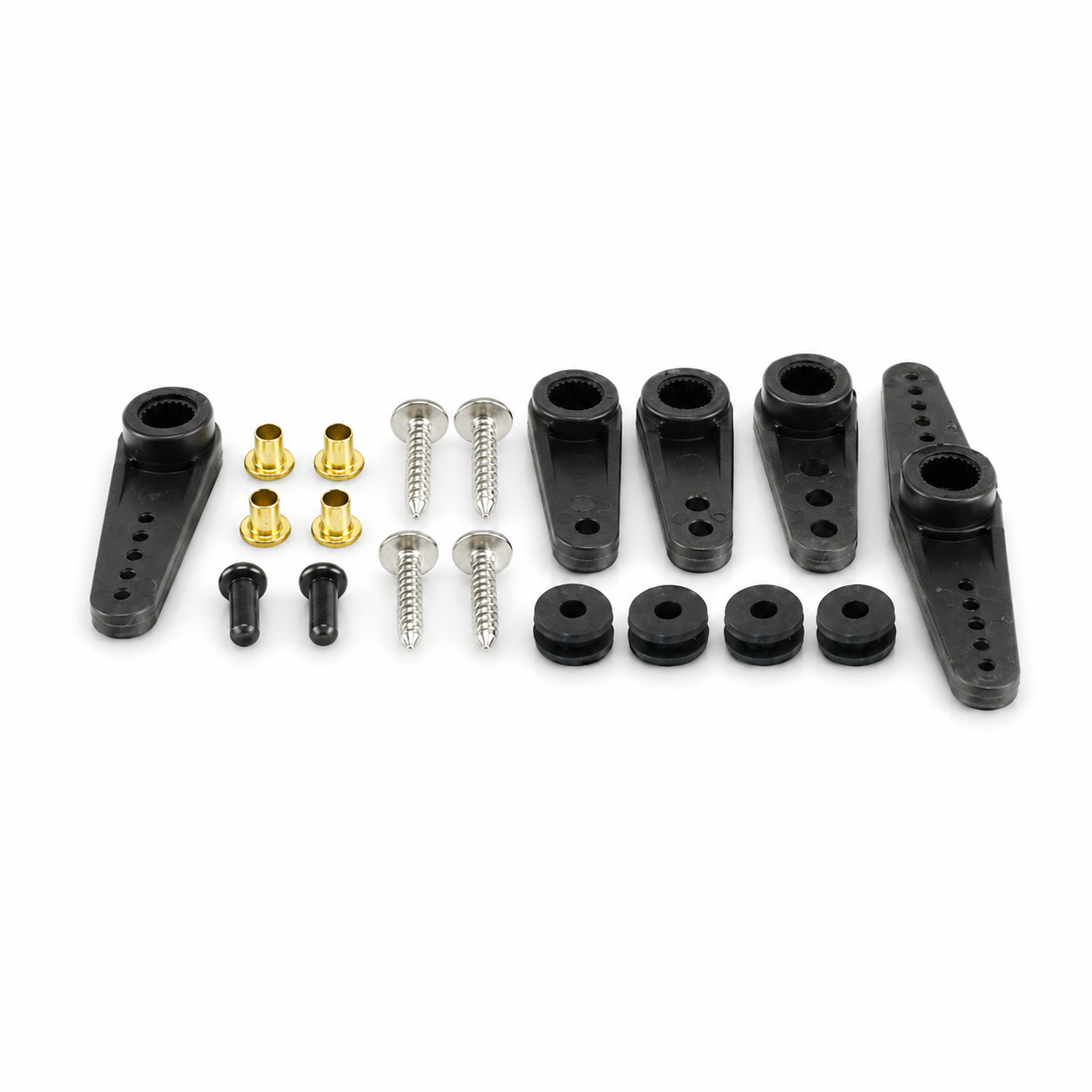

- Manufacturer-supplied servo accessories
