KingMax BLS01L Low Profile Brushless Servo – 19kg HV Steel Gear Digital Servo

In stock
SKU: BLS01L
(0)
$79.95

KingMax BLS01L Low Profile Brushless HV Servo

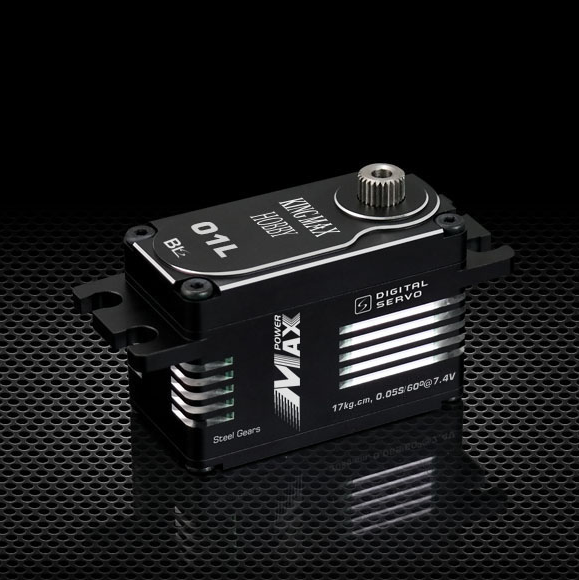

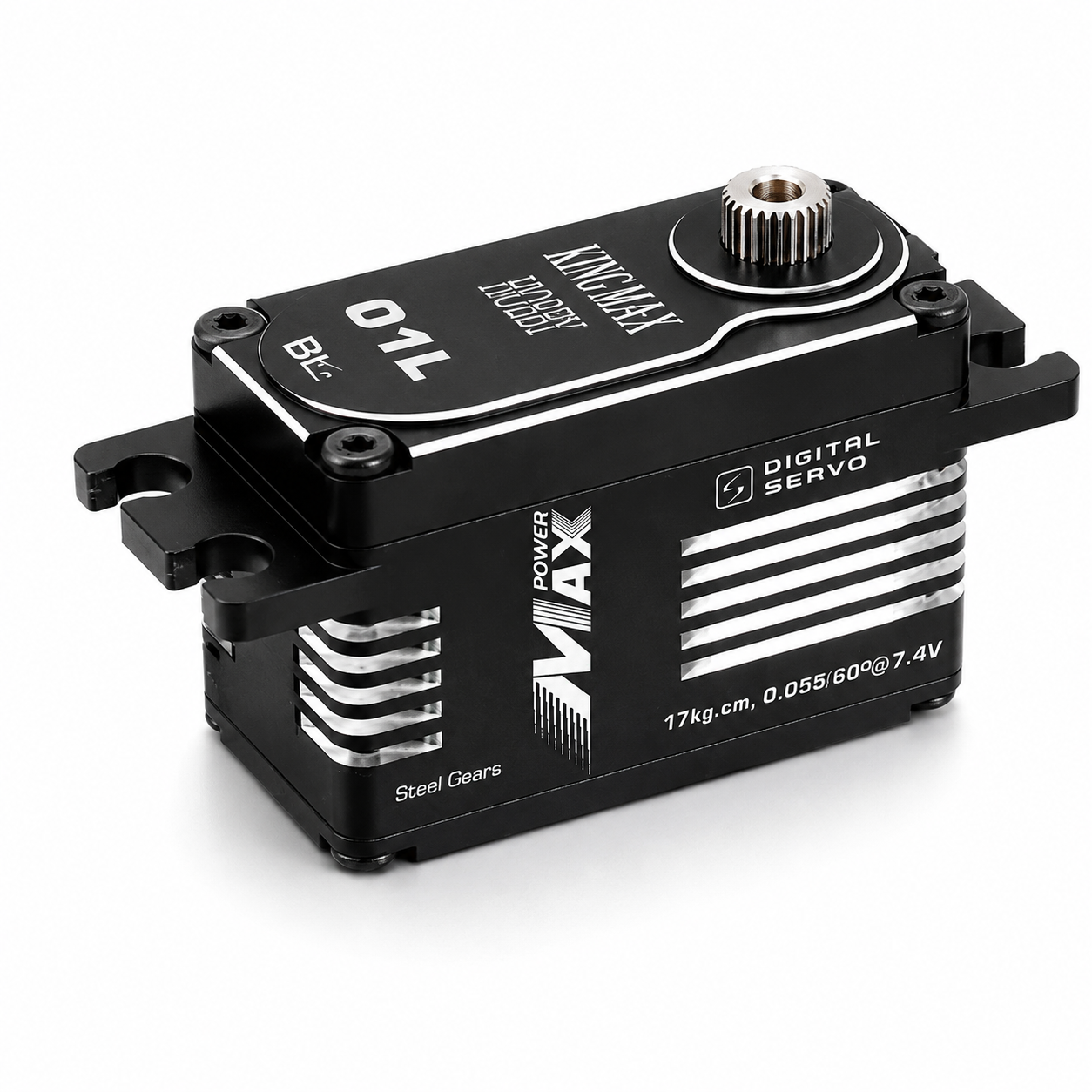

The KingMax BLS01L is a high-performance digital low-profile servo built for fast response, strong torque, and durable operation in space-limited RC applications. It features a brushless motor, steel gears, dual ball bearings, waterproof construction, and a full CNC aluminum case and structure.

With speeds as fast as 0.04 sec/60° at 8.4V and up to 19kg-cm / 263.9 oz-in of torque, the BLS01L is a strong choice for RC aircraft, EDF jets, F3A/pattern airplanes, sport models, helicopters, RC cars, boats, and other applications requiring a low-profile high-speed servo.

Key Features

  • High-performance digital low-profile servo
  • Patent gear chain design for improved stability and durability
  • Patent No. ZL201822045200.5

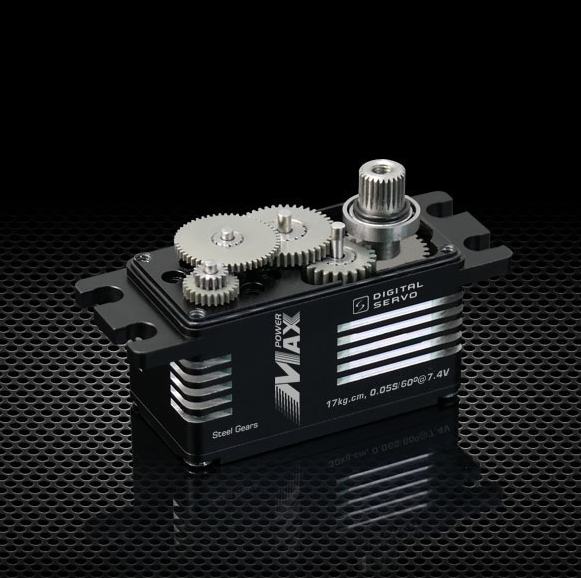

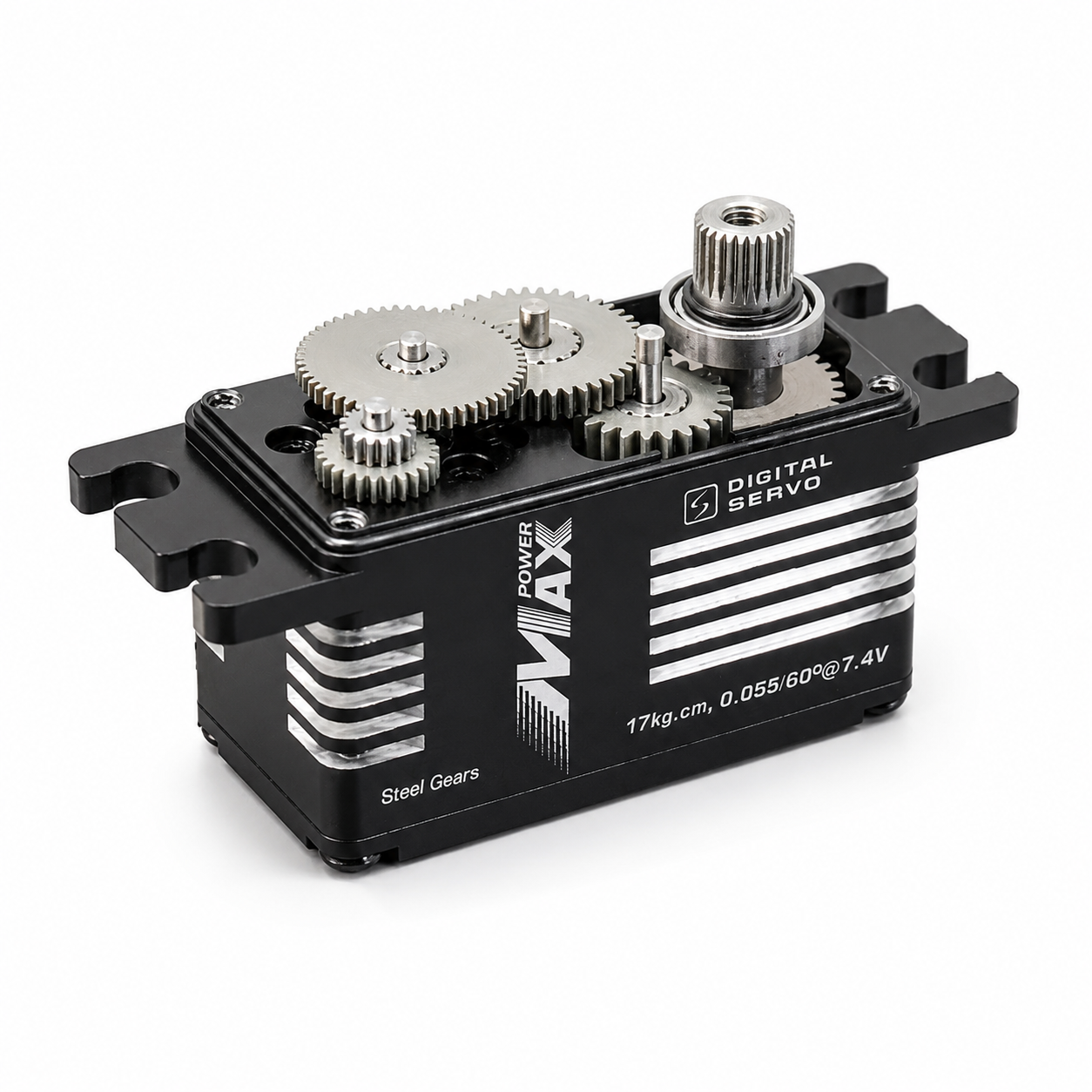

  • High-precision steel gears
  • Full CNC aluminum case and structure
  • High-quality brushless motor
  • Dual ball bearings
  • Waterproof design
  • Wide voltage operation: DC 5.0V–8.4V
  • Standard 25T spline

Speed & Torque

Voltage Speed Torque
5.0V 0.07 sec/60° 13kg-cm / 180.5 oz-in
6.0V 0.06 sec/60° 14kg-cm / 194.4 oz-in
7.4V 0.05 sec/60° 17kg-cm / 236.1 oz-in
8.4V 0.04 sec/60° 19kg-cm / 263.9 oz-in

Specifications

Model BLS01L
Servo Type Digital Low Profile Servo
Motor Brushless Motor
Gear Train Steel Gears
Spline Standard 25T
Bearings Dual Ball Bearings / 2BB
Operating Voltage DC 5.0V–8.4V
Rated Working Voltage DC 7.4V
Working Frequency 1520μs / 330Hz
Dead Band 2μs default
Working Angle ±63° @ 800μs–2200μs
Waterproof Yes

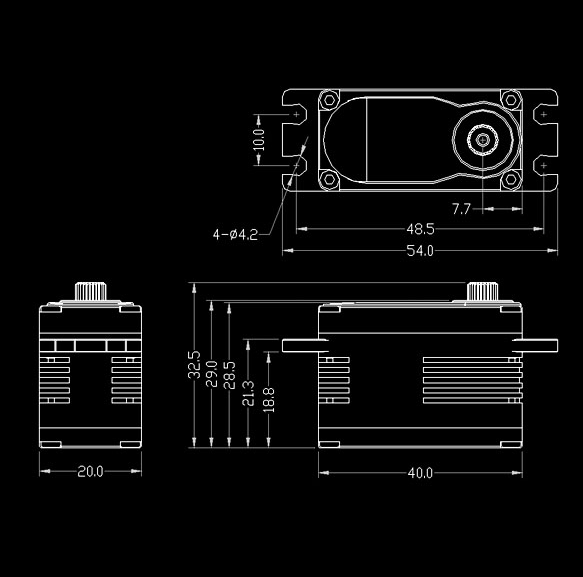

Dimensions 40 × 20 × 28.5mm / 1.56 × 0.78 × 1.11 in
Weight 65g / 2.29 oz
Connector Wire Length JR 320mm / 12.48 in
Patent Patent No. ZL201822045200.5

Recommended Applications

  • RC airplanes requiring a low-profile servo
  • EDF jets
  • F3A and pattern aircraft
  • Sport aircraft
  • Sailplanes with thin wing installations
  • Helicopters
  • RC cars and boats

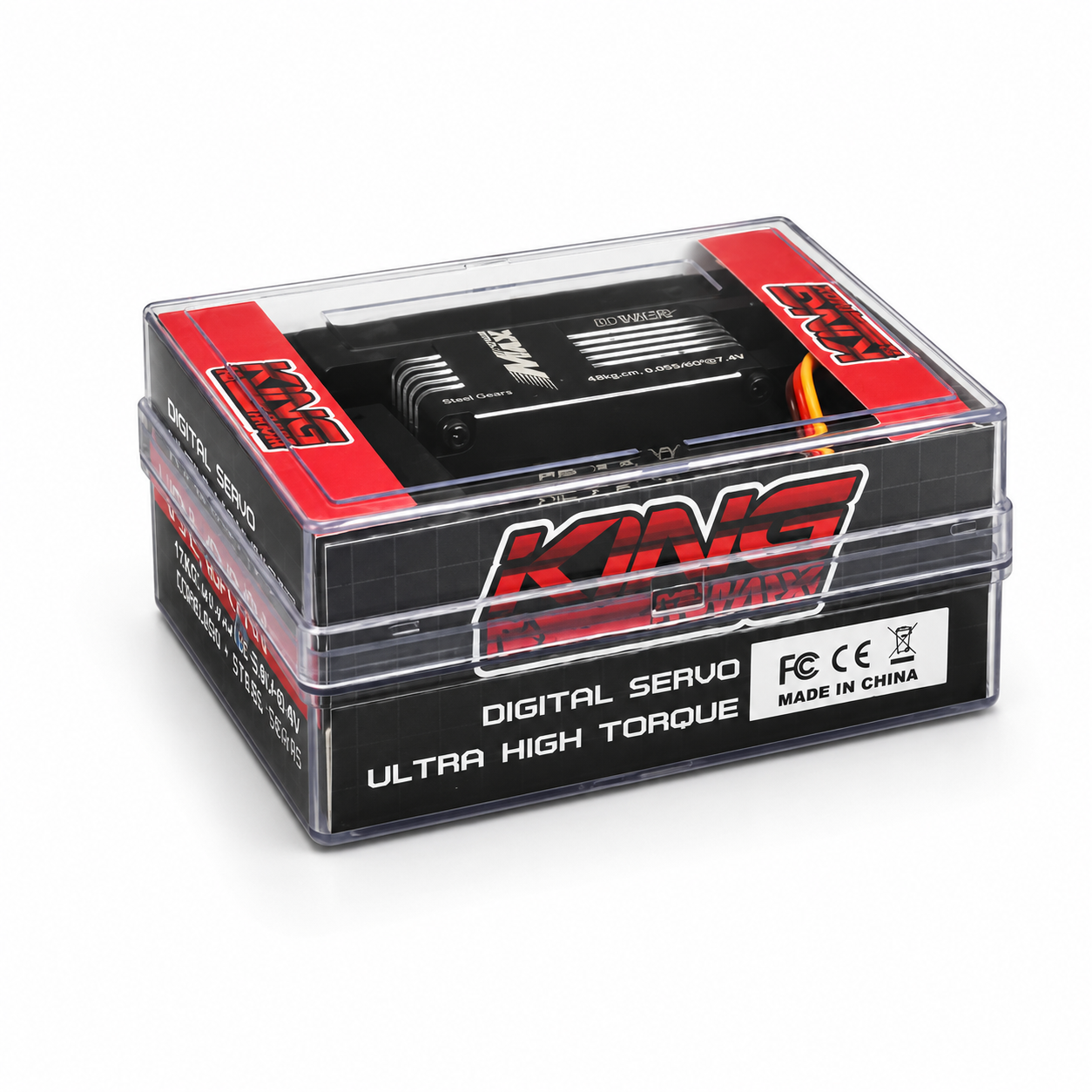

Packaging Information

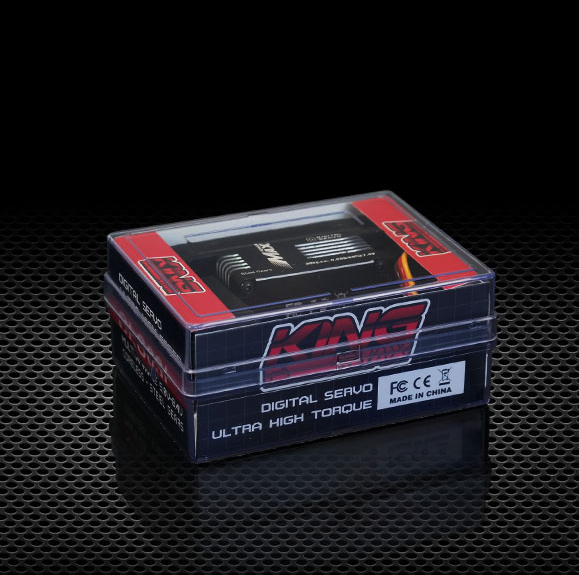

  • Transparent plastic box size: 83.5 × 63.5 × 37.5mm
  • Packaged weight: 112g
