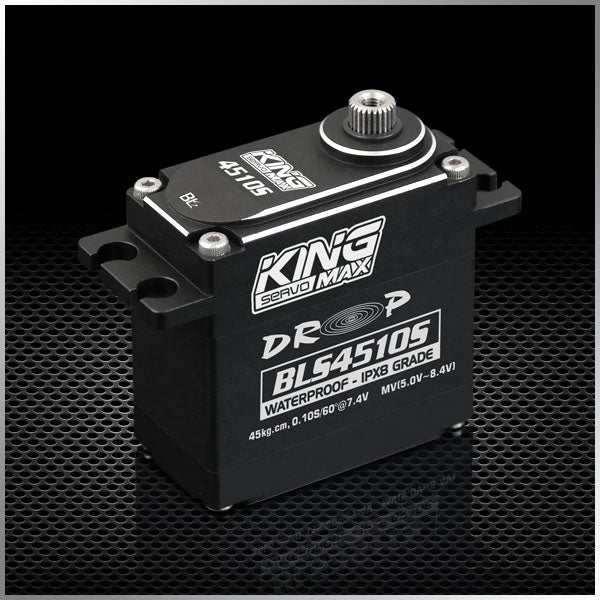

Kingmax Standard Wide Voltage Servo, 92g 680 Oz. Torque, Brushless (BLS4510S)

Kingmax Standard Wide Voltage Servo, 92g 680 Oz. Torque, Brushless (BLS4510S) Now with Soft Start

Up to 680 oz. torque! High performance, digital multivoltage standard servo.

Kingmax Standard Wide Voltage Servo, 92g 680 Oz. Torque, Brushless (BLS4510S) Now with Soft Start

FEATUREs:

-- High performance, digital multivoltage standard servo

-- High-precision steel gears

-- Full CNC aluminium hulls and structure

-- High quality brushless motor

-- Dual ball bearings

-- Super long working life

-- Waterproof IPX8 grade

SPECIFICATIONS:

Operating Speed (5.0V): 0.15sec/60 degrees

Operating Speed (6.0V): 0.13sec/60 degrees

Operating Speed (7.4V): 0.10sec/60 degrees

Operating Speed (8.4V): 0.09sec/60 degrees

Stall Torque (5.0V): 30kg.cm (416.70oz/in)

Stall Torque (6.0V): 36kg.cm (500.04oz/in)

Stall Torque (7.4V): 45kg.cm (625.05oz/in)

Stall Torque (8.4V): 49kg.cm (680.61oz/in)

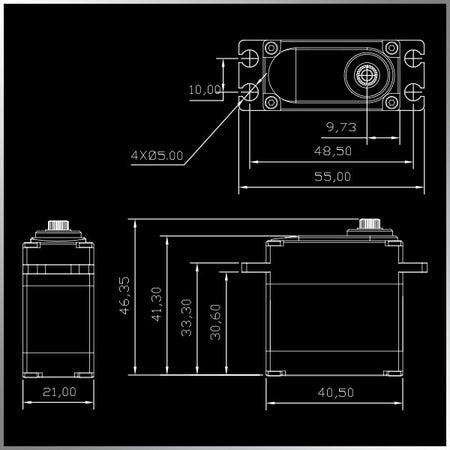

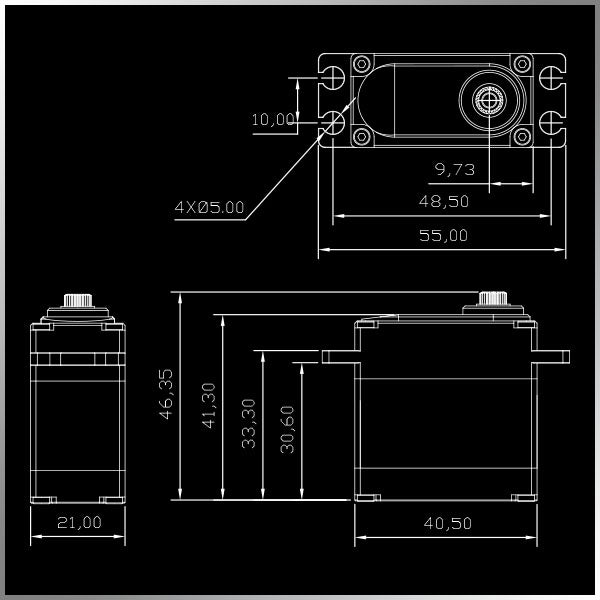

Dimensions: 40.6*21*41.8mm /1.58*0.8*1.63in

Weight: 92.7g(3.27oz)

Connector Wire Length: JR300 mm (1.17in)

Packing Detail:

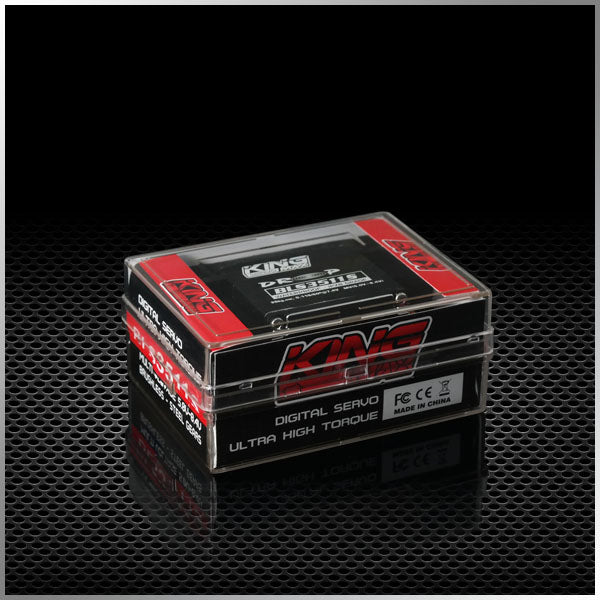

Transparency plastic box size: 83.5mmx63.5mmx37.5mm   weight: 141g

Carton box  size: 43x26.5x20.5cm   100sets/1CTN   Cross weight:14.5kg
