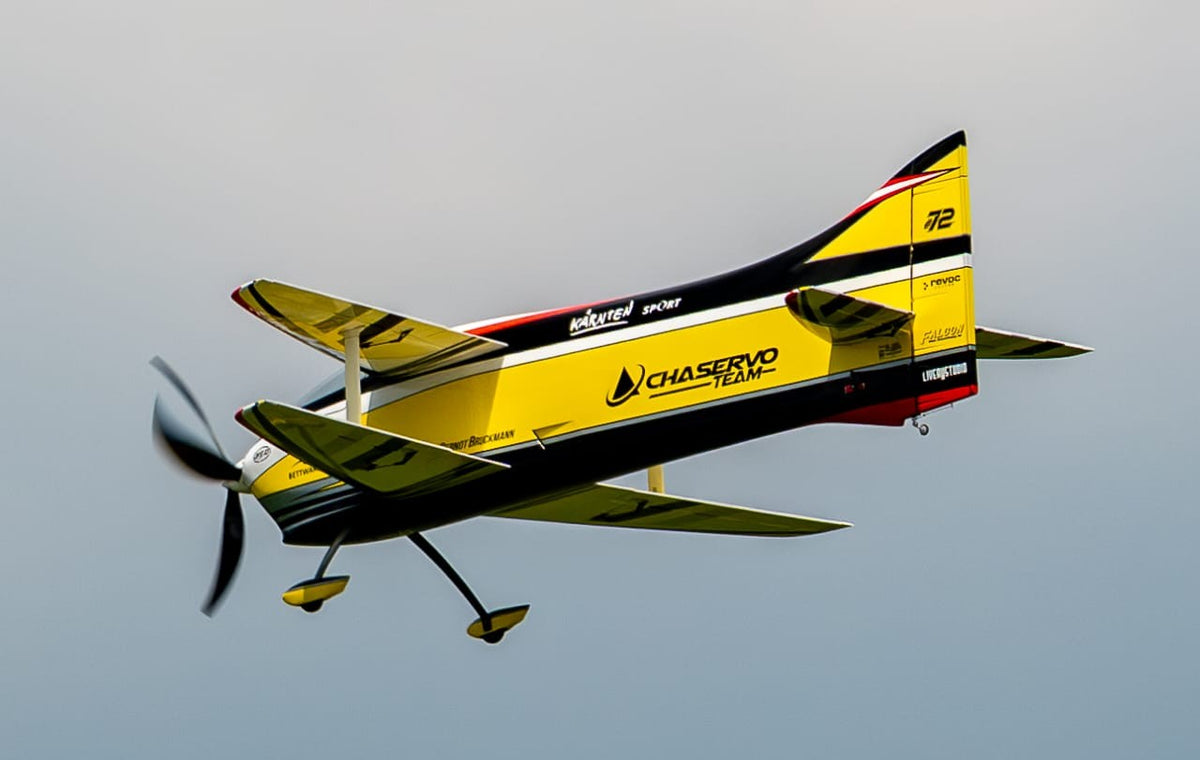

Mantra F3A Pattern Bi-plane, ARF, CA Model Gernot Scheme

Mantra Bi-plane, ARF, CA Model

**Please note these models do not have decals applied!**

Mantra Features

 Designed for Mariano Gostanian
 Elliptical shaped wing
 Elliptical shaped horizontal stabilizer
 Composite fuselage fully painted in a beautiful color scheme
 Covered flying surfaces with unmatched quality
 Plug-in wings, and stabs with carbon fiber tubes
 Fiberglass rudder
 Made in Argentina

Color Schemes

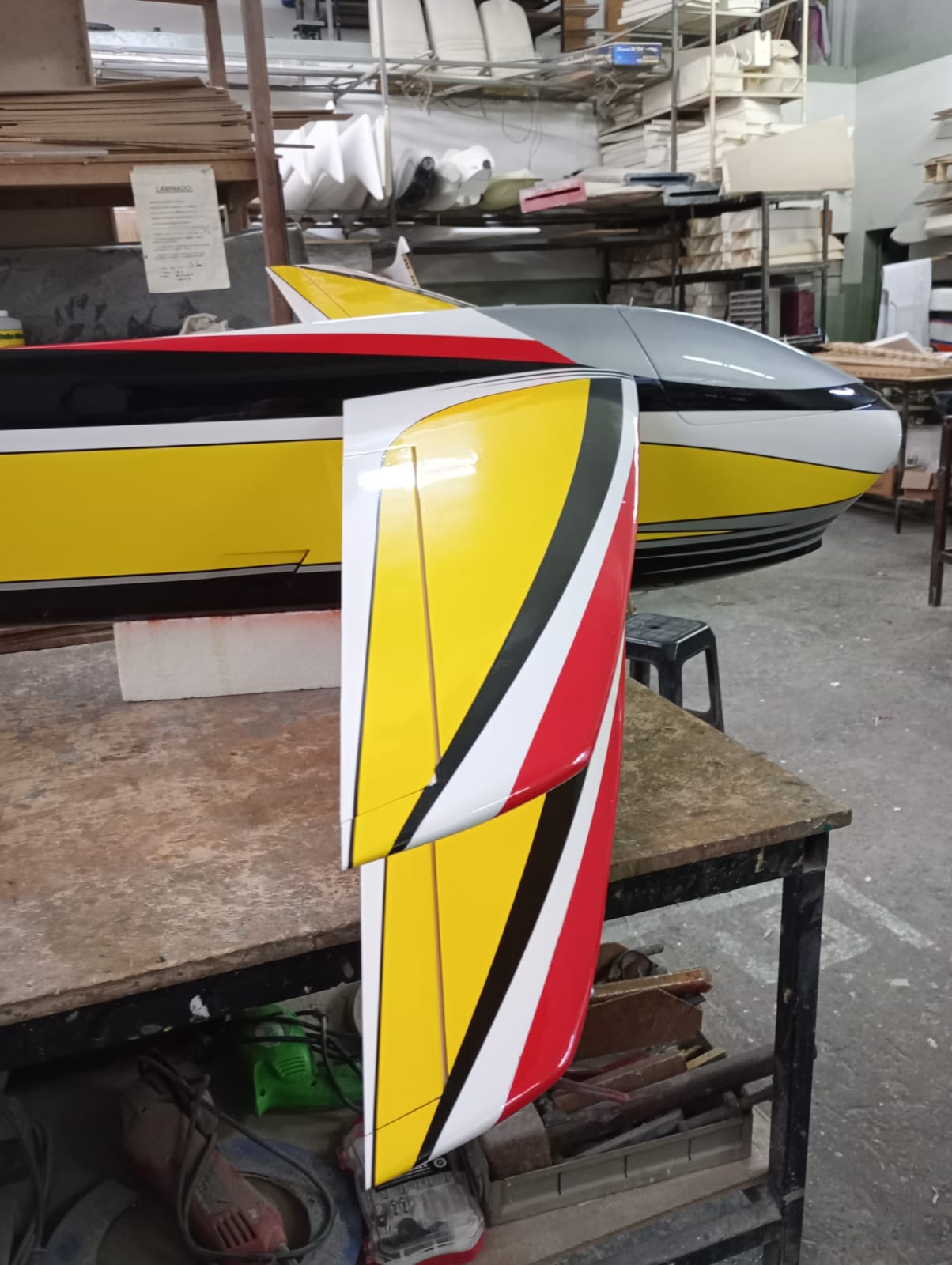

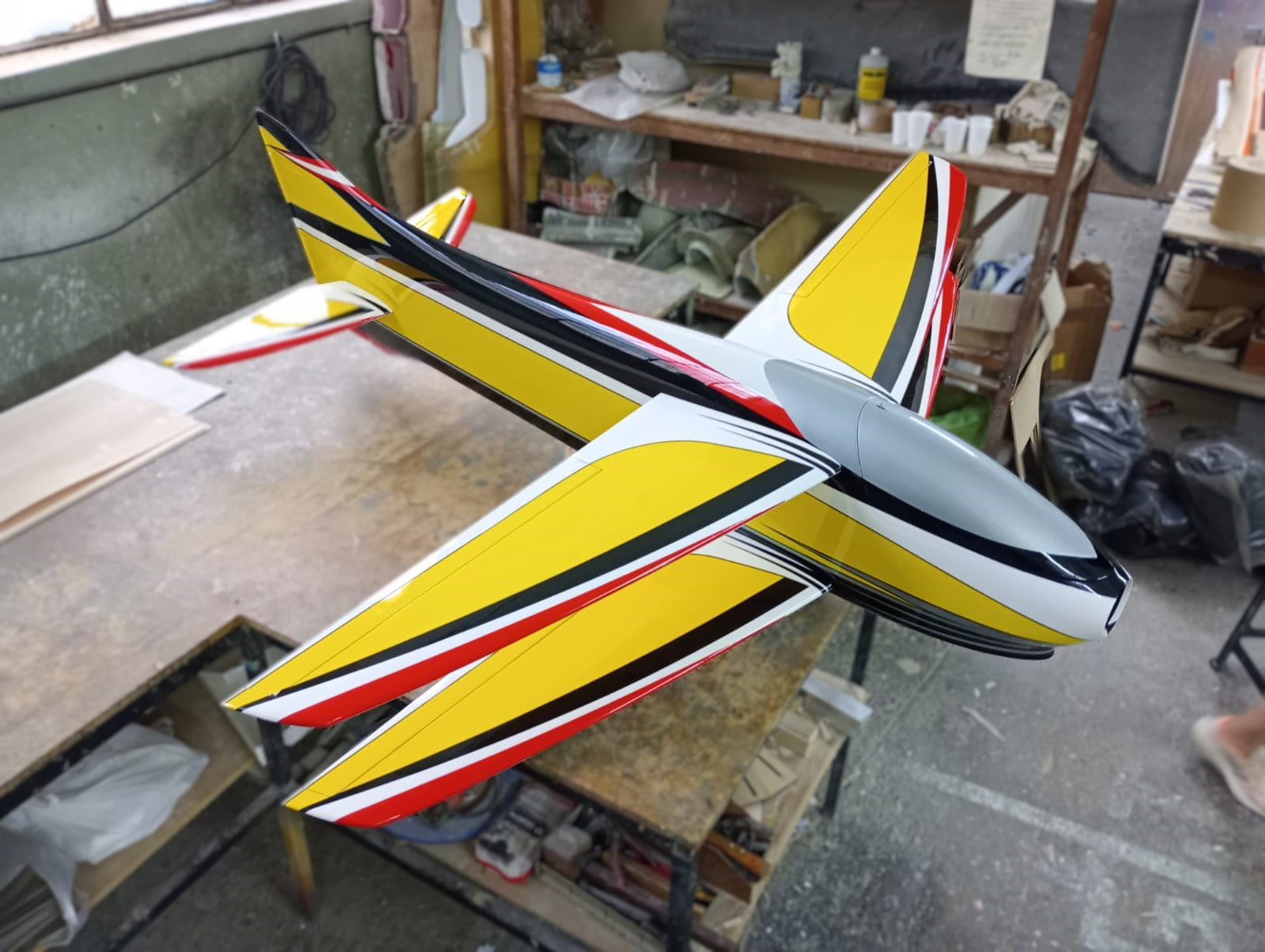

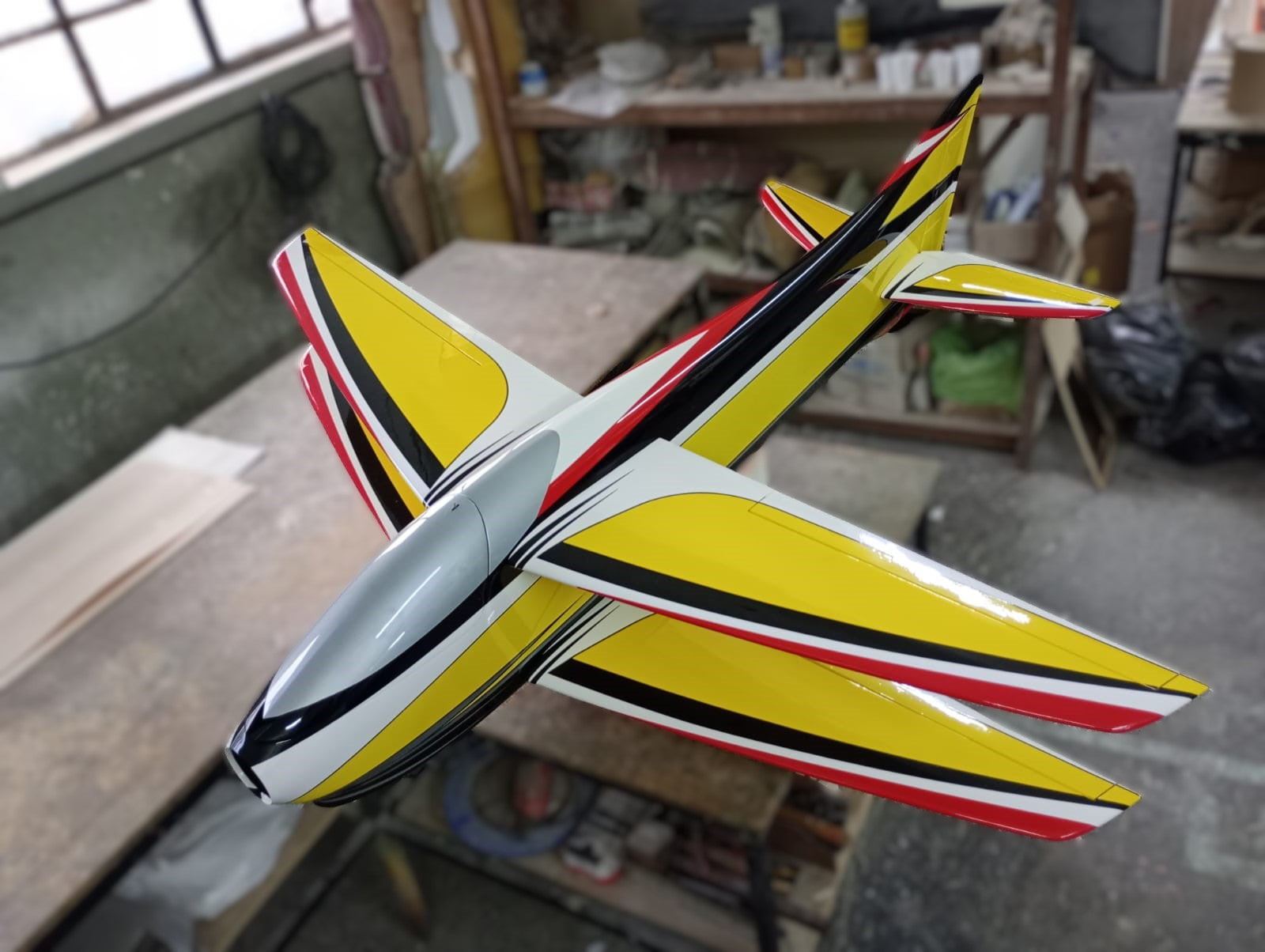

 Mariano Gostanian color scheme (standard color)-  Gernot Scheme
 Available on a limited basis, we produce a small run of Custom painted & Custom covered

Mantra Specifications

Dimensions
Length:  78" (1990 mm)
Wingspan: 67" (1720 mm)

Weight
Net Weight: (2600 grams) Included landing gear and wheel pants
Gross Weight: (4900-5500 grams)

Construction

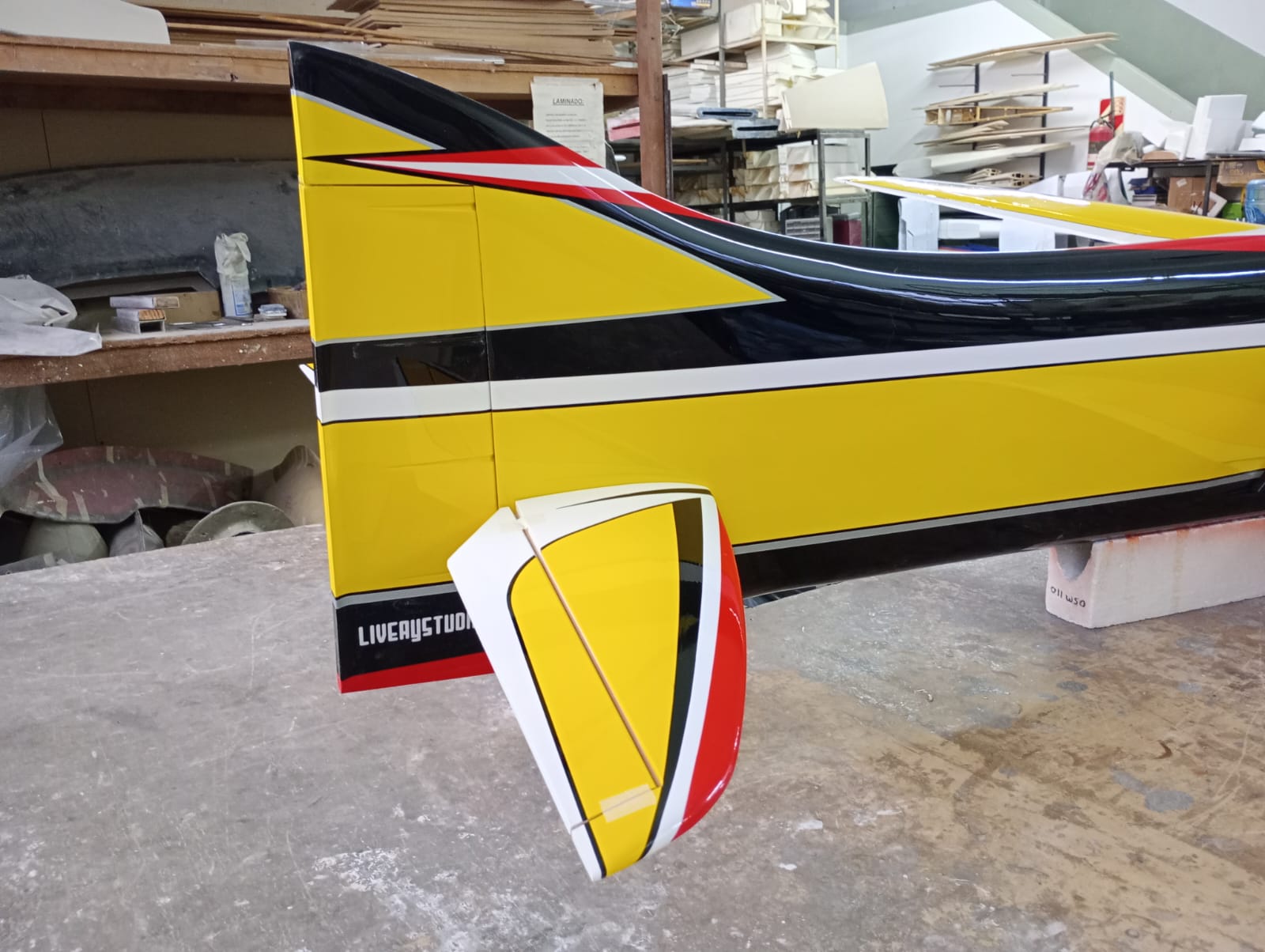

Fuselage and rudder Vacuum Fiberglass, balsa , full painted
Wings: Balsa built-up, covered film
Horizontal Stabilizer: Balsa built-up, covered film

Power
Single drive
Contra drive

Available for Contra drive
ESC: 80 HV or above
Spinner Size: 94 mm


Included Hardware
Lightweight wheels
Wheel pants
Carbon fiber main landing gear
Tail wheel assembly
Stab adjusters
Control horns (8)
Battery tray
Servo rudder tray
Wing Tubes (carbon fiber)
Stab Tube (carbon fiber)

Servos (required)
Ailerons: (4) mini size
Elevator: (2) mini size
Rudder: (1)High torque size

Setups & Tips
Wing Incidence: + 0.5 degree Both
Stab Incidence: 0 degrees adjustable
