MPI Miracle Switch MK2 with Adjustable Voltage Regulator (ACC405)
Regular price
$45.95
Couldn't load pickup availability

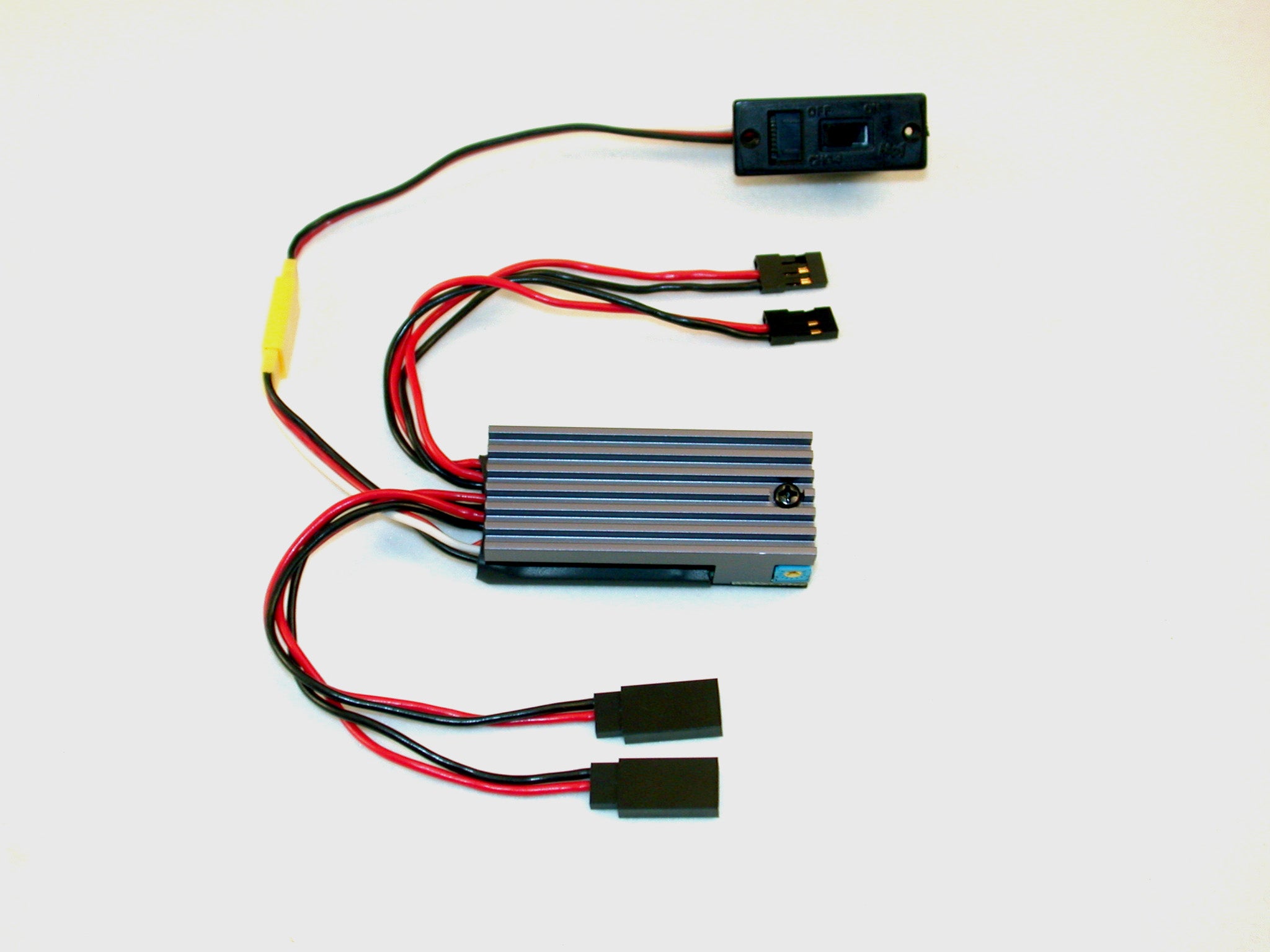

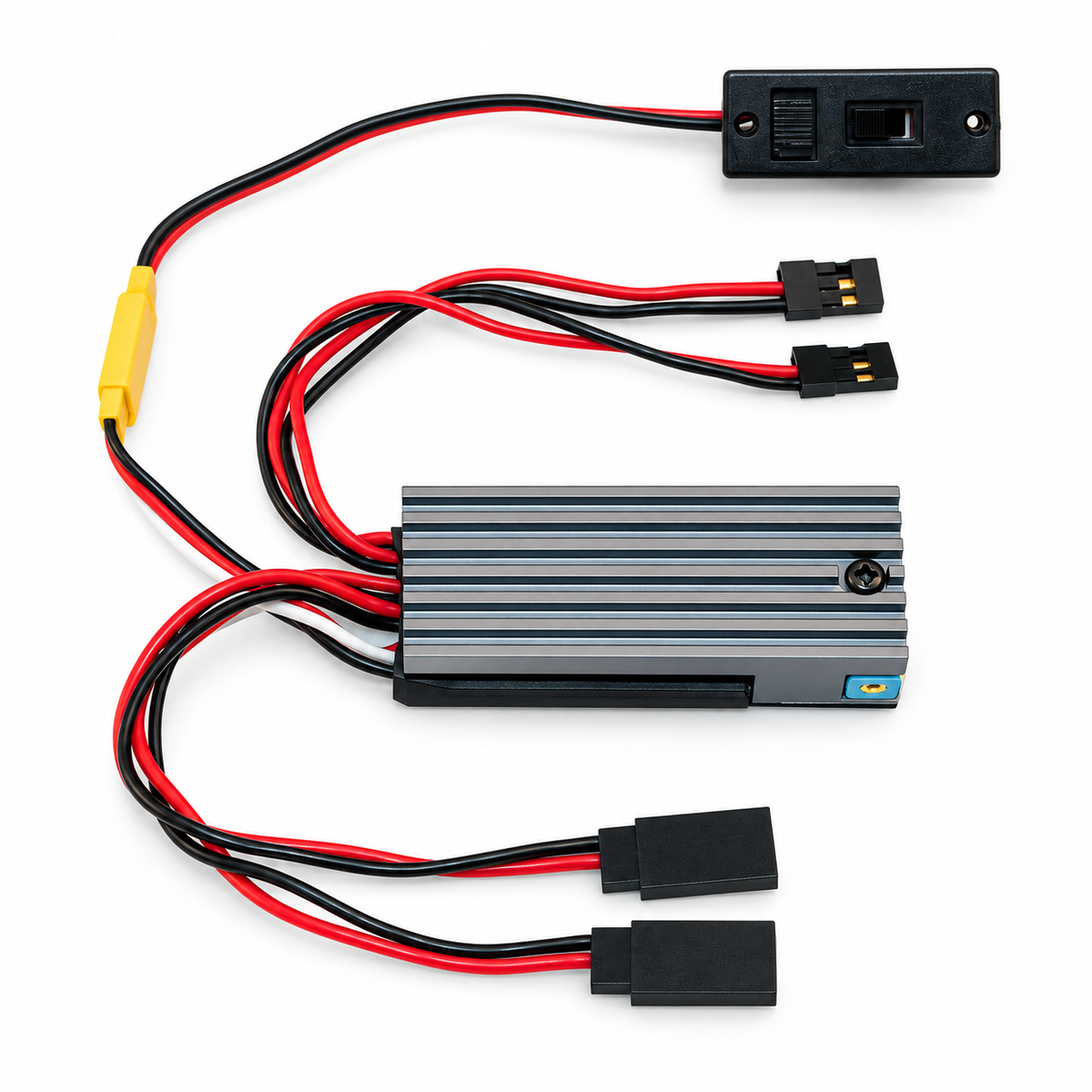

MPI Miracle Switch MK2 with Adjustable Voltage Regulator
The MPI Miracle Switch MK2 combines an electronic receiver power switch and an adjustable voltage regulator in one compact unit. Designed to replace a conventional mechanical receiver switch, it helps maintain power to the receiver if the external switch or its wiring fails.

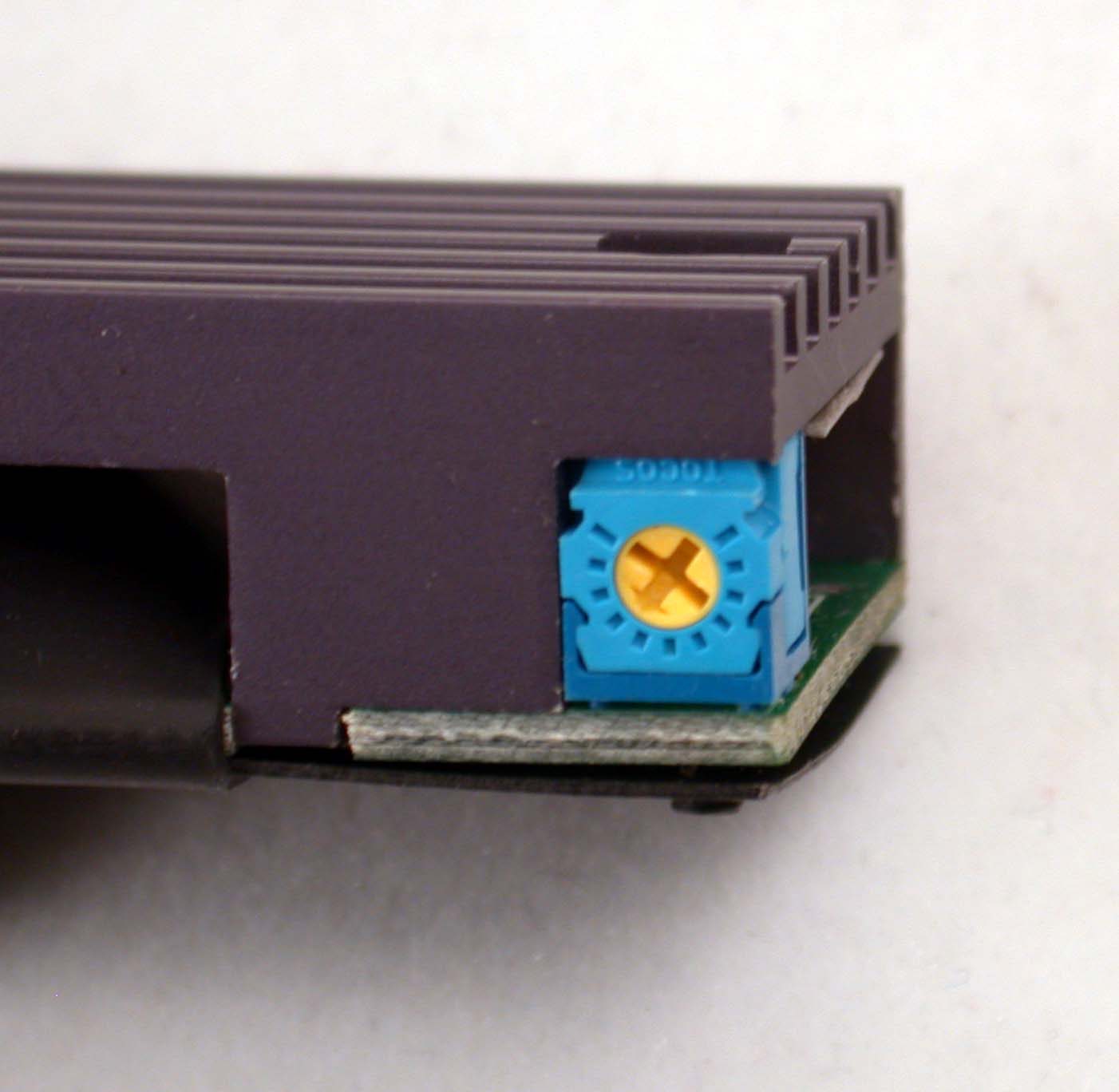

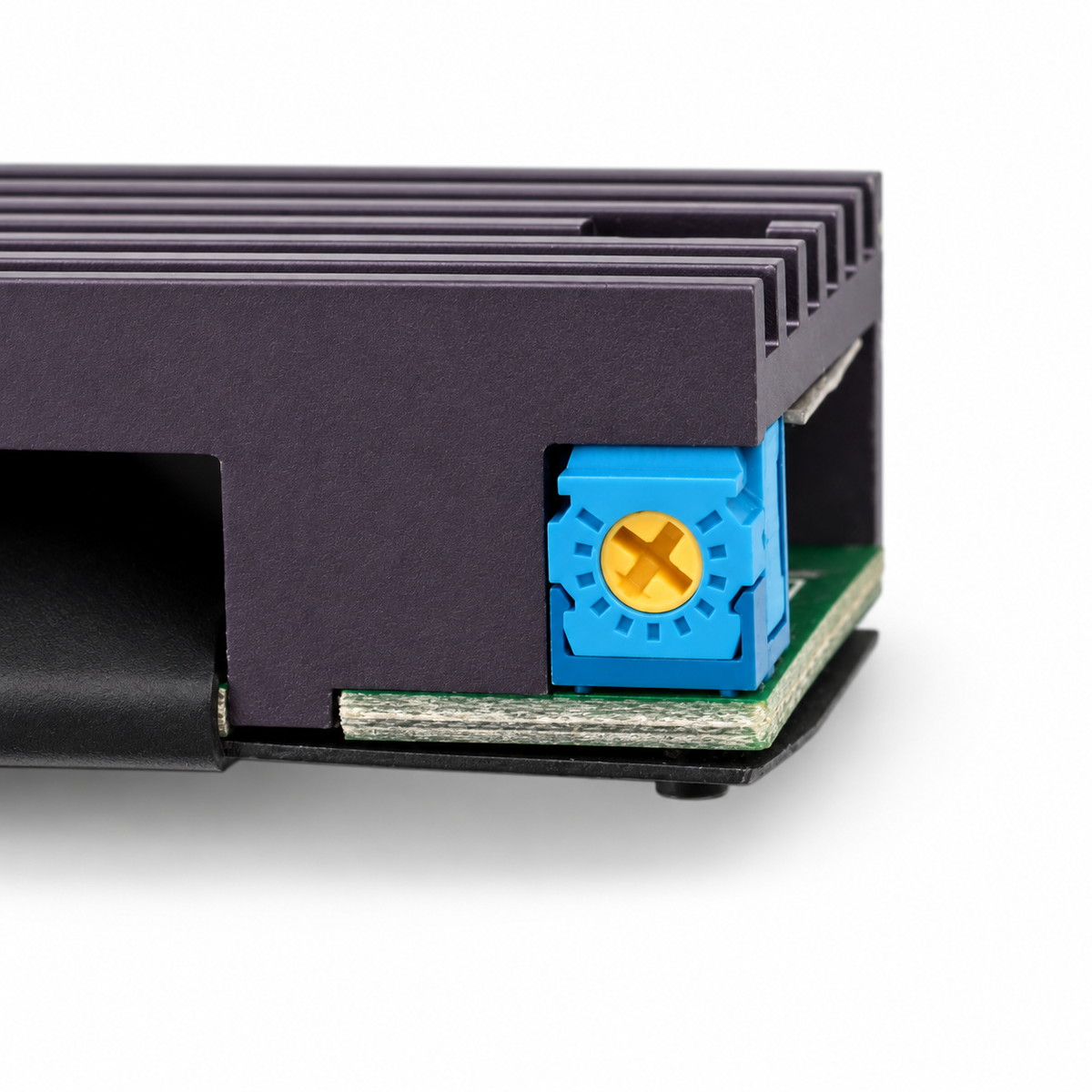

The built-in regulator is factory set to approximately 5.95V and can be adjusted from 5.0V to 6.5V to suit compatible receiver and servo systems. When battery voltage falls below the selected output voltage, the regulator is bypassed so the remaining battery voltage can continue to reach the receiver.
Key Features
- Electronic receiver switch with built-in voltage regulation
- Designed to maintain receiver power if the external switch or switch wiring fails
- Factory-set 5.95V output
- Adjustable output range from 5.0V to 6.5V
- Wide 4.8V to 12V input range
- Dual heavy-duty 22 AWG input and output leads for increased current capacity and redundancy
- Large heat sink for dependable thermal performance
- Remote soft-mount charge switch can be relocated using a standard servo extension
- Automatic regulator bypass when input voltage drops below the selected output voltage
Specifications
| Input Voltage | 4.8–12V |
| Factory Output Setting | Approximately 5.95V |
| Adjustable Output Range | 5.0–6.5V |
| Current Rating at 7.4V Input | 10A continuous; 20A maximum for up to 1 minute |
| Idle Current | 0.03mA maximum |
| Input/Output Wiring | Dual heavy-duty 22 AWG leads |
| Weight | 1.7 oz (48 g) |
| Part Number | ACC405 |
Important: Current capacity decreases as input voltage increases. Confirm that the selected output voltage is appropriate for every receiver, servo, and accessory connected to the system. Follow the included instructions when adjusting or installing the regulator.
Package Includes
- MPI Miracle Switch MK2 with built-in regulator
- Remote soft-mount charge switch
- Instruction sheet
