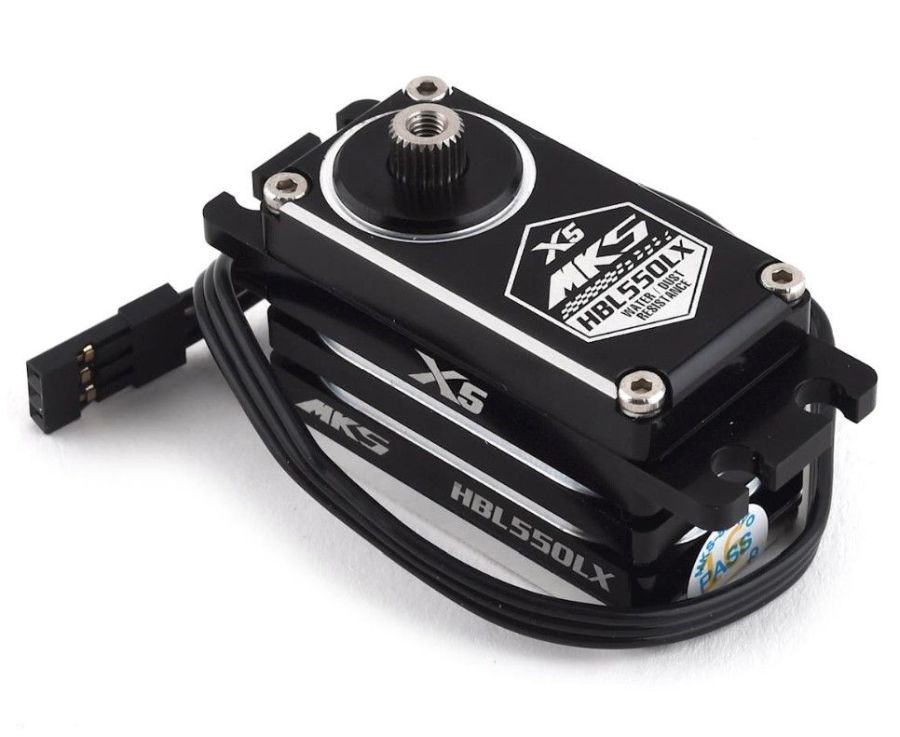

MKS HBL550LX Titanium Gear, Low Profile Servo (HV)
Regular price
$126.25
Couldn't load pickup availability
MKS HBL550LX Brushless, Titanium Gear Low Profile Digital Servo (High Voltage)
MKS HBL550LX Brushless, Titanium Gear Low Profile Digital Servo (HV)
Specifications
Torque (4.8V): 144 oz/in
Torque (6V): 180 oz/in
Torque (7.4V): 222 oz/in
Speed (4.8V): 0.13 sec
Speed (6V): 0.09 sec
Speed (7.4V): 0.08 sec
Operating Voltage: 3.7 - 7.4 Volts
Motor Type: Brushless Motor
Potentiometer Drive: Indirect Drive
Bearing Type: 12x8 mm Double bearings
Gear Type: Alloy gear
Dimensions: 40 x 20.5 x 26.40 mm
Weight 57.8 g
Dead Band: 0.001ms (Default)
Control System: +Pulse Width Control
Working Frequency: 1520μs / 333hz
Operating Temperature Range: -10 to + 60 Degree C
- SKU HBL550LX
