MKS Servos

MKS Servos HV6120H Metal Gear Mini  (Wide Voltage)

Only 1 left
SKU: HV6120H
(0)
$68.25

MKS Servos HV6120H Metal Gear Mini  (Wide Voltage)


MKS Servos HV6120H Metal Gear Mini  (Wide Voltage)



  •  Torque (3.7V):  2.54 kg-cm / 35.2 oz-in
  •   Torque (4.8V):  3.3 kg-cm / 45.8 oz-in
  •   Torque (6.0V):  4.1 kg-cm / 56.9 oz-in
  •   Torque (7.4V):  5.0 kg-cm / 69.4 oz-in
  •   Torque (8.2V):  5.4 kg-cm / 74.9 oz-in
  •   Speed:    0.180s (3.7V)  / 0.139s (4.8V)  /   0.110s (6.0V)  / 0.089s (7.4V)  /  0.080s (8.2V)
  •   Weight:  11 g  /  0.388 oz
  •

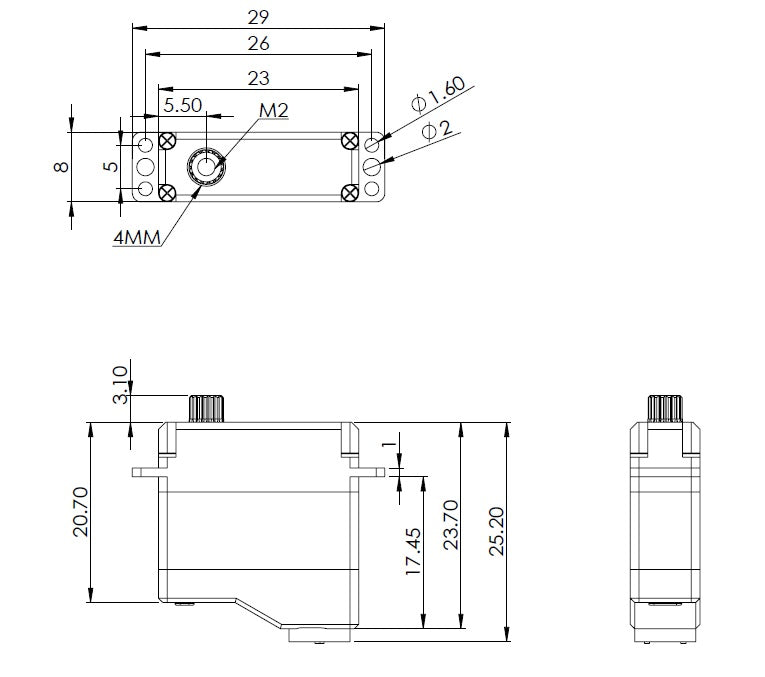

  •   Dimension:  23 x 8 x 25.2 mm

Note: The output spline gear size is 4MM. We sell a compatible Aluminum servos arm that fits this servo.
  • SKU HV6120H
