MKS Servos HV9930 XJ Metal Gear High Torque Digital Servo (Wide Voltage)
Regular price
$173.25
Couldn't load pickup availability
MKS Servos HV9930 XJ Metal Gear High Torque Digital Servo (Wide Voltage)
MKS Servos HV9930 XJ Metal Gear High Torque Digital Servo (Wide Voltage)
Coreless almost 600 oz. Torque at HV
Specifications:
Torque:
- 6V: 436oz-in (31.4kg-cm)
- 7.4V: 538.8oz-in (38.8kg-cm)
- 8.4V: 597.1oz-in (43kg-cm)
-
Speed:
- 6V: 0.135s
- 7.4V: 0.11s
- 8.4V: 0.098s
- Weight: 74g (2.61oz)

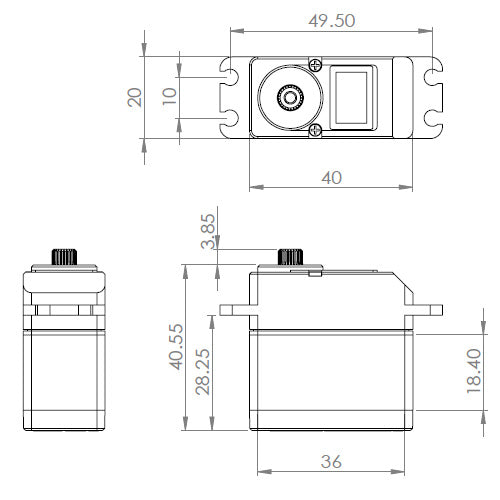

- Dimensions: 40x2x38.8mm
- Operating Voltage: 4.8-8.4V DC
- Frequency: 1520uS/333hz
- Dead Band: 0.0007ms
- Bearings: Dual BB
- Motor: Coreless
- Gears: Metal Alloy Gear
- SKU HV9930
