MPI 6973 High-Current Arming Switch with EC3 Connectors
Couldn't load pickup availability
MPI 6973 Arming Switch with EC3 Connectors
The MPI 6973 Arming Switch provides a convenient external connection point for safely arming and disarming an electric RC airplane. It features heavy-duty 12 AWG wire, EC3 battery and ESC connections, and a removable Anderson Powerpole arming key.
Install the receptacle in an accessible location on the fuselage and connect the assembly between the flight battery and electronic speed controller. The aircraft’s main power circuit remains disconnected when the arming key is removed. Inserting the key completes the circuit when the aircraft is secured and ready to operate.
⚡ Target Applications:
- Mid-sized and large electric RC airplanes
- Aircraft power systems equipped with EC3 connectors
- Installations requiring an externally accessible arming point
- Models where accessing the battery connection requires removing a canopy, hatch, or wing
Key Features
- External Arming Access: Allows the aircraft’s main electric power circuit to be connected or disconnected from outside the fuselage.
- EC3 Power Connections: Preinstalled EC3 connectors provide convenient connection to compatible battery and ESC wiring.
- Anderson Powerpole Arming Key: The removable red-and-black loop key completes the power circuit when inserted.
- Heavy-Duty Wiring: Uses 12 AWG red-and-black wire for electric aircraft power-system installations.
- Fuselage-Mount Receptacle: The black housing and mounting flange provide a clean, accessible installation point.
- Mounting Hardware Included: Supplied with two screws, two nuts, and two washers for installation.
How It Works
- Mount the black receptacle in an accessible location on the aircraft’s fuselage.
- Connect the arming-switch assembly between the flight battery and ESC using the EC3 connectors.
- Leave the Anderson Powerpole arming key removed while transporting or preparing the aircraft.
- When the aircraft is secured and ready, insert the arming key to complete the power circuit.
- After operation, remove the arming key to disconnect the circuit.
📋 Technical Specifications
| Brand | MPI Products |
| Part Number | 6973 |
| Product Type | Removable-key arming switch |
| Power Connectors | EC3 |
| Arming-Key Connection | Anderson Powerpole |
| Wire Gauge | 12 AWG |
| Application | Electric RC airplane power systems |
📦 Package Includes:

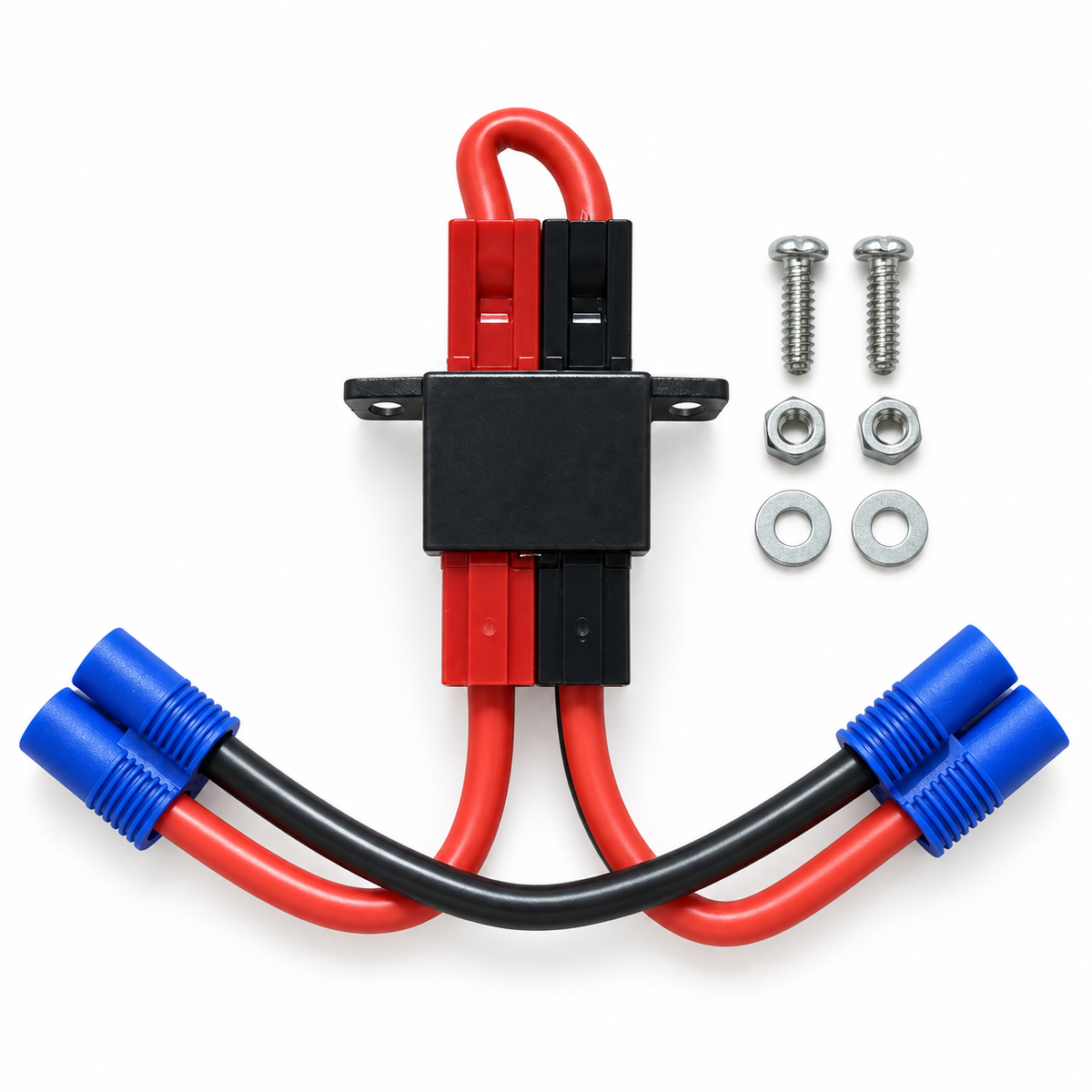

- 1 × MPI 6973 arming-switch assembly with EC3 connectors and 12 AWG wire
- 1 × Anderson Powerpole removable arming key
- 2 × Mounting screws
- 2 × Mounting nuts
- 2 × Mounting washers
