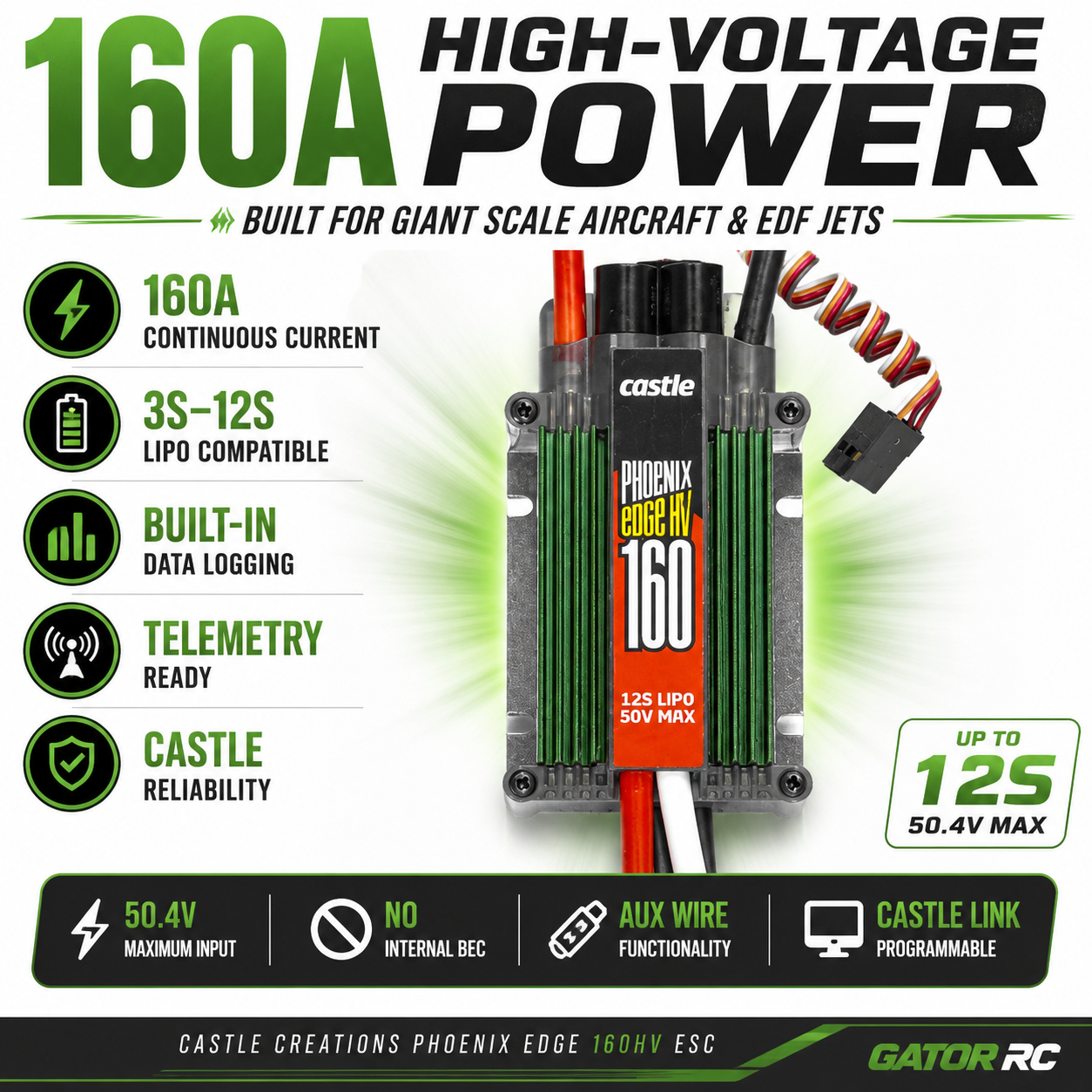

Castle Creations Phoenix Edge 160HV ESC – 160A High Voltage

The Castle Creations Phoenix Edge 160HV is a premium high-voltage electronic speed controller designed for demanding giant-scale airplanes, EDF jets, and large electric aircraft. Supporting up to 12S LiPo operation (50.4V max) and delivering 160 amps continuous power, the Edge 160HV combines legendary Castle reliability with advanced telemetry, data logging, and programmable AUX functions.

Whether you're powering a giant-scale aerobatic aircraft, a large EDF jet, or a high-performance electric model, the Phoenix Edge 160HV provides smooth throttle response, extensive tuning options, and advanced protection features to keep your power system operating at its best.

🚀 Target Applications:

  • Large EDF Jets
  • Giant Scale Electric Aircraft
  • 3D Aerobatic Airplanes
  • 700–800 Class Helicopters
  • High-Power Fixed-Wing Models

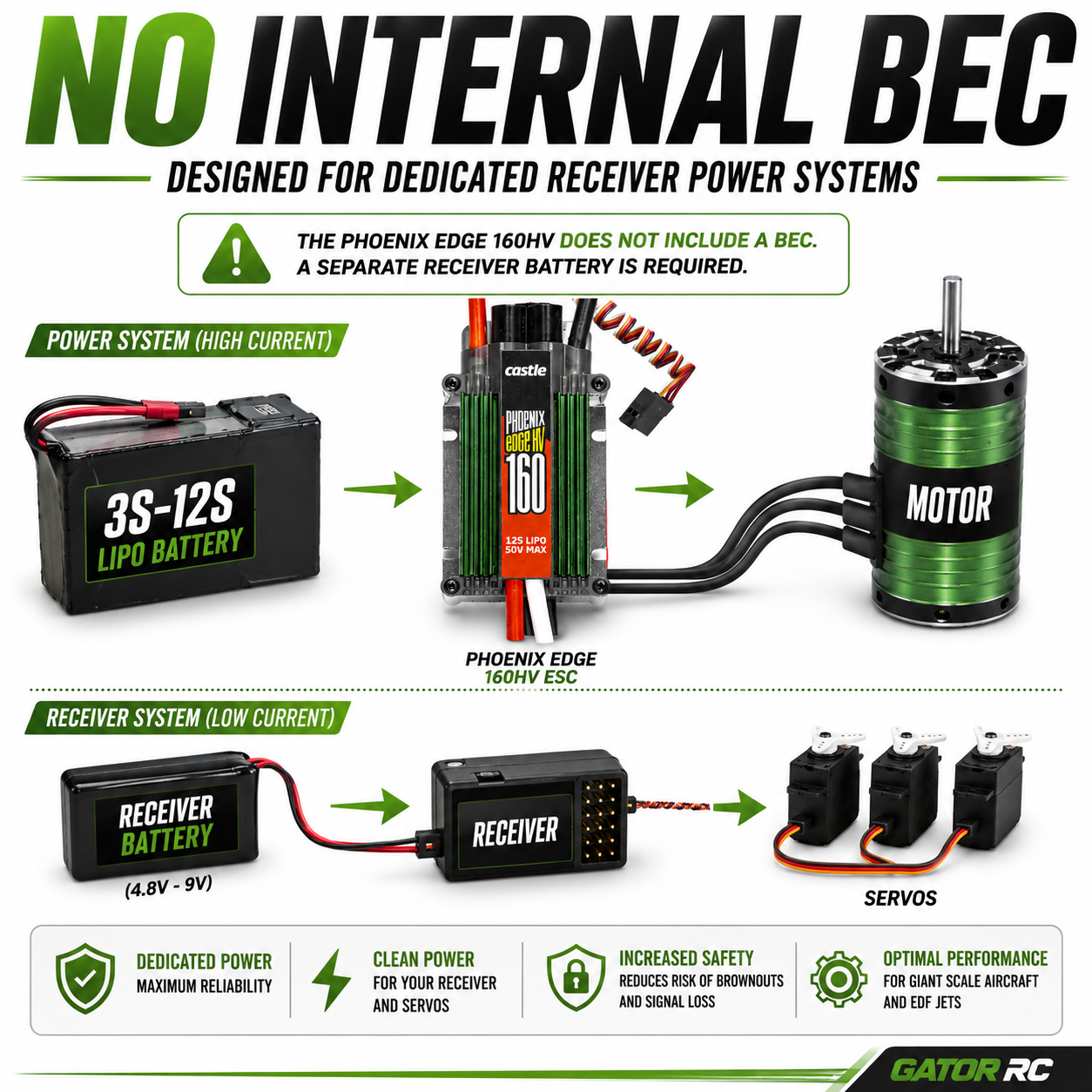

⚠ Important Opto ESC Operation Note: This unit does not include a BEC. A separate external receiver power source (such as a dedicated receiver battery pack or a high-voltage external BEC) is required to power your electronics. Battery and motor connectors are sold separately.

Key Features

  • Airflow-Optimized Ampacity: Delivers up to 160A continuous current when paired with a clean 5 mph cooling airflow footprint under 3S–12S LiPo setups.

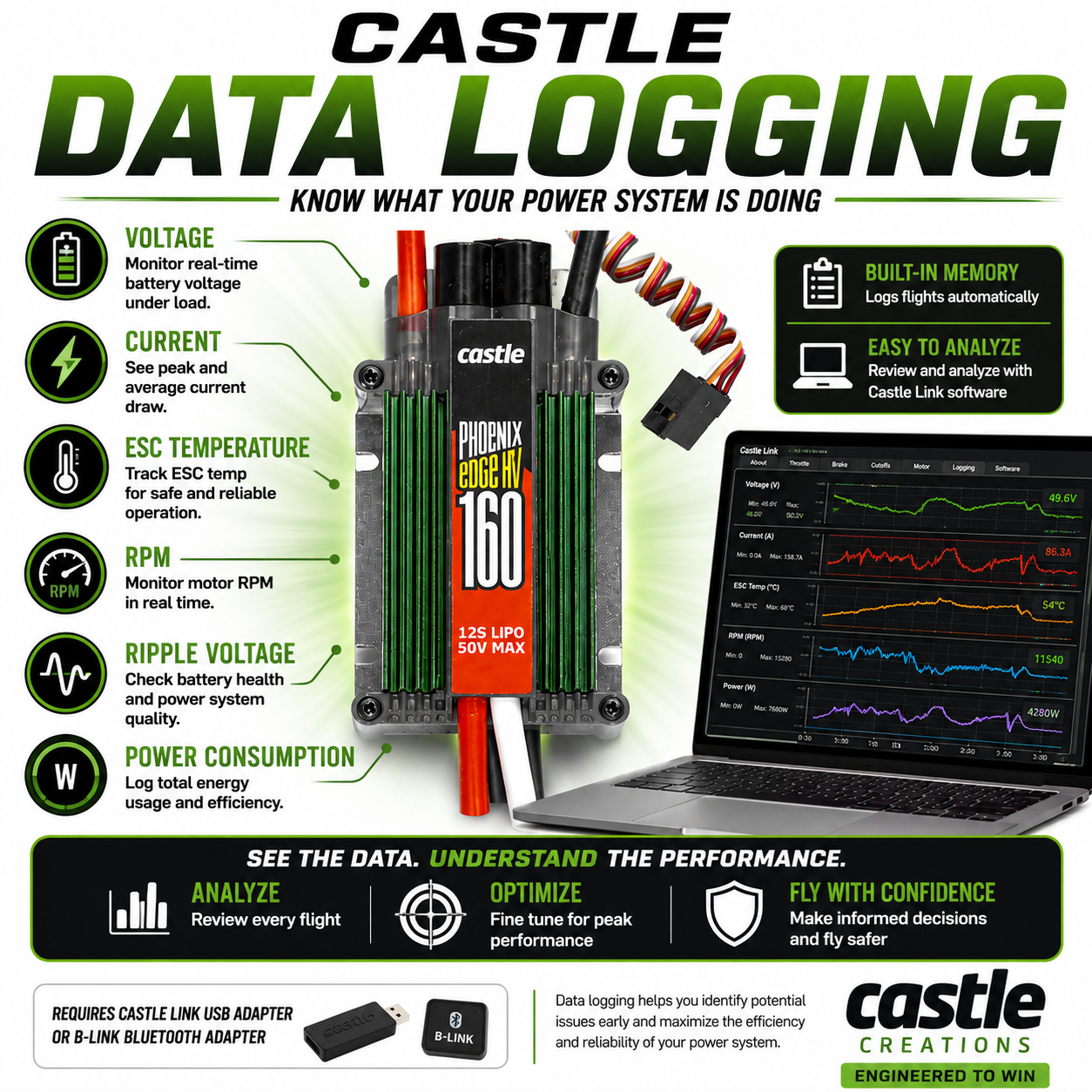

  • Integrated Data Logging: Records critical real-time power system data points internally for diagnostic post-flight bench analysis.
  • Telemetry Interface Capable: Outputs vital statistics including battery voltage, ESC operating temperatures, amp draw, and motor RPM to compatible radio systems (accessories sold separately).
  • Advanced Circuit Safety: Built-in safeguards including over-temperature protection, excessive load limits, locked-rotor/head speed detection, and an LED fault indicator.
  • Castle Link Expandability: Fully firmware upgradeable and USB programmable via Castle Link Windows software or iOS apps.

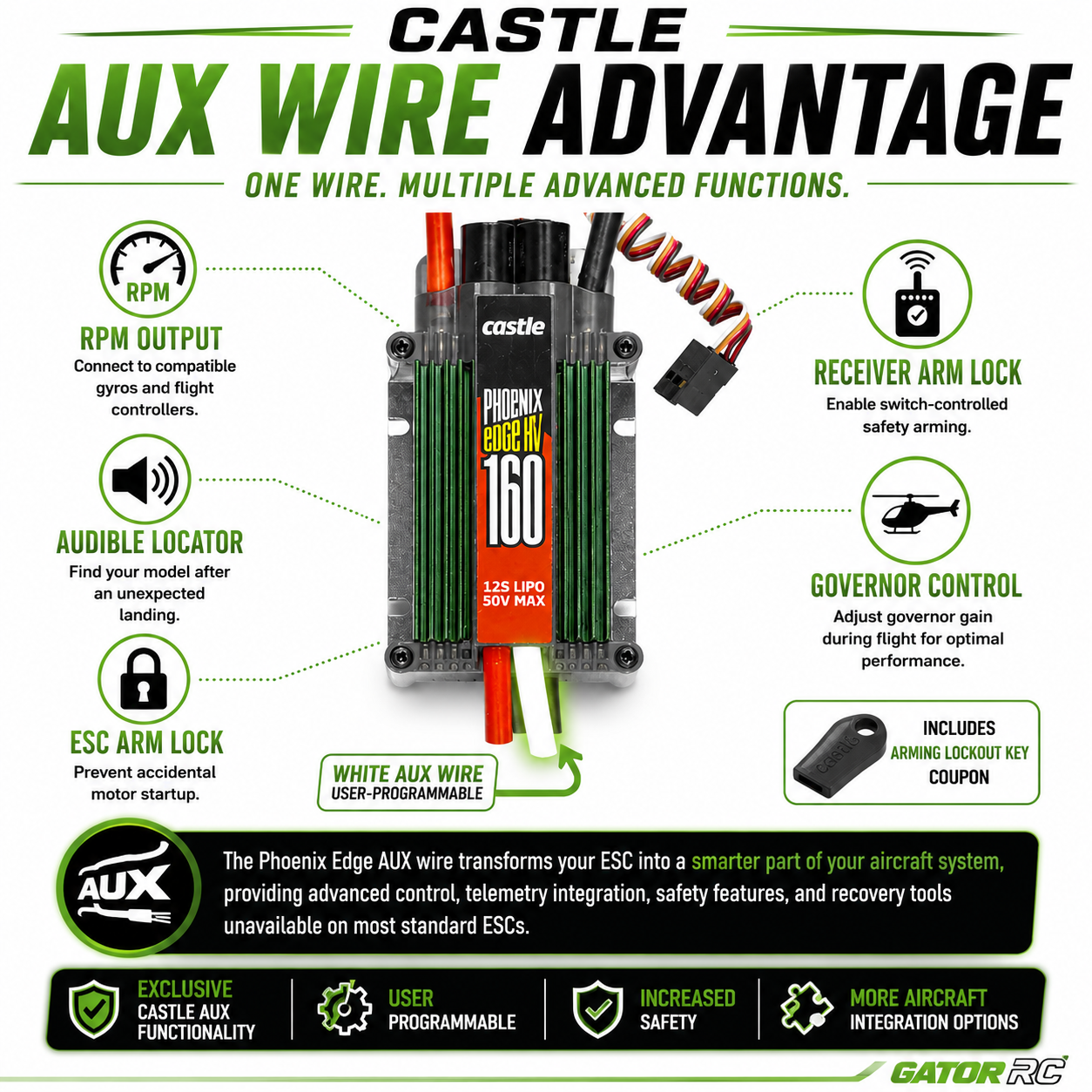

⚙ Castle AUX Wire Advantage:

The programmable auxiliary line adds custom functionality beyond standard multi-rotor and fixed-wing ESC operation. The AUX wire can be custom configured for:

  • In-flight governor gain adjustments
  • Audible locator beacon tracking after unexpected off-field landings
  • Direct RPM signal output for compatible flight controllers and 3-axis gyros
  • Receiver-controlled hardware arming lock (coupon for Arming Lockout Key included)

Programming Options

  • Castle Link USB Adapter: Full software suite programming via a Windows PC (coupon for free adapter included).
  • Mobile Devices: Compatible with the Castle Link iOS App using the B-LINK Bluetooth Adapter (sold separately).
View Technical Specifications
Continuous Current: 160A*
Input Voltage Range: 3S–12S LiPo
Maximum Input Voltage: 50.4V
BEC Output: None (External Receiver Power Required)
Telemetry Capable: Yes
Data Logging: Yes
Receiver Voltage Range: 4.8V–9.0V
Dimensions: 4.3 x 2.0 x 1.2 in (108.4 x 50.8 x 31.5 mm)
Weight (With Wires): 8.2 oz (232.8 g)
Weight (Without Wires): 5.3 oz (150.6 g)

*160A continuous rating achieved with approximately 5 mph airflow across the ESC at 25°C (77°F) ambient temperature.

📦 Package Includes:

  • 1 x Castle Phoenix Edge 160HV ESC
  • 1 x Castle Link USB Adapter Coupon
  • 1 x Arming Lockout Key Coupon
  • 1 x Detailed Instruction Documentation

💡 Modeler’s Tips

To achieve the specified 160A rating safely, ensure your aircraft's cowling has an active air duct or cooling scoop directed right over the ESC heatsink fins. If your airframe has restricted airflow internal areas, consider mounting the ESC closer to the forward fire wall or reducing continuous full-throttle loading cycles.
