Gator RC Large Nylon Pin Hinges - L20mm x W36mm (10 or 30 Pack)

In stock
SKU: GRC-HIN-32
(0)
$4.55
Pack Size

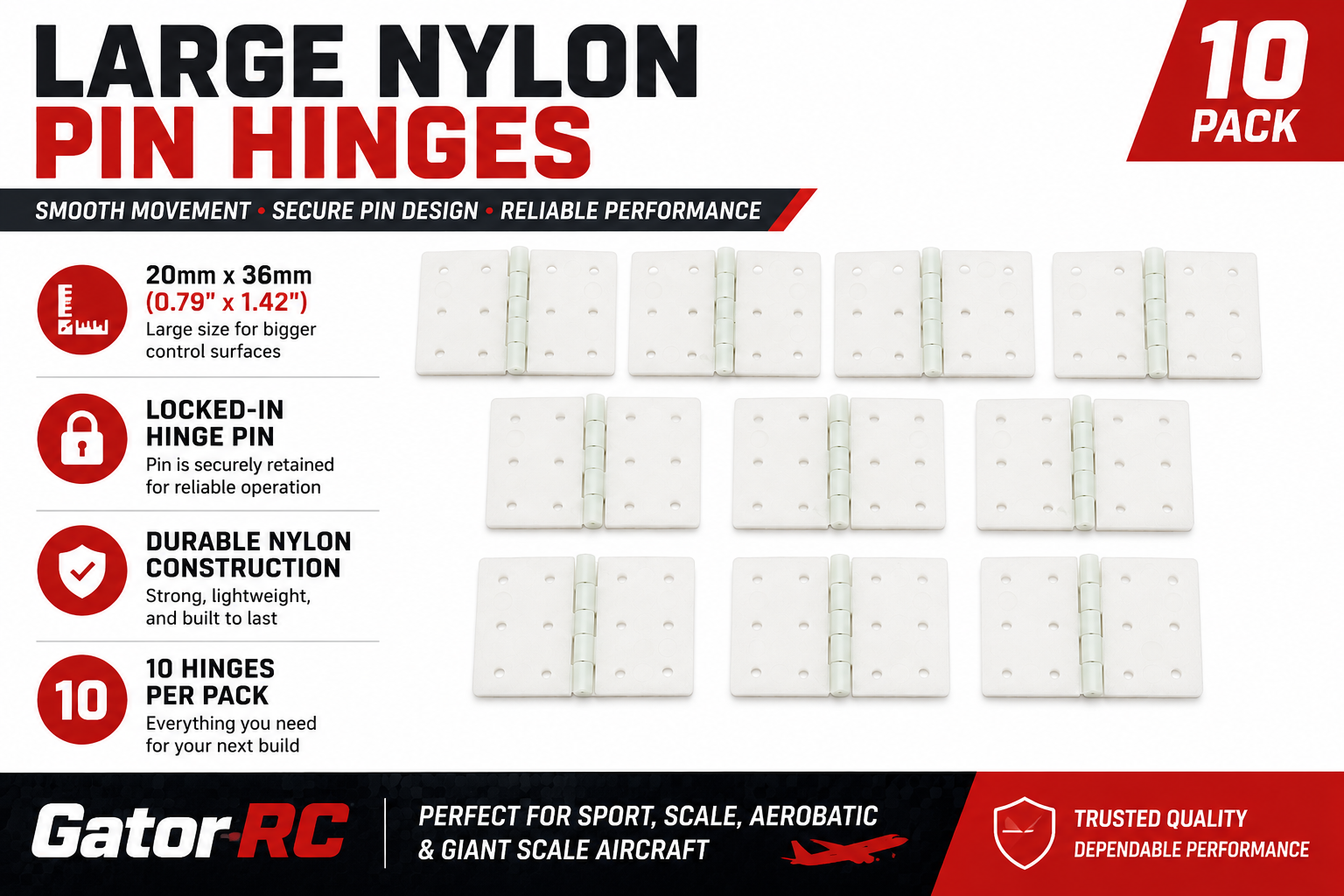

Gator RC Large Nylon Pin Hinges (L20mm x W36mm)

The Gator RC  Nylon Pin Hinges are precision-molded hinges designed for larger RC aircraft control surfaces. Featuring a durable nylon construction and a permanently retained hinge pin, these hinges provide smooth movement, reliable control response, and long service life.

The large 20mm length x 36mm width size makes them ideal for ailerons, elevators, rudders, flaps, and other control surfaces found on sport, aerobatic, scale, and giant-scale aircraft. Multiple mounting holes on each side provide excellent glue adhesion and secure installation in wood, composite, and many foam aircraft applications.

📦 Available Pack Configurations:

Select your preferred quantity from the drop-down menu above based on your workbench project scale:

  • 10-Pack (Standard): Perfect for basic control surface repairs or single tail/aileron overhauls.

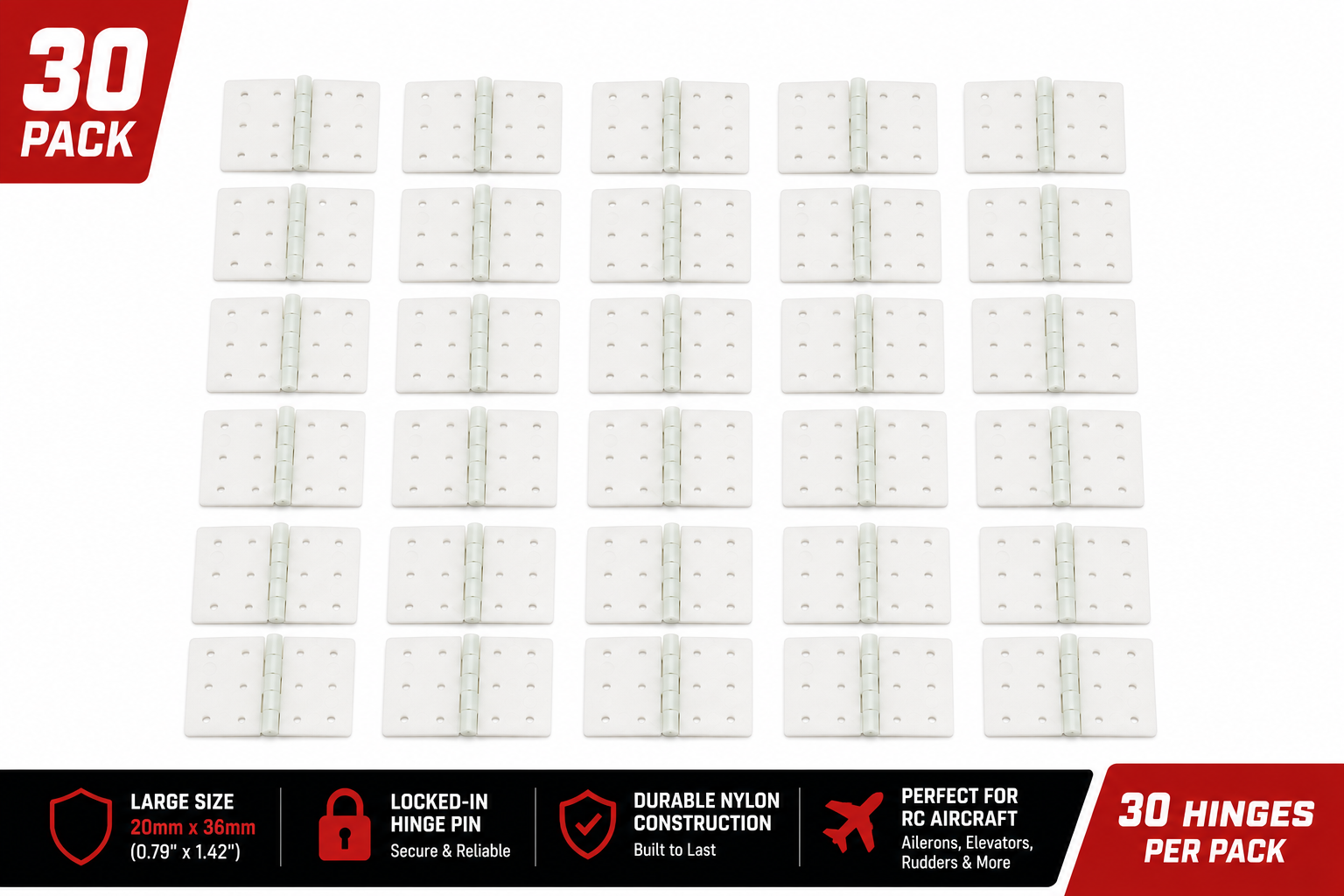

  • 30-Pack (Giant-Scale Builder - Save 12%): Highly recommended for full-airframe builds (50cc–100cc+ class models) requiring extensive hinge paths across split-flaps, dual elevator halves, and complex tracking surfaces.
⚠ Sizing & Installation Note: Formed to strict factory dimensions of **20mm length (L20) x 36mm total width (W36)**. Always test-fit your hinge slots on a scrap piece of balsa or foam before slicing your main control surface trailing edges to ensure a perfectly straight, bind-free pivot line.

Key Features

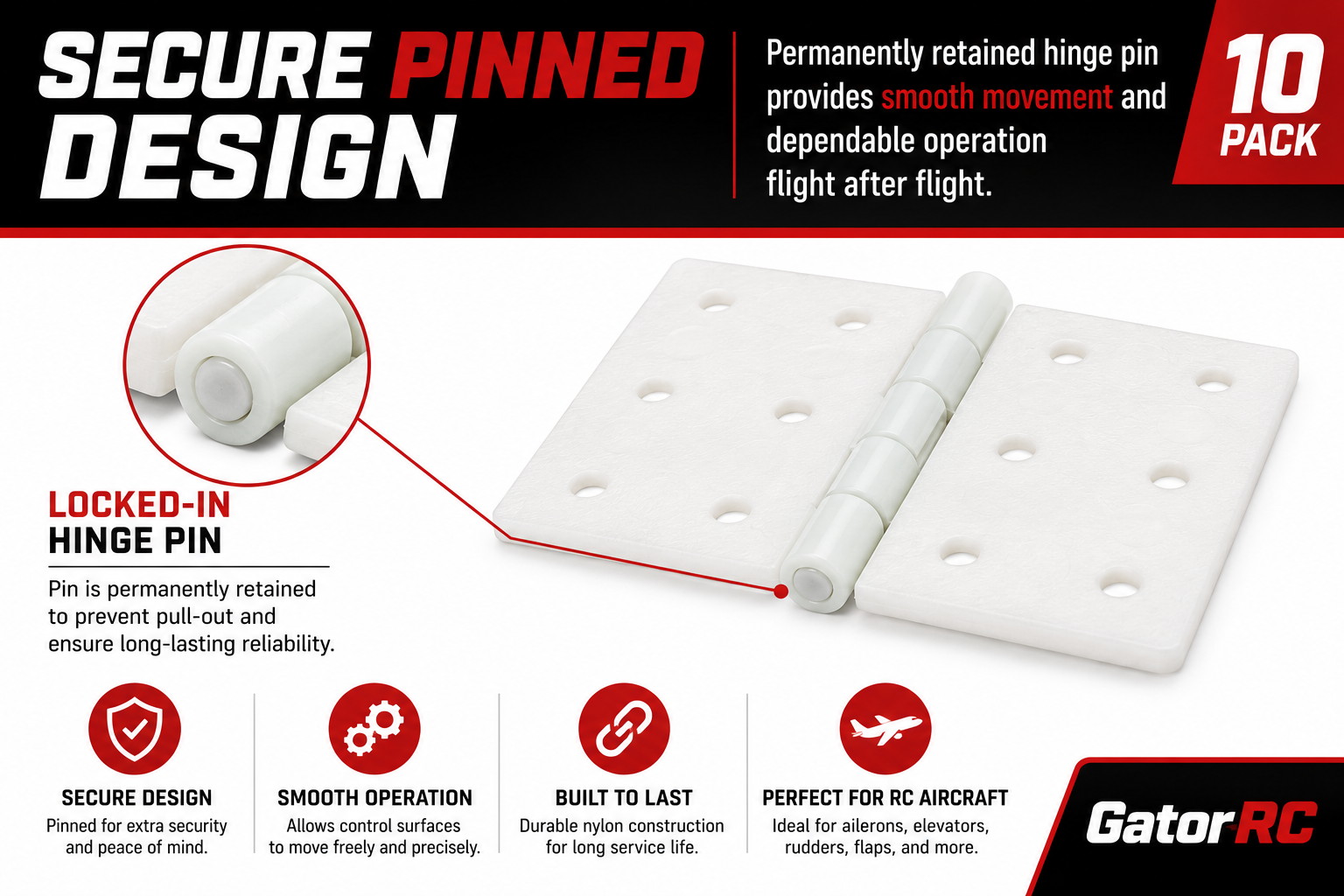

  • Locked-In Hinge Pin: Features a permanently retained, mechanical pivot pin axle that cannot walk out or slide loose under heavy aerodynamic flight loads.
  • Maximized Adhesive Matrix: Outfitted with multiple molded anchor holes on both hinge leaves to allow epoxy or polyurethane glue to form a high-strength physical bridge.
  • Premium Molded Nylon: Crafted from structural white nylon material that provides exceptional flex endurance and wear resistance over hundreds of flying seasons.
  • Symmetric Double-Leaf Build: Flat, low-profile leaf blades slide cleanly into standard centerline trailing-edge hinge slots without distorting scale lines.
  • Flexible Project Scaling: Available in bulk quantity combinations to supply standard club flying requirements or complete multi-servo giant-scale airframes.
View Technical Specifications
Hinge Mechanical Style: Pinned Double-Leaf / Matrix-Hole Anchoring
Factory Part Number: 008-00202
Component Material: Precision Molded Heavy-Duty Nylon
Hinge Length (L): 20mm (0.79")
Hinge Width (W): 36mm (1.42")
Hinge Pin Security: Permanently Retained / Locked-In Pivot Pin
Physical Component Color: Semi-Opaque White
Available Options: 10-Pack (Standard) or 30-Pack (Giant-Scale Builder Pack)

📦 Package Includes:

  • Gator RC Nylon Pinned Hinges (Supplied strictly in chosen 10-count or 30-count quantities)

💡 Modeler’s Tips & Installation

Before epoxying these hinges into your model's trailing edges, apply a tiny drop of light machine oil or petroleum jelly directly to the center pin pivot knuckle. This prevents stray epoxy from wicking into the hinge joint and freezing the mechanism. Use 30-minute slow-curing epoxy or polyurethane glue so the adhesive can squeeze cleanly through the molded holes, creating a series of solid rivets inside the wood framing once cured.
