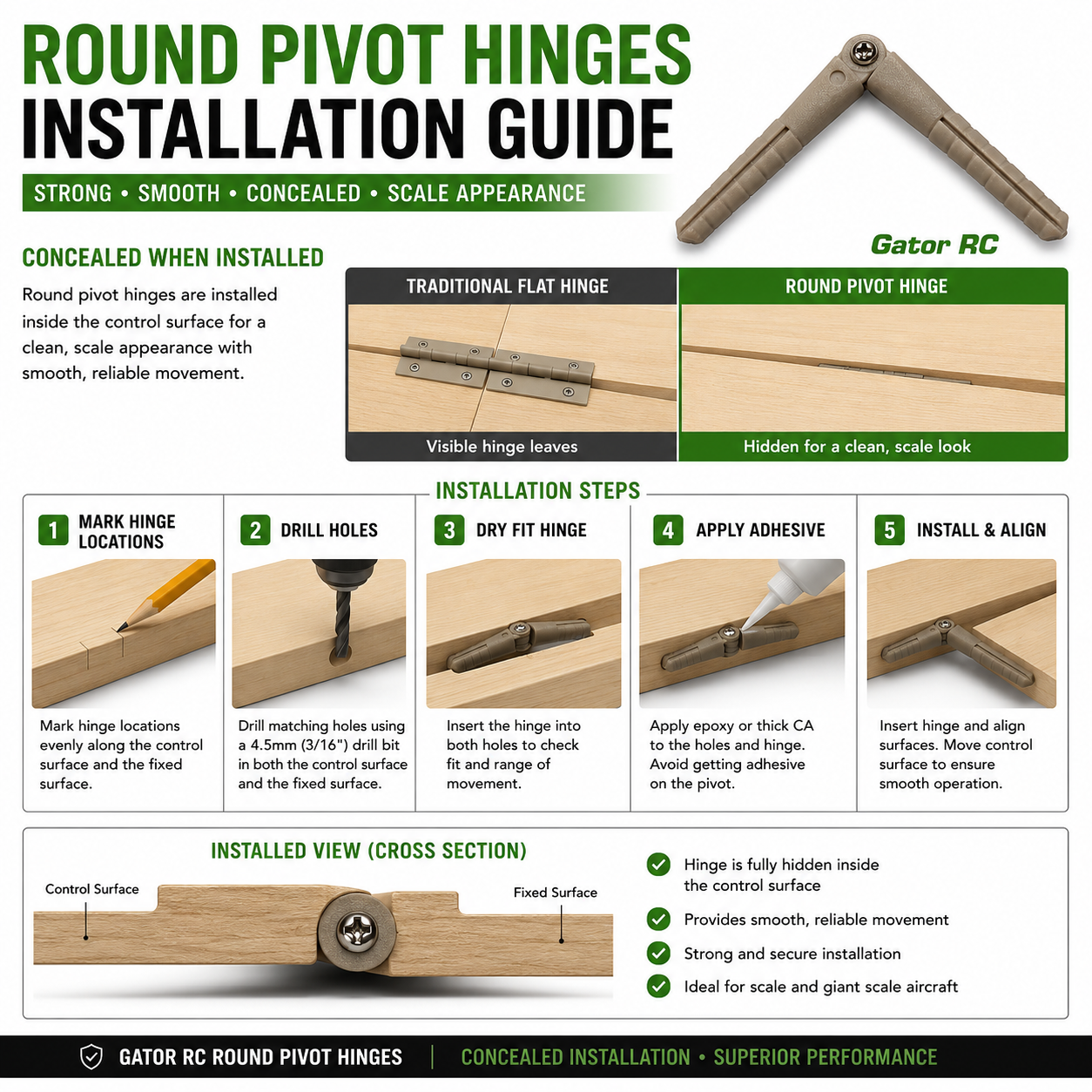

Installation guide for Gator RC round pivot hinges with step-by-step instructions and before/after comparisons.
Gator RC Round Pivot Hinges
Installation guide for Gator RC round pivot hinges with step-by-step instructions and before/after comparisons.
Gator-RC

Gator RC Round Pivot Hinges, 4.5mm × 67mm (3/16" × 2.64"), 15 Pack

In stock
SKU: GRC-HIN-34
(0)
$7.95

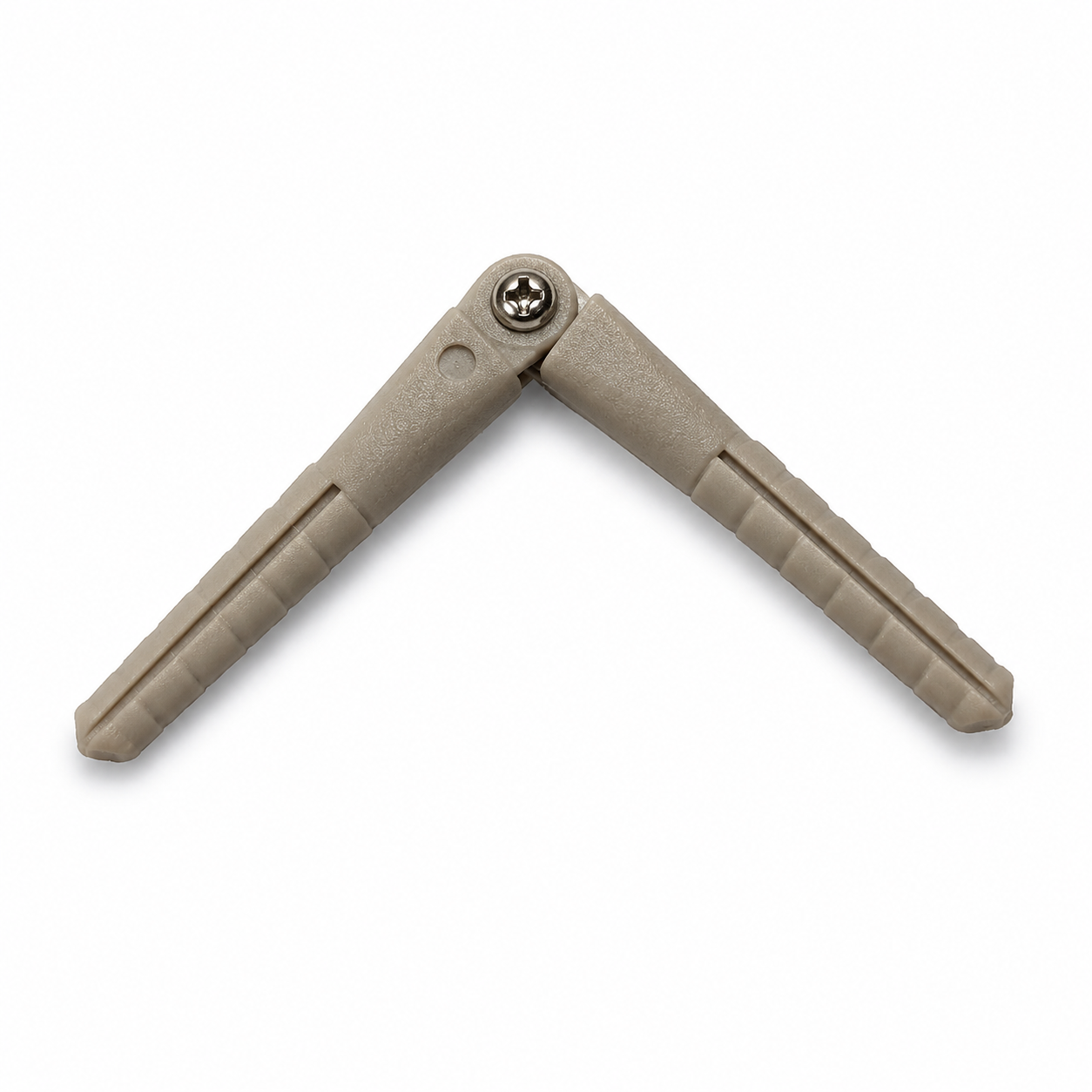

Gator RC Round Pivot Hinges (4.5mm / 3/16" – 15 Pack)

The Gator RC Round Pivot Hinges provide smooth, reliable control surface movement while remaining virtually hidden after installation. Their round-profile design is ideal for builders who want a clean, scale appearance without exposed flat hinge leaves.

Each hinge features durable molded nylon construction with a precision steel pivot pin for smooth operation and long service life. The ribbed body provides excellent mechanical grip with epoxy or other suitable adhesives for a secure installation in wood, composite, and many foam aircraft applications.

🚀 Target Applications:

  • High-load main control surfaces including ailerons, elevators, and rudders
  • Functional scale drop flaps, Fowler flaps, and trailing edge flight surfaces
  • Heavy-duty balsa wood framing, full composite hulls, and pocket-hinged wings
  • Sport models, high-performance IMAC aerobatic planes, and giant-scale warbirds
⚠ Sizing & Pocket Alignment Note: Formed to strict structural dimensions of 4.5mm (3/16") shaft diameter and a 67mm (2.64") overall length. Always ensure you drill your hinge pockets perfectly straight along the centerline hinge line axis using a drilling jig to prevent control surface binding or offset steps.

Key Features

  • Concealed Round Profile: Pocket-driven cylindrical shape completely hides the hinge leaves inside the control surface blocks, ensuring pure scale fidelity.
  • Ribbed Anchoring Spikes: Molded with aggressive, concentric ridges along both barb shafts to trap epoxy or polyurethane glue for an unshakeable mechanical lock.
  • Precision Steel Hinge Pin: Center pivot core utilizes a high-tensile steel pin to deliver silky smooth, low-friction articulation under extreme aerodynamic pressures.
  • Durable Molded Nylon: High-grade structural gray nylon handles extreme cyclic flex fatigue without fracturing, stretching, or loosening over seasons of hard flying.
  • Complete 15-Pack Value: Generous pack quantity provides enough individual point hinges to overhaul a massive multi-point rudder or full 4-servo wing setup from one kit.
View Technical Specifications
Hinge Mechanical Style: Cylindrical Round Pivot Hinge / Ribbed Barb Shank
Component Materials: Molded Structural Nylon / Steel Pivot Core Pin
Shaft Outer Diameter: 4.5mm (3/16")
Overall Hinge Length: 67mm (2.64")
Hingeline Footprint: Virtually Hidden / Concealed After Pocket Insertion
Physical Hardware Color: Industrial Gray Finish
Retail Package Quantity: 15 Complete Round Pivot Hinges per package

📦 Package Includes:

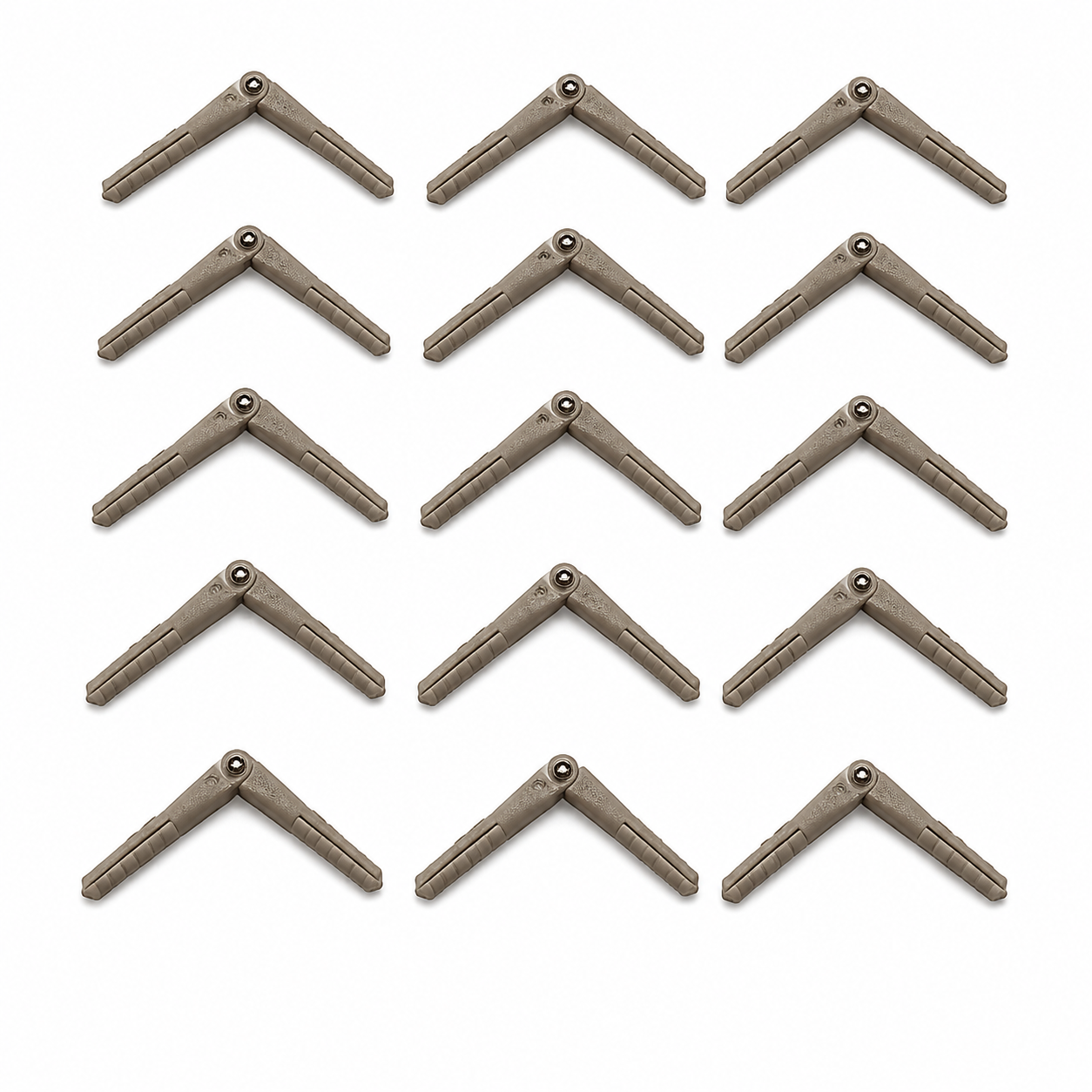

  • 15 x Gator RC Round Nylon Pivot Hinges (4.5mm)

💡 Modeler’s Tips & Installation

To prepare your balsa or composite leading edges, drill a 4.5mm pilot pocket hole slightly deeper than half the length of one hinge barb side. Before epoxying the barbs into place, apply a tiny drop of light oil or petroleum jelly directly to the center steel knuckle to prevent trailing glue from wicking into the pivot pin track. Use a slow-curing 30-minute epoxy so the adhesive completely sets around the ribbed grooves inside the trailing edge blocks, forming solid internal anchors once cured.
