Gator RC 3-Port Aluminum Air Control Valve – 2-Way Pneumatic Retract Valve

Gator RC 3-Port Aluminum Air Control Valve for Pneumatic Retract Systems

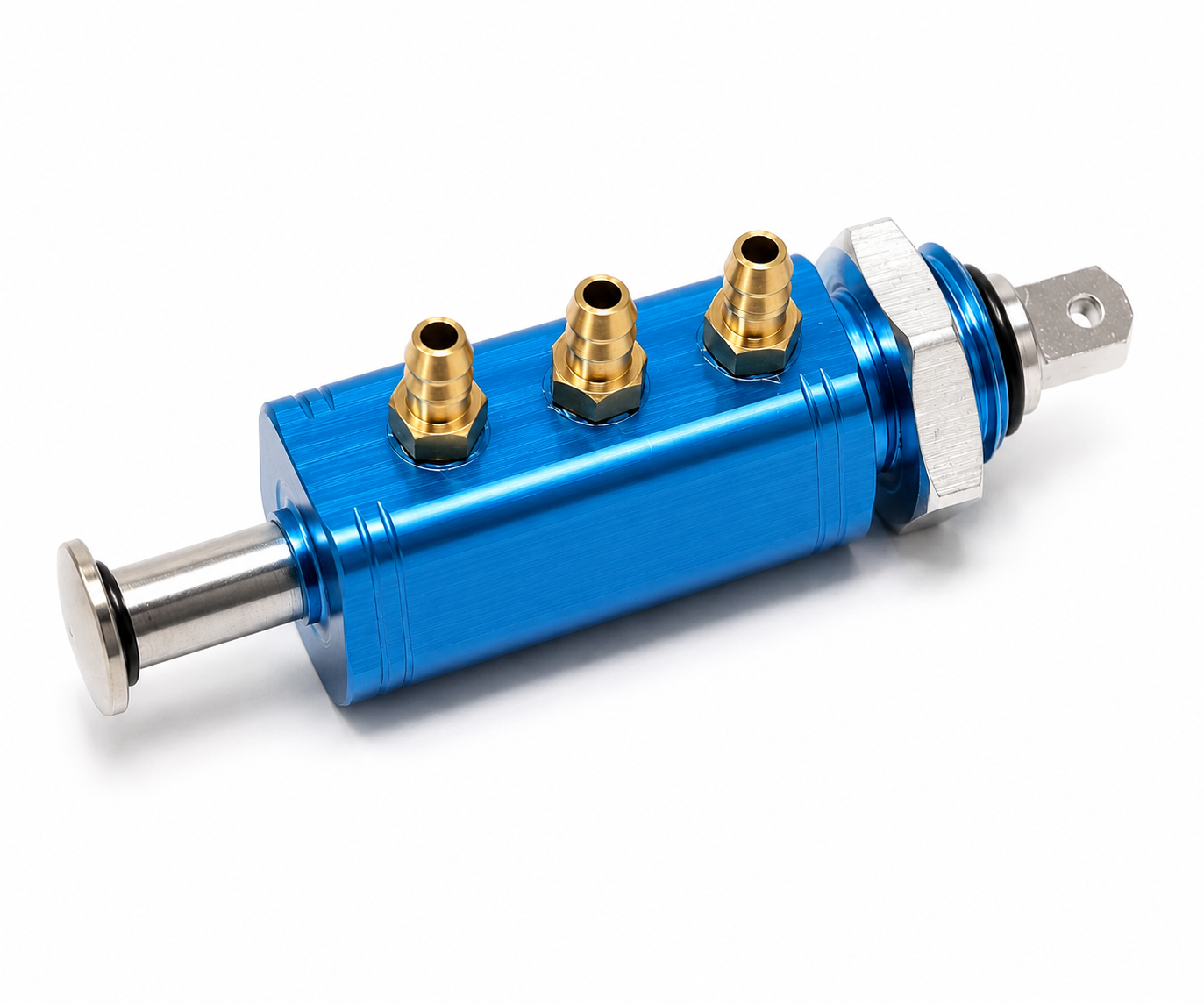

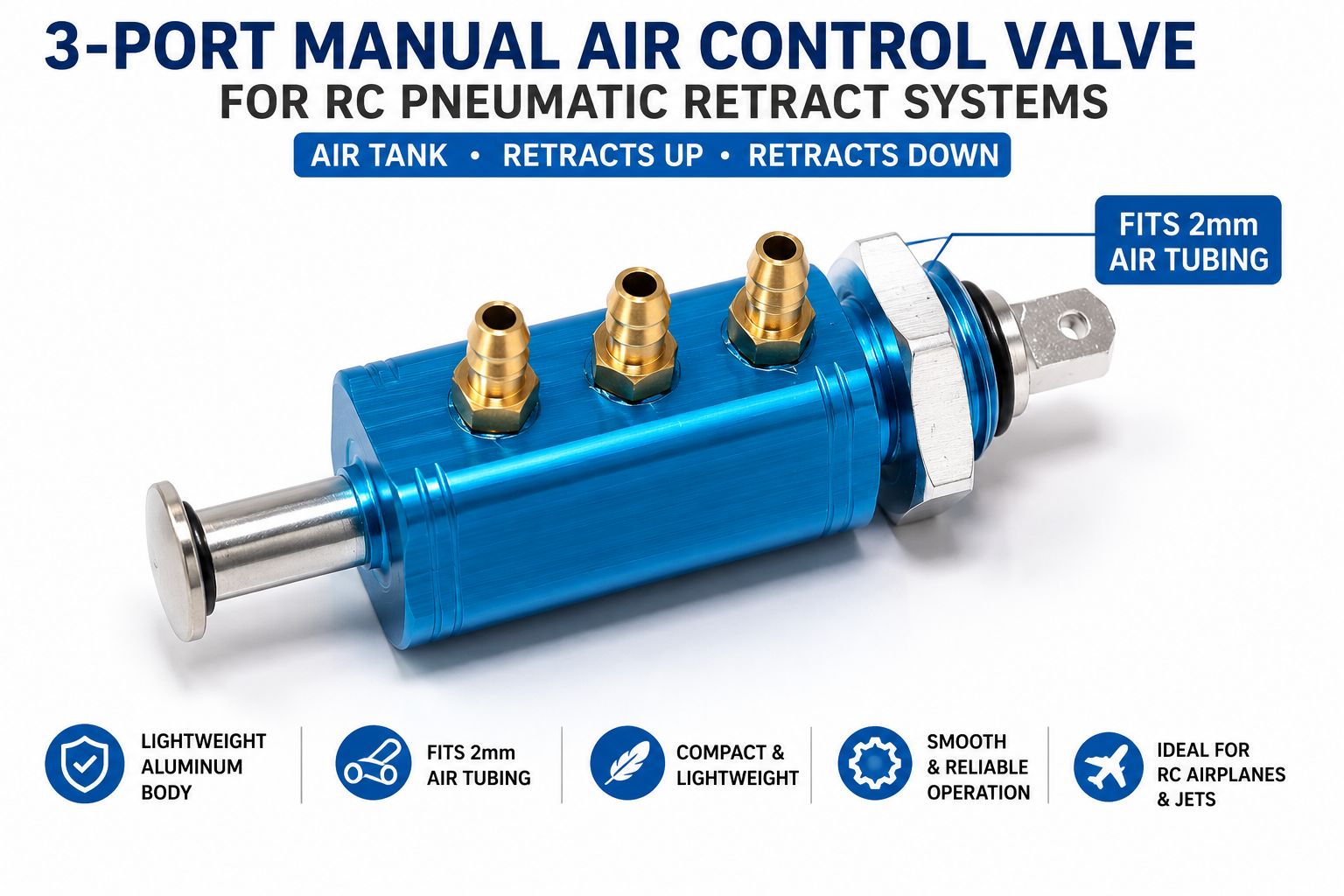

The Gator RC 3-Port Aluminum Air Control Valve is a compact 2-way pneumatic valve designed for RC airplane air systems using ID 2mm tubing. It is commonly used in pneumatic retract setups to help control air flow between an air tank and retract landing gear.

Built with a unibody aluminum housing, this lightweight blue air control valve is a useful replacement or setup component for RC jets, warbirds, and scale airplanes using air-operated retract systems.

Key Features

• 2-way, 3-port aluminum air control valve
• Designed for ID 2mm pneumatic tubing
• Useful for RC pneumatic retract systems
• Compact unibody aluminum housing
• Lightweight blue anodized finish
• Suitable for RC jets, warbirds, and scale aircraft with air retracts
• Simple replacement part for custom air system setups

Specifications

• Product Type: 2-Way / 3-Port Air Control Valve
• Material: Aluminum
• Construction: Unibody Aluminum Housing
• Color: Blue
• Tubing Compatibility: ID 2mm Air Tubing
• Dimensions: 45mm × 12mm × 12mm

Common Uses

• RC pneumatic retract systems
• Air-operated landing gear setups
• RC jet retract systems
• Scale warbird retract systems
• Custom RC air control applications

Package Includes

• 1 × 2-Way, 3-Port Aluminum Air Control Valve for ID 2mm Tubing

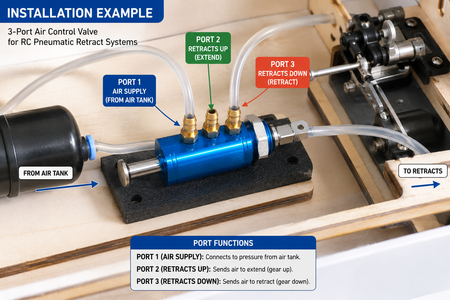

Installation Notes

Use this valve with compatible ID 2mm pneumatic tubing. Before flight, check all tubing connections for a secure fit and test the retract system for smooth operation and air leaks.

Modeler’s Tip

For best performance, keep air lines as short and direct as possible. Clean tubing runs help reduce pressure loss and improve retract reliability.
