ProSpin 2-Blade Bar-Stock Aluminum Spinner – Multiple Sizes (2.75" - 4.5")
Couldn't load pickup availability

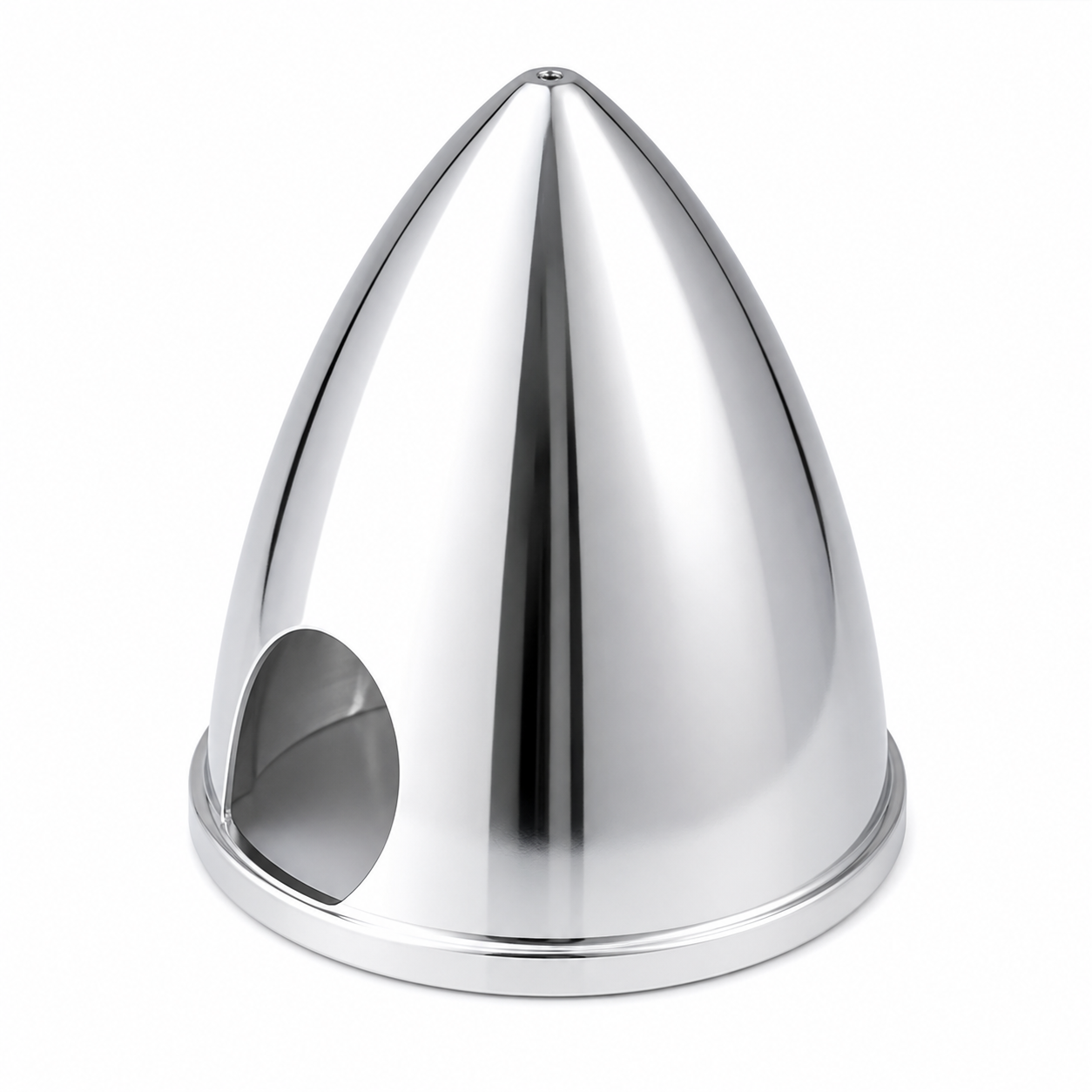

ProSpin 2-Blade Bar-Stock Aluminum Spinner
Give your RC airplane a clean, professional finish with a genuine ProSpin 2-blade aluminum spinner. Machined from high-quality aluminum bar stock, these spinners offer greater strength and lower weight than typical cast aluminum spinners.

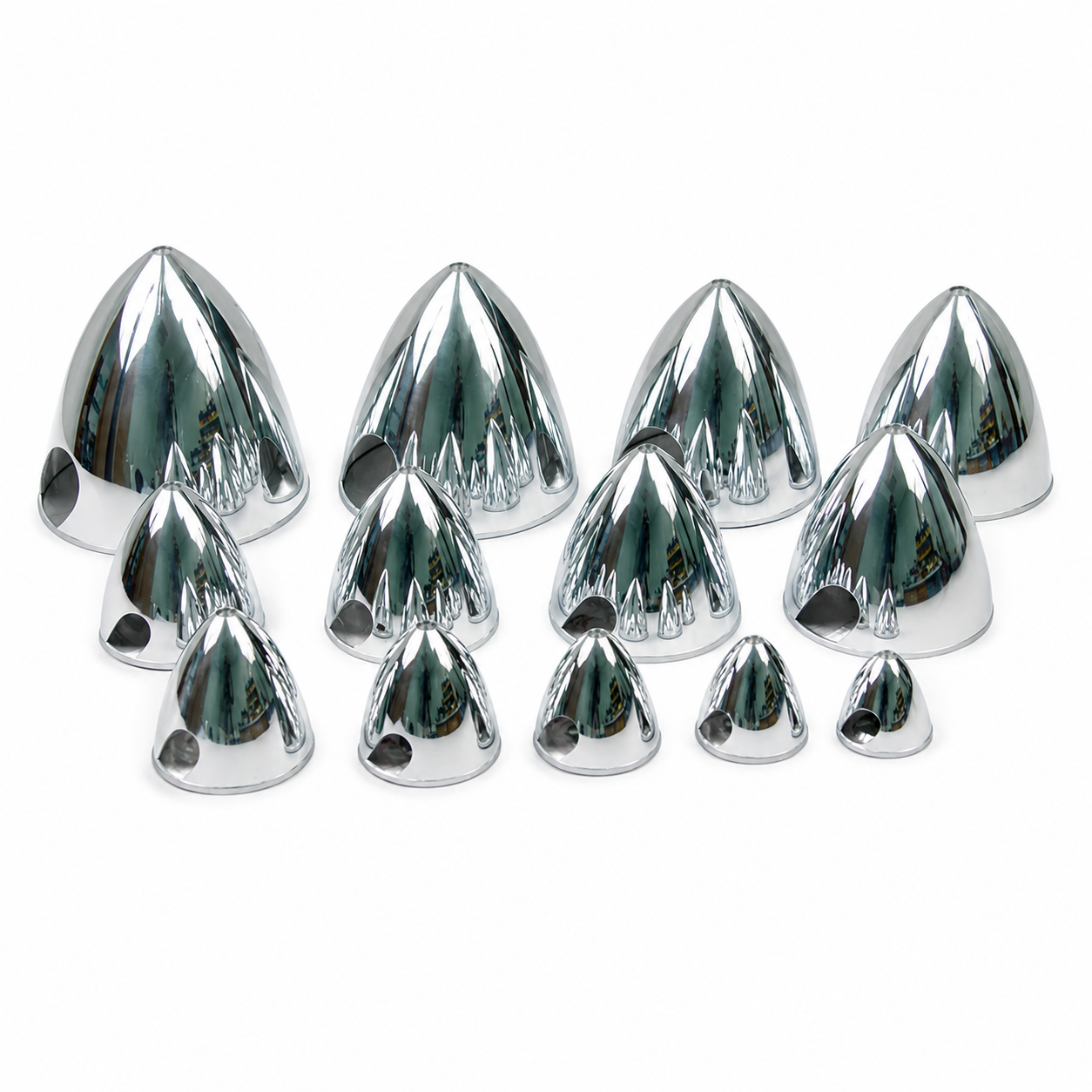

Available in diameters from 2.75 inches to 4.5 inches, allowing you to select the correct spinner size for your aircraft, propeller, and engine installation.
Please select your required spinner diameter before adding the product to your cart.
Features
- Designed for standard 2-blade propellers
- Machined from high-quality aluminum bar stock
- Stronger and less prone to cracking than inexpensive cast aluminum spinners
- Approximately 30% lighter than comparable cast aluminum spinners
- Polished brushed-aluminum finish
- Multiple diameters available for a wide range of RC aircraft
- Includes mounting hardware for the selected size
Size and Hardware Specifications
| Spinner Diameter | SKU | Included Prop Nut | Weight |
|---|---|---|---|
| 2.75 in (70 mm) | PS275 | 1/4"-28 | 2.6 oz (74 g) |
| 3.00 in (76 mm) | PS300 | 1/4"-28 | 3.0 oz (85 g) |
| 3.25 in (83 mm) | PS325 | 1/4"-28 | 3.4 oz (96 g) |
| 3.50 in (89 mm) | PS350 | 5/16"-24 | 5.0 oz (142 g) |
| 4.00 in (102 mm) | PS400 | 5/16"-24 | 5.2 oz (148 g) |
| 4.50 in (114 mm) | PS450 | 10 mm x 1.25 | 8.2 oz (233 g) |
Included
- One ProSpin aluminum spinner
- Spinner backplate
- Shaft bushing
- Prop nut appropriate for the selected size
- Spinner mounting bolt
Before Ordering
Verify both the spinner diameter and required prop-nut thread before ordering. The supplied prop nut varies according to the selected spinner size.
- 2.75, 3.00, and 3.25-inch spinners include a 1/4"-28 prop nut.
- 3.50 and 4.00-inch spinners include a 5/16"-24 prop nut.
- The 4.50-inch spinner includes a 10 mm x 1.25 prop nut.
Certain engines, including some Saito engines, may require a shaft bushing that is larger than the prop nut. A different prop nut or special bushing may need to be purchased separately depending on your engine and propeller installation.
Selecting the Correct Spinner
- Measure the required spinner diameter at the aircraft's cowling.
- Confirm that the spinner is intended for a 2-blade propeller.
- Verify your engine or motor shaft thread.
- Compare the required thread with the prop nut supplied for the selected variant.
- Confirm adequate clearance between the propeller blades and spinner openings before operation.
Spinner size refers to the outside diameter. Always verify your aircraft, propeller, engine, and shaft requirements before installation.
