ProSpin 10mm x 1.25 Prop Nut with 10mm Bushing (PN102)

ProSpin 10mm x 1.25 Prop Nut with 10mm Bushing

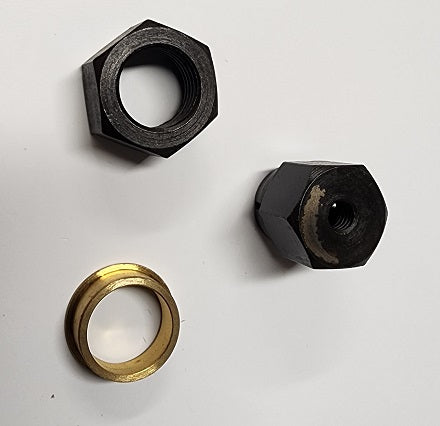

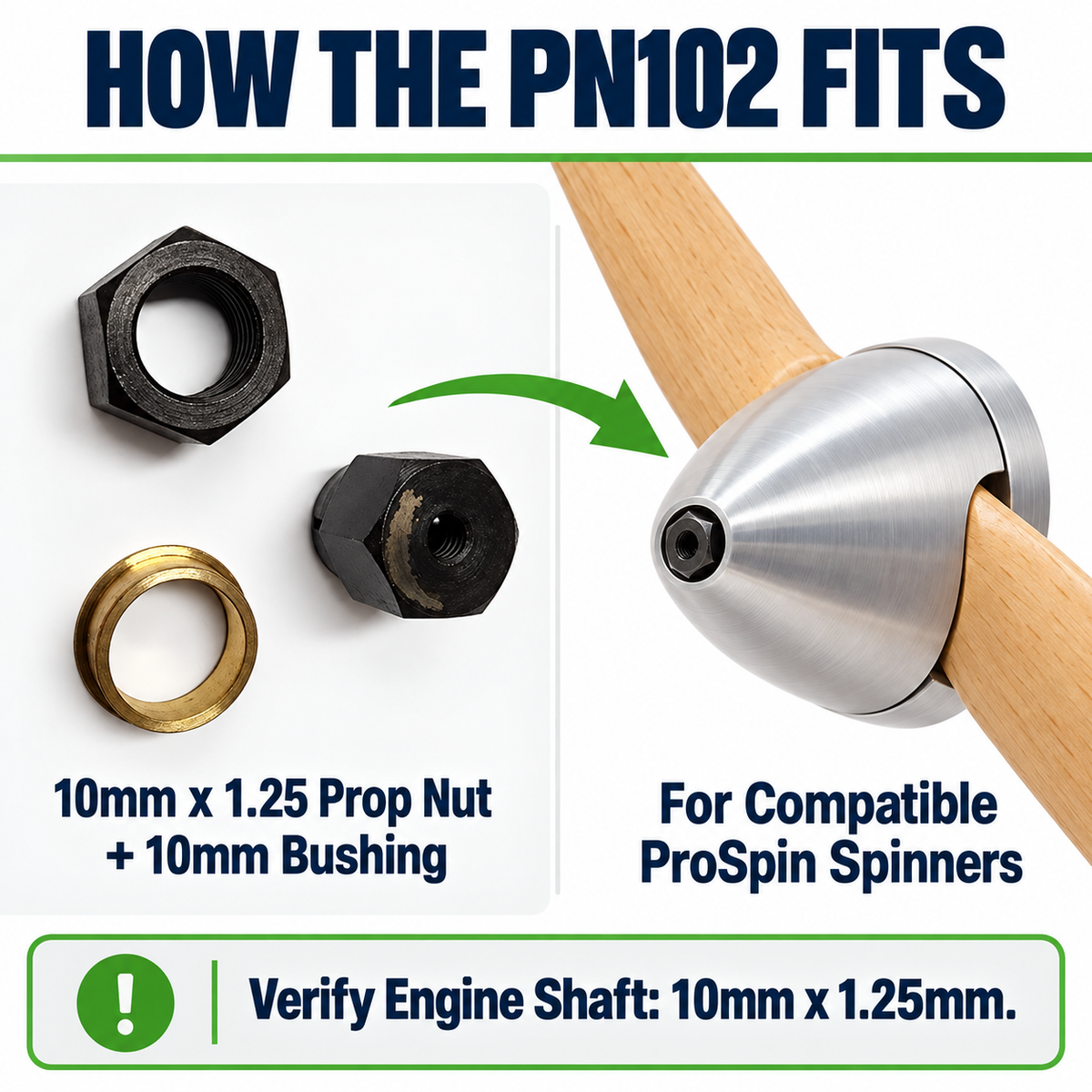

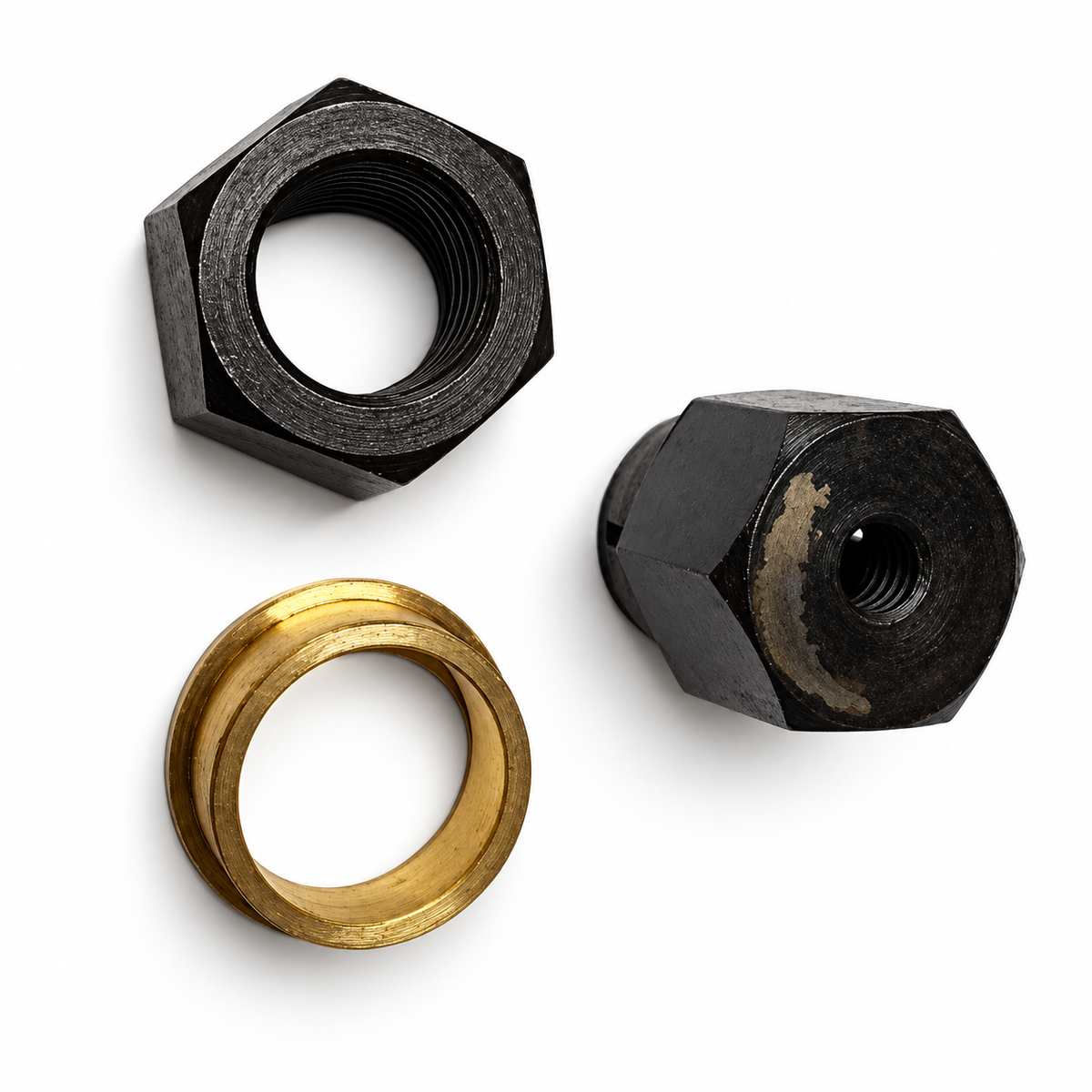

The ProSpin 10mm x 1.25 Prop Nut with 10mm Bushing is a replacement mounting set for compatible ProSpin aluminum spinner installations. It includes a prop nut with a 10 mm diameter and 1.25 mm thread pitch, along with a matching 10 mm bushing.

This is the standard prop nut size supplied with ProSpin 4-1/2-inch and 5-inch spinners. It may also be used when replacing the standard nut on another compatible ProSpin spinner, provided the engine or motor has a 10 mm x 1.25 mm threaded propeller shaft.

📏 ProSpin Spinner and Standard Prop Nut Guide

The table below shows the standard prop nut normally supplied with each ProSpin aluminum spinner size. If your engine uses a different shaft thread, a separately purchased replacement prop nut may be required.

Understanding the 10mm x 1.25mm Size

• 10 mm: Nominal thread diameter
• 1.25 mm: Distance between the metric threads
• 10 mm bushing: Matching bushing supplied with the prop nut

Thread diameter alone does not determine compatibility. ProSpin also offers a 10 mm prop nut with a 1.0 mm thread pitch, so the pitch must be checked carefully before installation.

Compatibility

This replacement component is intended for ProSpin spinner installations that require a 10 mm x 1.25 mm prop nut and a 10 mm bushing. Engine and motor shaft specifications may vary, including between models from the same manufacturer.

• Compatible thread: 10 mm x 1.25 mm
• Included bushing size: 10 mm
• Standard fitment: ProSpin 4-1/2-inch and 5-inch spinners
• Not compatible with 10 mm x 1.0 mm shafts
• Not a universal-fit prop nut
• Spinner and propeller are not included

Package Includes

• 1 x ProSpin 10mm x 1.25mm prop nut
• 1 x 10mm bushing

ProSpin spinner, propeller, engine, motor, and additional mounting hardware are not included.
