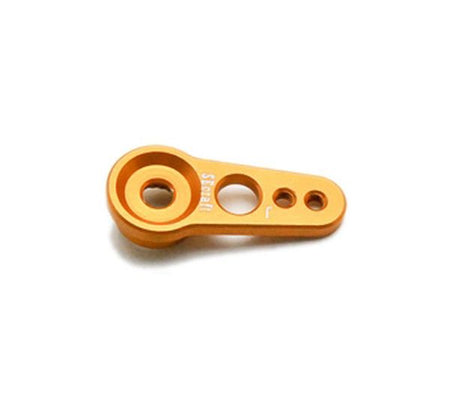

Secraft V1 Aluminum Servo Arm – 23T, Gold
The Secraft V1 Aluminum Servo Arm provides a lightweight, rigid connection for RC airplane control linkages. Made from 6061-T6 anodized aluminum, this gold servo arm measures 0.67" (17mm) and is designed for compatible JR and Spektrum servos with a 23-tooth output spline.
🚀 Target Applications / Ideal For:
- Precision RC airplane control surface linkages demanding slop-free geometry
- High-load mini or standard servo bays where carbon or plastic arms could flex under torque loads
Key Features
- 6061-T6 Aluminum Construction: Machined from premium structural alloy to resist twisting and deflection under continuous control loads.
- 23-Tooth Precision Spline: Engineered to provide a secure, non-slip mating lock over standard 23T JR and Spektrum output shafts.
- Lightweight Single-Arm Profile: Tips the scales at a nominal 0.035 oz (1g) to minimize excessive weight in compact radio bays.
- Anodized Gold Finish: Protective hard-anodization shield guards raw aluminum faces against workbench corrosion and atmospheric weathering.
📋 Technical Specifications
| Series | Secraft V1 |
|---|---|
| Arm Size (Length) | 0.67" (17mm) |
| Spline Output Count | 23T (23-Tooth Pattern) |
| Linkage Screw Thread Size | 2mm |
| Material Composition | 6061-T6 Anodized Aluminum |
| Anodizing Color | Gold |
| Product Weight | Approximately 0.035 oz (1g) |
📦 What's Included:
- 1 × Secraft V1 Aluminum Servo Arm (23T, Gold, 17mm)
💡 Modeler's Installation and Setup Guide
Center your servo electronically using your radio system or dedicated programmer before threading the arm onto the output spline. Slide the aluminum arm squarely into position and anchor it tightly using your factory servo shaft bolt. Always use an appropriate medium-strength thread-locking compound on metal-to-metal screws to protect linkages against mechanical engine vibration.
